Southern Plan 348-00115


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,050
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 50'
Depth 86'

Floorplan Drawings

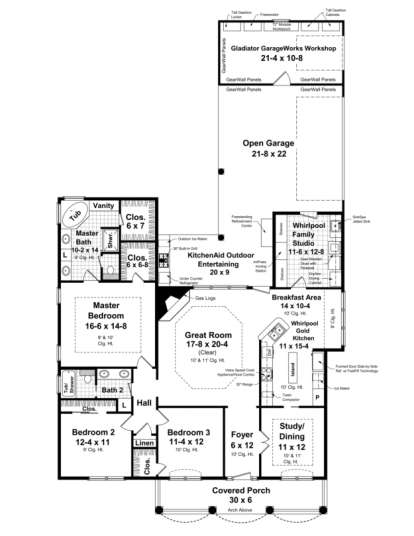

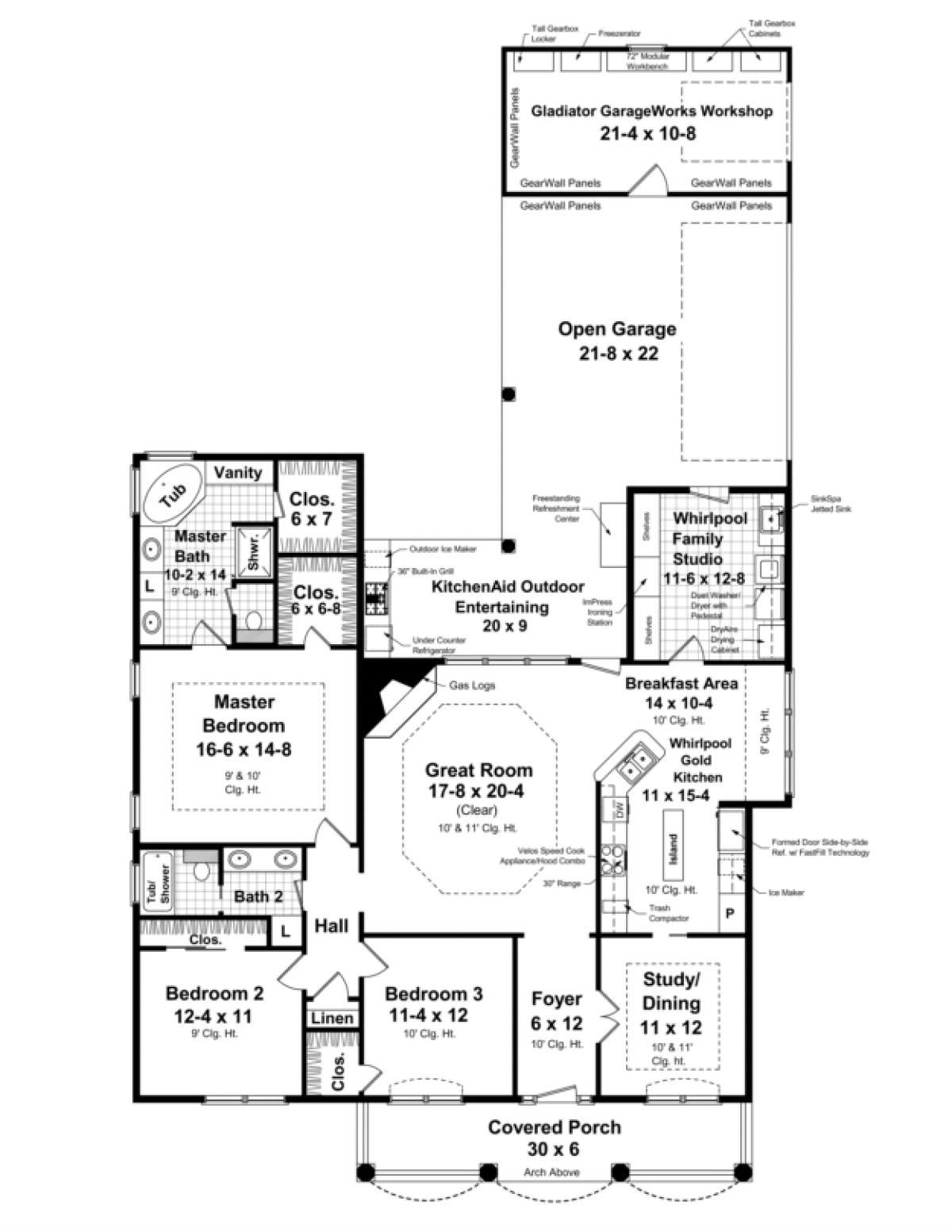

Main Floor
Main Floor for House Plan #348-00115

What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering of residence.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.
  • Foundation Plan and Details
    Each house plan set includes one foundation type.
    Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Slab: Most of our plans reflect a "raised slab" which consists of a chainwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
    -Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.
    -Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan
    In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

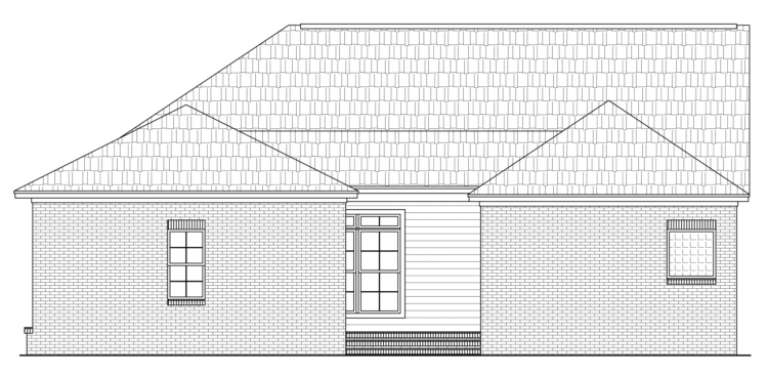

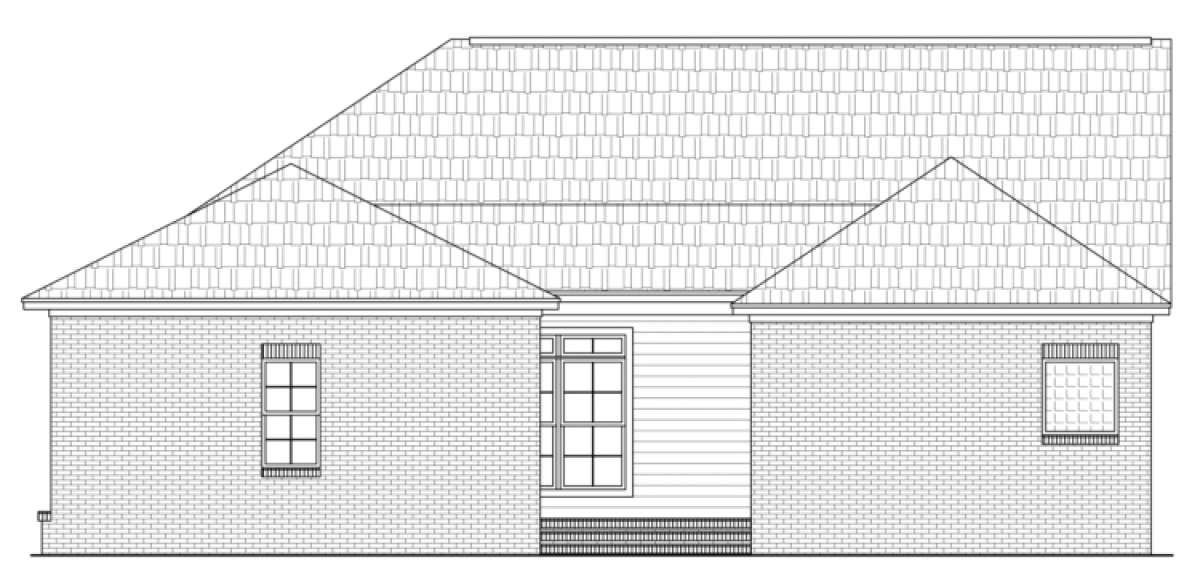

  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Interior Elevations
    Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • License to Build
    Each set of construction plans include ONE license to build.
  • If you would like to build multiple houses from one set of plans, please contact us to obtain pricing for a multi-use license.
    Plans include relevant building sections and details.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This home is perfect for the family that values outdoor space and plenty of storage. The front covered porch is expansive and once you step into the foyer the massive rear outdoor space is visible. The great room anchors the two outdoor spaces and comes with a beautiful trey ceiling and gas log fireplace. The rear covered porch is 20'x9' and has an outdoor kitchen great for entertaining. Off the foyer at the front of the home is space for either a formal dining room or study which has a trey ceiling. The kitchen and breakfast room includes a large island and corner raised bar and has access to a large utility room which is the size of some bedrooms and can be utilized for so much more than just laundry. There are three bedrooms, two of which have large closets and a shared bath with dual vanities. The master suite includes a trey ceiling in the bedroom, his and her walk-in closets and a bath with jetted tub, separate shower area, dual vanities and a separate vanity area along with a compartmentalized toilet. The two car, side entry garage is massive affording you plenty of room for large vehicles and comes complete with another oversized workshop which measures over 21'x10'. This home is so versatile and accommodating for a large and busy family.
