Luxury House Plan 341-00286

Sq Ft4,952
1/2 Baths1
Width95' 0"
Depth75' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #341-00286
Floorplan 2 for House Plan #341-00286
Floorplan 3 for House Plan #341-00286
Floorplan 1
Floorplan 1 for House Plan #341-00286
Floorplan 2
Floorplan 2 for House Plan #341-00286
Floorplan 3
Floorplan 3 for House Plan #341-00286

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation specs, and Washington State Energy Code compliance information.
  • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction, including footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Roof and Foundation Plan Sheet: The roof plan shows the location of all hips, ridges, valleys, dormers, overhangs, gutters, downspouts, roof pitches, structural members, vents, skylights, and all other roof features.  The foundation plan shows the layout and location of the crawl space, walk-out basement or slab foundation, along with all necessary notes, dimensions, and structural information.
  • Floor Plan Sheet: Floor plans are horizontal sections through each floor level of the home, usually at five feet above the floor, showing the location of interior and exterior walls, floors, stairs, doors, closets, cabinets, flooring, appliances, plumbing fixtures, posts and beams.

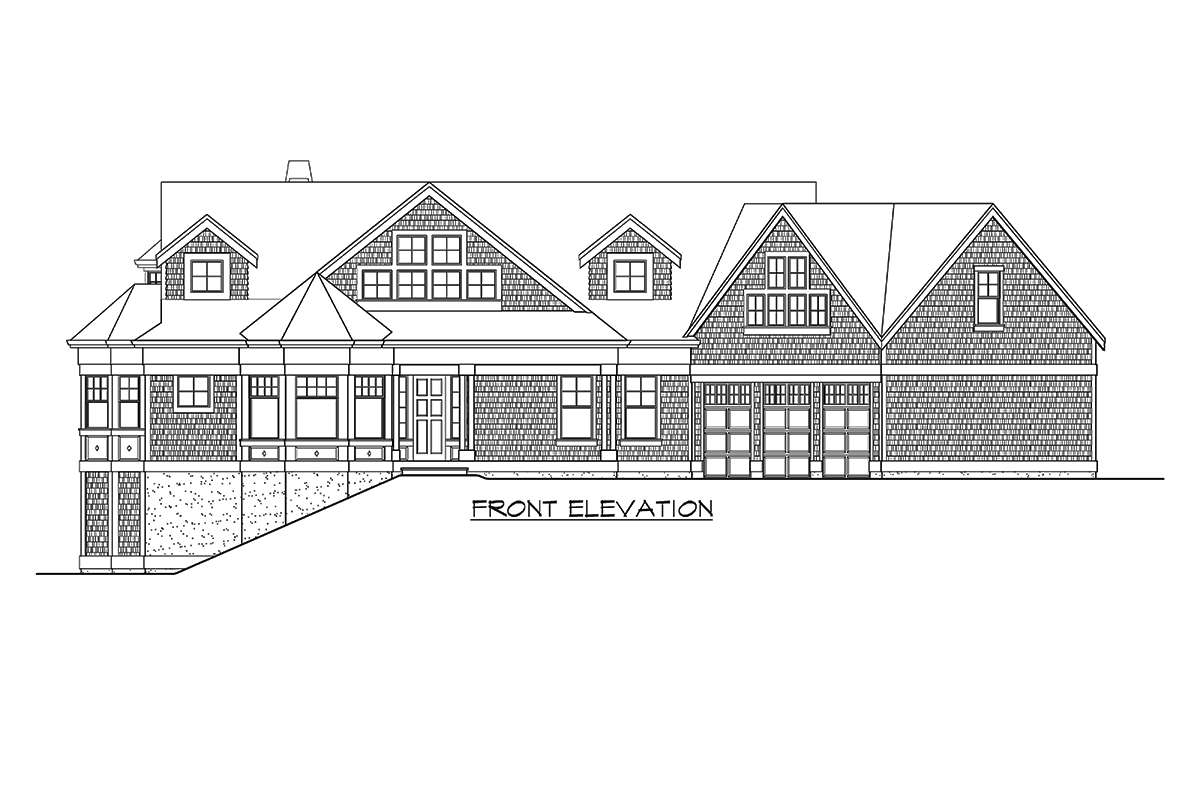

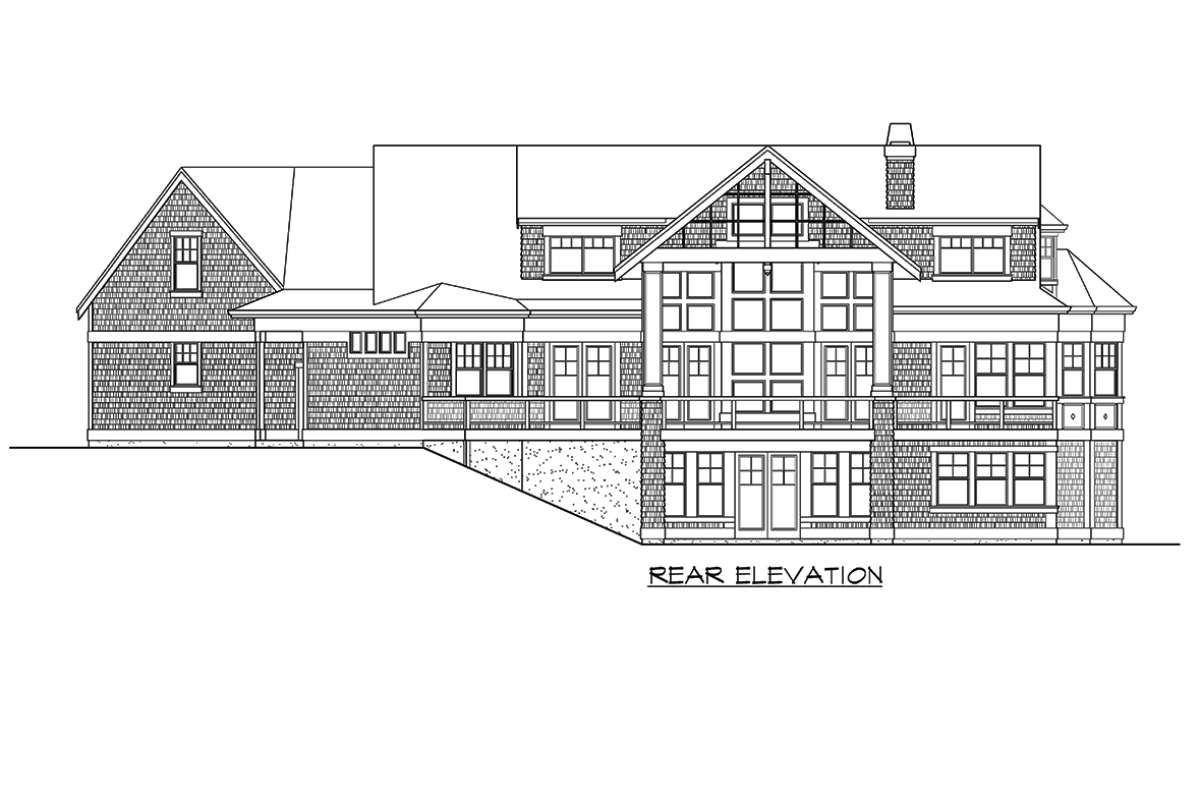

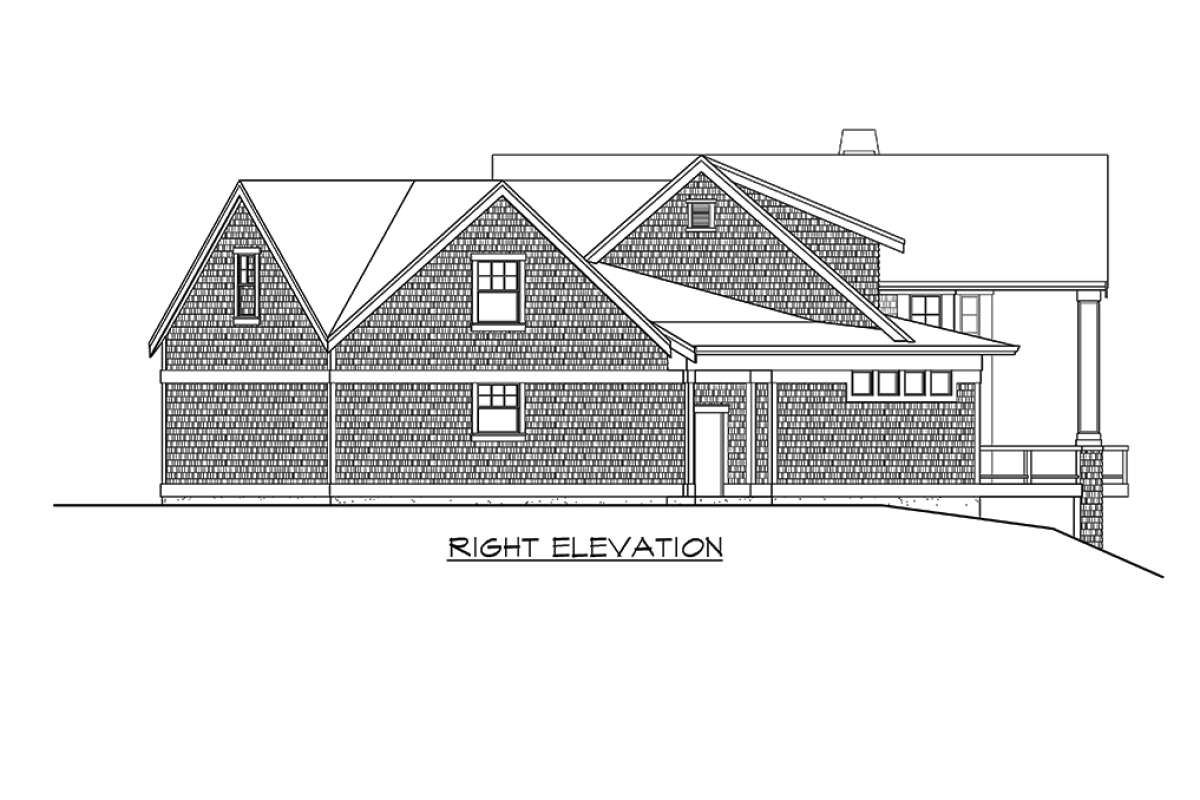

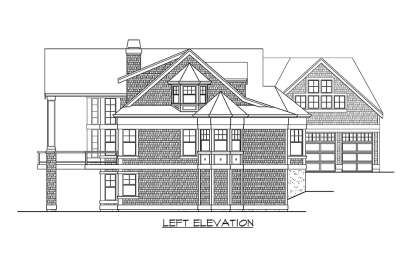

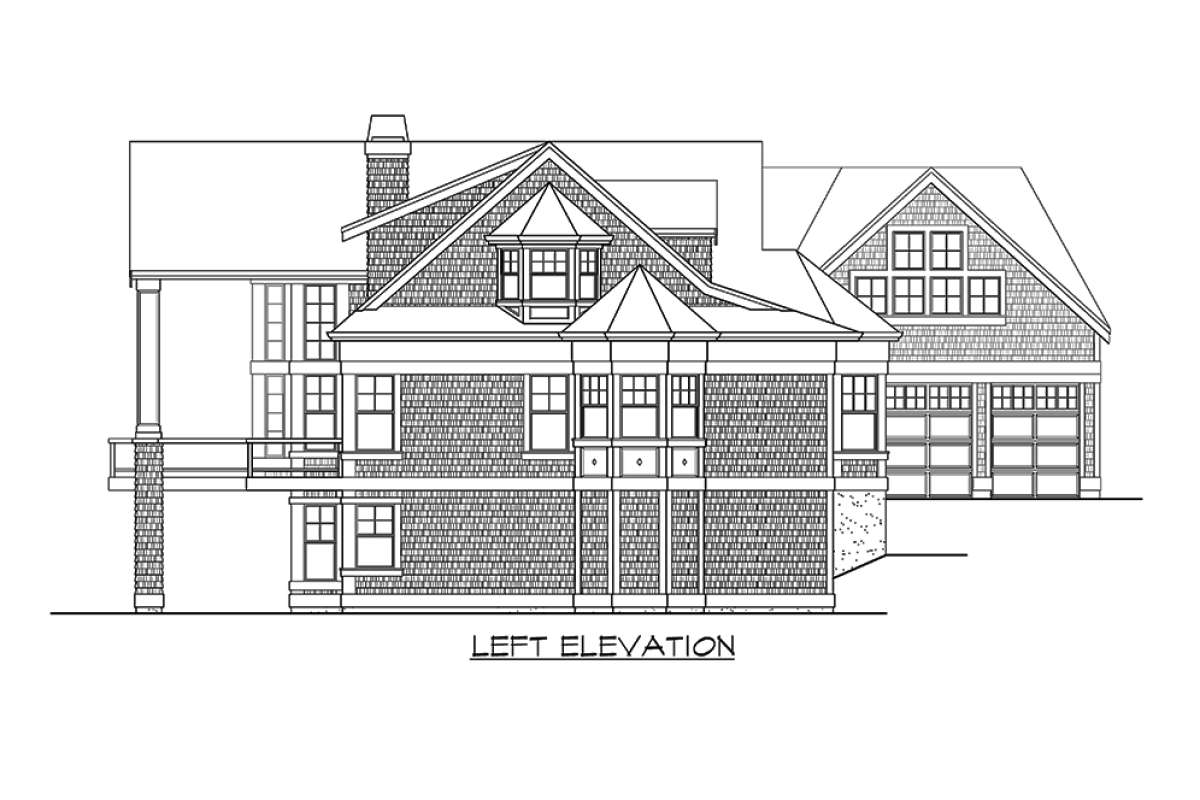

  • Exterior Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet: Building sections are vertical cuts through the home from the roof to the foundation.  The sections illustrate the construction sequence from bottom to top, starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, roof framing, stair construction, windows, doors, venting, exterior and interior finisheds.

Important Note--Why can't this plan be sold in the State of Washington?

Not for Sale for Construction in the State of Washington. If you live in the State of Washington and would like to purchase these plans, please contact us for more information. WA State law requires that all plans produced by an architect licensed in the state of WA for construction be stamped by the the architect; consequently, plans not stamped by this designer cannot be built in WA State.  The architect who designed this plan must provide in-state pricing with pricing for any revisions and the required structural engineering. WA State plans must comply with the WA State Energy Code, and the architect guarantees permit approval for the plans, site issues excepted. If you want to build this plan in WA State, please contact us for custom pricing.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

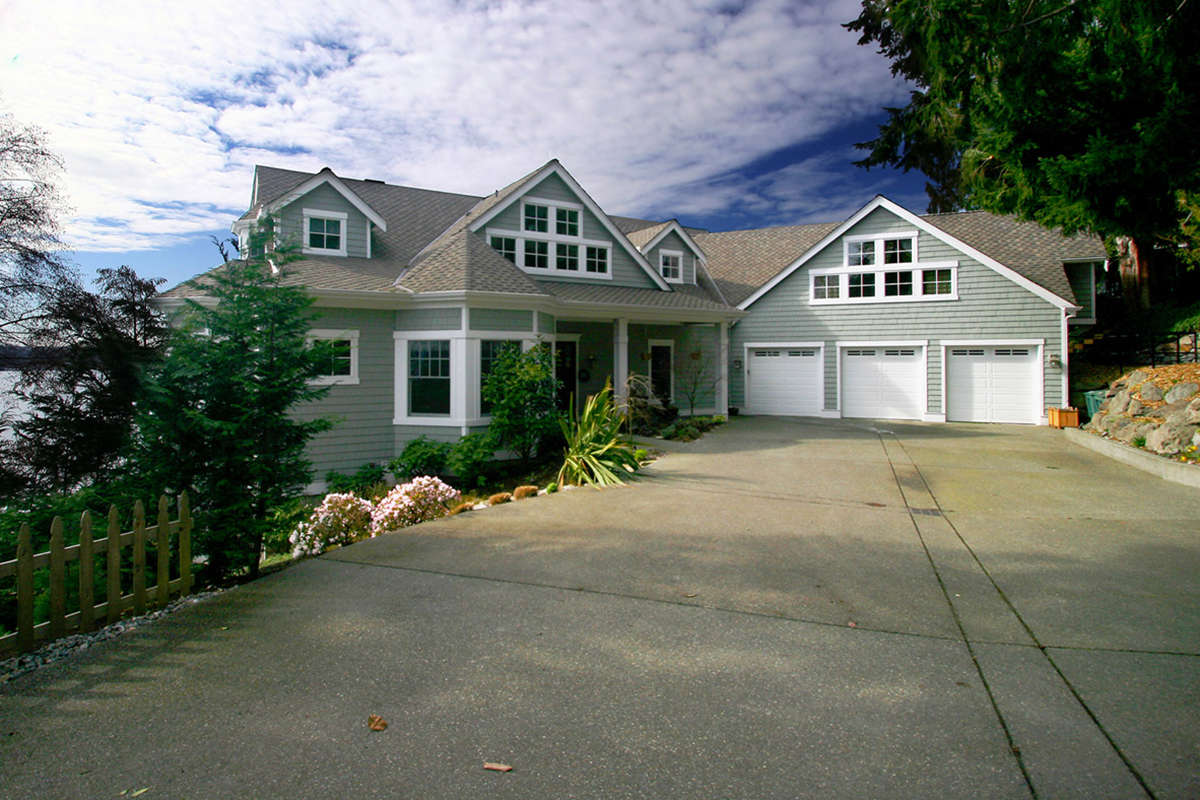

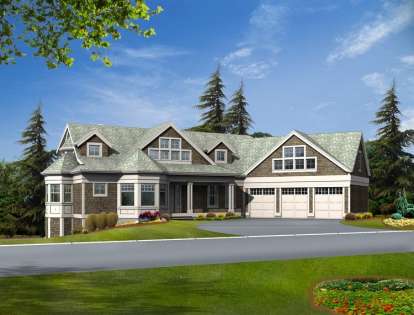

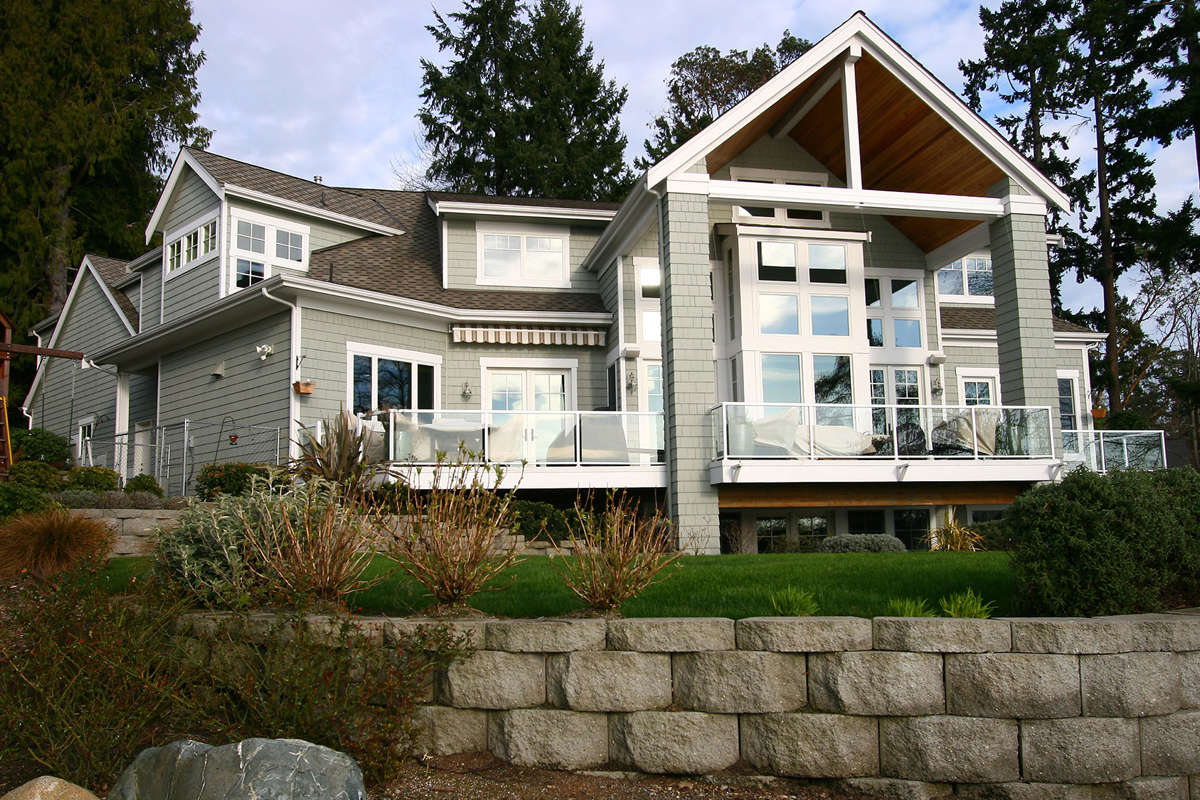

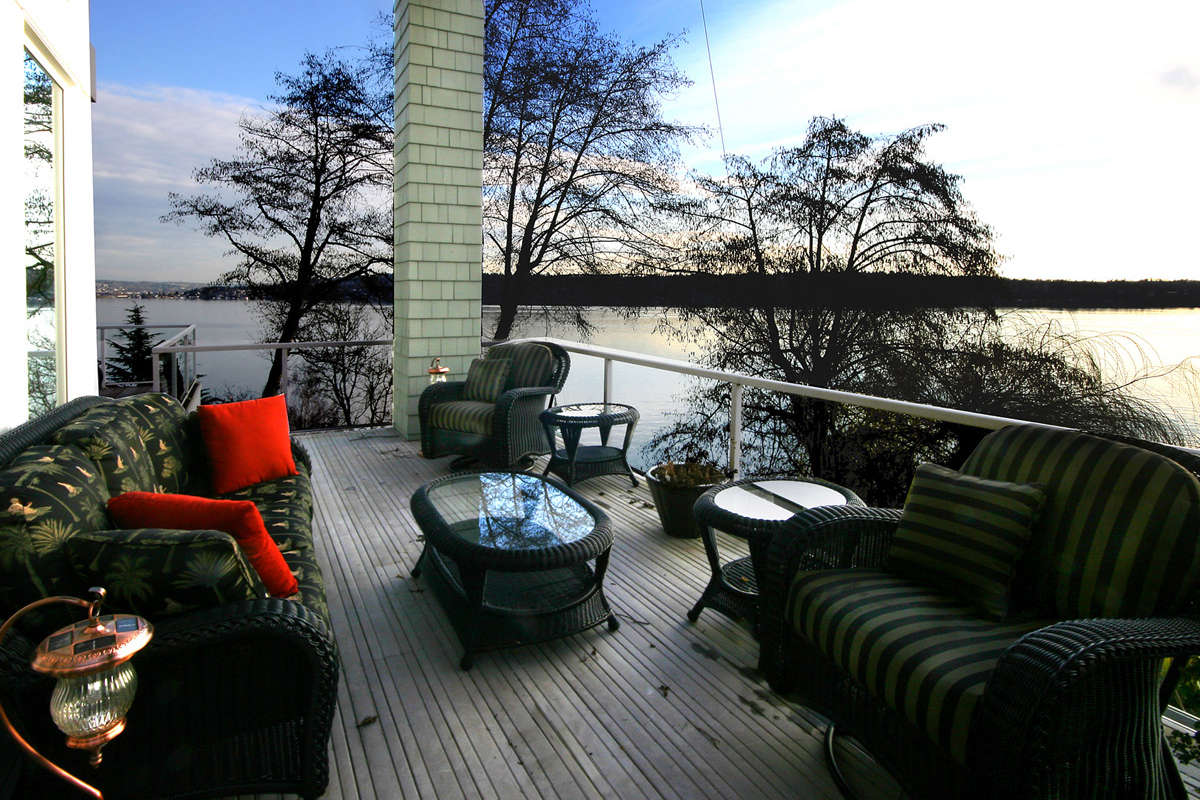

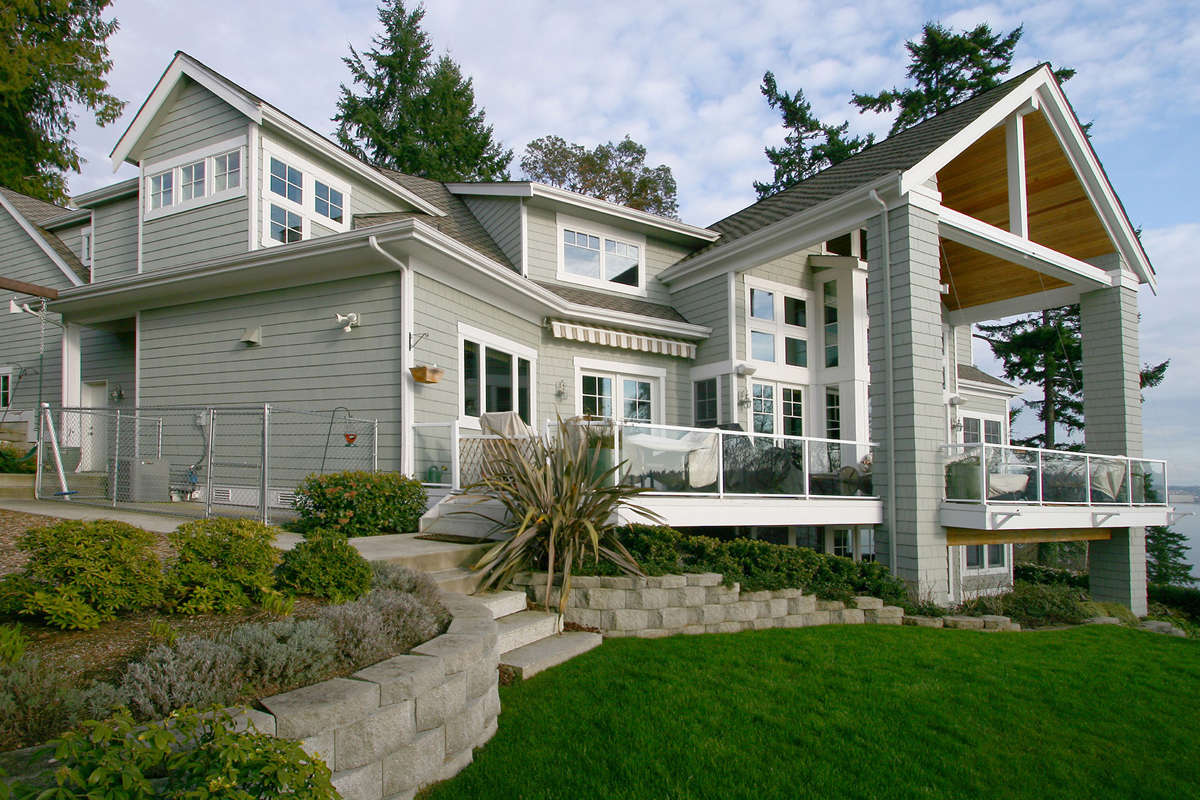

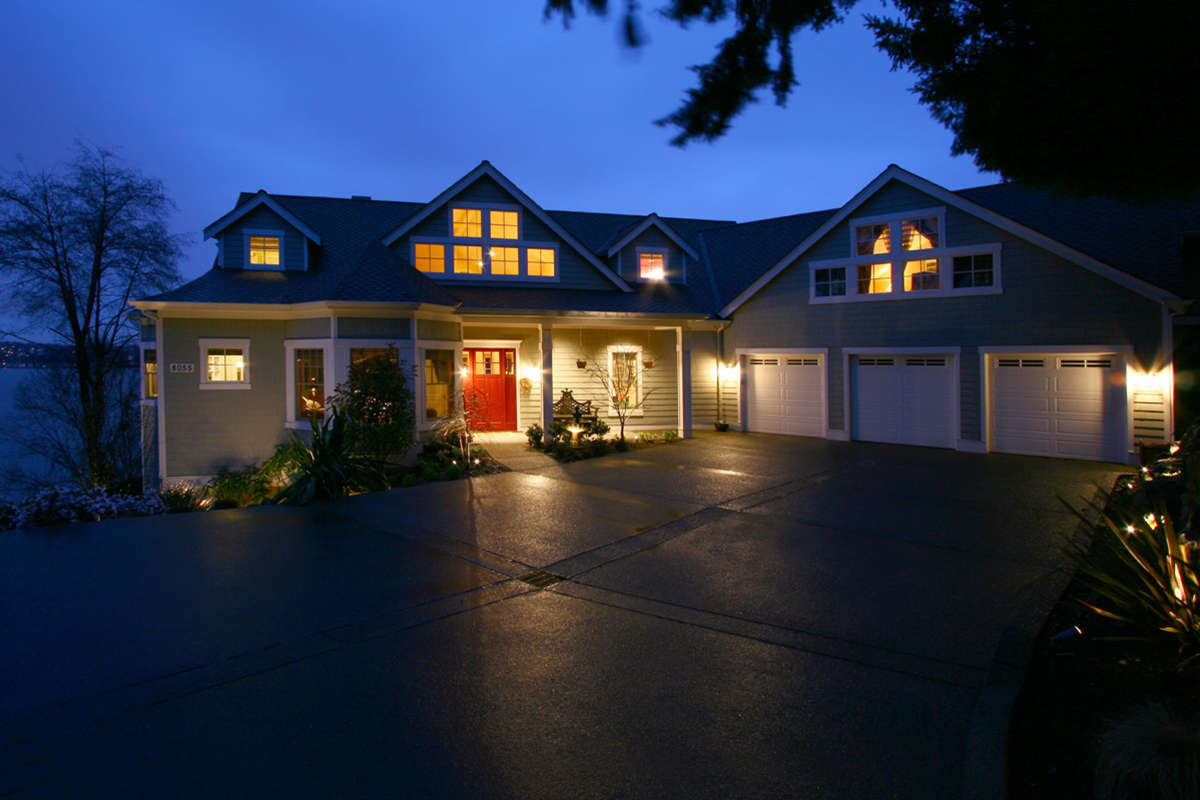

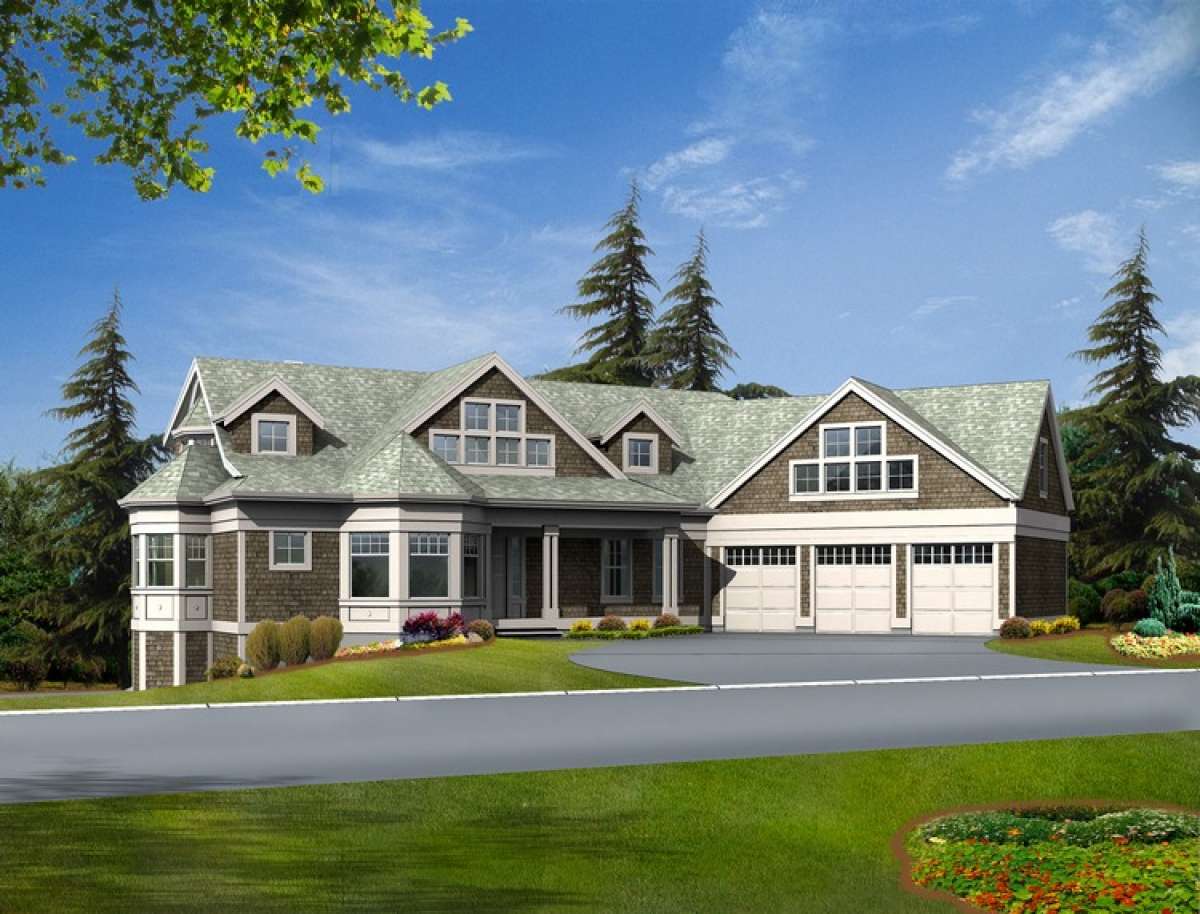

If having two master bedrooms and a finished basement is at the top of your priority list, then you’re going to love this Luxury house plan. This spacious design measures approximately 4,952 square feet with four bedrooms and four bathrooms in a two-story floor plan. The exterior boasts of windows of various sizes to optimize natural light and view pleasure. The deck spans out the width of the home and is perfect for outdoor relaxing. There is a three car garage with an overhead bonus room that could function as an office, additional bedroom, or a playroom.

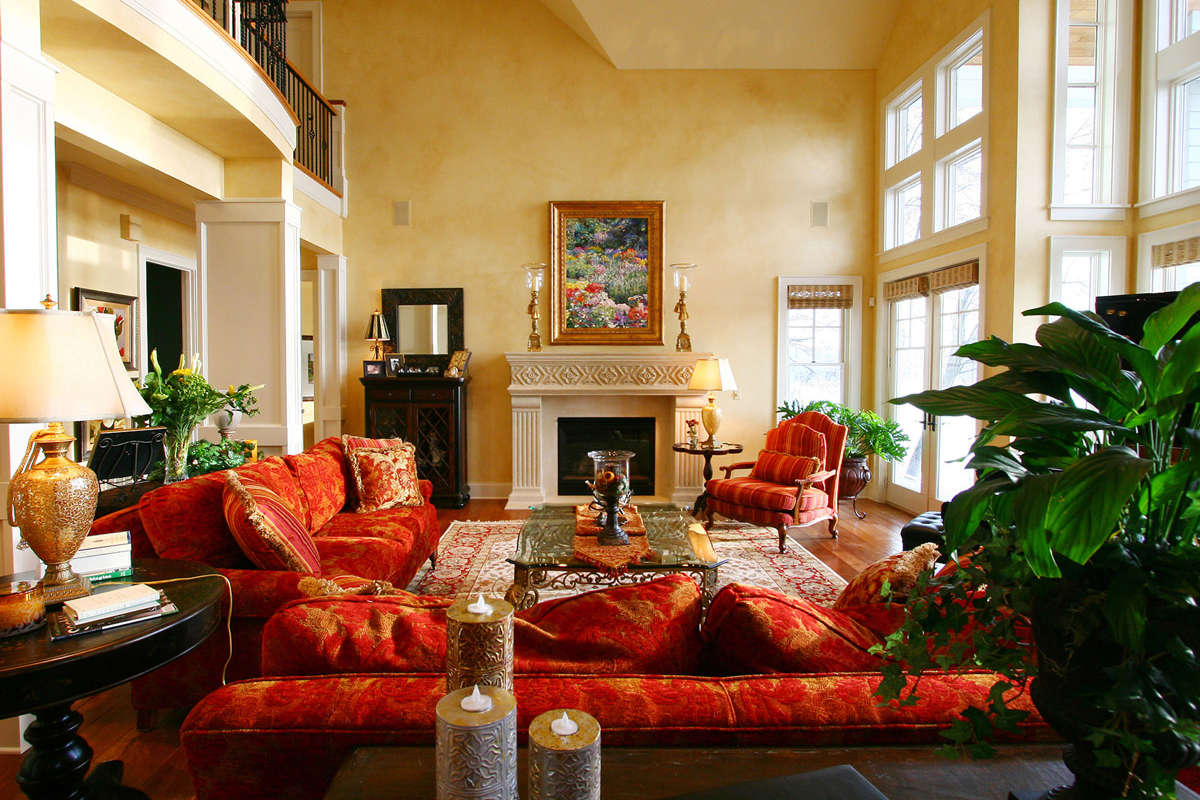

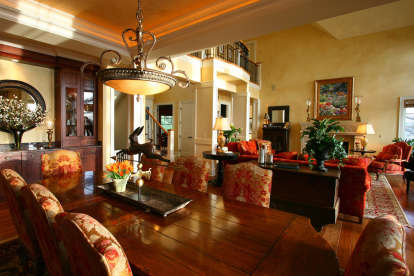

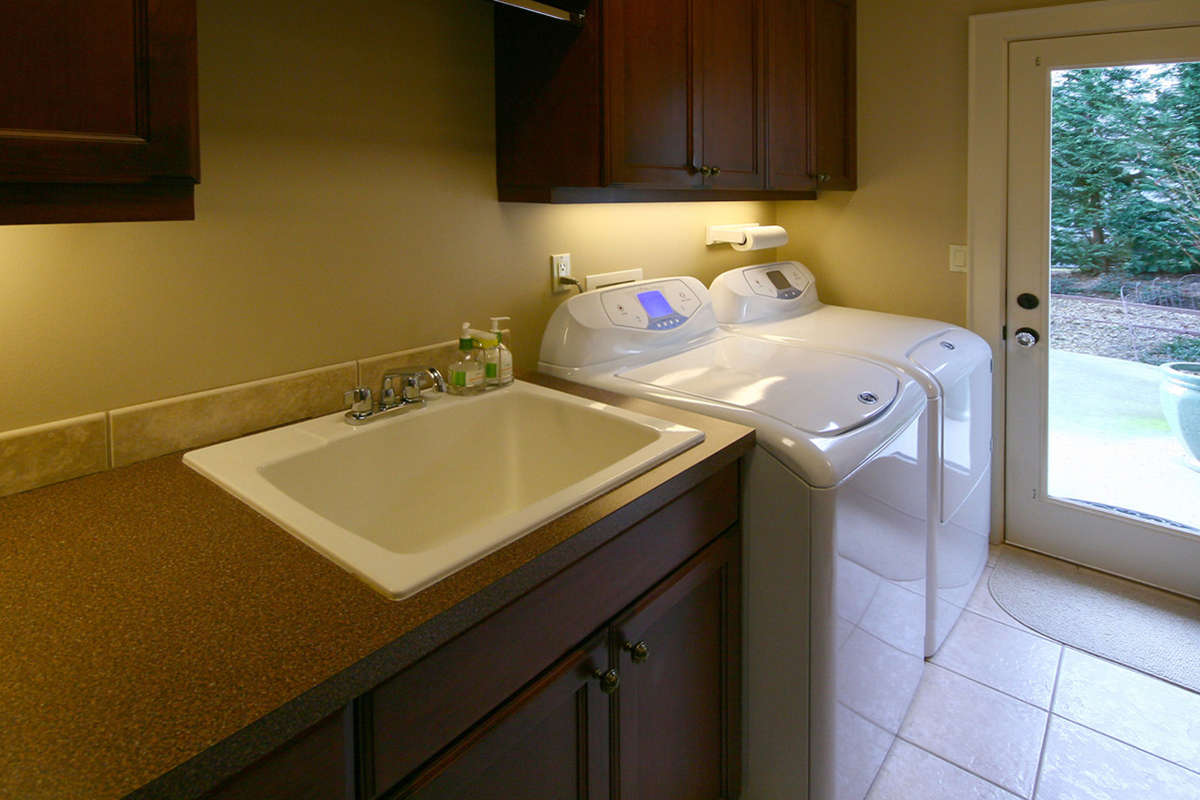

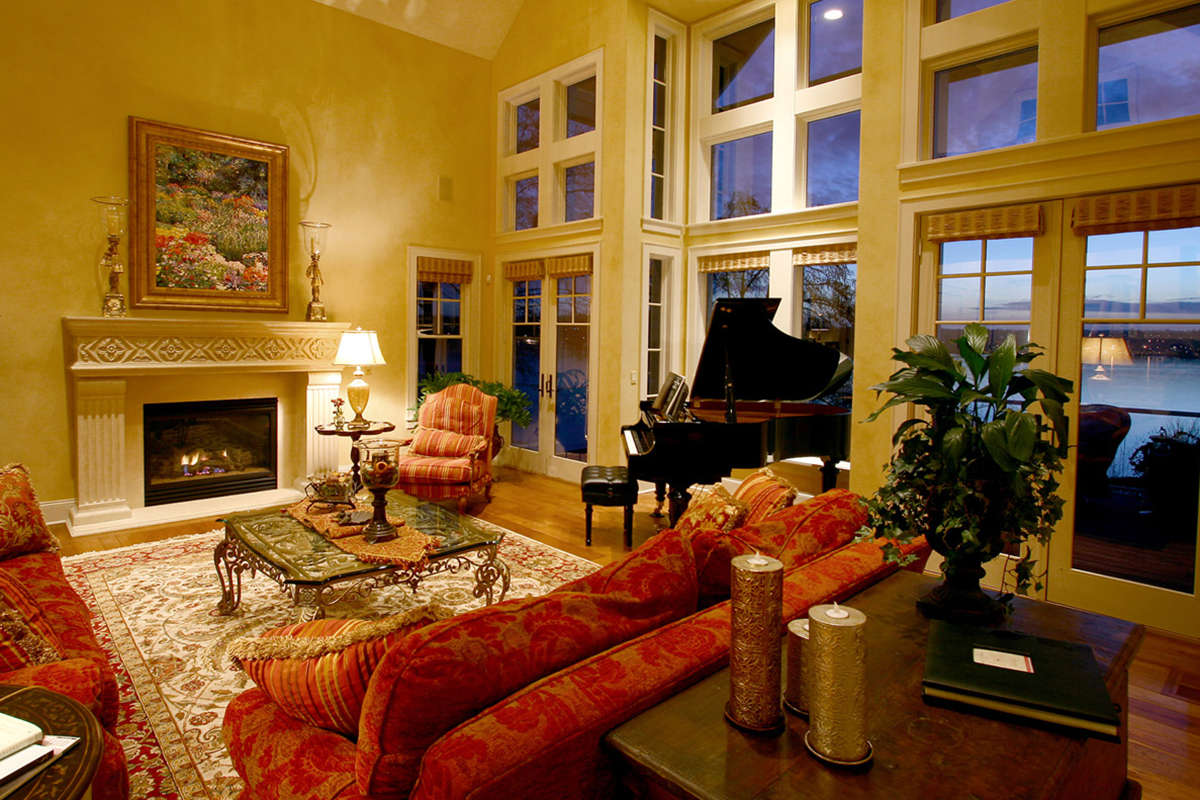

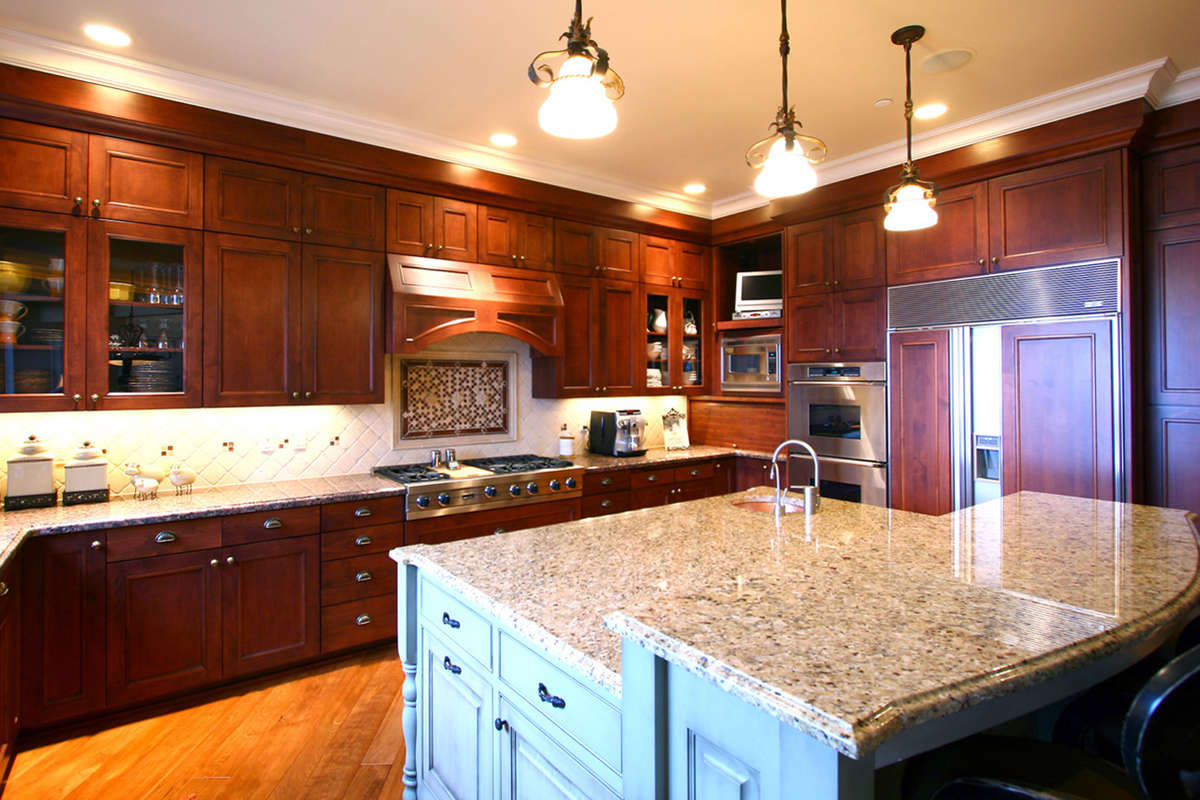

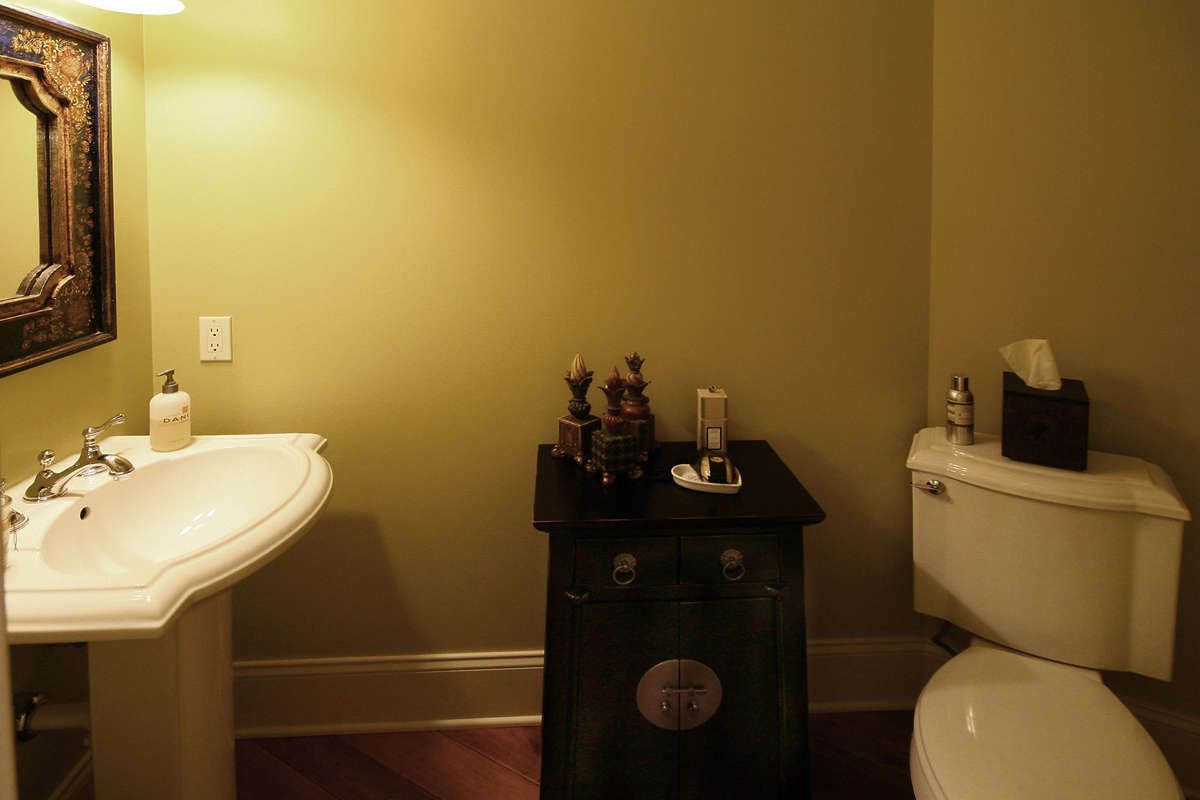

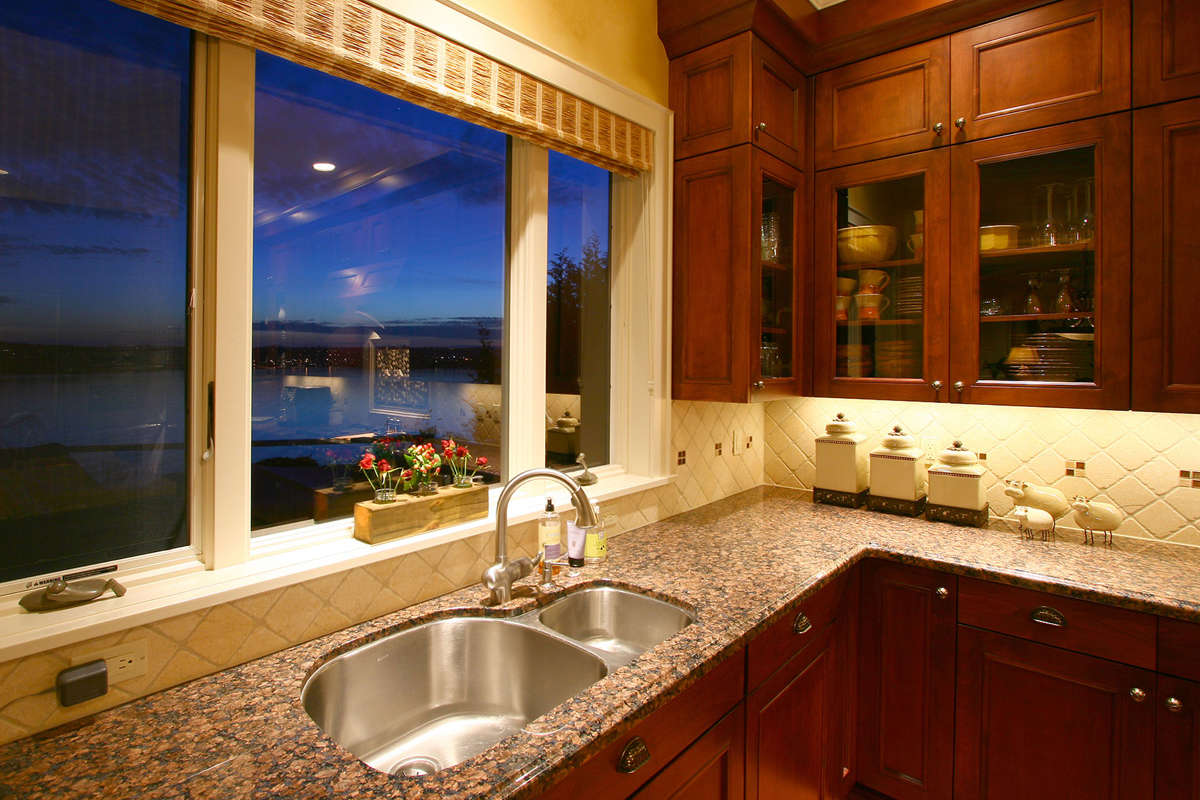

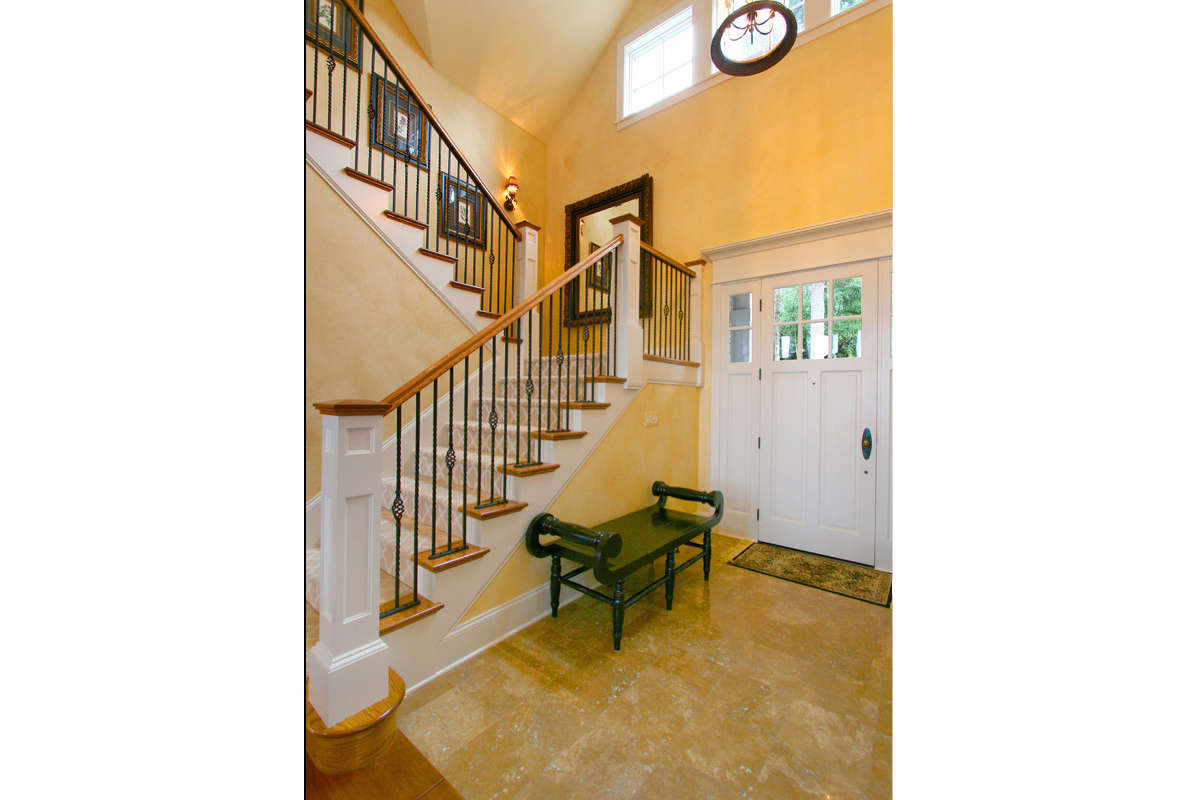

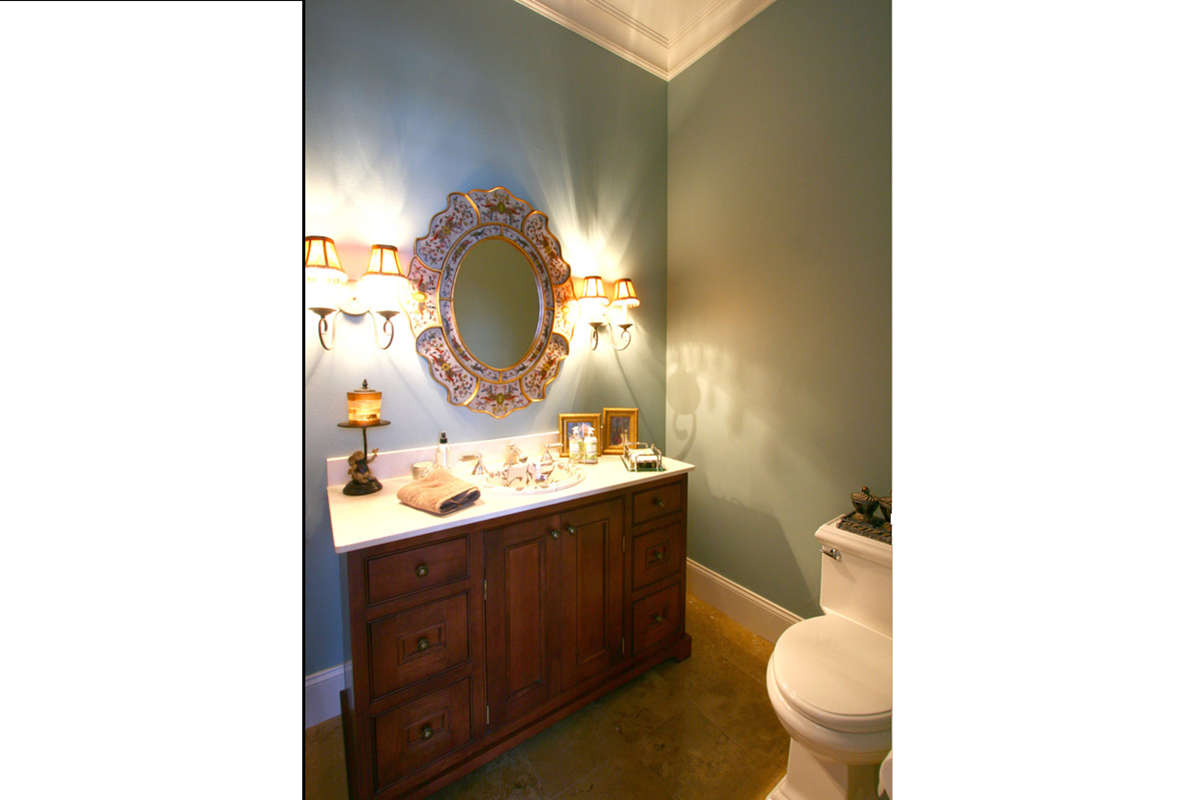

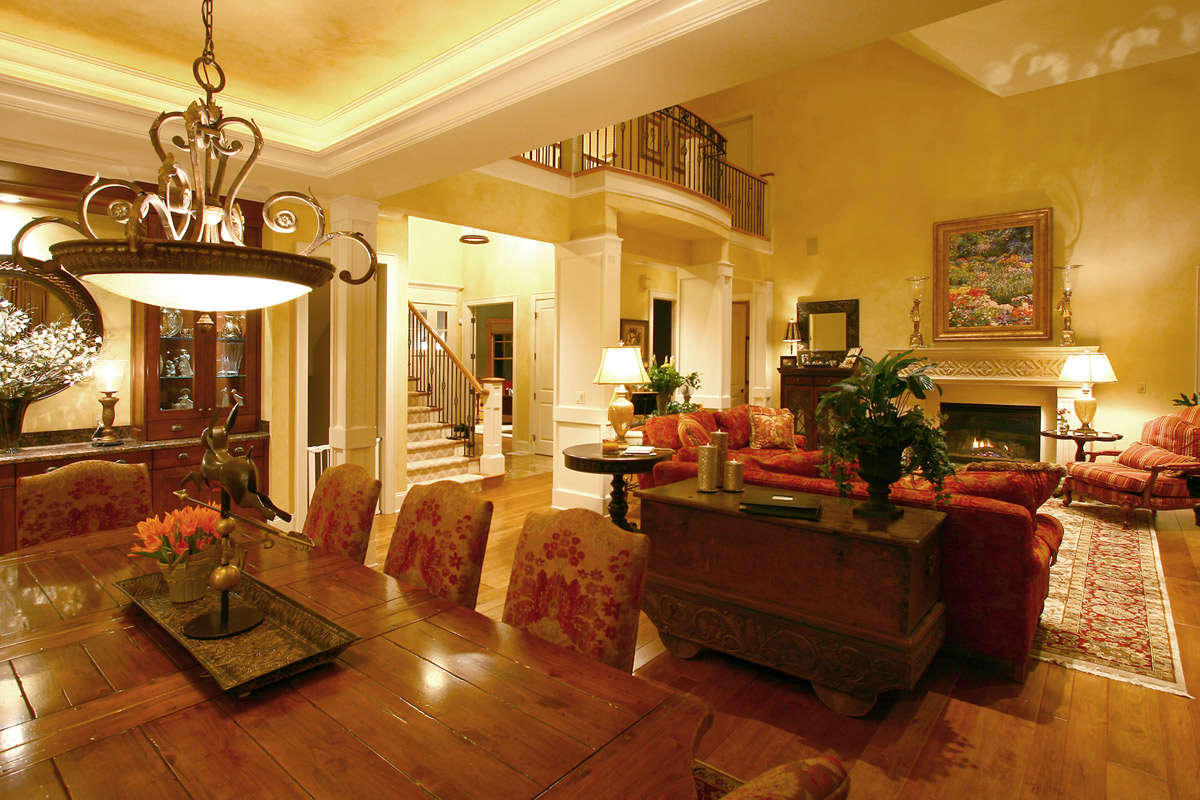

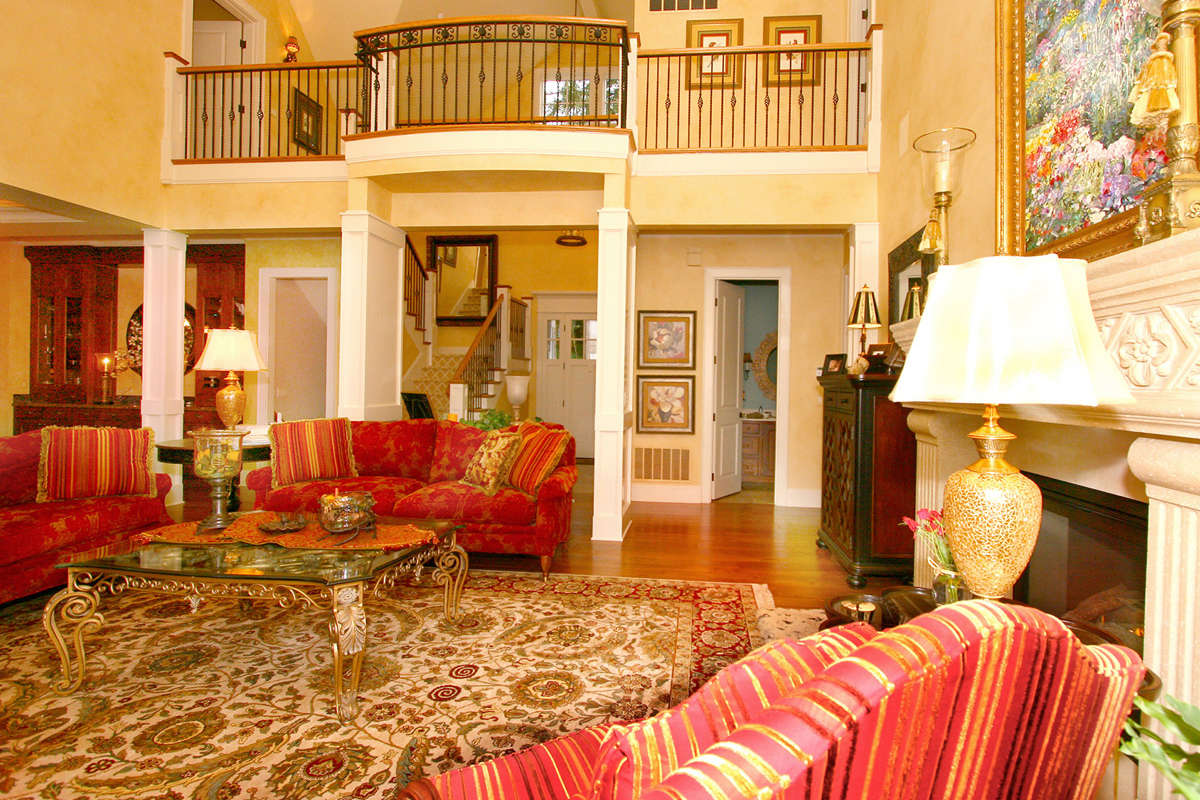

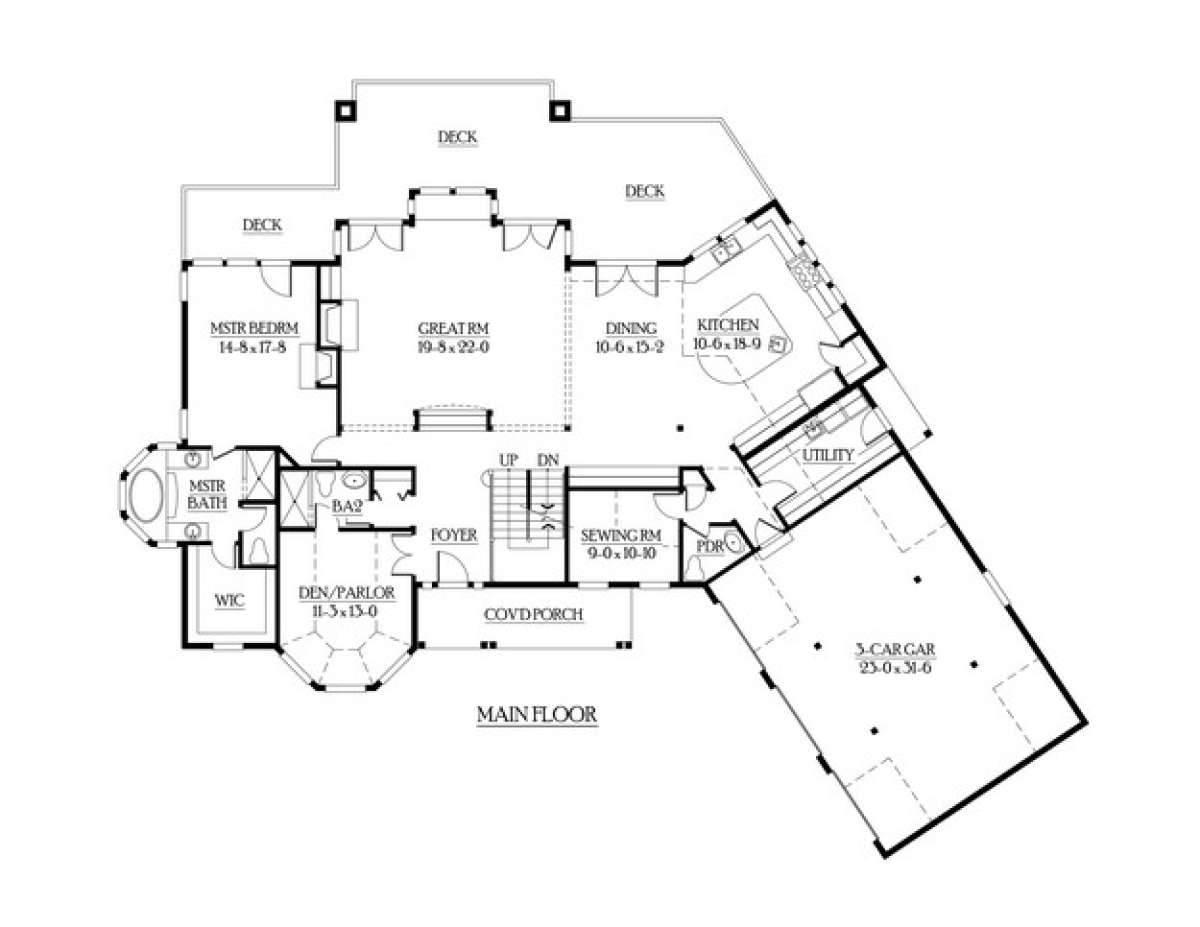

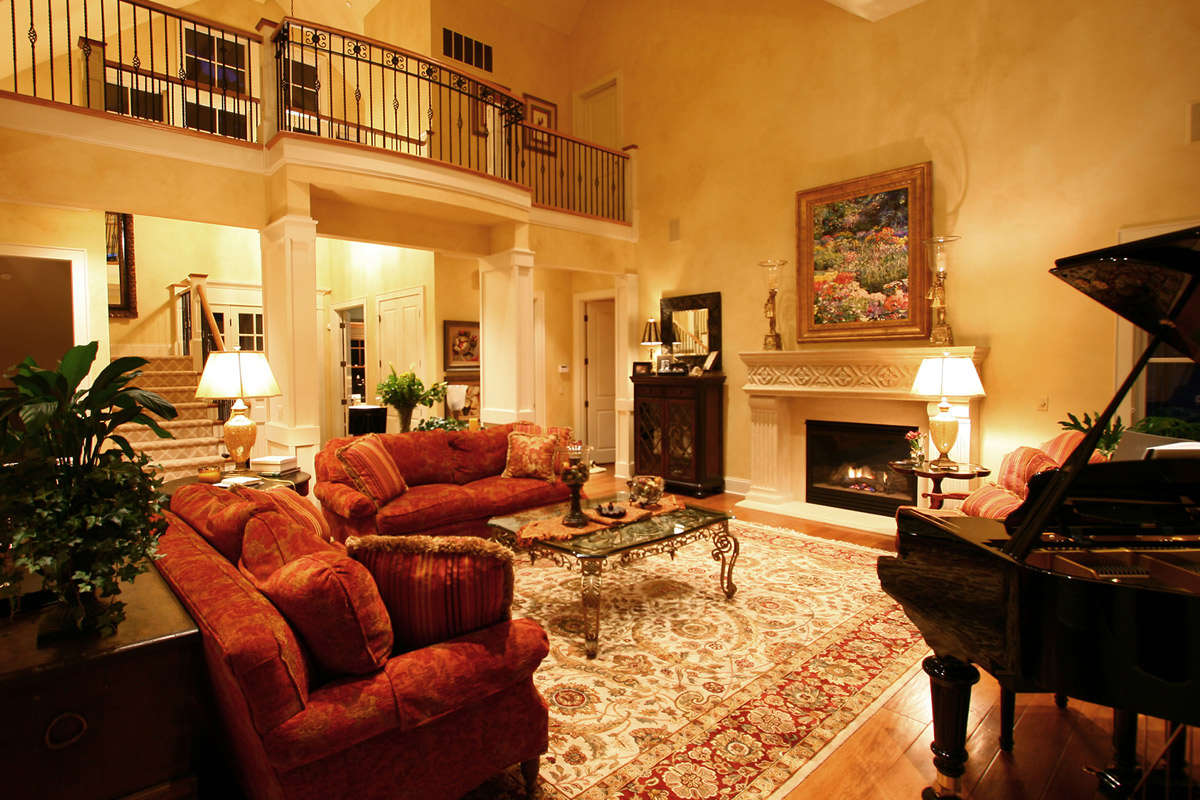

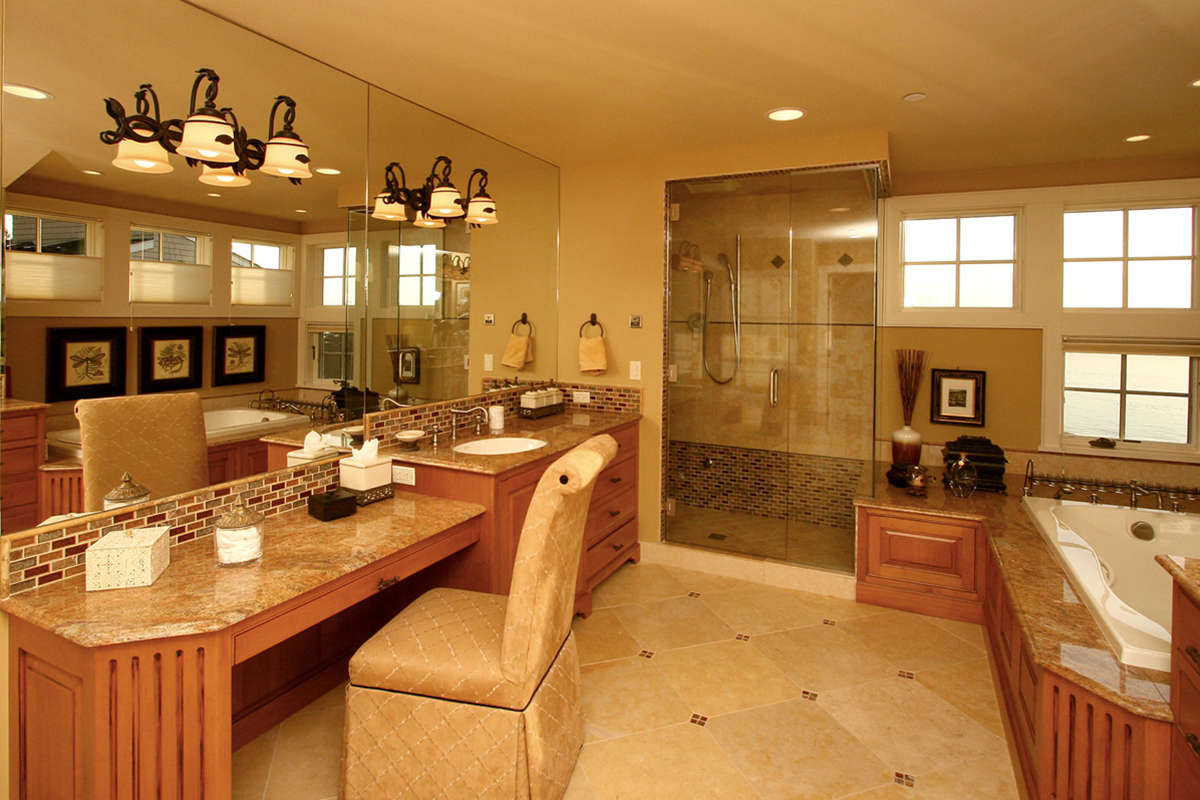

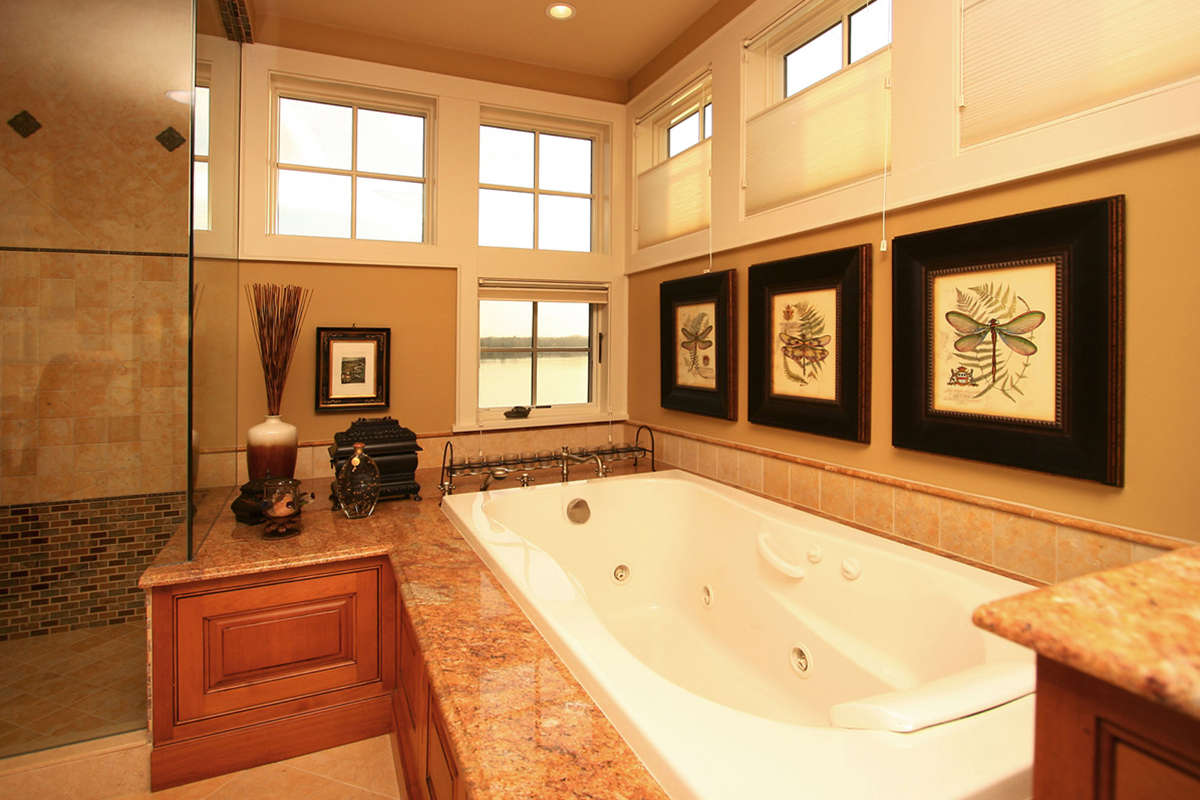

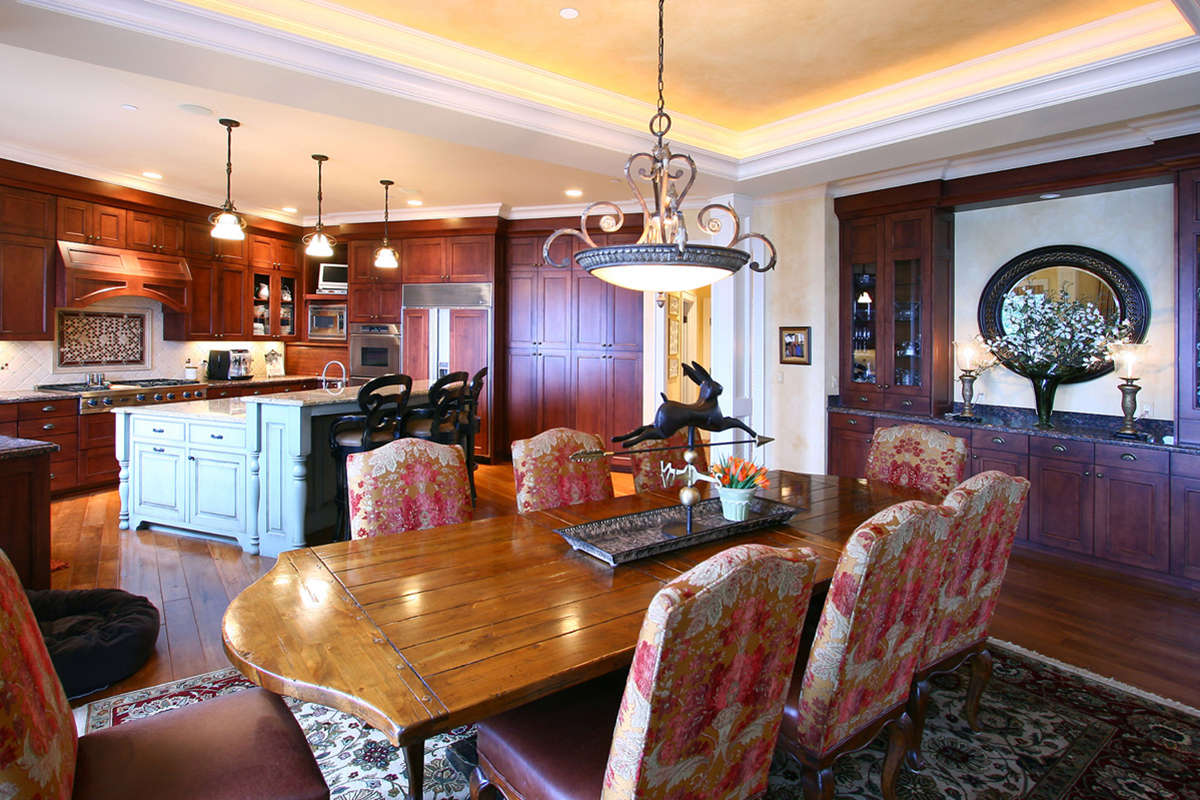

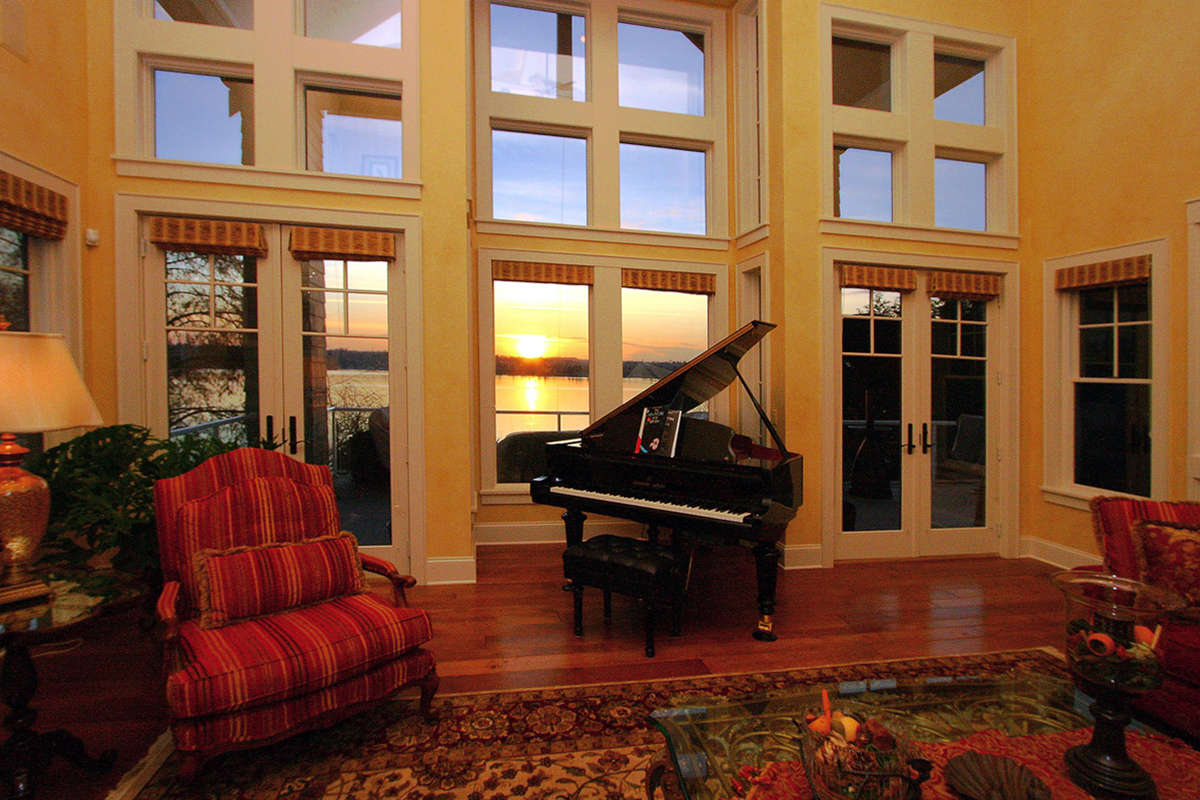

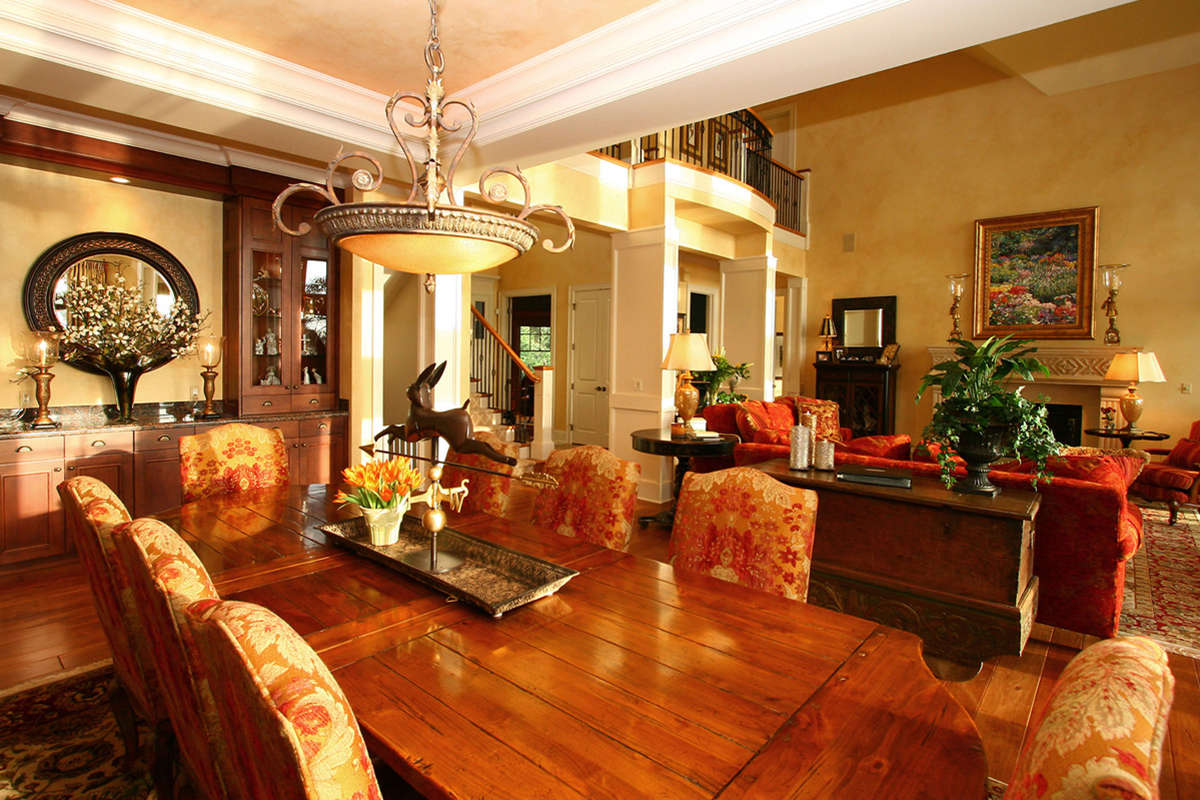

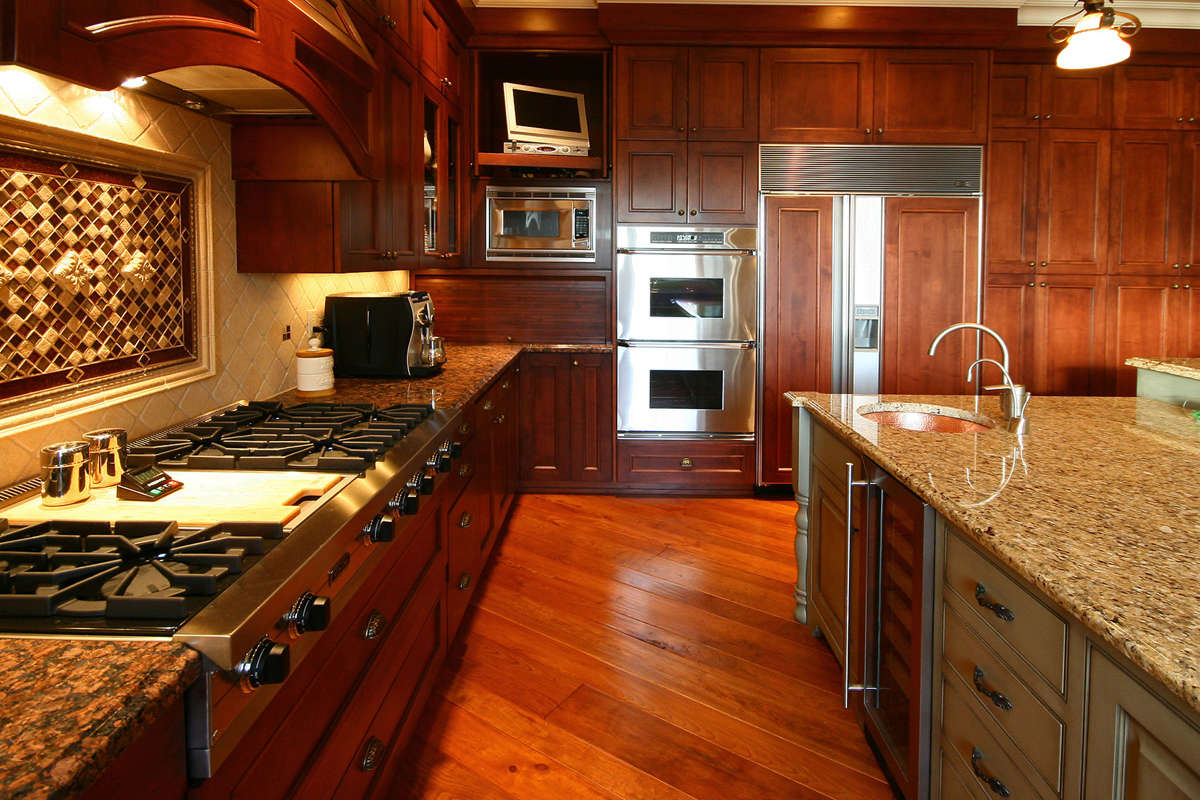

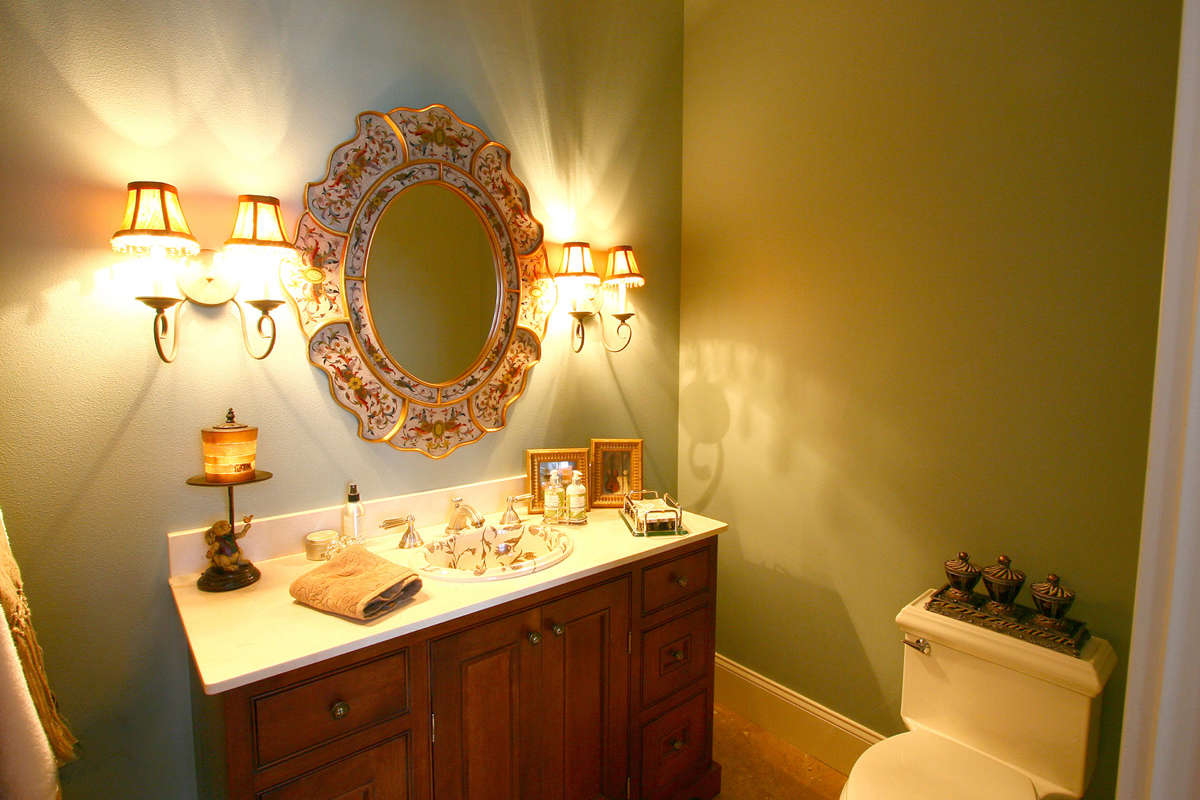

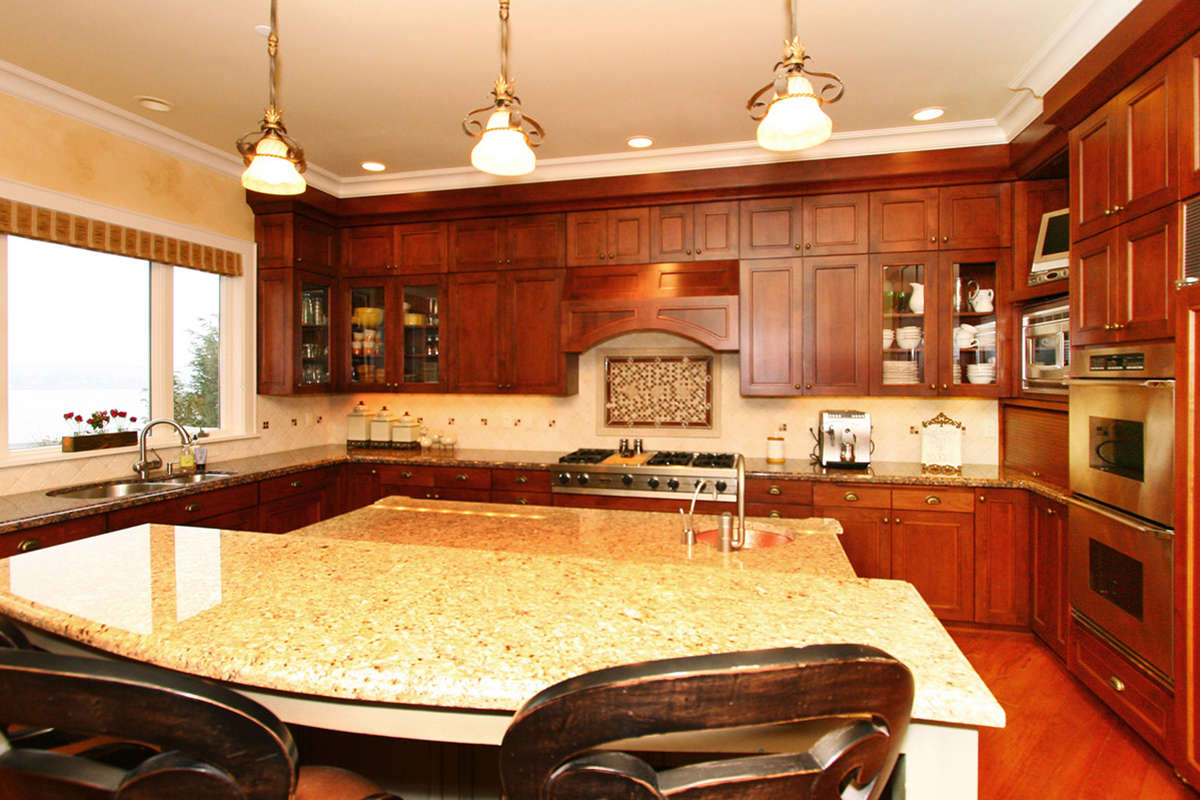

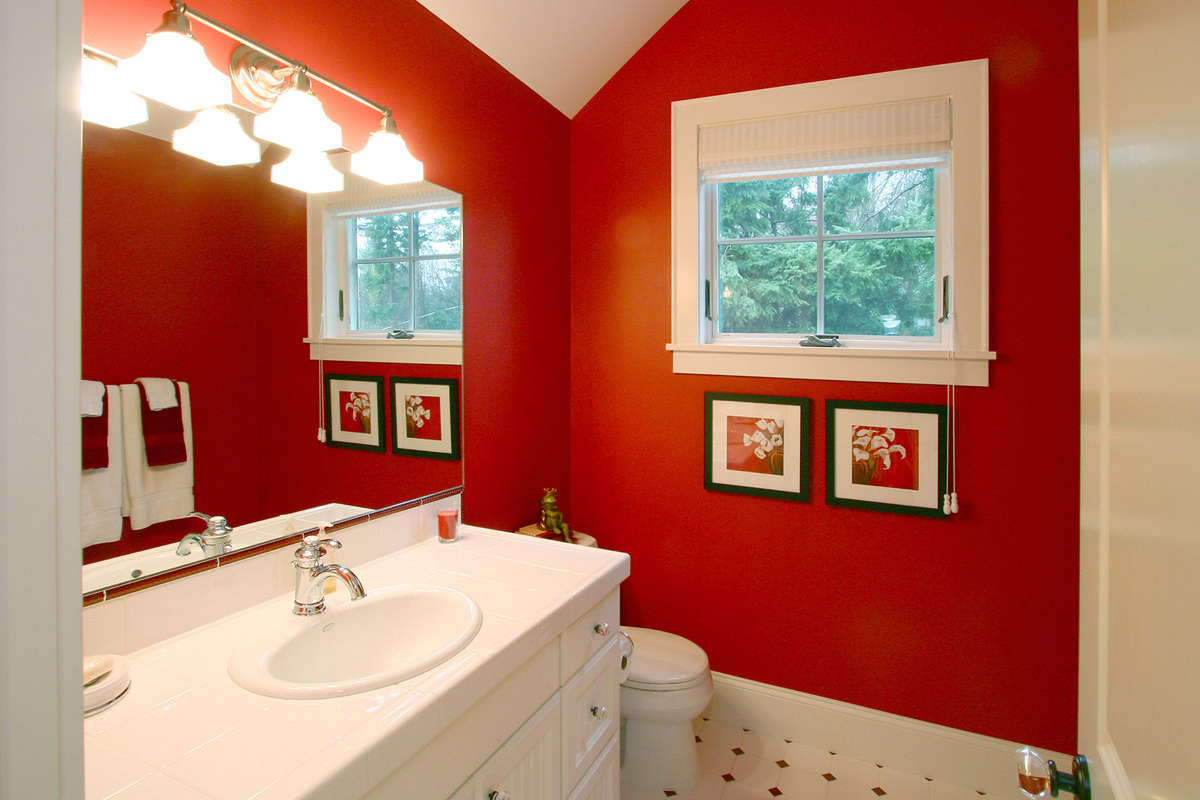

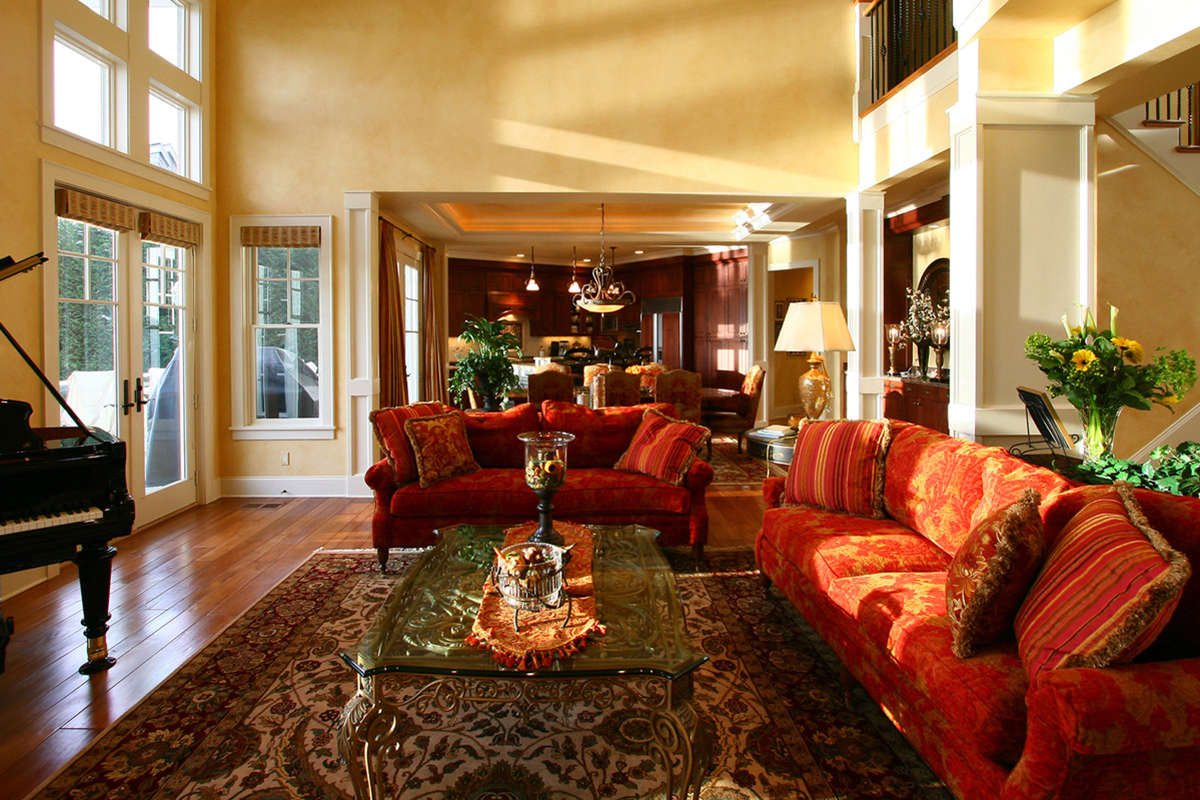

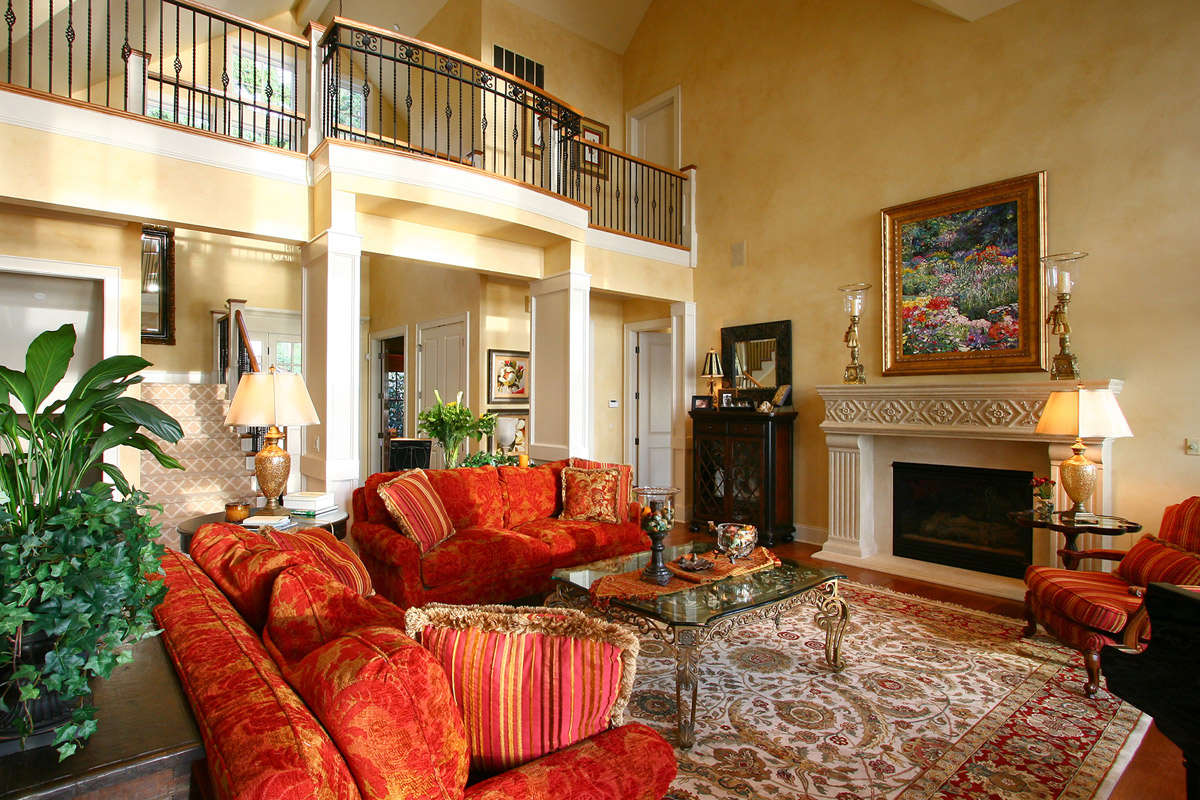

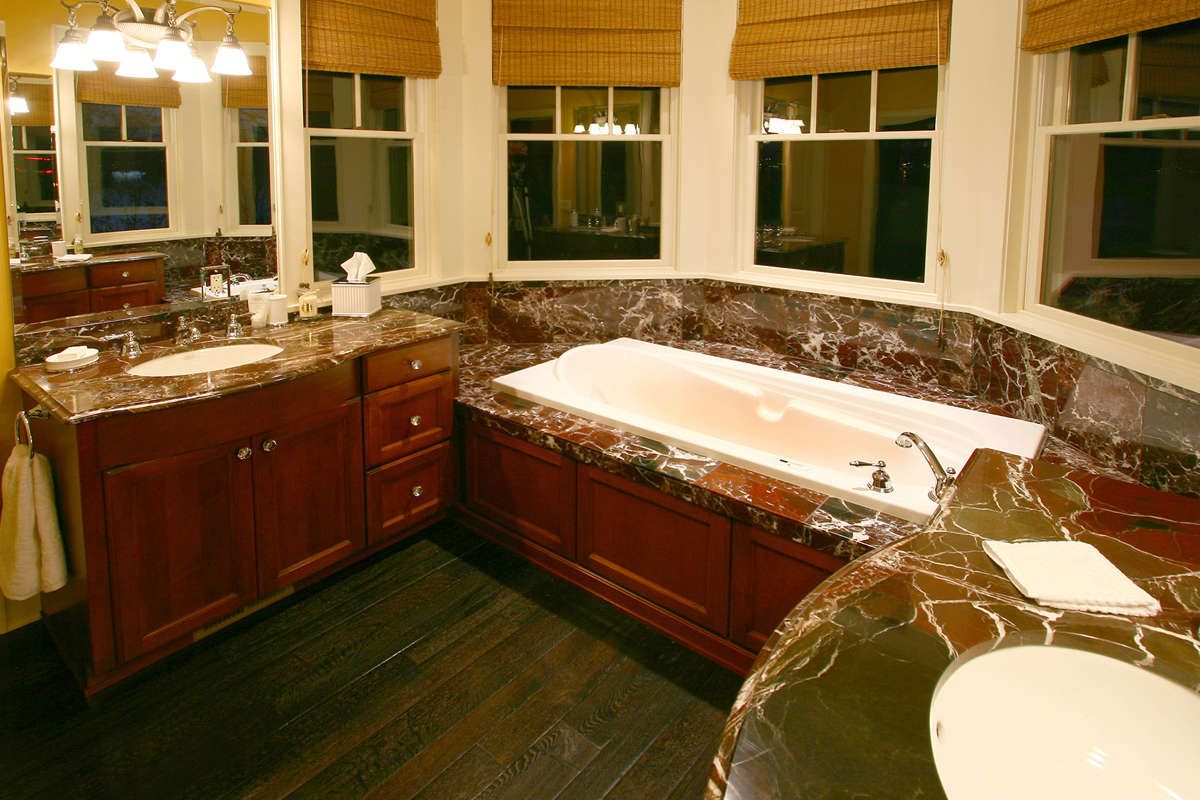

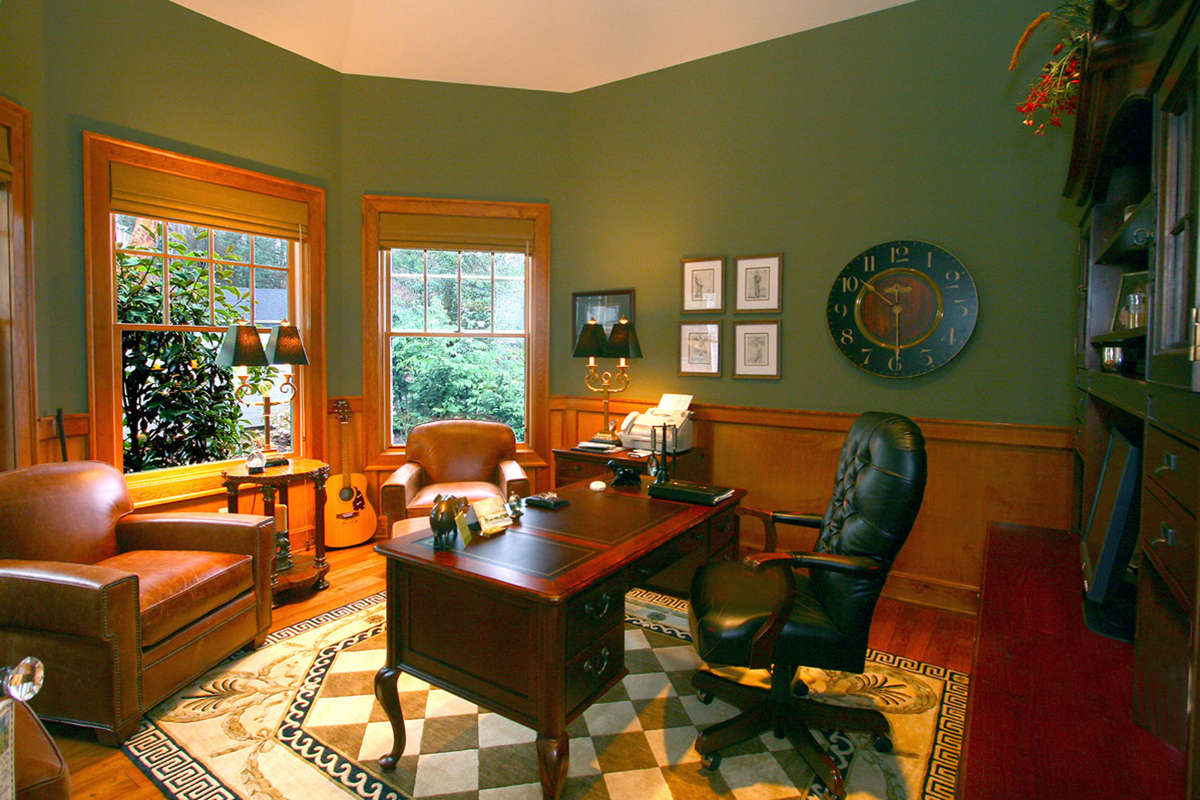

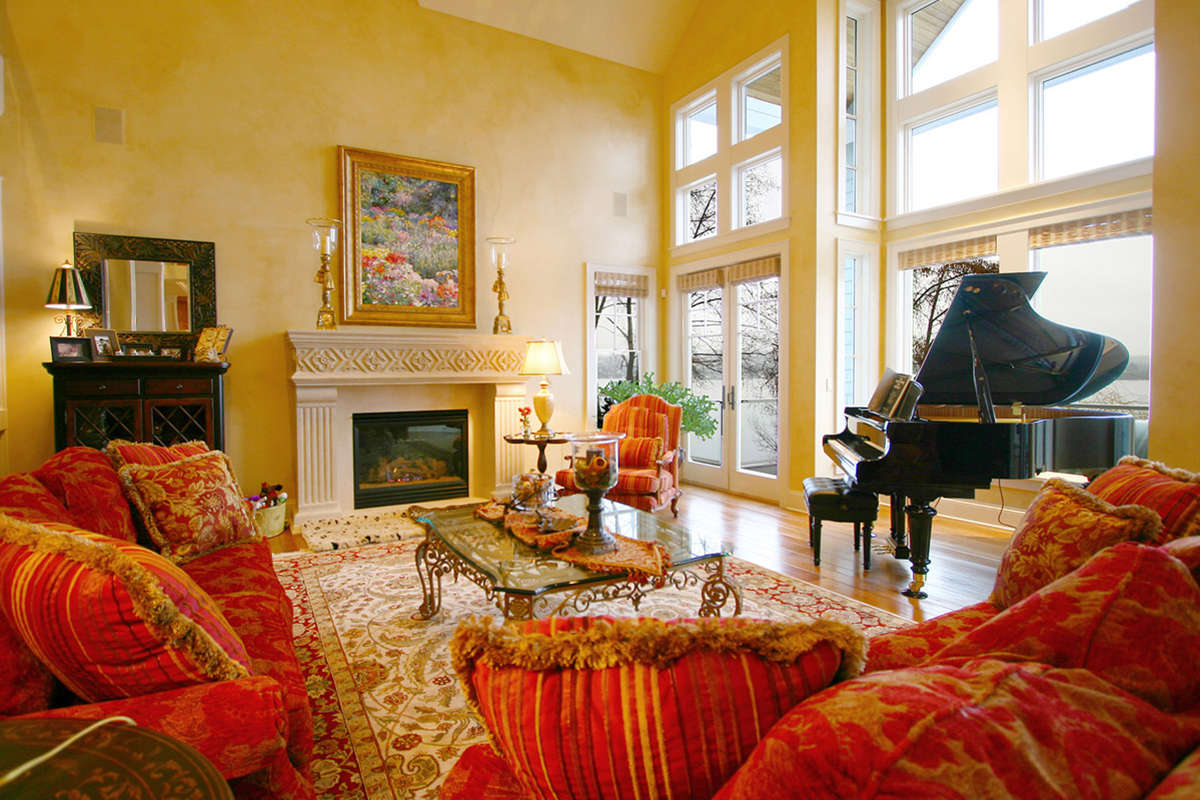

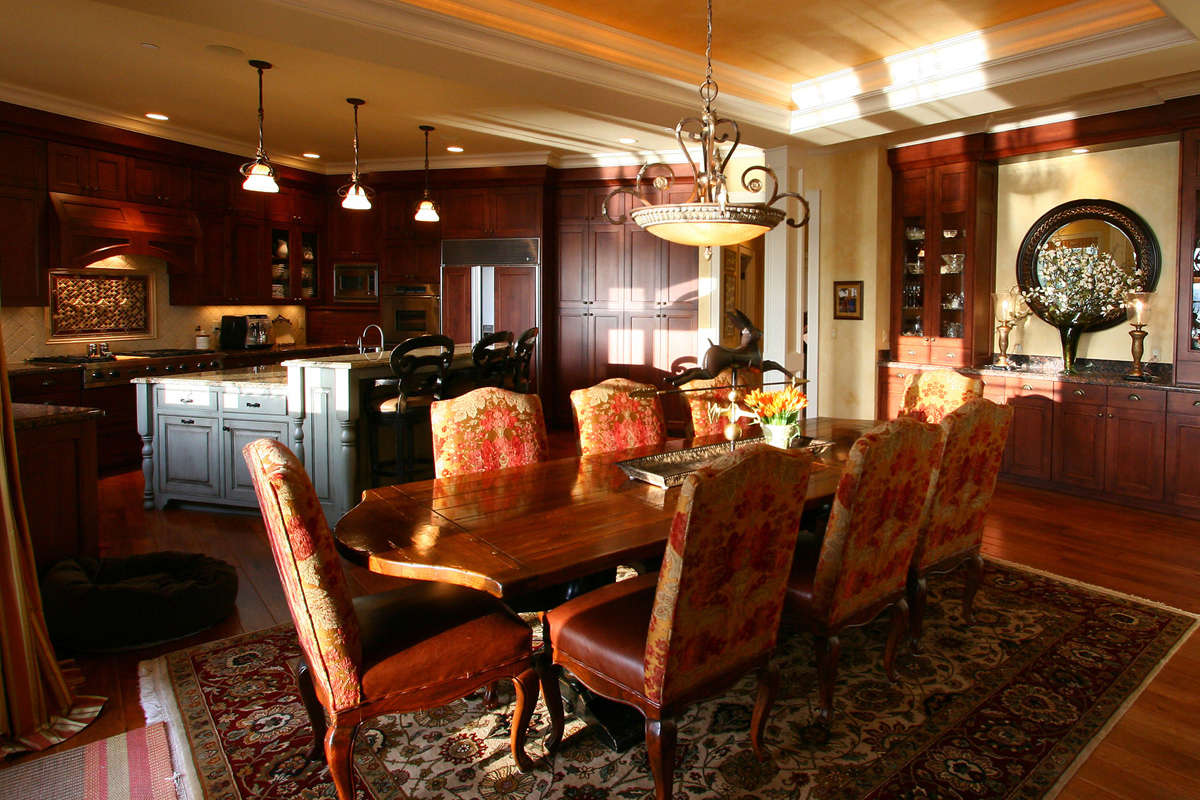

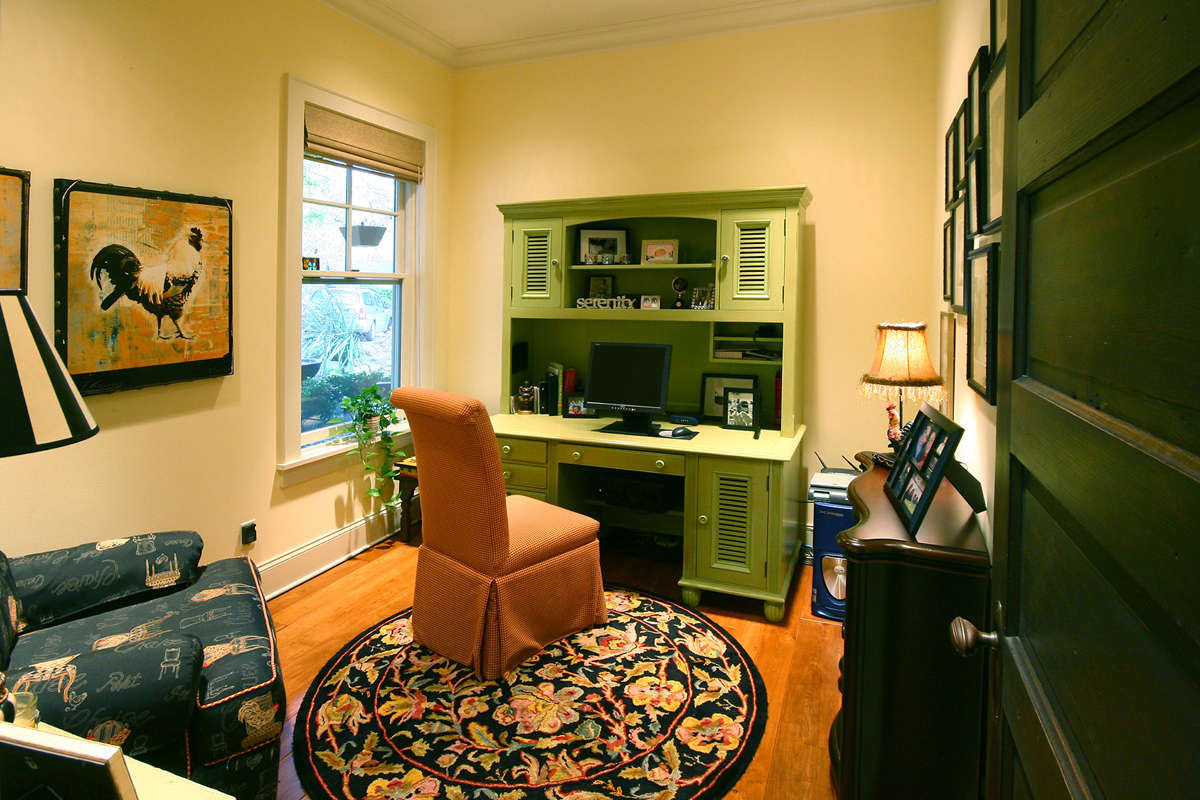

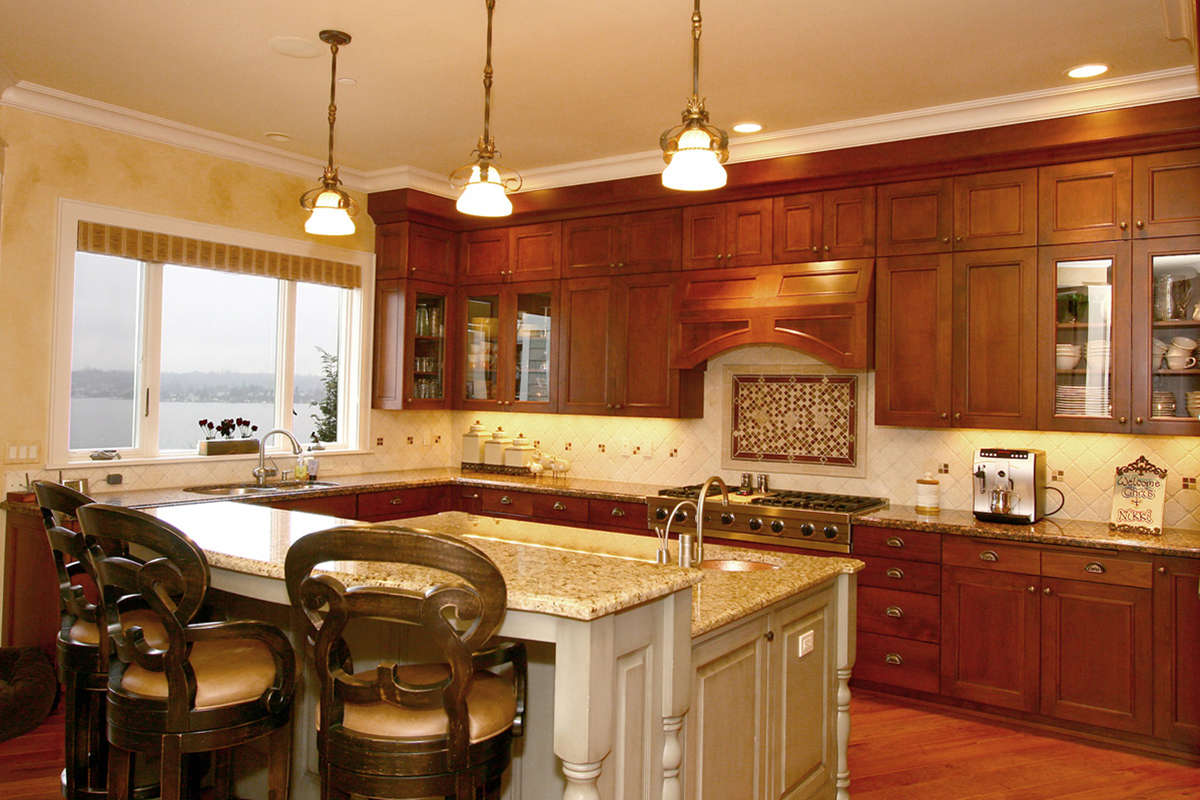

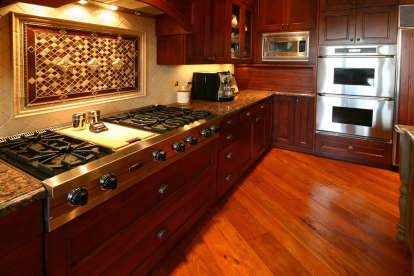

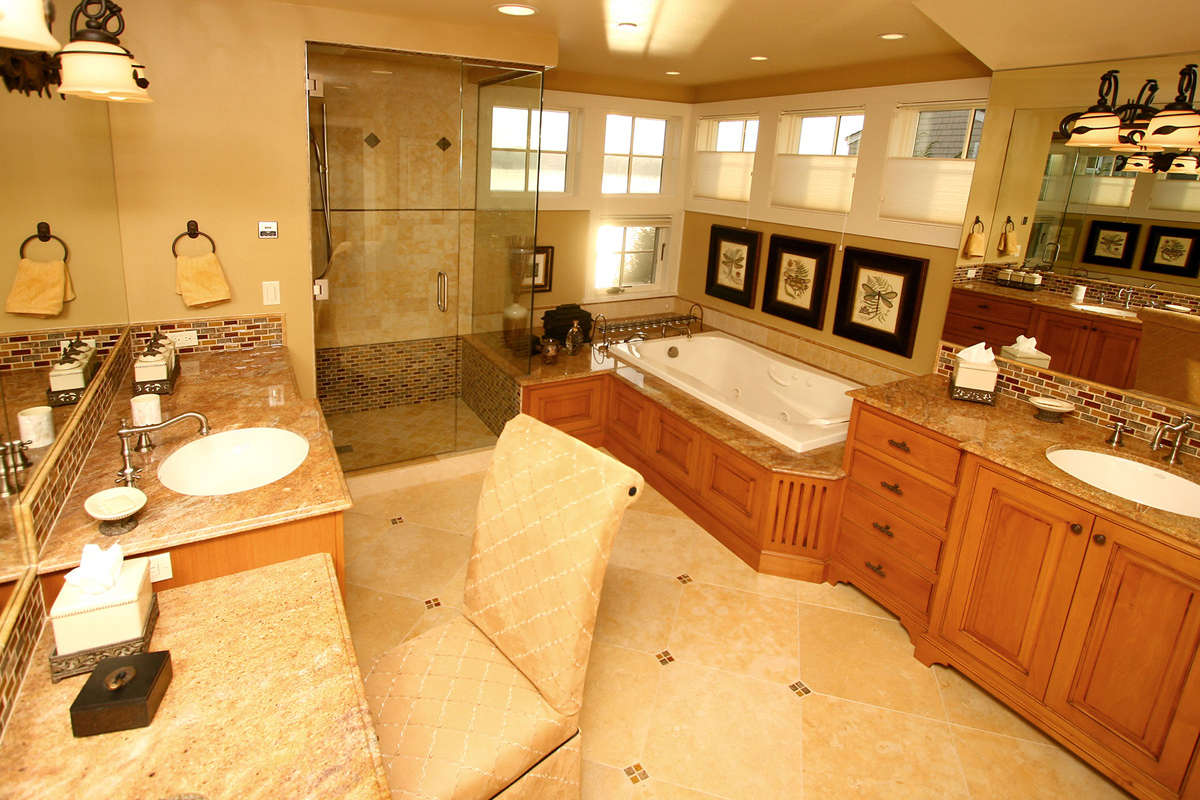

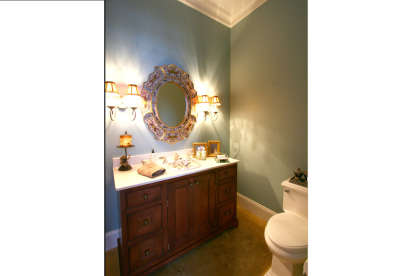

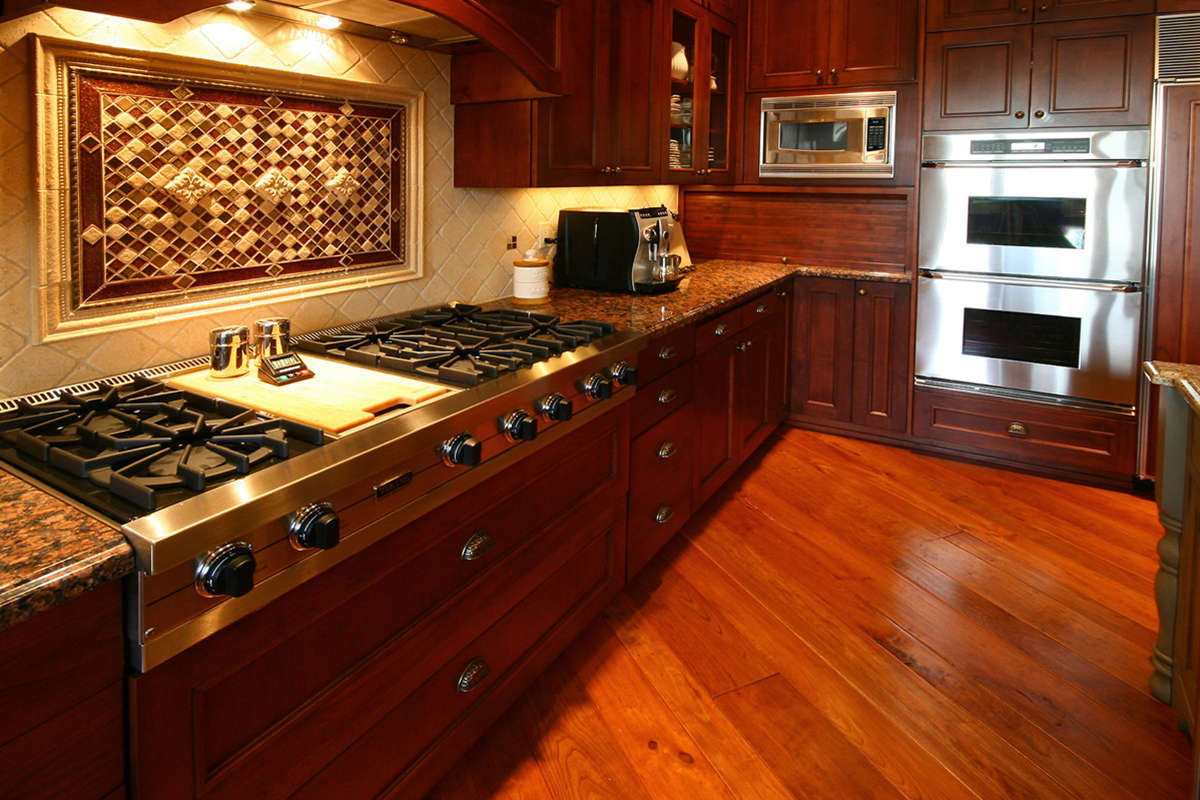

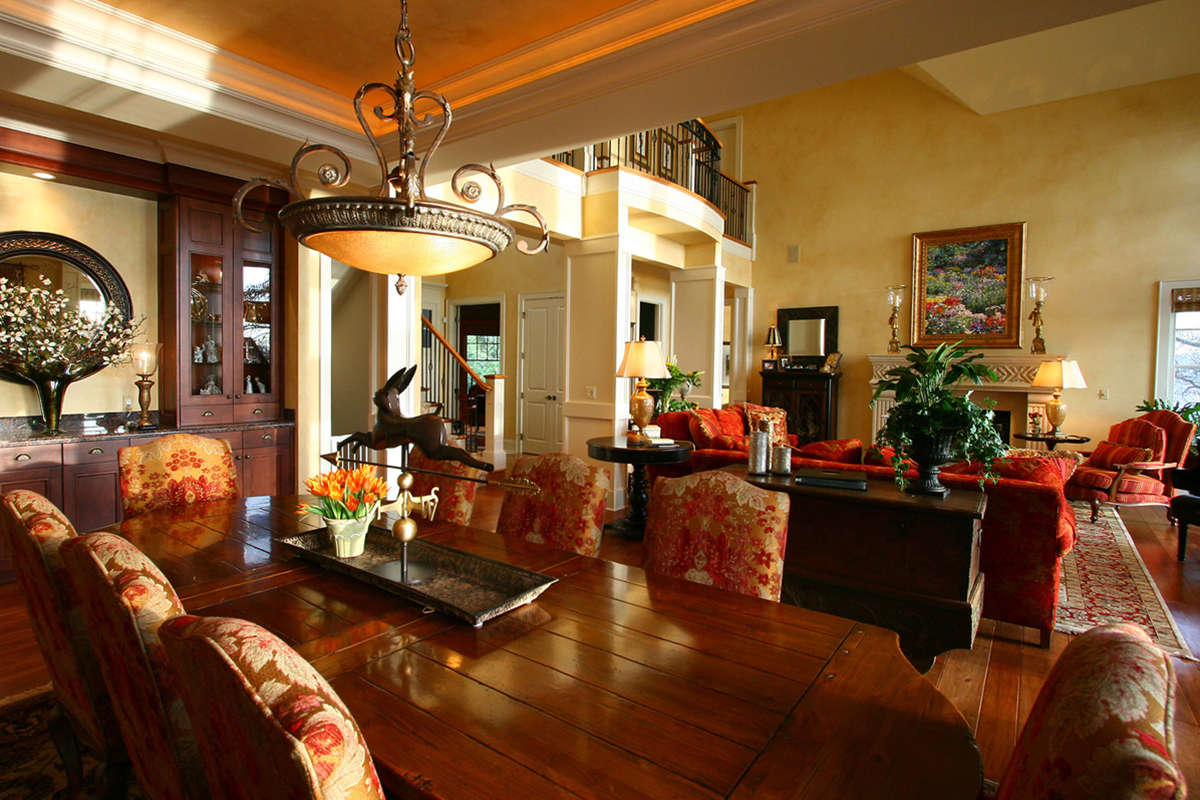

Upon entering the foyer, the den features a triple bay window with a full bathroom complete with a shower. Just beyond that is the great room featuring a fireplace, which is open to the dining and chef’s kitchen complete with a center island and a walk-in pantry. Both the great room and dining area provide access to the deck. The master bedroom takes up the left wing of the home and contains exciting amenities. There is a fireplace, private access to the deck, a luxurious master bathroom, and a walk-in closet. A sewing room, a guest powder room, and a utility room complete the main floor.

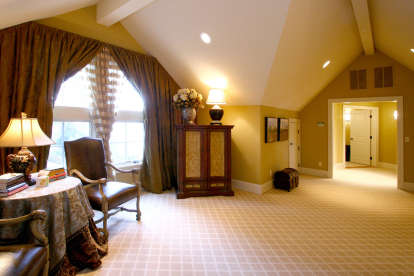

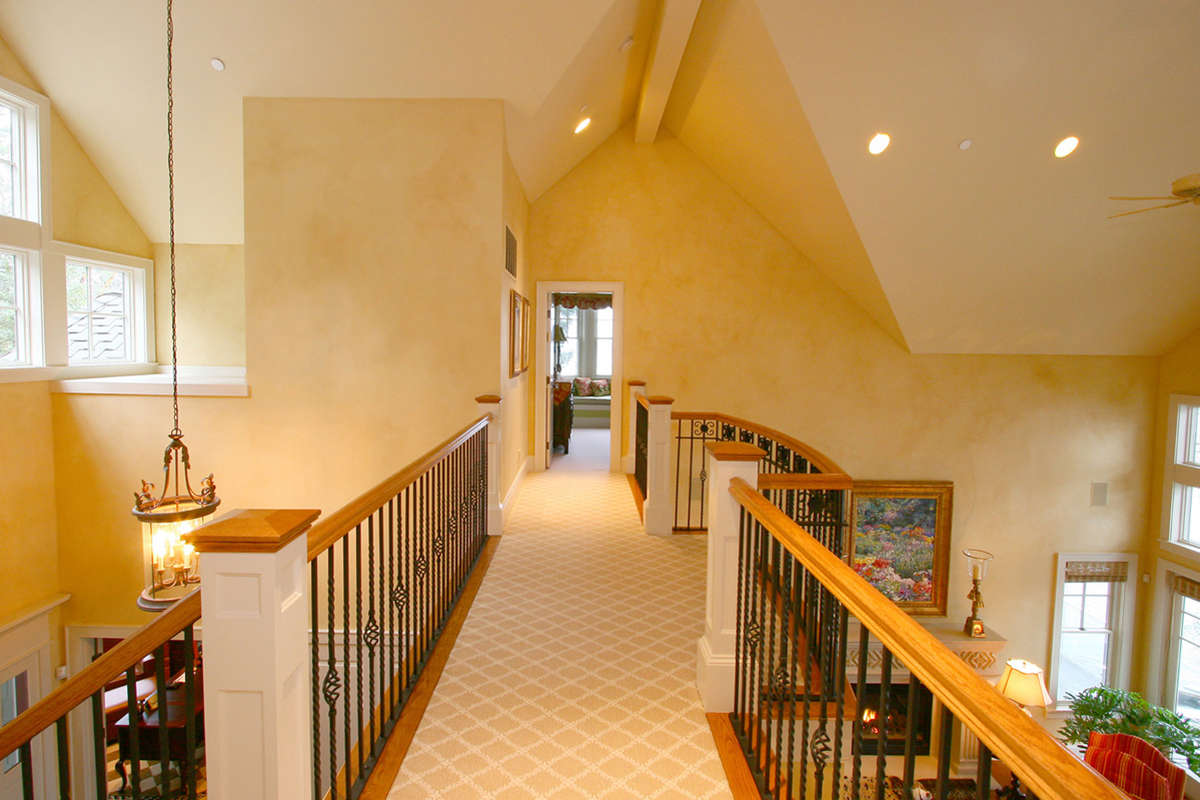

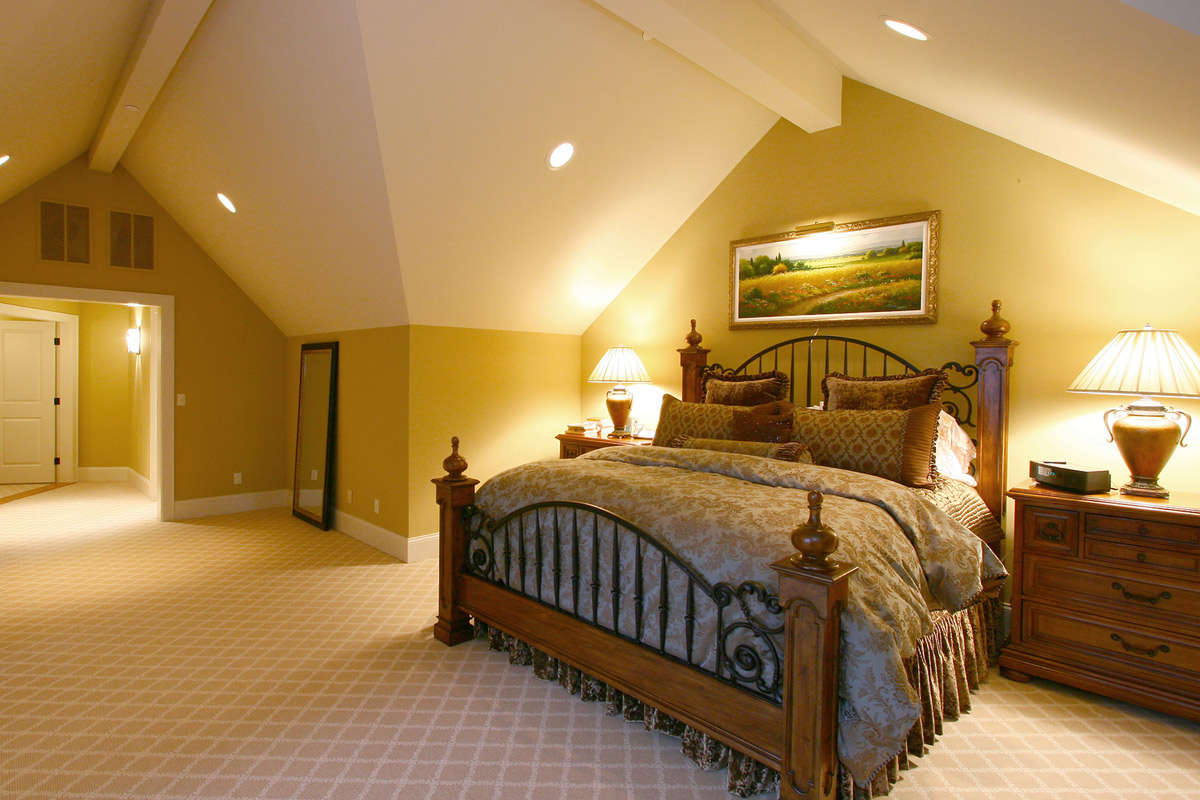

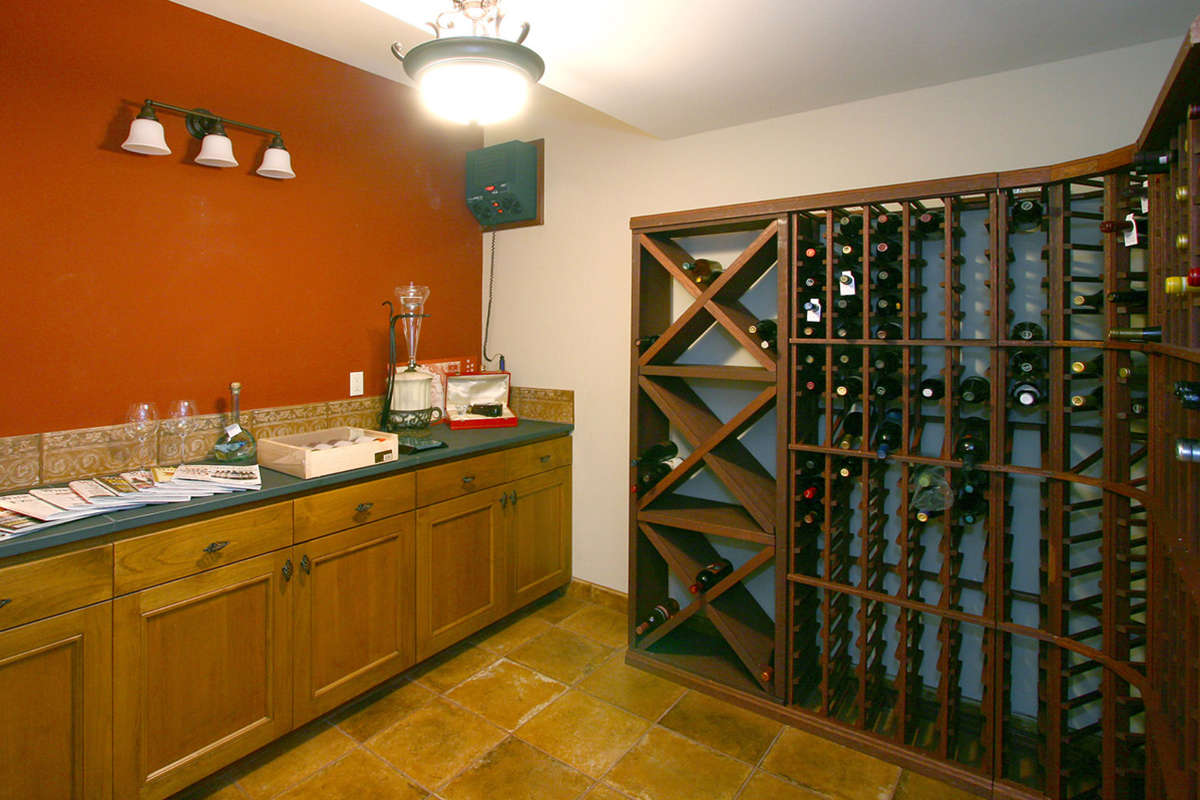

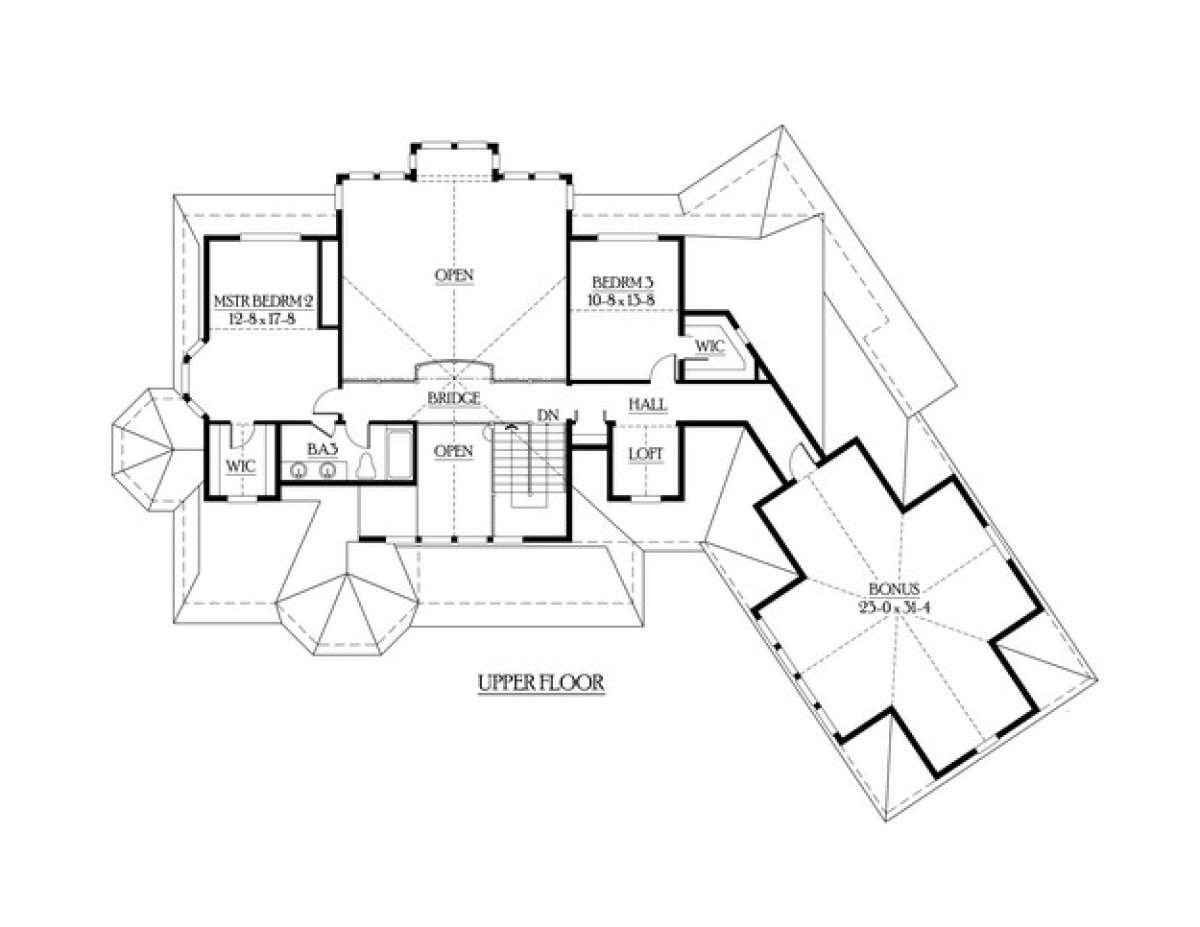

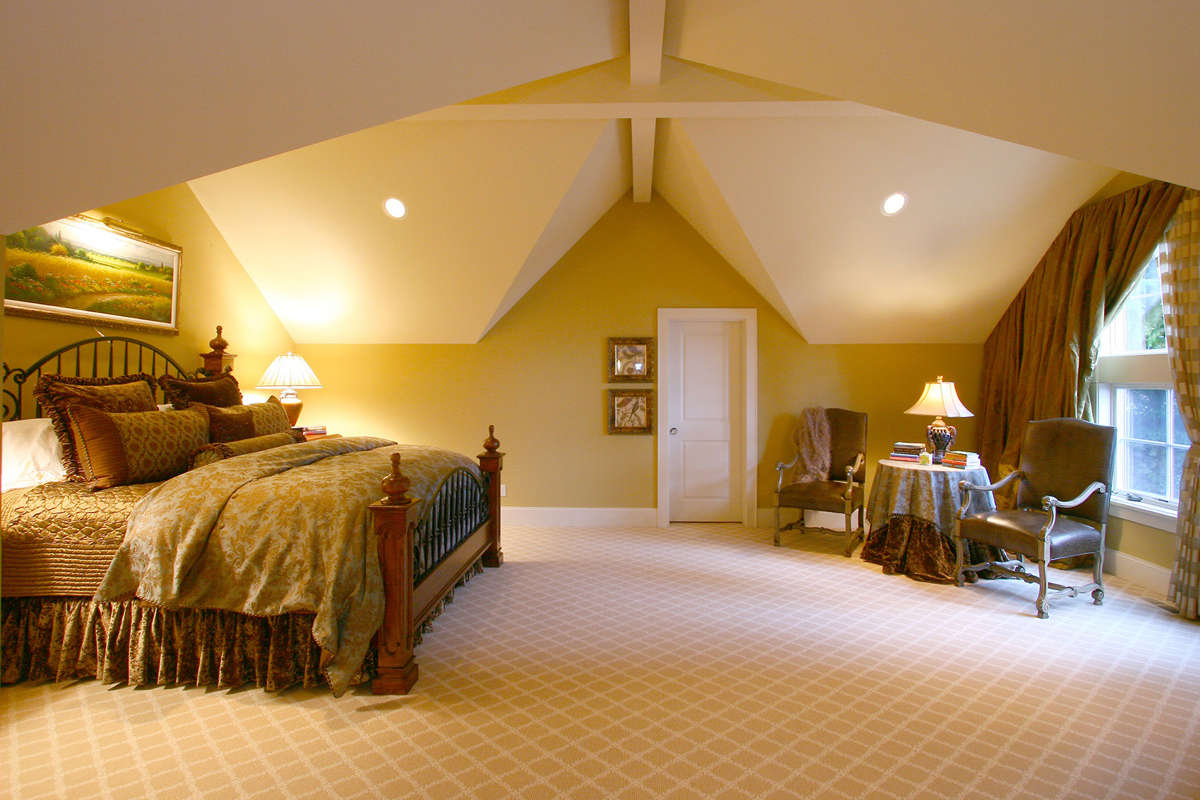

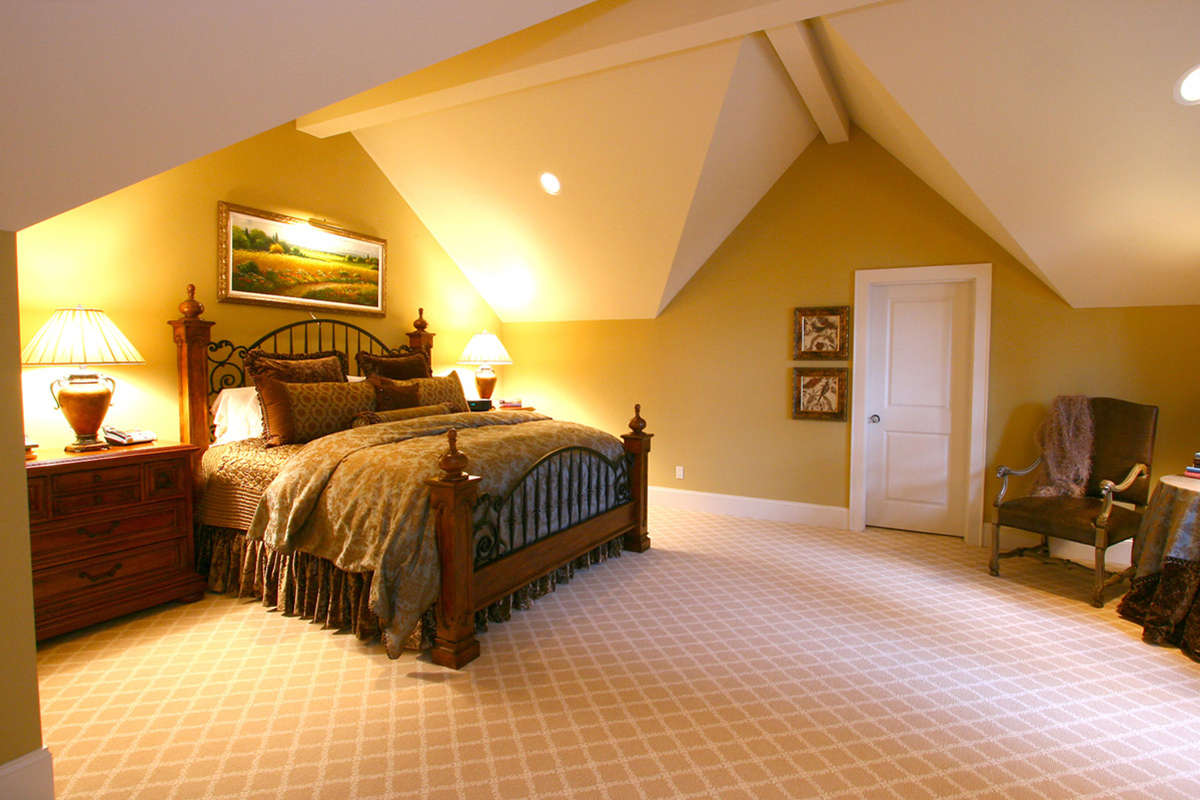

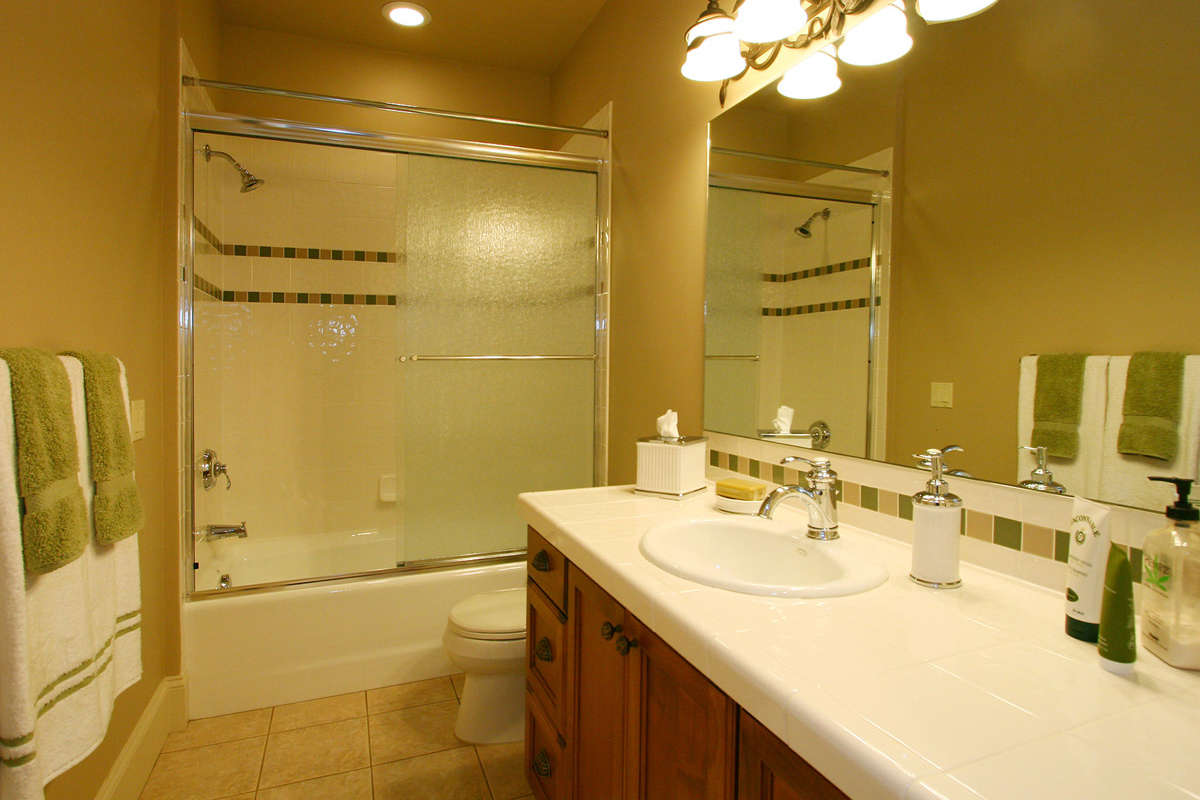

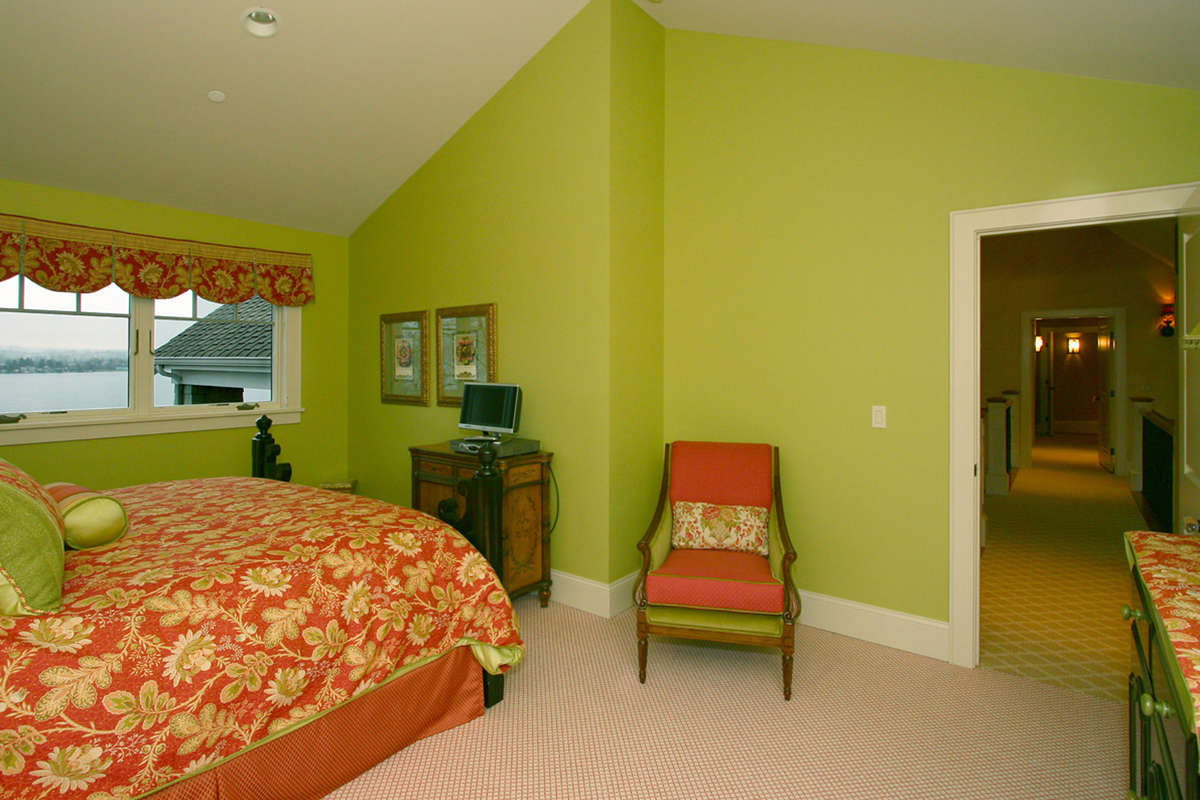

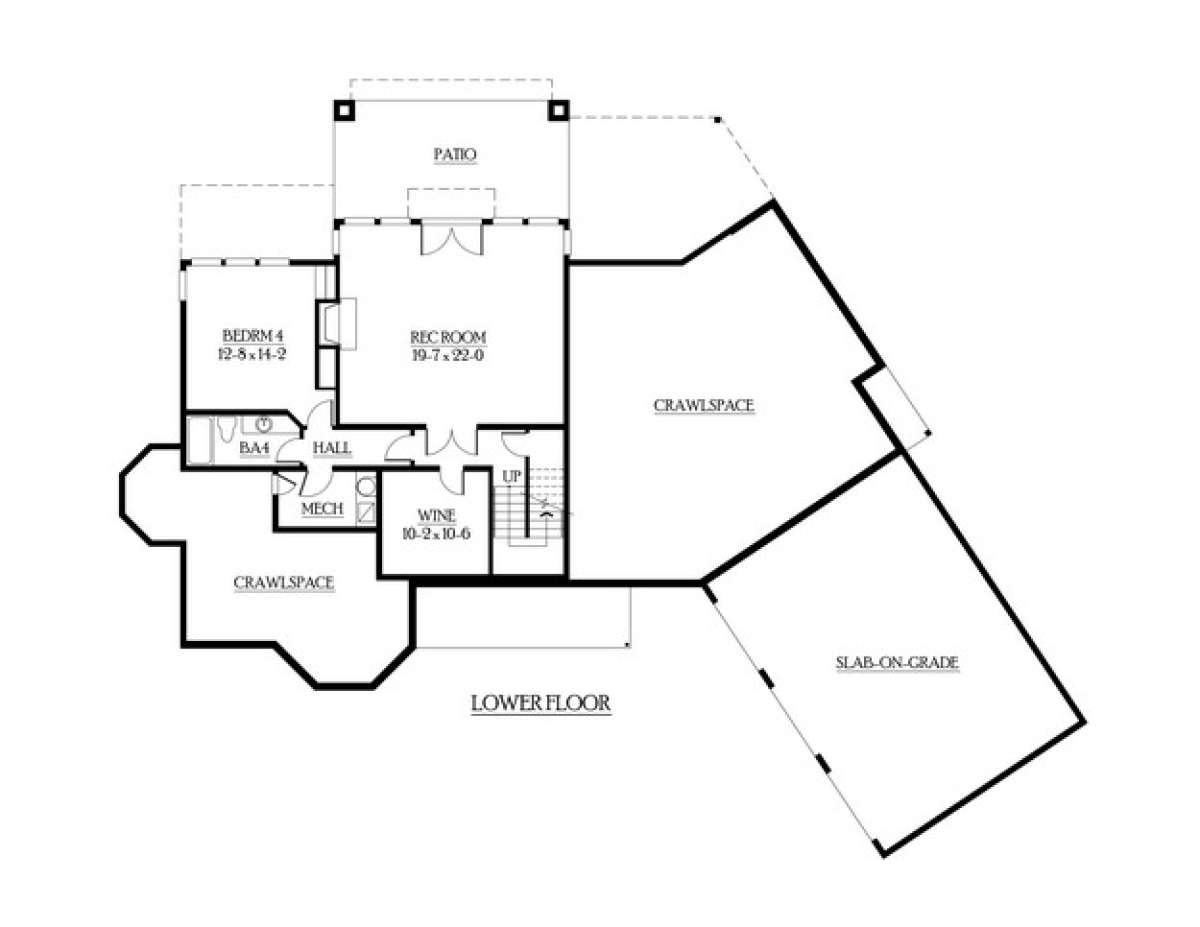

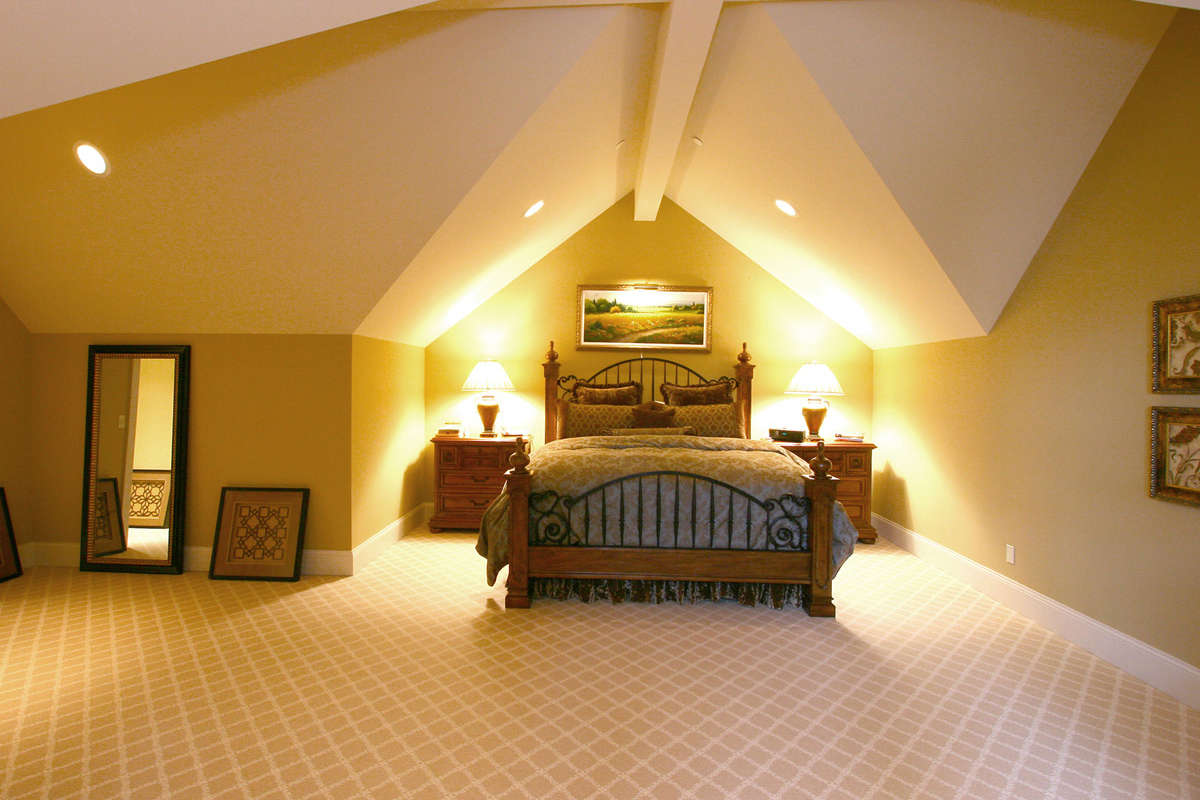

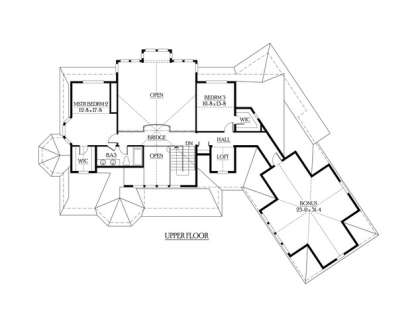

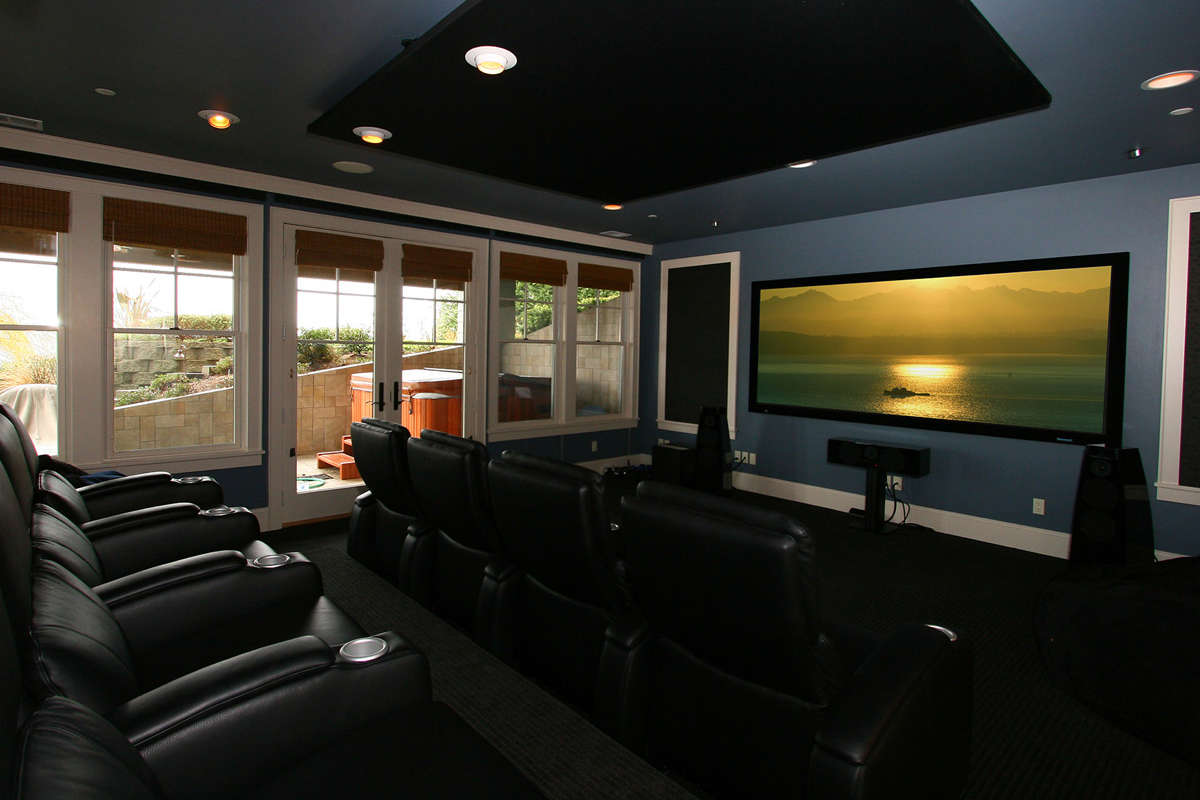

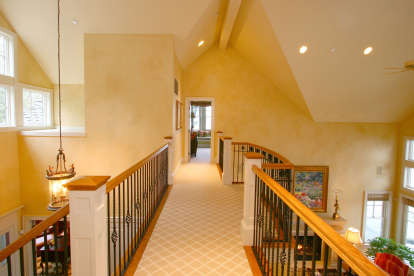

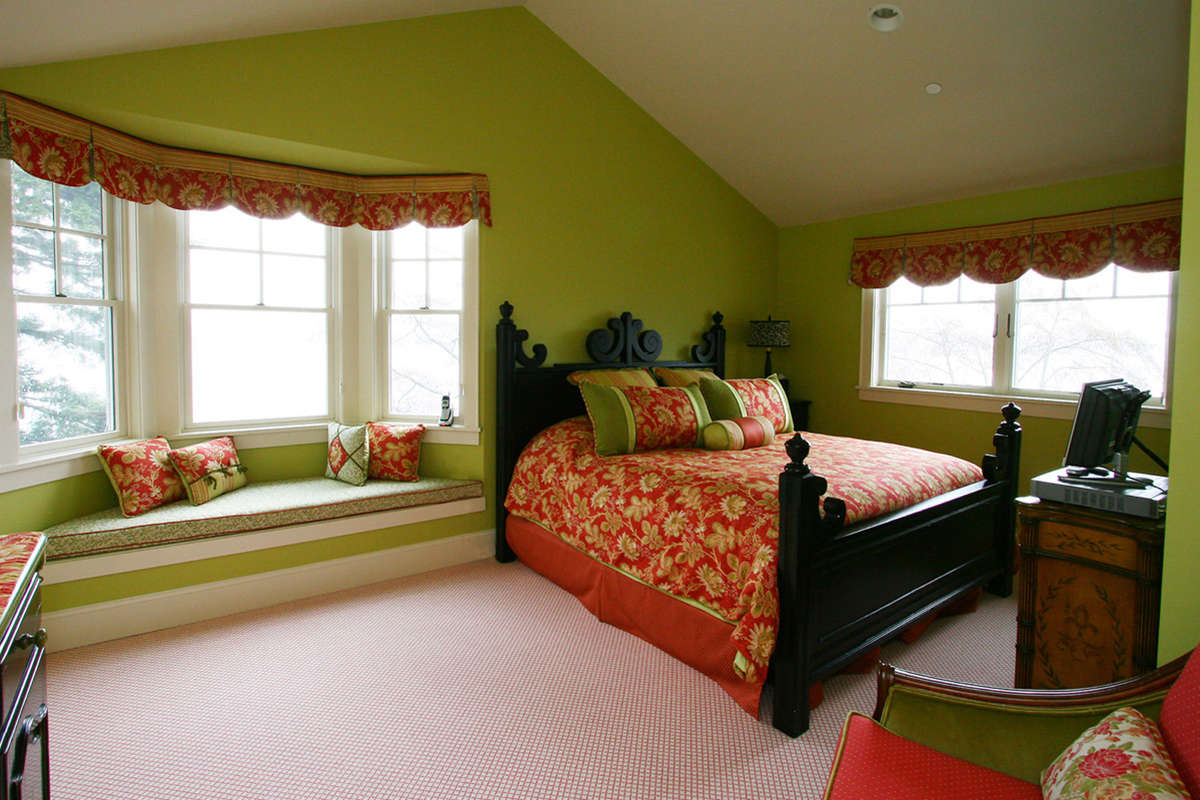

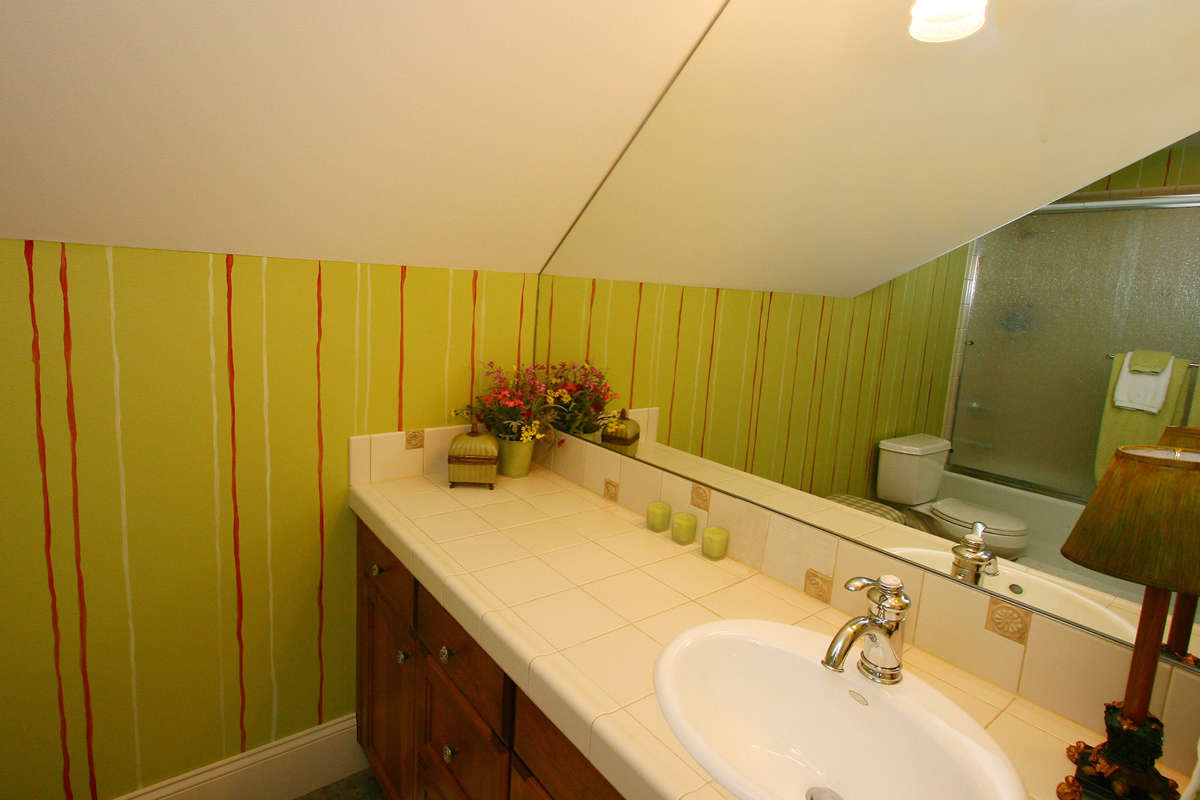

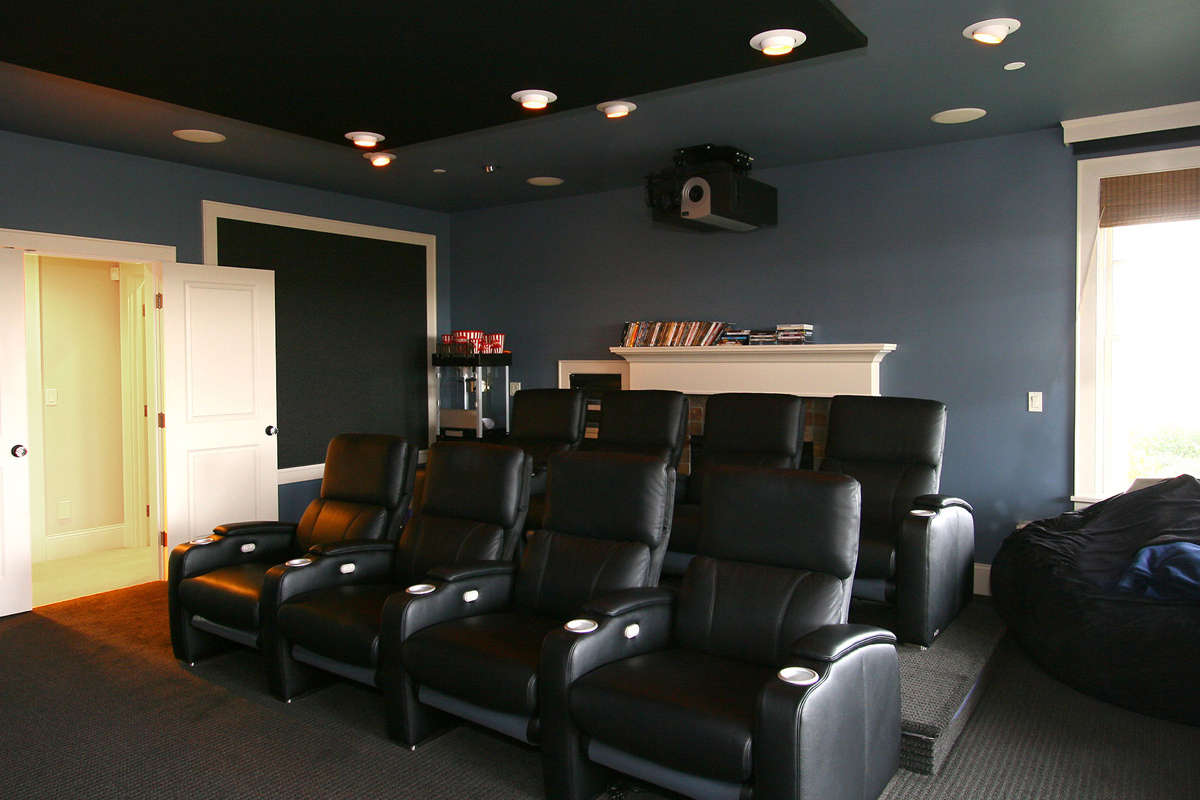

The second floor contains the second master bedroom with a tub/shower combination in the en suite and a walk-in closet. Bedroom #3 has a walk-in closet and shares the bathroom with the second master bedroom. The loft is a cozy area that can be used for a homework station or a play area. The basement level features an additional bedroom, a recreational room with a cozy fireplace, and a wine cellar. This exciting Luxury house plan has excellent modern features, two master bedrooms, a finished basement, and a fabulous deck.
