Mountain House Plan 5633-00073

Sq Ft3,133
1/2 Baths1
Width81' 4"
Depth59' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00073
Floorplan 2 for House Plan #5633-00073

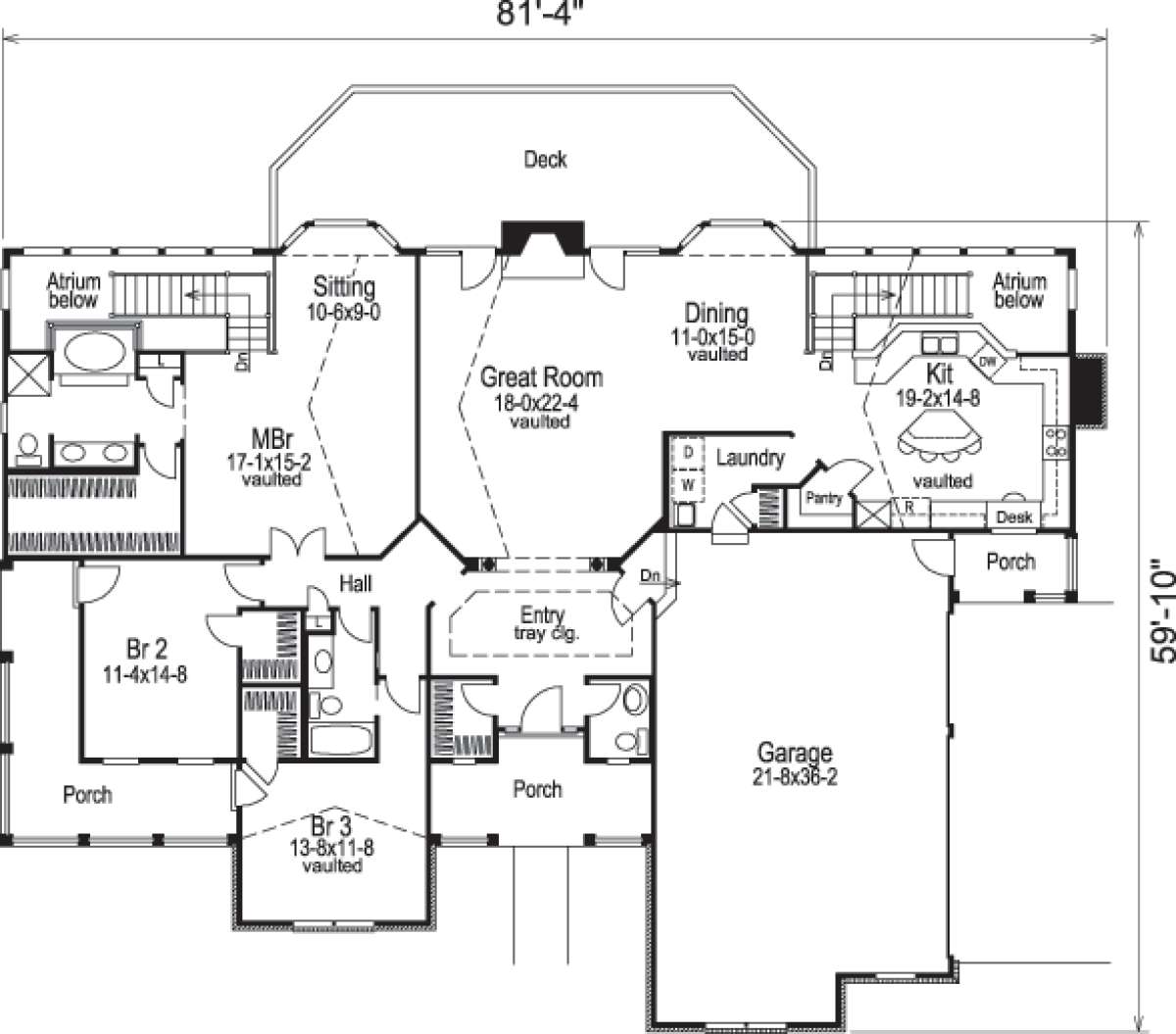

Floorplan 1
Floorplan 1 for House Plan #5633-00073

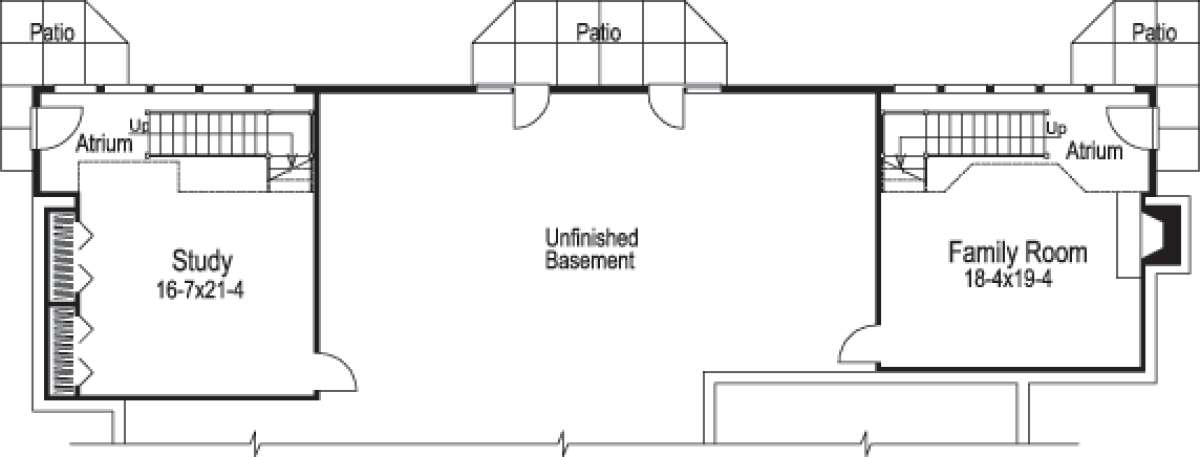

Floorplan 2
Floorplan 2 for House Plan #5633-00073

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.

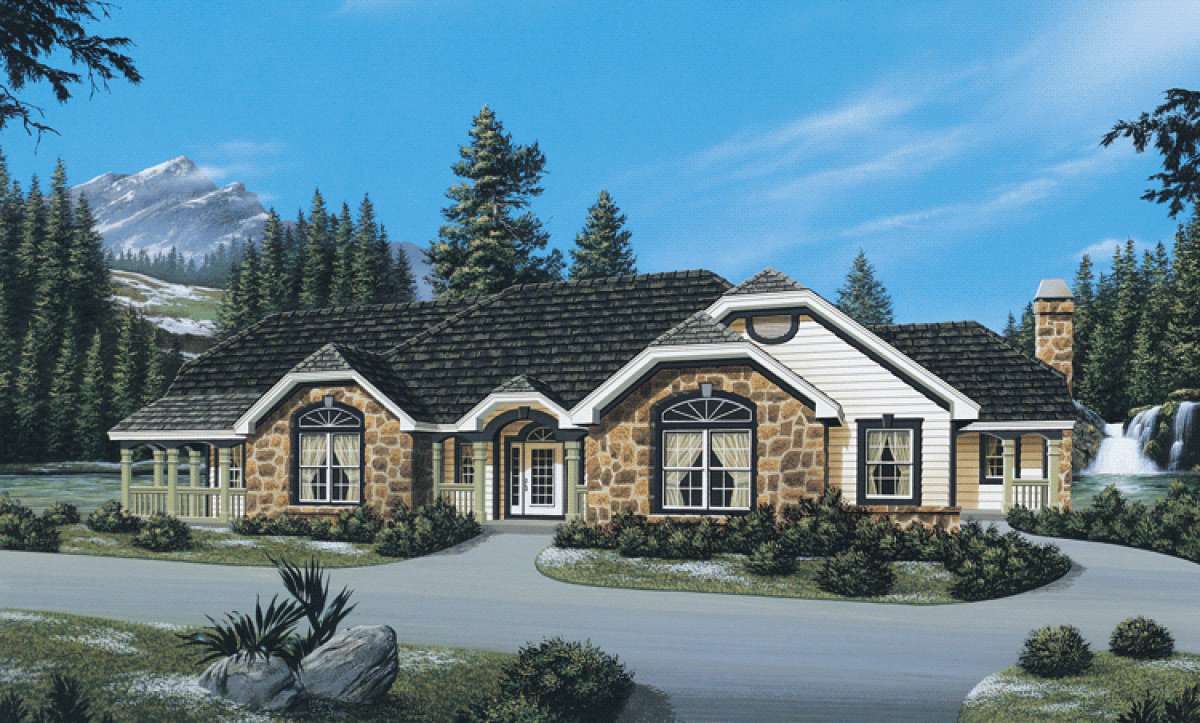

  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

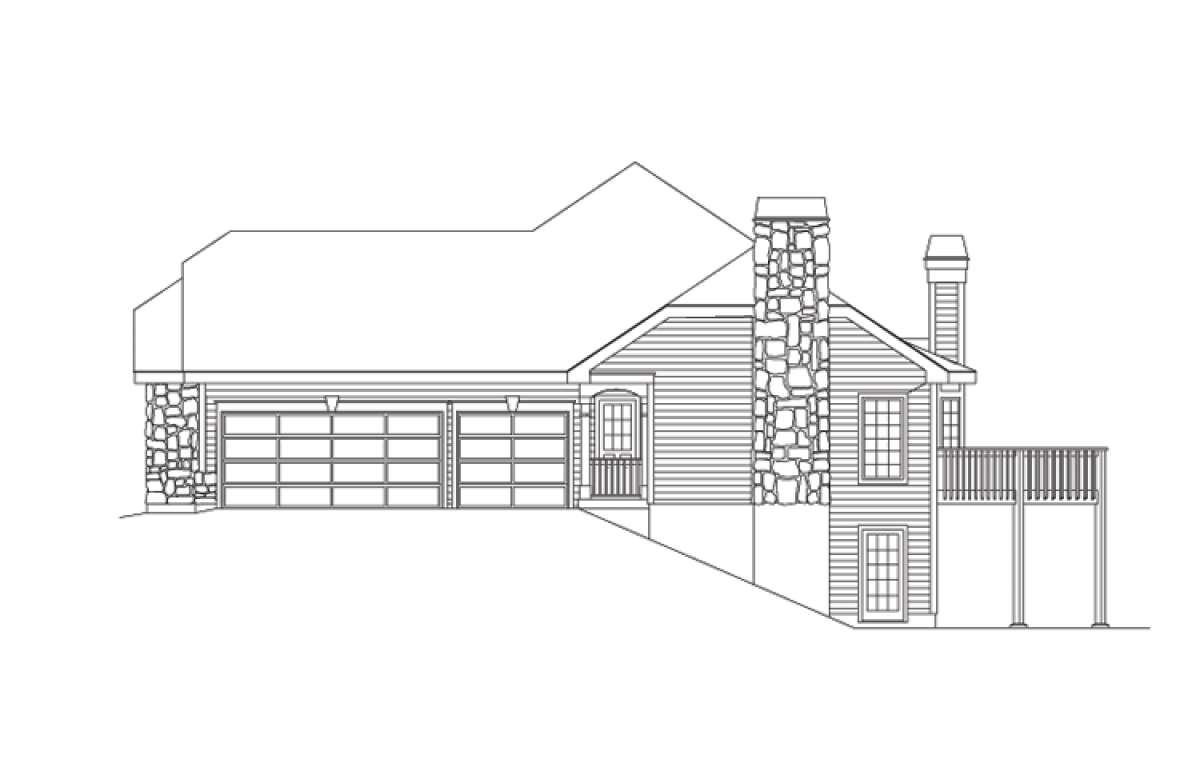

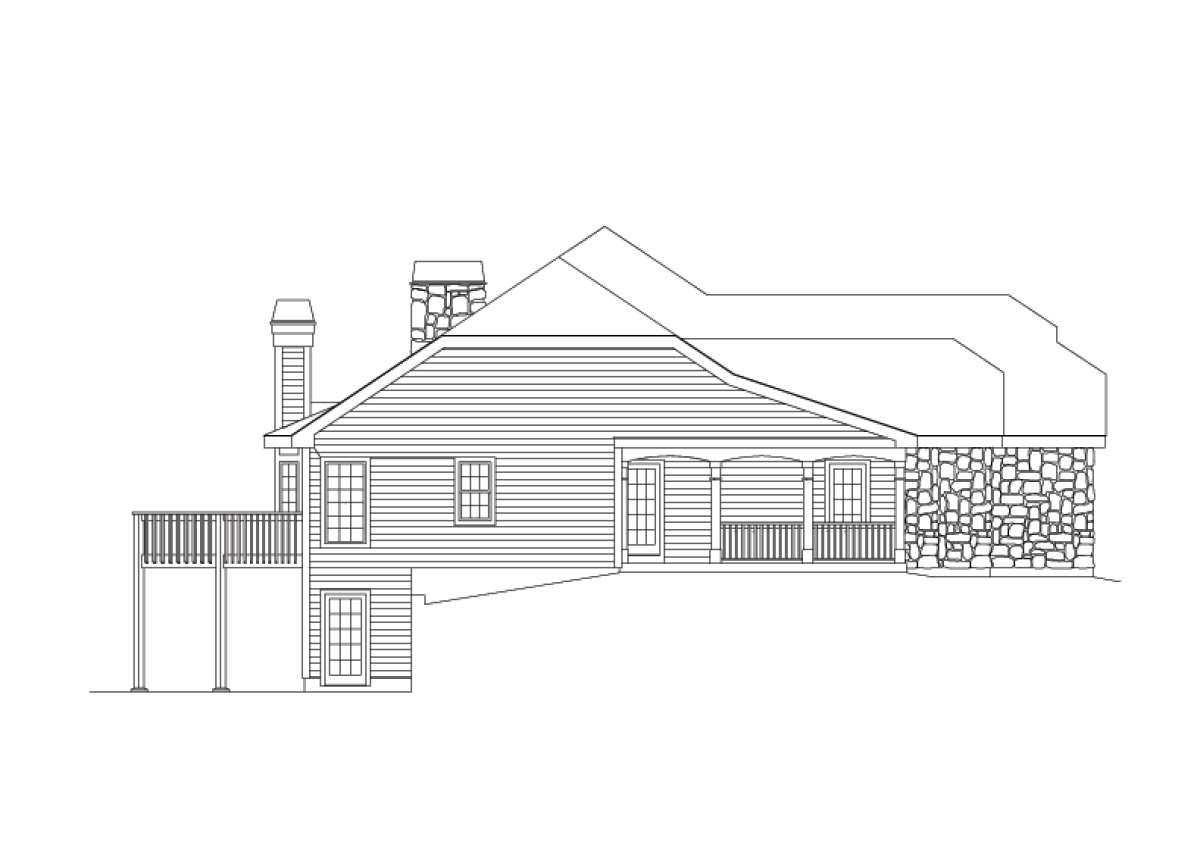

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Double side porches on the exterior and interior double atrium window walls highlight this beautiful Mountain home. Exterior stonework, a center entrance covered porch and wide eaves on multiple gables blend beautifully to offset the striking exterior. The interior holds in excess of 3,100 square feet of living space which incorporates three bedrooms and two plus baths into the home. There is a walk-out basement which contains an enormous study with double closets that could function as a fourth bedroom and there is a large family room, triple patio access and additional space which could be easily converted or used as storage. Double interior atrium window walls embrace the sun and can be found in the gourmet kitchen and master bedroom. The grand scale kitchen features bay shaped cabinets built over the atrium and overlooks a two story window wall along with a center island breakfast bar, a walk-in pantry and menu desk area. The three car, side entry garage conveniently leads into the large laundry room with sink area and closet space. The elegantly designed and spacious foyer features a trey ceiling and coat/storage closet before arriving into the columned entrance great room. The vaulted great room features a warming fireplace flanked by double access points onto the rear deck while the vaulted dining space is tucked into a bayed window.
Two spacious family bedrooms feature walk-in closets and private access to one of the side porches. There is a shared hall bath with large vanity space and hall linen closet for the bedroom’s use. The grand master retreat is accessible through French doors and the space is sun drenched with the atrium window wall and large bayed window where the sitting area is situated. An enormous walk-in closet is conveniently located at the rear of the master bath. The elegantly designed master bath features glorious sunlight with a whirlpool tub graced by the garden atrium, dual vanities and a separate shower. This warm and family friendly home boasts of outstanding interior floor space and a bold and exciting exterior façade.
