Coastal Plan: 4,124 Square Feet, 4 Bedrooms, 4.5 Bathrooms - 207-00025

America's Best House Plans - www.houseplans.net

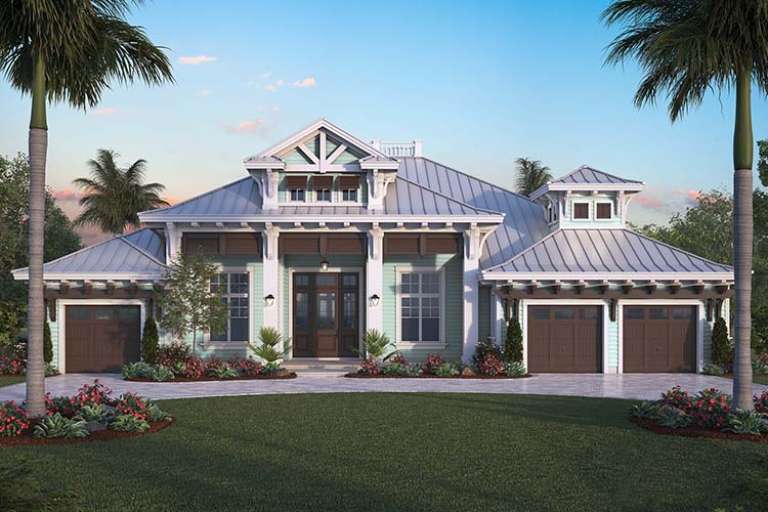

Coastal House Plan 207-00025

Sq Ft4,124
Beds4
Baths4
1/2 Baths1
Stories1
Cars3
Width79' 6"
Depth92' 10"
  REVERSE    Images copyrighted by the designer, and may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

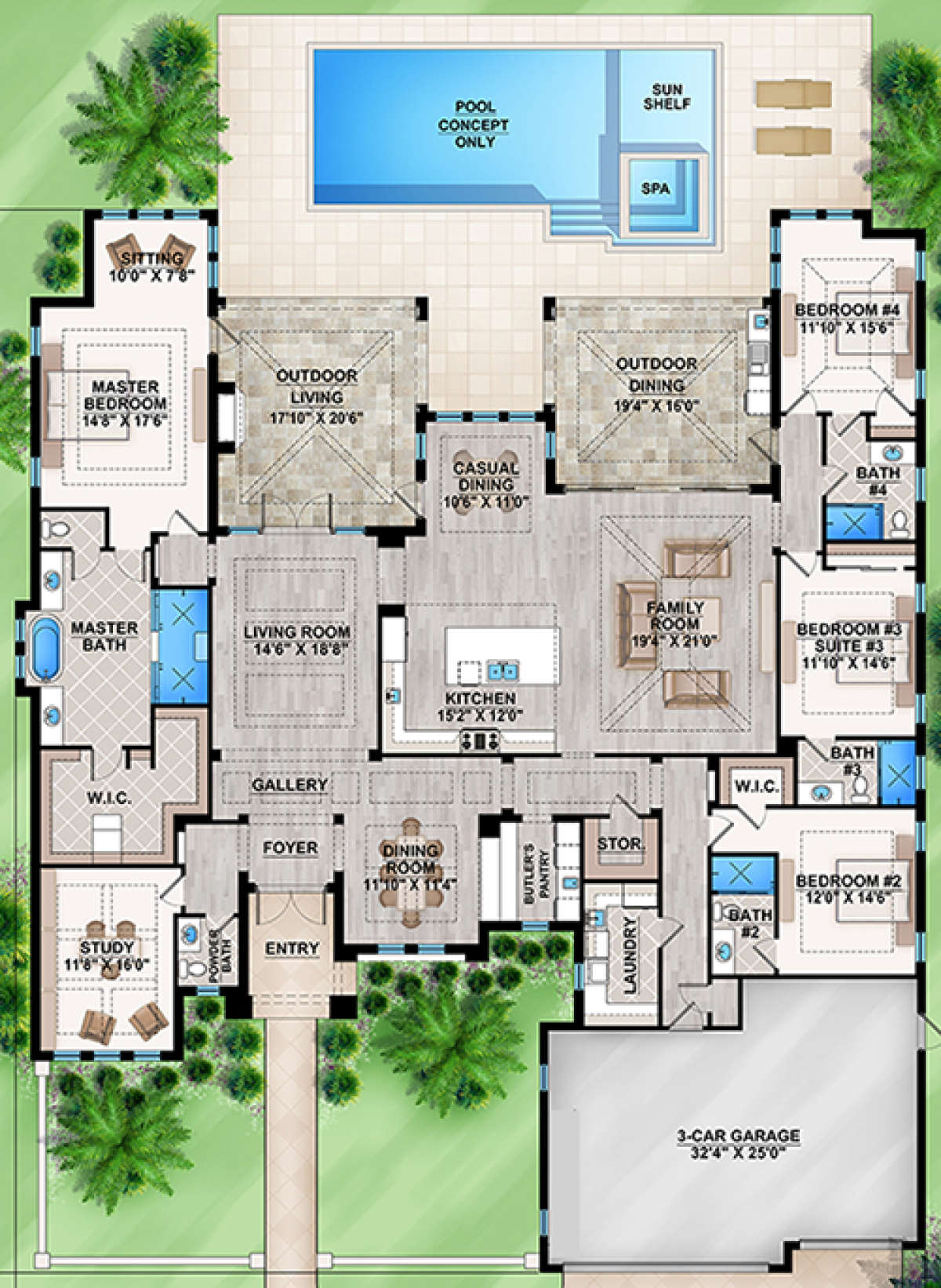

Floorplan 1


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Elevations:† Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Material Labels
    Floor-To-Floor Heights
    Roof Slope Indicators
  • Floor Plans:† Drawn†at 1/8" to 1/4" = 1'0" Scale and Includes:
    Door and†Window Sizes
    Completely†Dimensioned Floor Plan
    Room Labels and Interior Room Sizes
  • Electrical Layouts:
    Building Section Markers
    All Electrical Outlets, Fixtures and Switching
  • Foundation or Slab Plan:† Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:†
    Floor and Deck Joist Sizes, Spacing and Direction
    Rough-In Plumbing Location (if applicable)
    Mechanical Equipment Locations (if applicable)
    Electrical Locations (if applicable)
  • Roof Design Plan:† Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    All Beam and Header Heights and Locations
    All Hips, Gables, Ridges and Valleys
    Building Section Markers
  • Building Sections:† Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor Joist Size and Spacing
    Floor-To-Floor Heights
    Non-Typical Plate Heights Indicated
  • Typical Wall Sections:† Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
    All Labels Indicating Wall Construction
    Foundation Wall Thickness and Reinforcing
    Insulation Type and Thickness
  • Miscellaneous Notes and Details:
    Miscellaneous General Notes
    Stairway Details (if applicable)
  • ASK US A QUESTION

    Name:
    E-mail Address:
    Password: (for robots)
    Your Question:

    To request a modification quote, please use the Modification Request Form.

    About This Plan

    This 4 bedroom, 4 bathroom Coastal house plan features 4,124 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
