Coastal Plan 207-00019

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,162
Beds 4
Bath 4
1/2 Baths 1
Car 3
Stories 1
Width 79' 8"
Depth 95'

Floorplan Drawings

Main Floor Plan

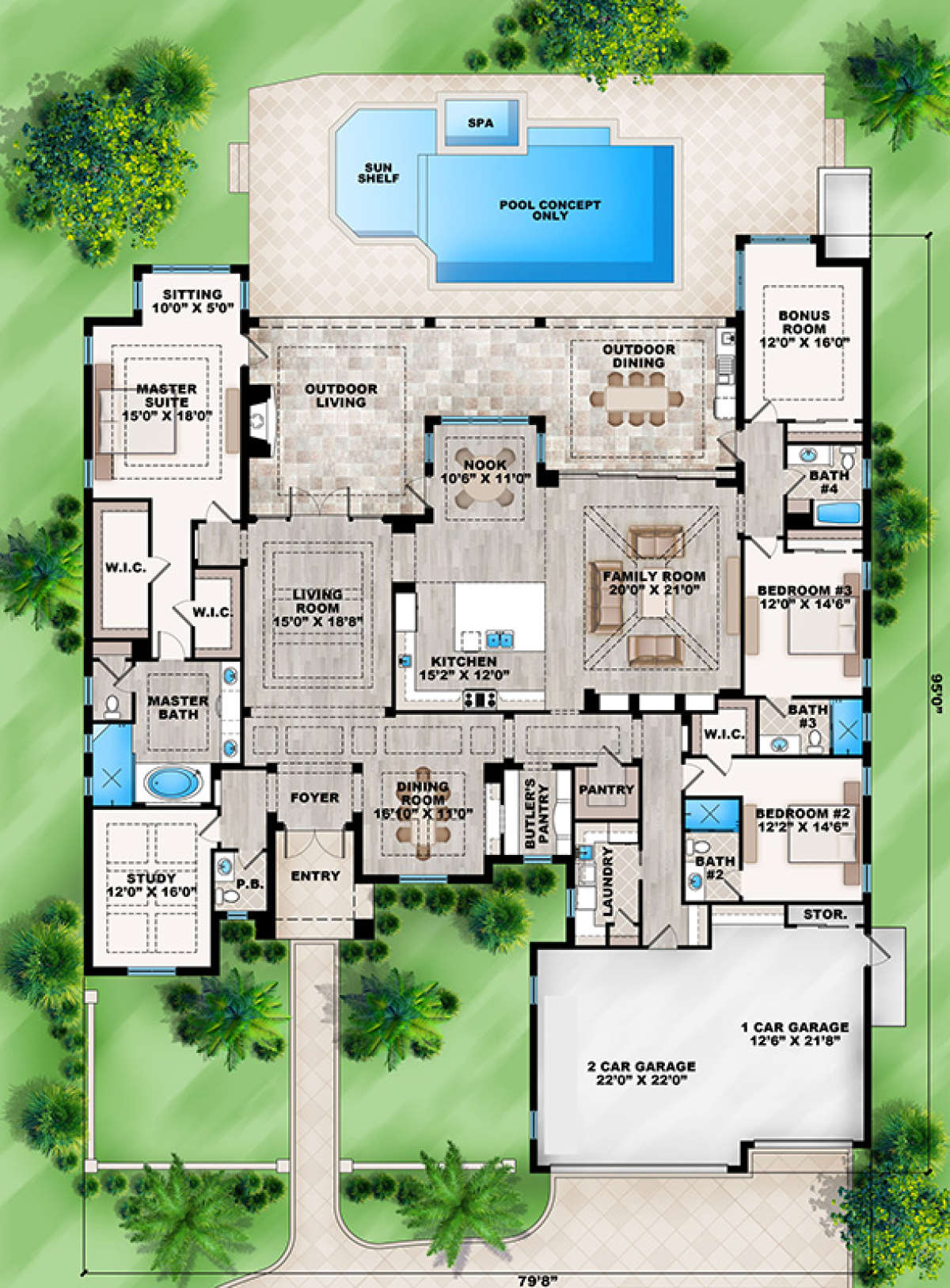

Main Floor Plan for House Plan #207-00019


What's Included in these plans?

  • Elevations:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Material Labels
    Floor-To-Floor Heights
    Roof Slope Indicators
  • Floor Plans:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Door and Window Sizes
    Completely Dimensioned Floor Plan
    Room Labels and Interior Room Sizes
  • Electrical Layouts:
    Building Section Markers
    All Electrical Outlets, Fixtures and Switching
  • Foundation or Slab Plan:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor and Deck Joist Sizes, Spacing and Direction
    Rough-In Plumbing Location (if applicable)
    Mechanical Equipment Locations (if applicable)
    Electrical Locations (if applicable)
  • Roof Design Plan:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    All Beam and Header Heights and Locations
    All Hips, Gables, Ridges and Valleys
    Building Section Markers
  • Building Sections:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor Joist Size and Spacing
    Floor-To-Floor Heights
    Non-Typical Plate Heights Indicated
  • Typical Wall Sections:  Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
    All Labels Indicating Wall Construction
    Foundation Wall Thickness and Reinforcing
    Insulation Type and Thickness
  • Miscellaneous Notes and Details:
    Miscellaneous General Notes
    Stairway Details (if applicable)

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 4 bathroom Coastal house plan features 4,162 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
