Mediterranean House Plan 168-00091

Sq Ft6,835
Beds4
Baths4
1/2 Baths2
Stories2
Cars3
Width79' 10"
Depth69' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

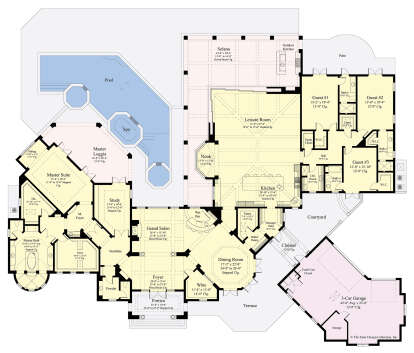

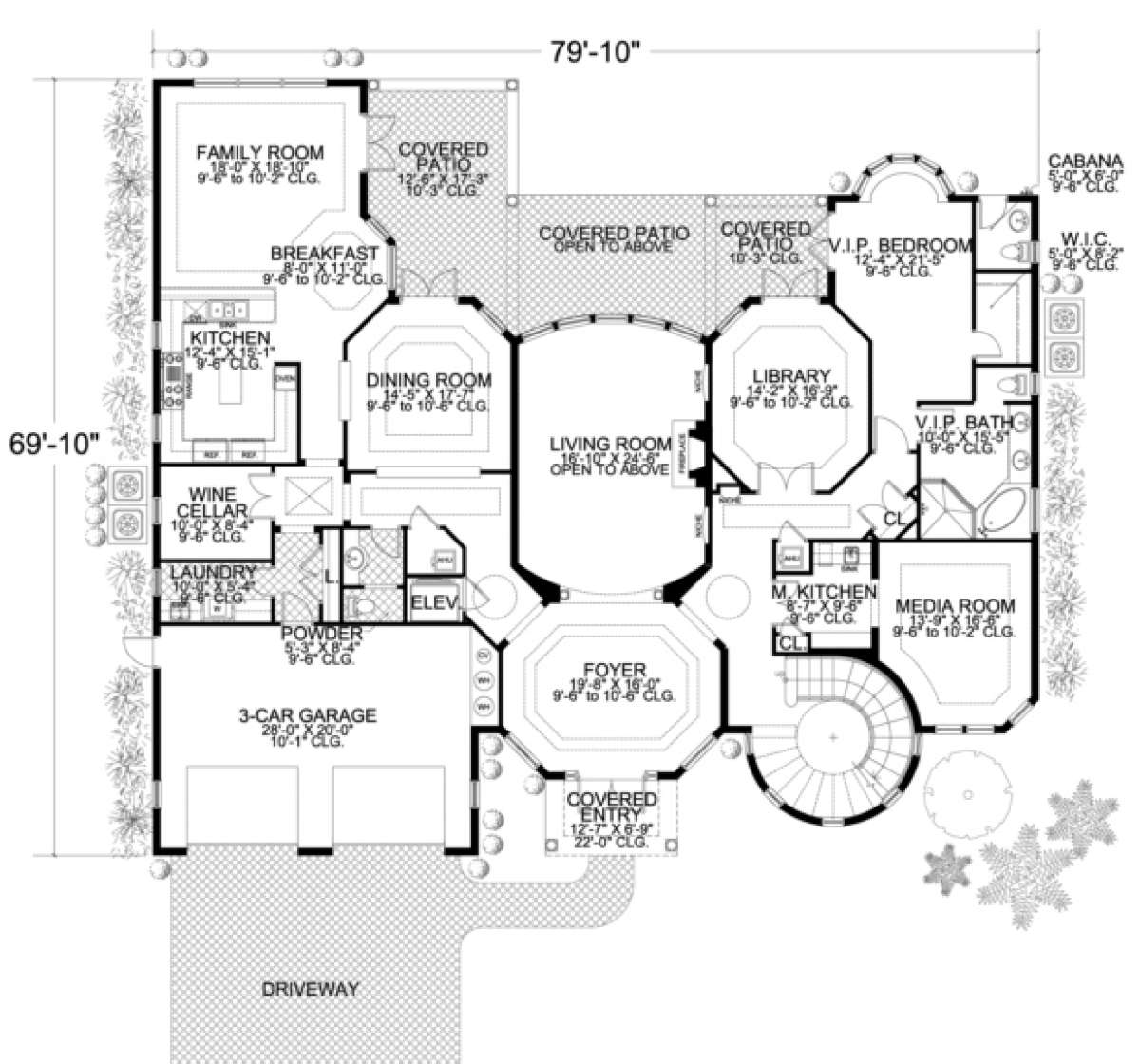

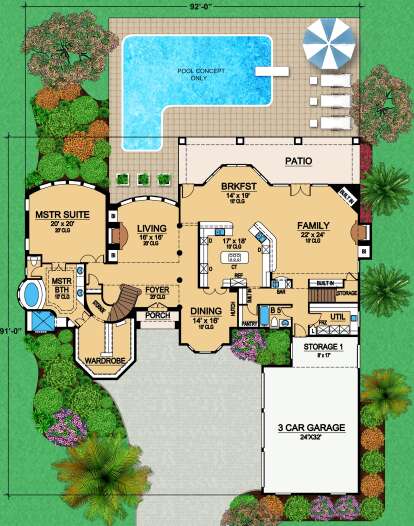

Floorplan 1 for House Plan #168-00091
Floorplan 2 for House Plan #168-00091

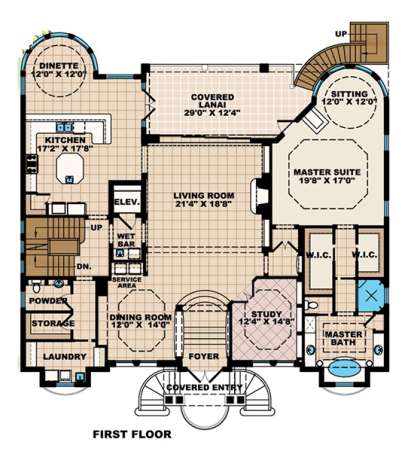

Floorplan 1
Floorplan 1 for House Plan #168-00091

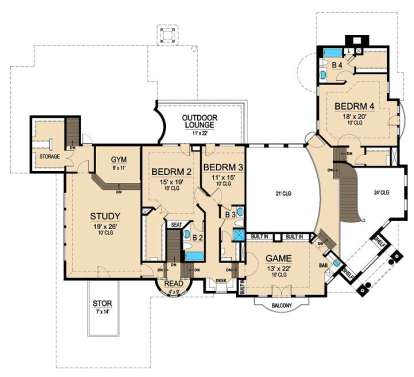

Floorplan 2
Floorplan 2 for House Plan #168-00091


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This classic Mediterranean style home offers a spacious floor plan with approximately 6,800 square feet and an exterior façade that is architecturally stunning. The use of arched windows, stately columns, and artistically crafted balconies and brick pavers give the home an old world feeling while the interior floor plan is definitely modern and open. The two story covered entrance spills into the dramatic foyer with a unique octagon shape and amazing size. The formal living room is equally stunning with soaring ceiling heights, a magnificent fireplace and dramatic bowed window with rear patio views. The media room serves as a multi-purpose room and is ideal for casual entertaining an intimate group of family or friends and offers an adjacent morning kitchen for convenience. Additionally, there is a library with front and rear French doors leading to the rear patio. The guest suite is simply elegant which is highlighted by a dramatic bowed window, walk-in closet, cabana bath and full private bath with a garden tub and separate shower. The formal dining room has a double step trey ceiling and French doors leading to the rear patio. The gourmet kitchen features an oversized center island, coffered ceilings, dual dishwashers and is open to the breakfast room and family room which is an ideal arrangement for family members to come together in a cozy setting. A wine cellar, large utility room, half bath and elevator, which is a nice alternative to the stunning, curved staircase off the foyer, complete the main level of the home. A second guest suite or magnificent family bedroom is situated upstairs with double sitting areas, a private covered balcony, large walk-in closet and private hidden room. The guest bath features a separate shower and garden tub. Bedroom three includes double closets and a private bath. There is second utility room located on the second floor as well as the first for convenience. The master retreat is sumptuous and fit for royalty; you enter through and are beckoned to the right by the sitting room or master bedroom which features dramatic ceiling heights and double balconies accessed through double French doors. Directly in front of the master entrance is an oversized walk-in closet that many would be ecstatic to call their bedroom; it is that large. To the left of the entrance, you enter the master bath which is simply regal and enjoys an enormous footprint. It is highlighted with a roman tub, a separate shower fit for a king, separate dual vanities and his and her toilet areas.
