Mediterranean House Plan #168-00084 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 6,116

Beds 5-6

Bath 5

1/2 Baths 1

Car 3

Stories 2

Width 69' 10"

Depth 59' 11"

See What's Included

Select Package

PDF (Single Build)

$1,900.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,900.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

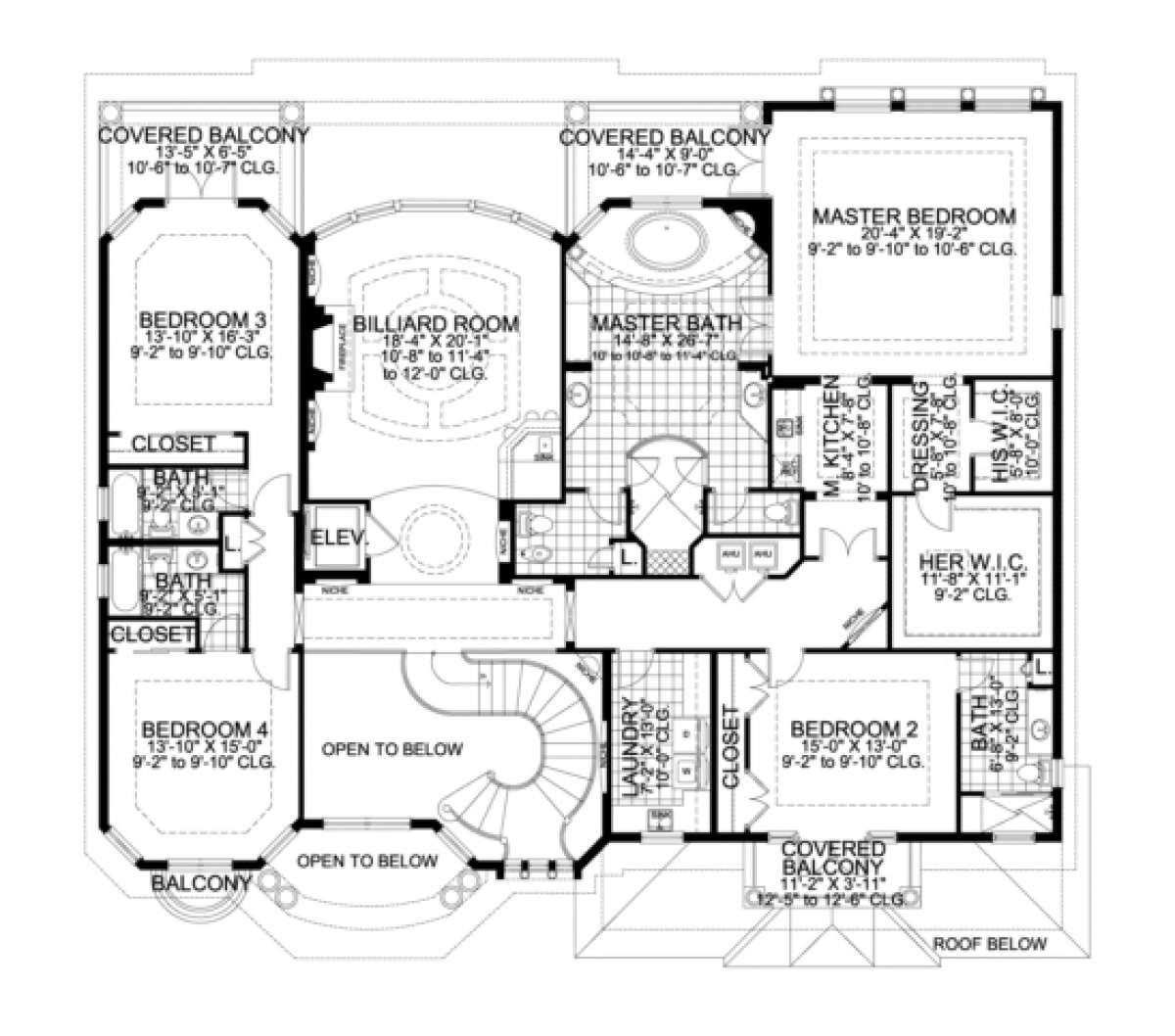

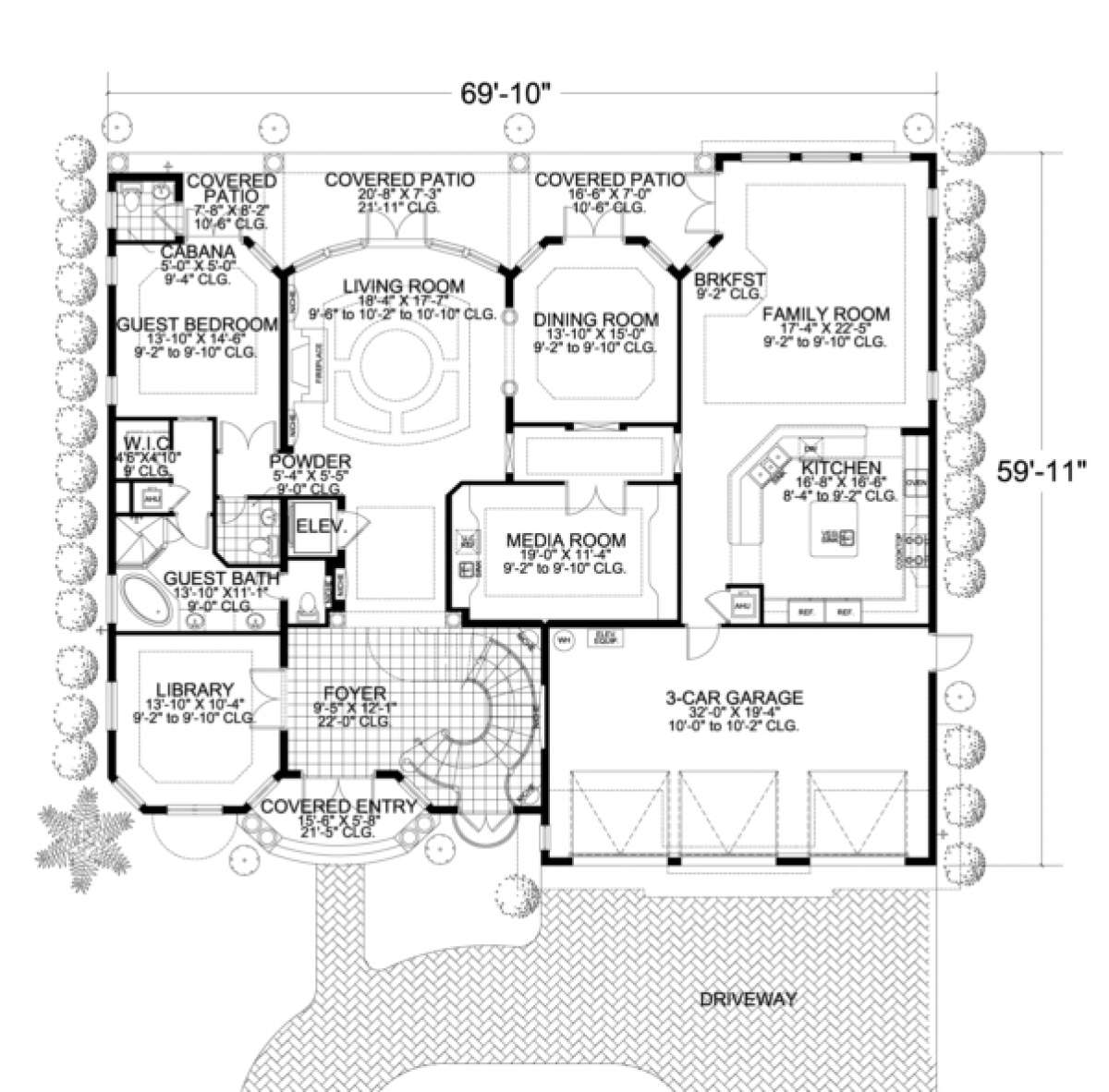

Floorplan 1

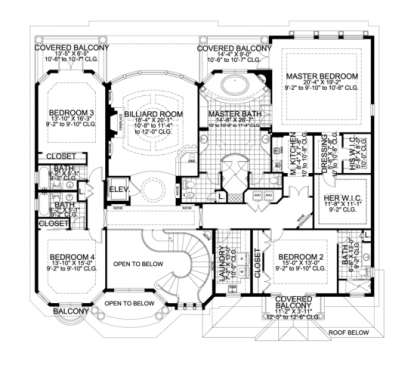

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This aesthetically pleasing Mediterranean style home conveys a sense of old world charm reminiscent of traditional homes located off the coast of the Mediterranean Sea. Its stucco façade, tile roof, beautiful ironwork and balconies offset the surrounding landscape beautifully. The interior floor plan features approximately 6,100 square feet of modern loveliness with five bedrooms, five + bathrooms and a three car garage. The towering gallery entrance has a beautiful dome top and double doors leading to the dramatic foyer which boasts of a 22’ ceiling and spectacular curved staircase. The library is situated off the foyer and features French door access and a trey ceiling; this is an ideal spot for intimate entertaining close friends and/or business associates. The large, formal living room is absolutely stunning with a coffered ceiling, a fireplace and rear covered patio access. The formal dining room is open to the living room and a trey ceiling and rear patio access through French doors. Across the bridge hallway is the media room with wet bar. The gourmet kitchen has a large center island, breakfast bar and is open to the café and family room which enjoys a triple window view of the rear yard. The guest suite is an outstanding space and is highlighted by a spacious bedroom, private patio access and a rear cabana bath. There is also a walk-in closet and private guest bath which includes dual vanities, a separate shower and corner garden tub. A powder room and residential elevator complete the main level of the home. The second floor of the home is equally stunning and has a bridge overlooking the foyer and leads to the billiard room. This room offers a coffered ceiling, wet bar, a fireplace and a beautiful bowed window gallery. Bedroom two and three offer a spacious bedroom, generous closet, private bath and private covered balcony. Bedroom four also has a generous footprint and closet, private bath and balcony. The master retreat is just that, a sanctuary designed to be private and relaxing with a bedroom that is oversized and offers a double step trey ceiling with access to a morning kitchen and private covered balcony. This space is perfect for taking your morning coffee or relaxing in the evening. His and her walk-in closets also include a dressing area. The master bath is fit for royalty and features a large roman spa tub, separate oversized shower, dual vanities and his and her compartmentalized toilet areas. This Mediterranean manor speaks of days gone by while evoking a modern and versatile floor plan.
