Mediterranean House Plan #168-00083 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 6,096

Beds 5

Bath 5

1/2 Baths 1

Car 3

Stories 2

Width 87' 5"

Depth 59' 10"

See What's Included

Select Package

PDF (Single Build)

$1,900.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,900.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

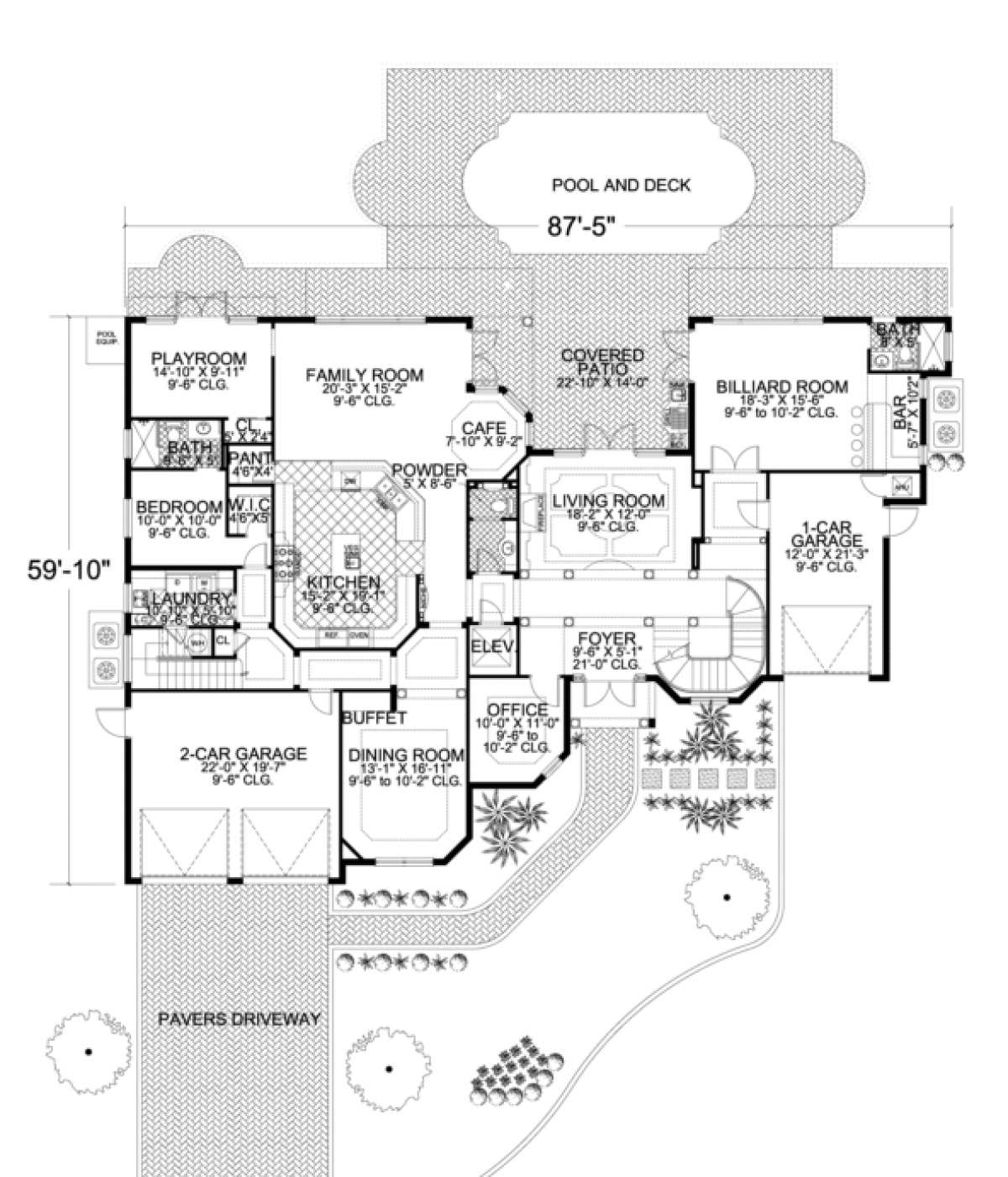

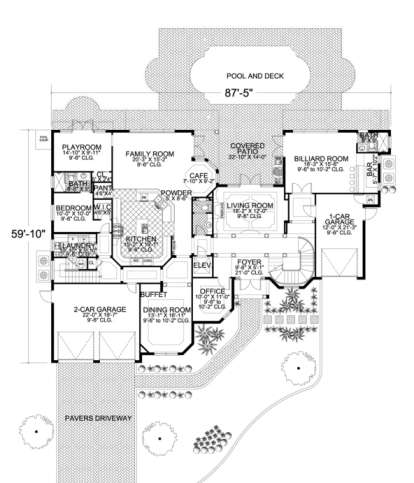

Floorplan 1

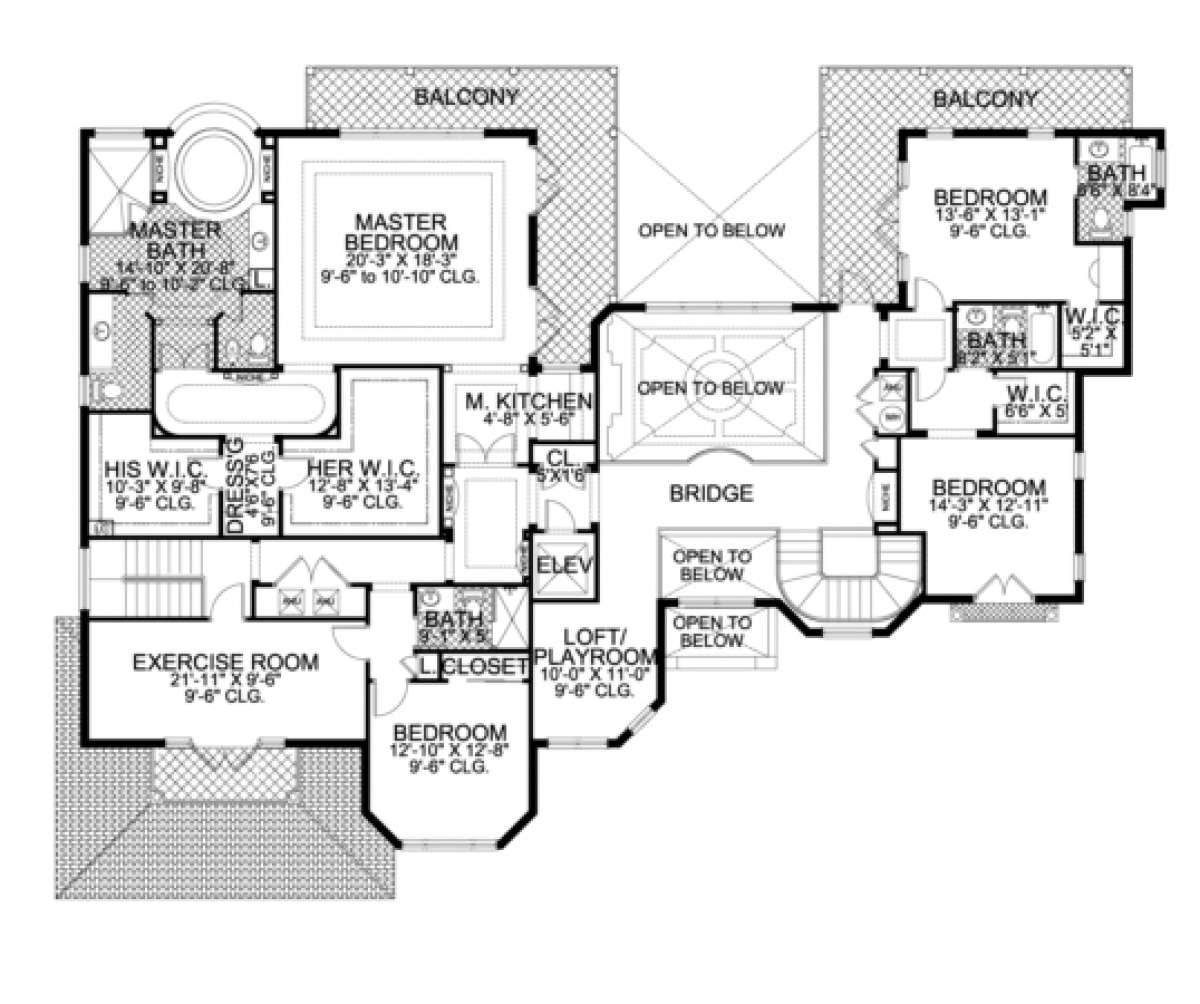

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This perfectly designed palatial manor features a striking Mediterranean exterior façade and an interior floor plan that is spacious and versatile. A traditional grand entrance with 8’ French doors, tiled roofing and stunning balconies combine beautifully to create an inspiring exterior while the generous floor plan features five bedrooms, five plus baths and a three car garage. The spacious foyer is flanked by a curved staircase and residential elevator for your elderly or infirmed guests. The formal living room is enhanced by column detailing, a stately fireplace, stunning ceiling work and French door access to the rear covered patio. The patio spans the length of the home and includes a summer kitchen which would be ideal for dining alfresco and enjoying the outdoors. The enormous billiards room features a wet bar and private bath and is the ideal space to entertain. An office sits at the front of the home for privacy and provides the perfect area in which to greet intimate friends and business associates. The gourmet kitchen with a center island and separate breakfast bar anchors the formal dining room and café. A large family room and adjacent play room sit at the rear of the kitchen and both have rear patio access. A powder room, huge utility room along with a double and single bay garage are also situated at the main level of the home.
The second story of this home is outstanding and features a bridge hallway to the master retreat and additional bedrooms. The loft area is tucked into a nook and could be used as lounge or homework station for the children. There are two bedrooms, each with a walk-in closet and private bath; one bedroom has a small outdoor space while the other has a wraparound covered balcony accessible through French doors. A third bedroom features ample closet space and private bath access. The elegantly designed master retreat features an enormous trey ceiling bedroom with a morning kitchen and double French door access to the private covered balcony; the perfect spot to relax and enjoy your morning coffee. A dressing area is flanked by oversized his and her walk-in closets and leads to the master bath. The master bath’s pièce de résistance is the Roman spa tub; a separate shower, separate dual vanities and double toilets complete the master bath. Situated at the top of the back staircase is an enormous exercise room with balcony access. This beautifully designed home offers a splendid exterior façade and an interior floor plan that is stunning and versatile.
