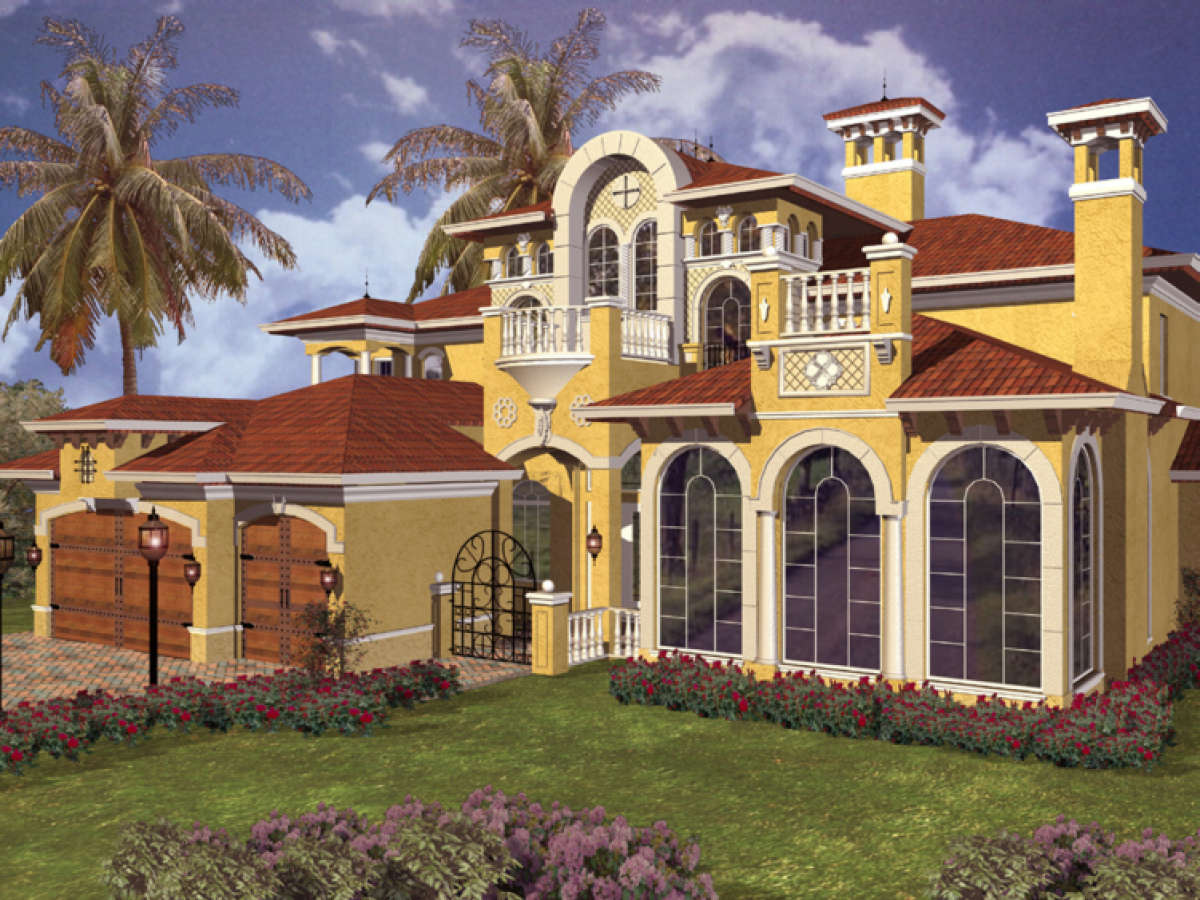

Luxury House Plan #168-00079 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 5,966

Beds 5

Bath 5

1/2 Baths 1

Car 3

Stories 2

Width 77' 9"

Depth 90' 5"

See What's Included

Select Package

PDF (Single Build)

$1,800.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,700.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

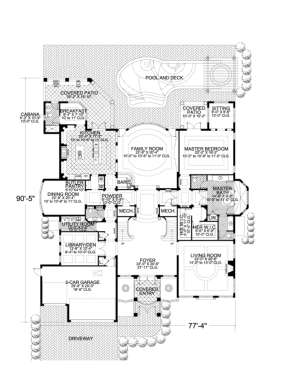

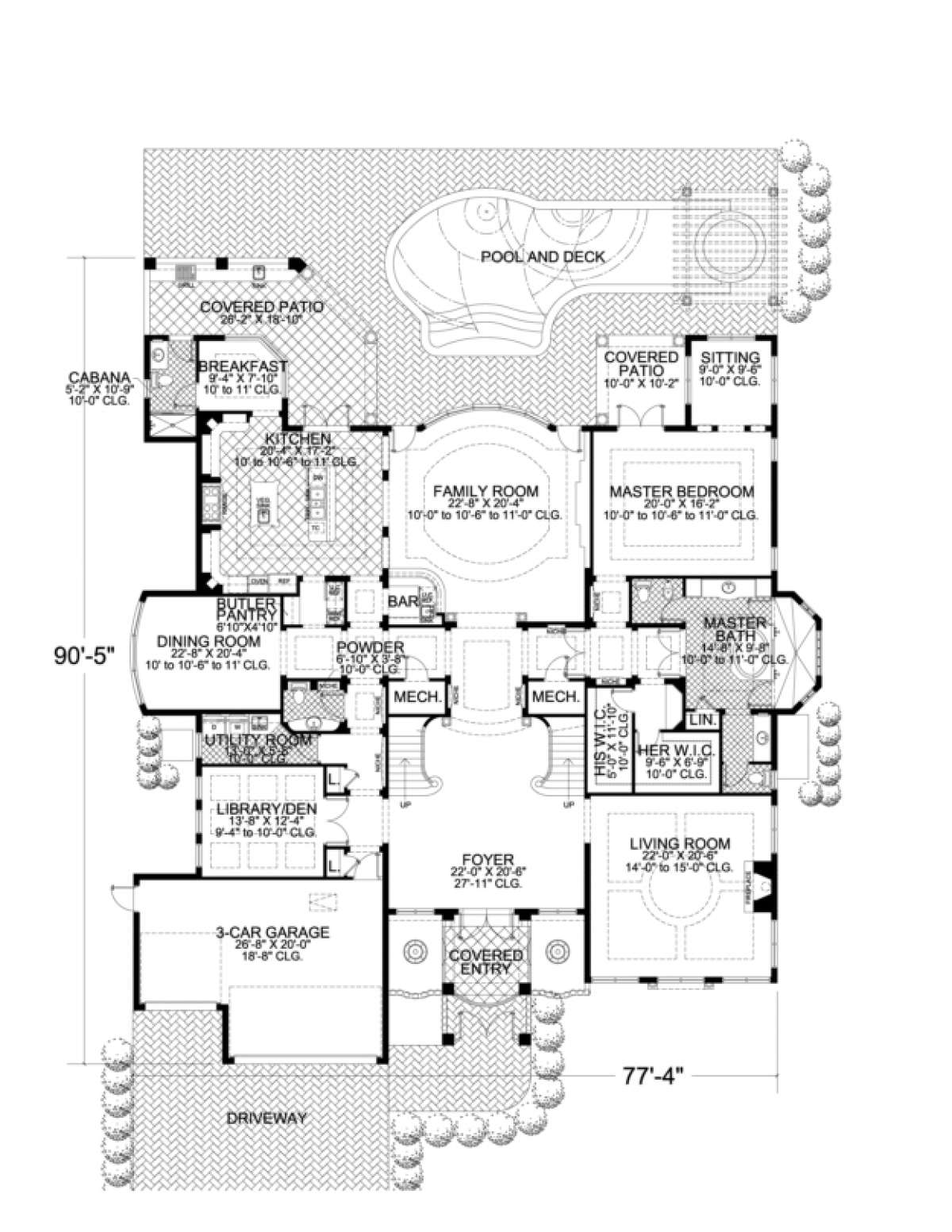

Floorplan 1

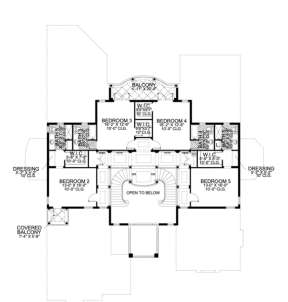

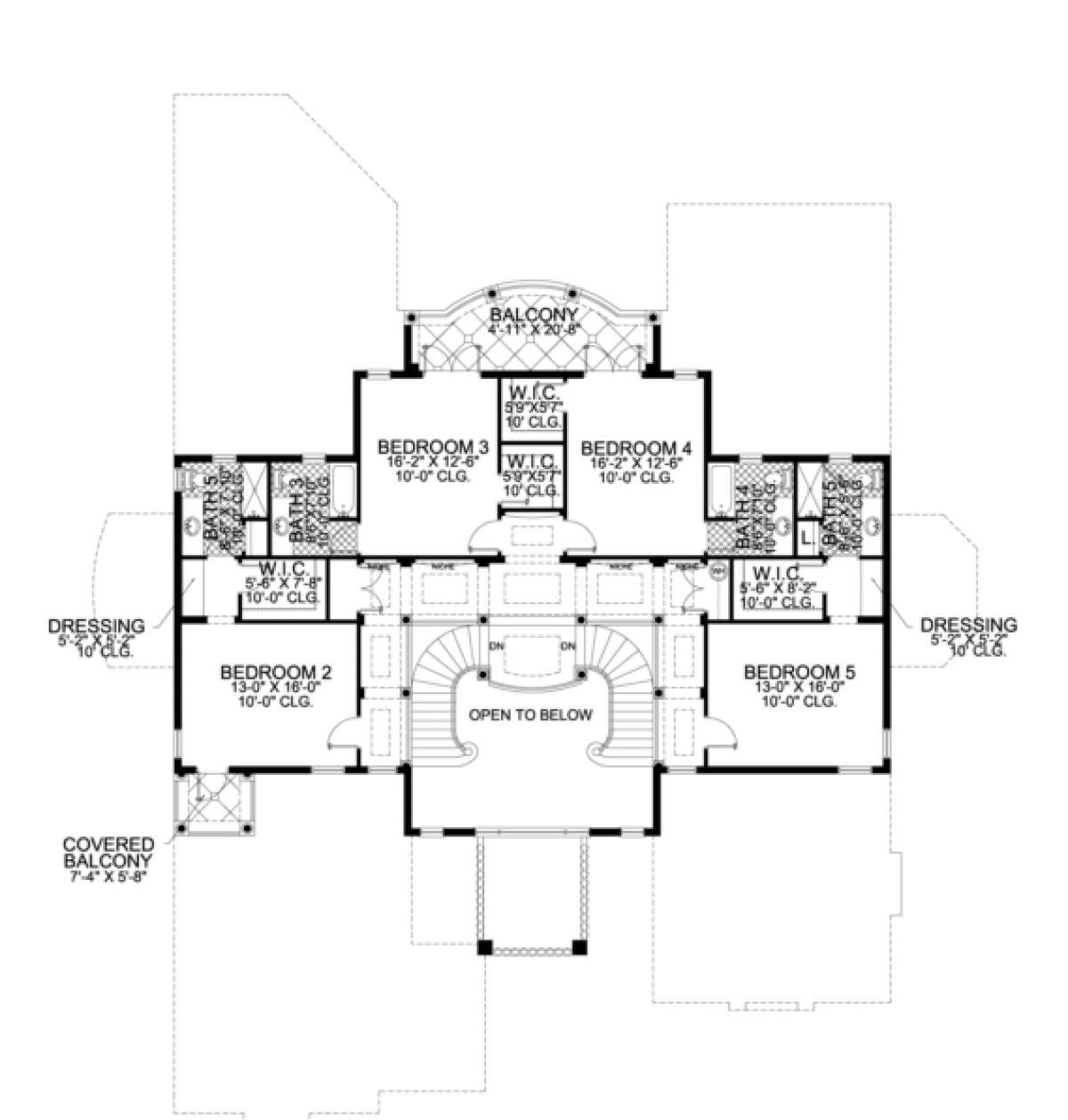

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This gorgeous Mediterranean home plan offers luxurious design features both on the exterior façade and within the interior floor plan. The traditional grand entry, stunning arched windows and handsome ironwork reflect grandeur and elegance. There are five bedrooms, five plus baths and a three car garage in approximately 6,000 square feet. The covered entrance leads to the dramatic foyer which is a “work of art” in itself; approximately 22’x20’ with ceiling heights surpassing 27’ feet and flanked double staircases. The family room is equally sizable and boasts of beautiful ceiling work, a wet bar and a gentle bowed rear window feature. A formal living room with coffered ceilings and a fireplace sits at the front of the home. A cozy and private library/den is the ideal space for entertaining close friends and business associates. The enormous dining room with a bowed triple bay window leads through the butler’s pantry into the kitchen. The gourmet kitchen is simply stunning; it enjoys a large footprint with a center island, separate breakfast bar, an abundance of additional counter and cabinet space and leads to the breakfast nook. Additionally, there is rear covered patio access through French doors and a cabana bath. The exquisite master retreat is situated on the main floor of the home for privacy and features a double step trey ceiling master bedroom with a sitting room and French door access to the private covered patio. His and her oversized walk-in closets are adjacent to the master bath which boasts of a walk-thru shower, garden tub, linen closet and separate dual vanities and toilet areas. A powder room, spacious laundry room and the three car garage complete the first floor.
Upstairs, are four additional bedrooms; all which enjoy large footprints, a walk-in closet and a private bath. Bedroom two has a private covered balcony and dressing area adjacent to the walk-in closet while two other bedrooms have private French door access to a large covered balcony and the other bedroom enjoys a dressing area off the walk-in closet. This home is wonderfully designed with grand architectural features and an interior floor plan which is elegant and spacious.
