Luxury House Plan 5631-00015

Sq Ft5,711
1/2 Baths1
Width70' 0"
Depth86' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5631-00015
Floorplan 2 for House Plan #5631-00015
Basement Floor Plan for House Plan #5631-00015

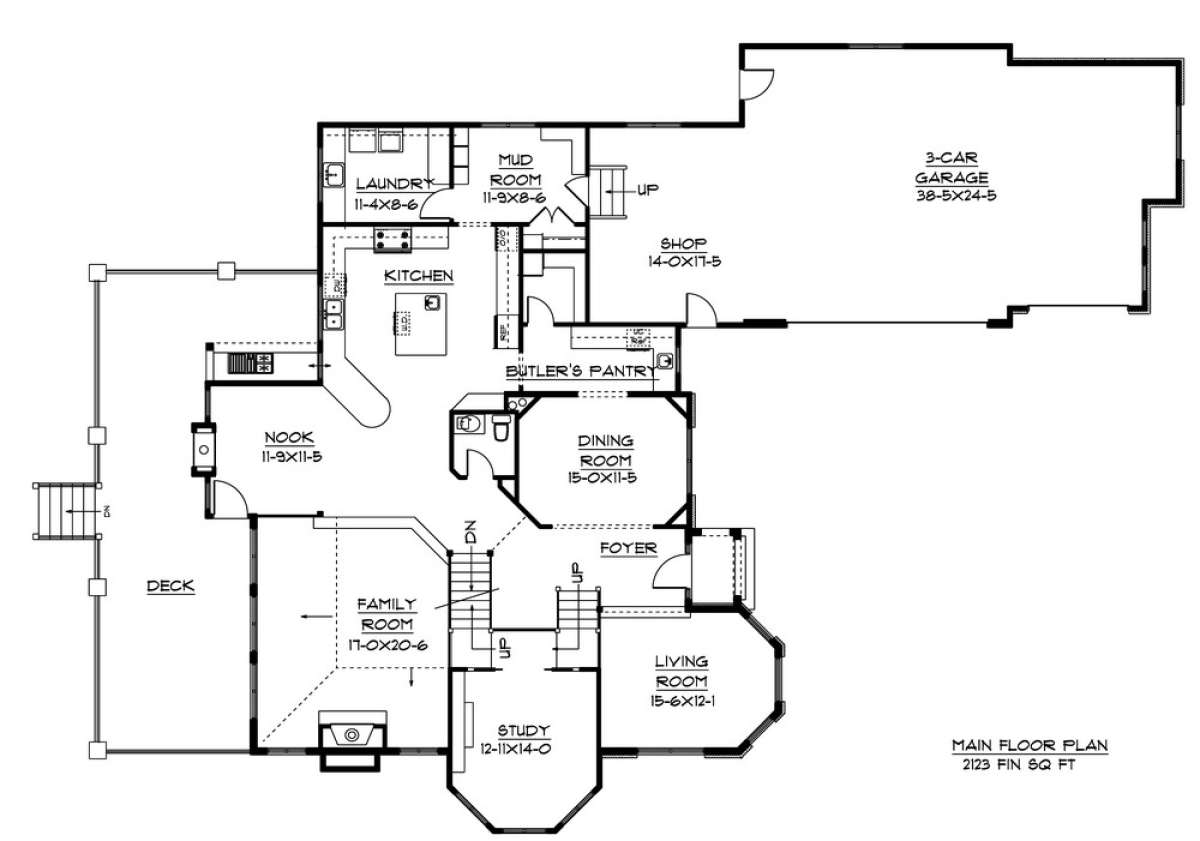

Floorplan 1
Floorplan 1 for House Plan #5631-00015

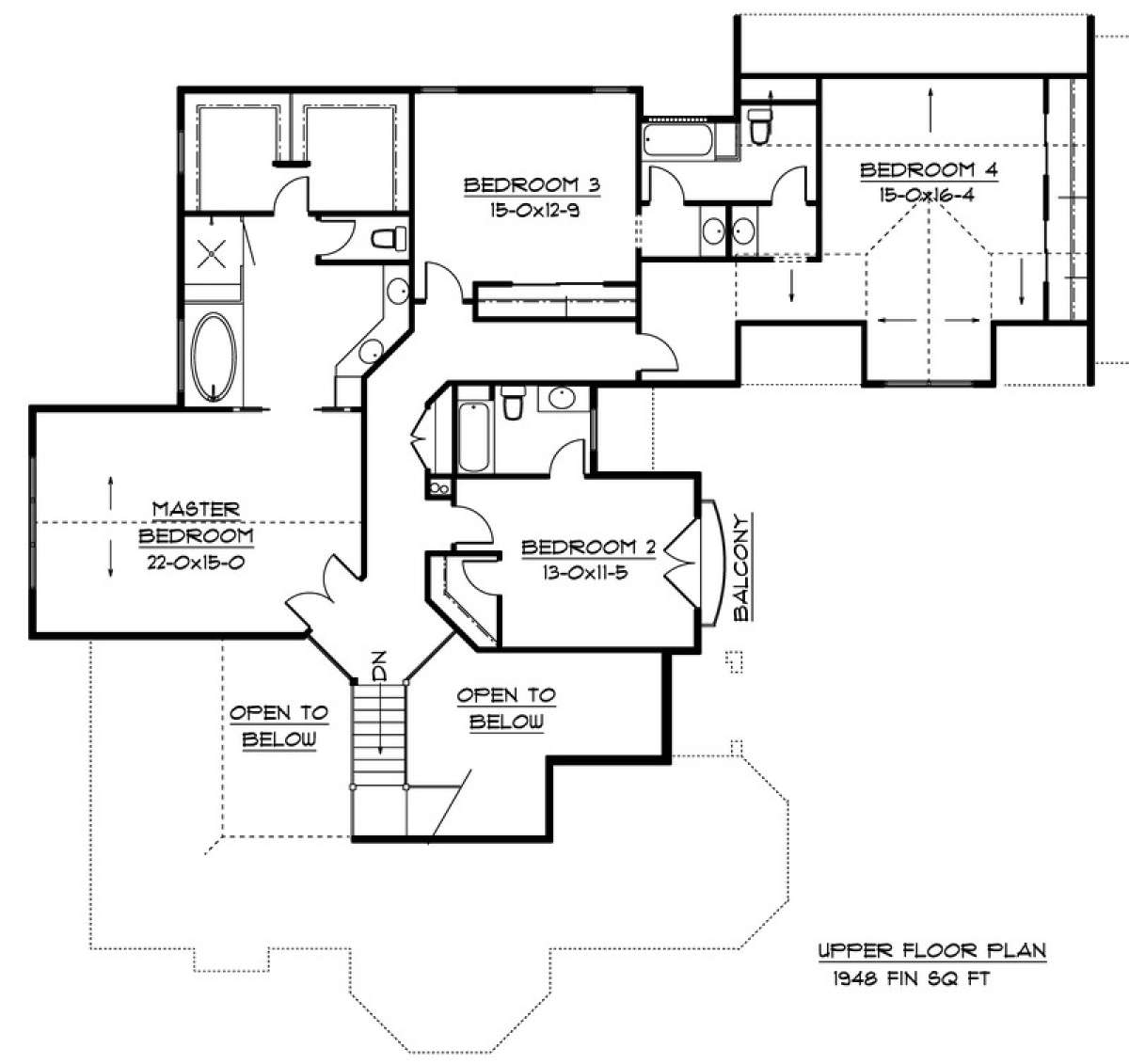

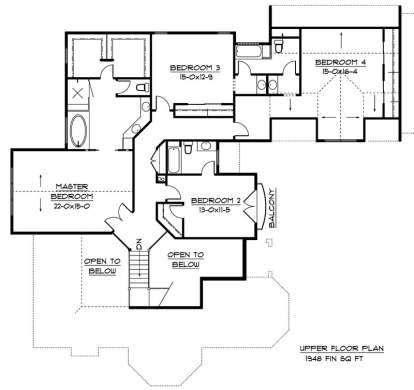

Floorplan 2
Floorplan 2 for House Plan #5631-00015

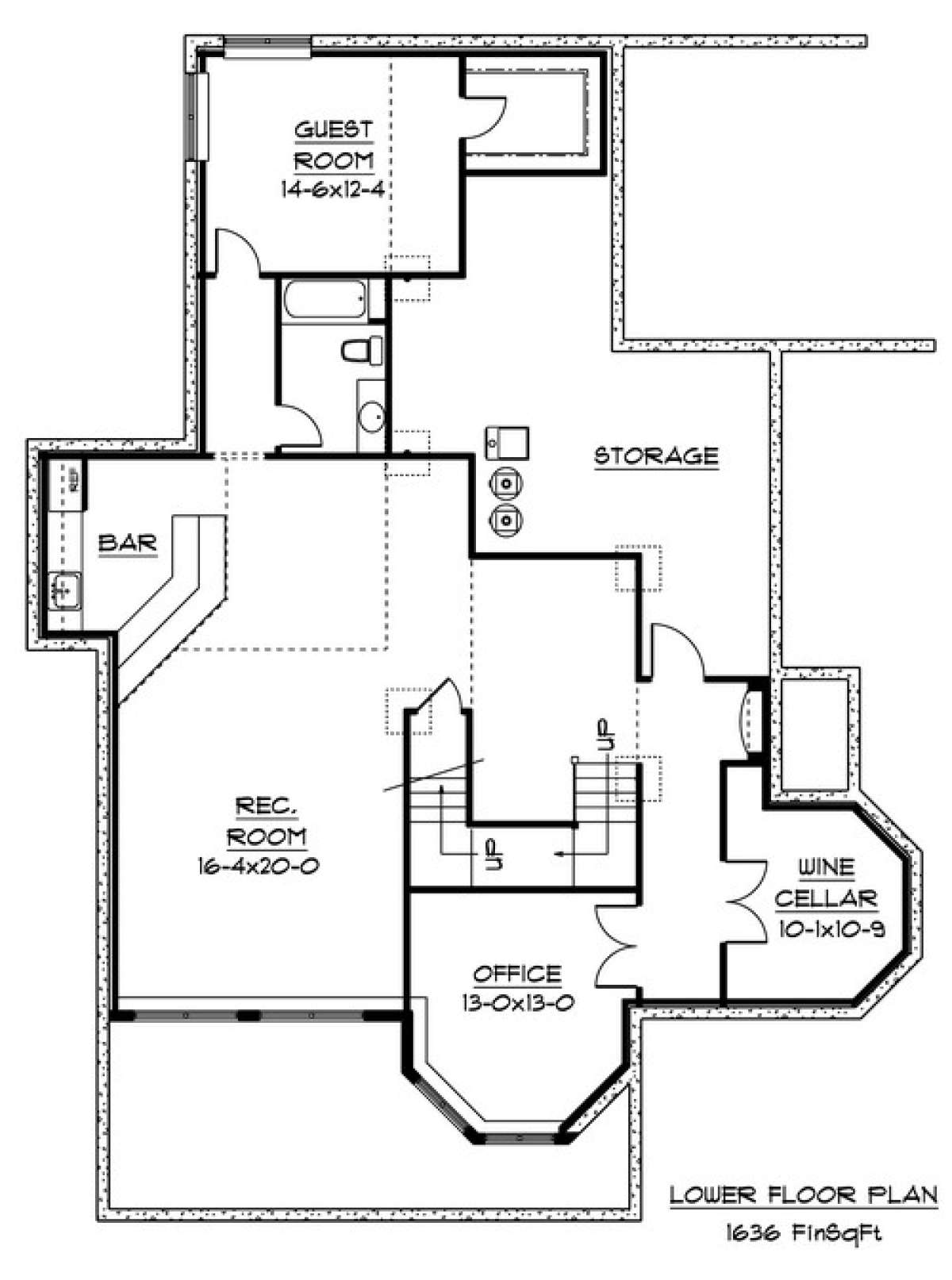

Basement Floor Plan
Basement Floor Plan for House Plan #5631-00015

Frequently Asked Questions


What's Included in these plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Roof Plan- Birdseye view showing ridges and valleys
  • Section(s)
  • Electrical Plans


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

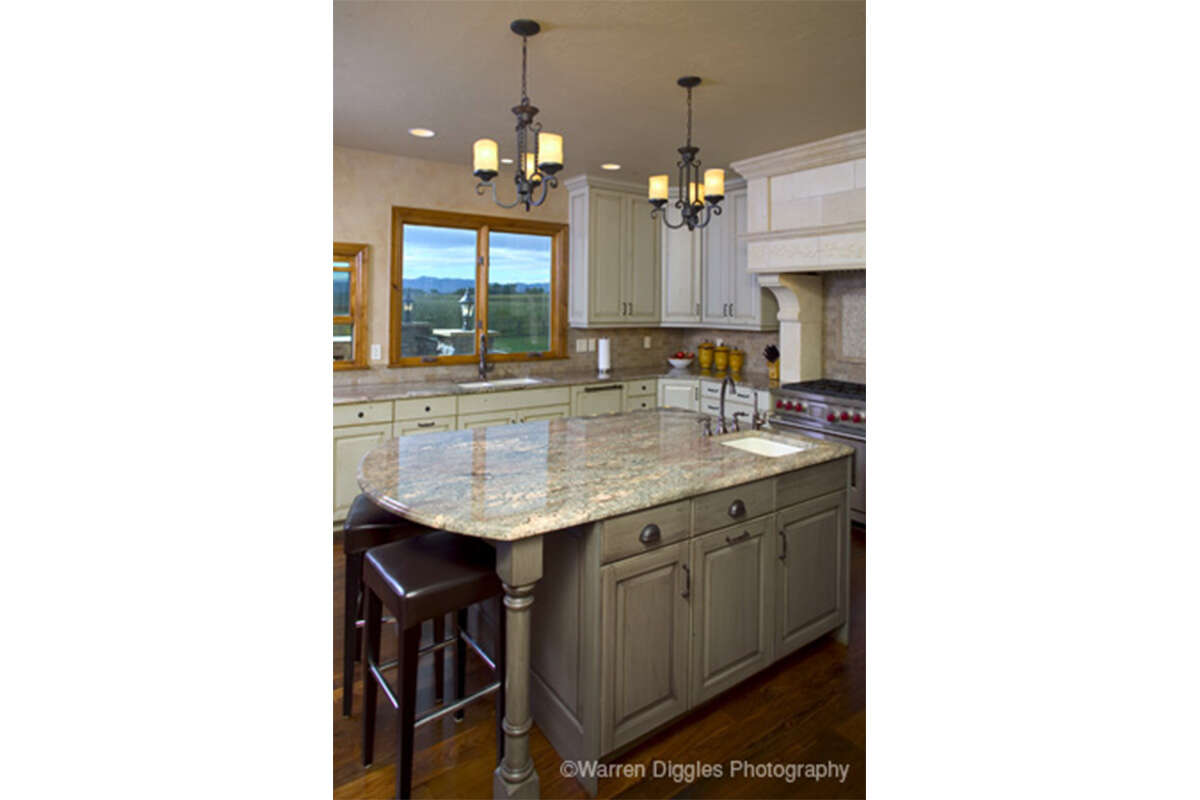

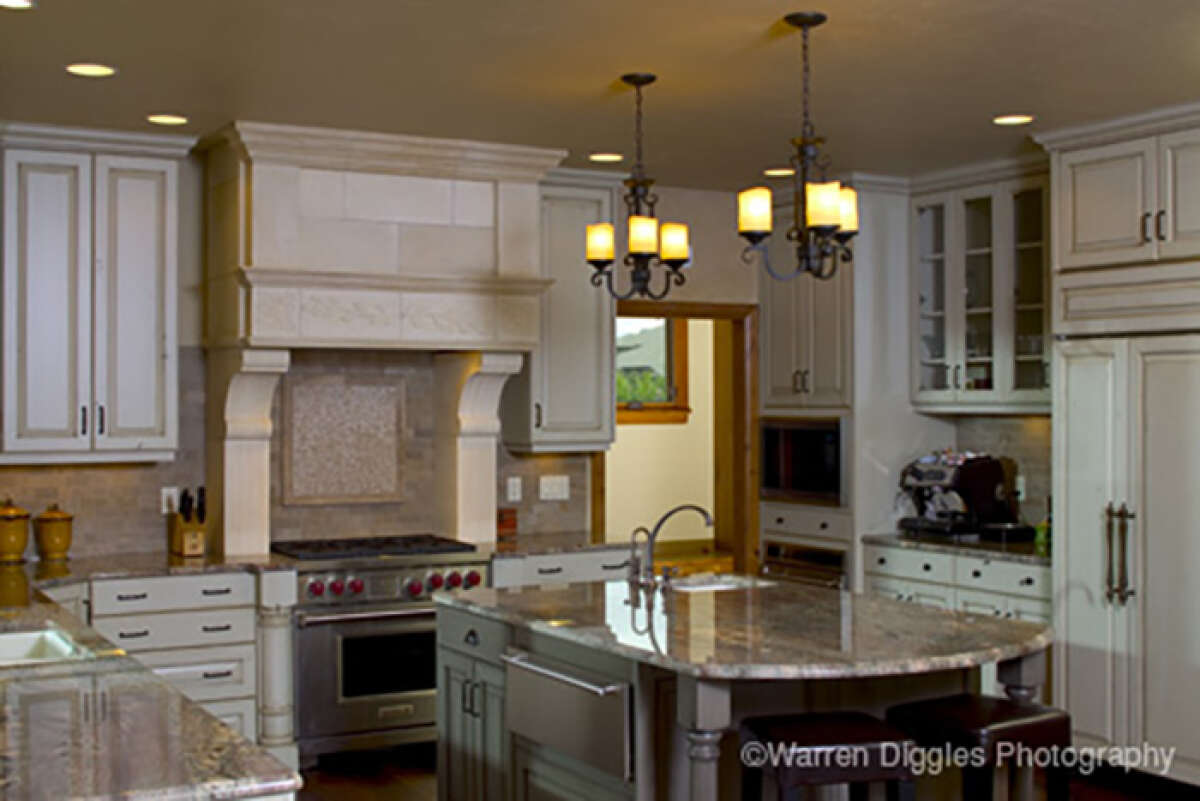

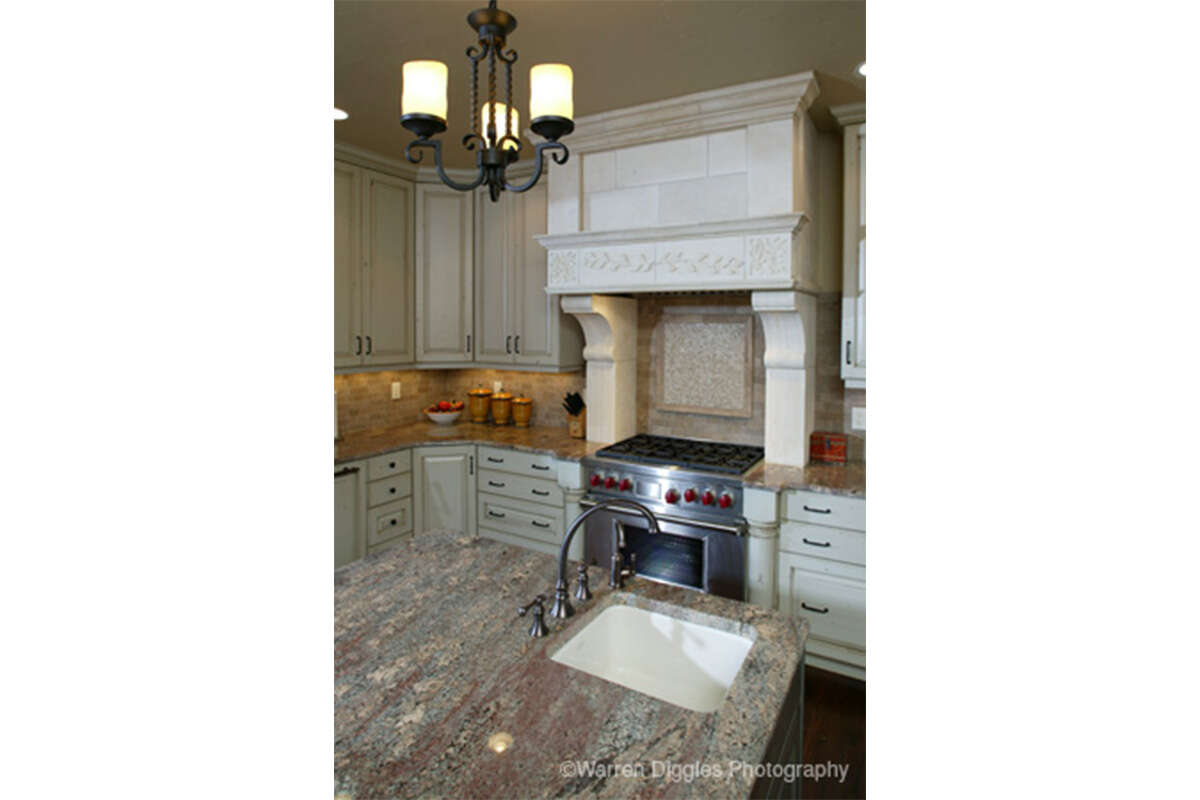

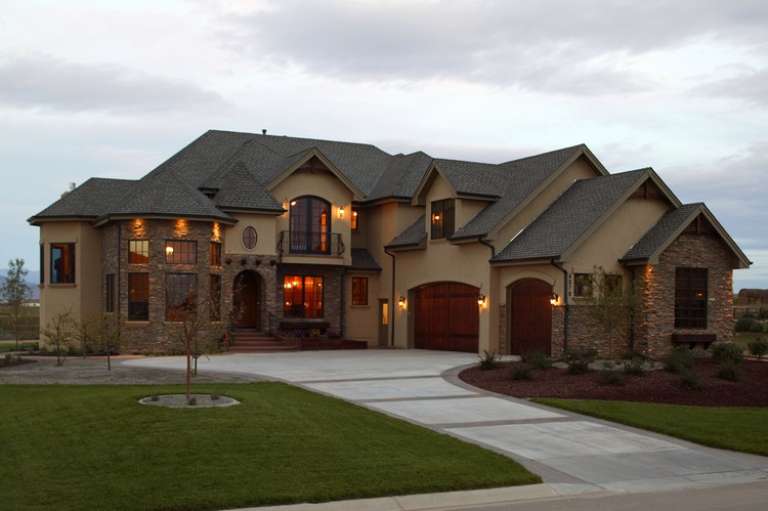

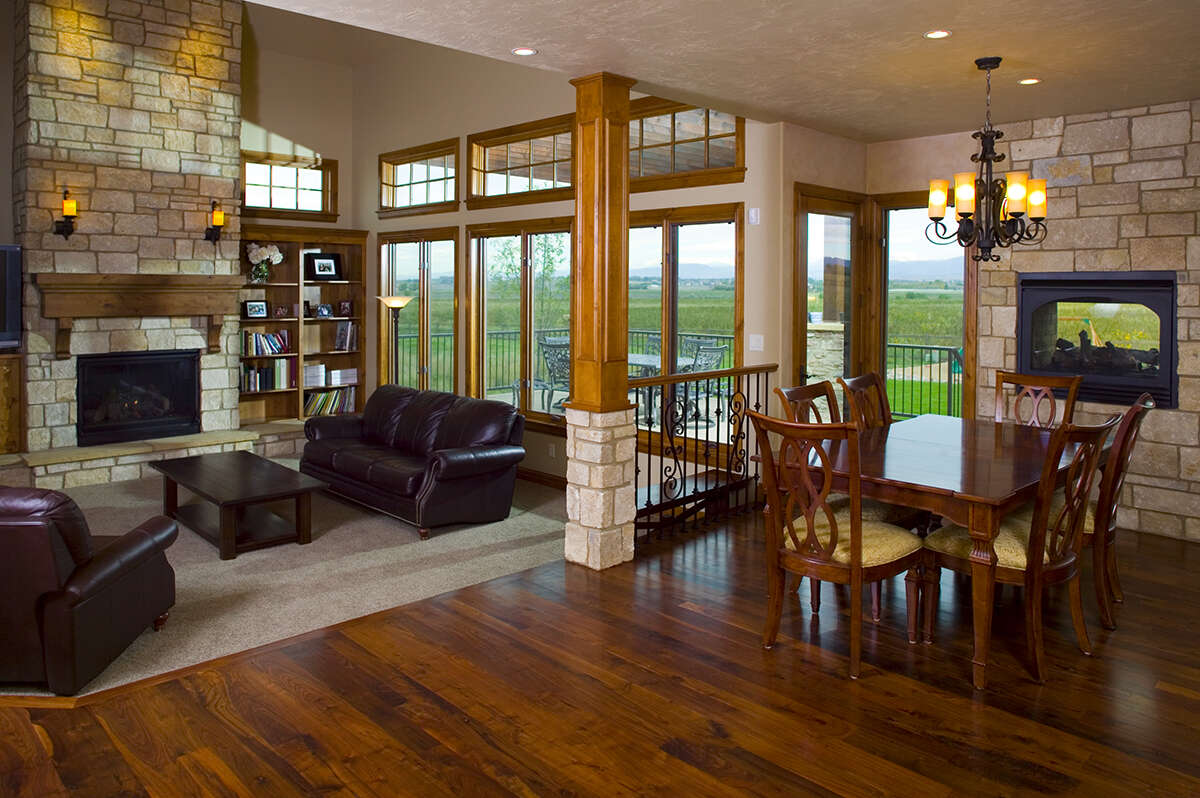

This three tiered Luxury home features in excess of 5,700 square feet of living space, a tidy courtyard exterior and is highlighted by a warm and welcoming façade and an interior floor plan that offers an abundance of entertaining and private family spaces. Muted colors, stacked stone, stucco walls and ironwork paint an inviting picturesque front exterior while an abundance of outdoor space is highlighted on the rear exterior. The dramatic two story entrance continues into the foyer which is flanked by a formal living and dining room. The living room is spacious and features a large bayed window view. A butler’s pantry offers clever space to house a wet bar and additional counter space when entertaining friends or hosting special family events. The gourmet kitchen features a large center island with plenty of prep/work space, an angled peninsula breakfast bar, loads of counter and cabinet space and a walk-in pantry is situated off the butler’s pantry. The breakfast nook is nestled between the kitchen and family room and provides access to the rear covered deck which is expansive and features a summer kitchen. The family room measures in excess of 17’x20’ and features a handsome fireplace and vaulted ceiling heights. The three car garage is huge, measures in excess of 1,160 square feet, features an adjoining workshop area and conveniently leads to the mudroom and adjacent laundry room. Both spaces offer a plethora of additional features designed to store and house laundry and other gear.
The second level of the home houses four bedrooms and three bathrooms with ease. There are overviews onto the foyer and family room from the staircase and a private exterior balcony is situated off the second bedroom which also features a private full bath and walk-in closet. Bedrooms three and four enjoy large footprints, generous closet space and share a jack and jill bathroom with double vanities. The master suite is accessible through French doors and features an enormous bedroom space, measuring 22’x15’, and boasts of soaring ceiling heights. The elegantly designed master bath is highlighted by separate dual vanities, a compartmentalized toilet, separate shower and a garden tub. His and her walk-in closets are situated at the rear of the space for privacy. The home’s drawings include a basement foundation that includes a fifth bedroom with an oversized walk-in closet and an adjacent full bath. A huge recreation room with walk-in bar, a home office, oversized wine cellar and loads of storage space complete the terrace level. This luxury house design is a complete home for a large or extended family that will provide enormous pleasure and comfort for years to come.
