Luxury House Plan 168-00076

Sq Ft5,743
Beds5
Baths5
1/2 Baths1
Stories2
Cars3
Width63' 10"
Depth59' 11"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

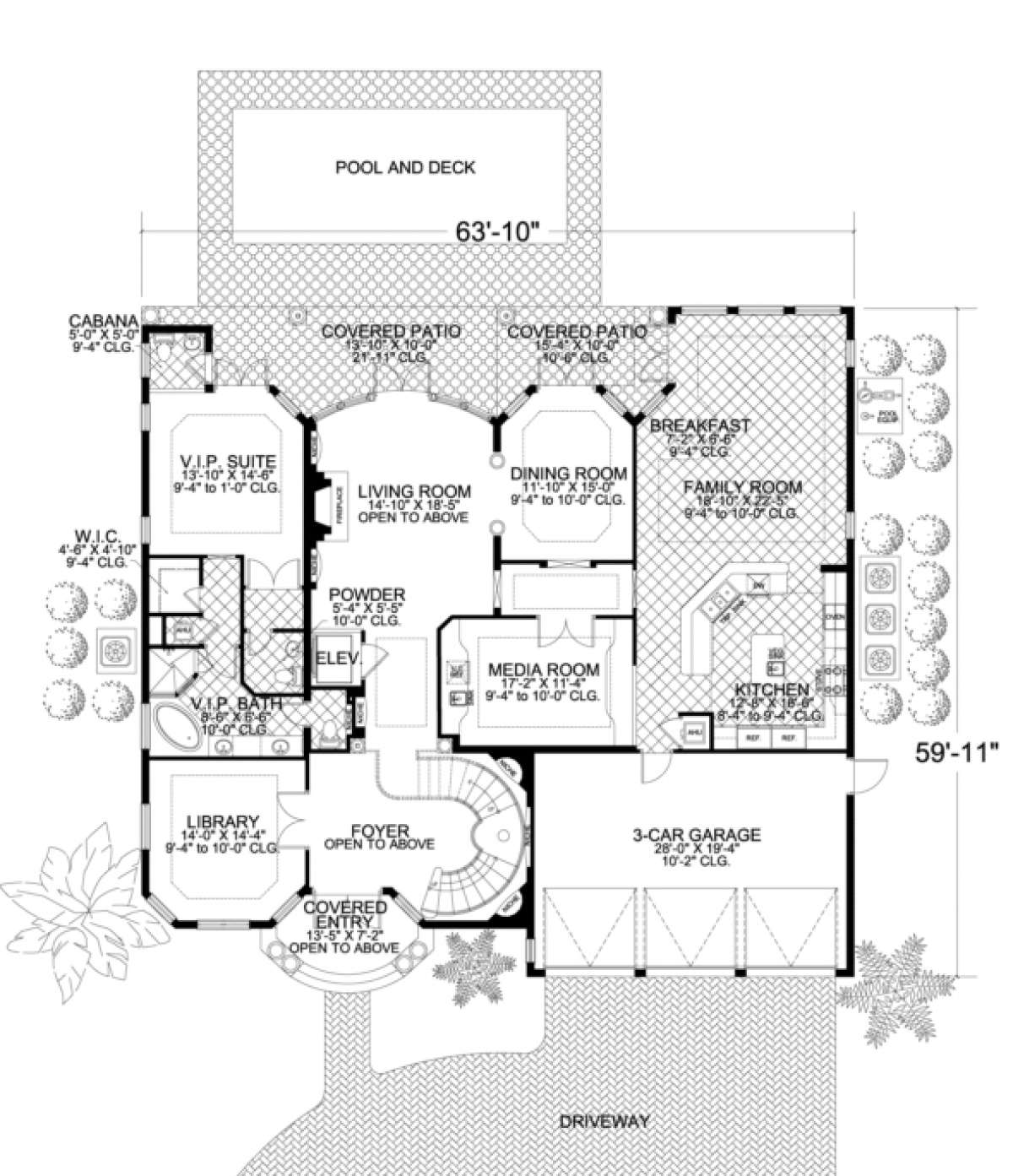

Floorplan 1 for House Plan #168-00076

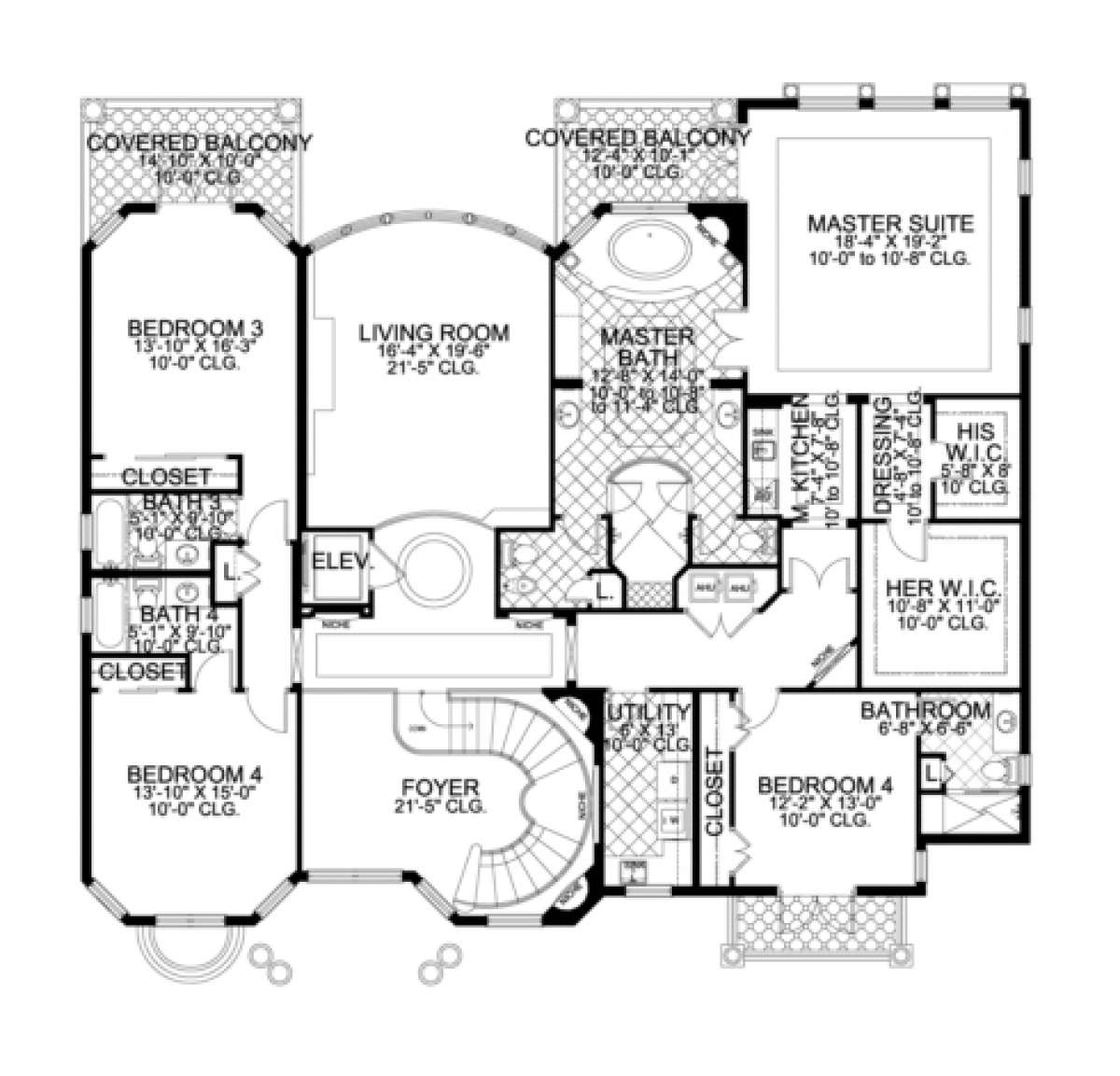

Floorplan 2 for House Plan #168-00076
Floorplan 1
Floorplan 1 for House Plan #168-00076
Floorplan 2
Floorplan 2 for House Plan #168-00076


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This palatial Mediterranean home offers a towering covered entrance, handsome ironwork on the balconies and a double door entry. The covered entrance is bold with spectacular column detailing and a beautiful curved window and is the ideal space to greet family and guests. This gorgeous home offers approximately 5,700 square feet of living space and features five bedrooms, five plus baths and a three car garage. The two story foyer is flanked by a curving stair case and the library with triple bay window and access through French doors. The media room has a wet bar and is ideal for entertaining. The formal living room features a stately fireplace, built-in cabinetry, French door access to the rear covered patio and is adjacent to the formal dining room. As is traditionally found in Mediterranean styled homes, the family areas are centered around the kitchen, breakfast area and family room. The gourmet kitchen has a center work top island, separate breakfast bar and is open to the family room. The guest suite is simply stunning and features a spacious bedroom with private access to the patio. There is a walk-in closet and beautifully appointed guest bath which is highlighted by a corner garden tub, separate shower, dual vanities and a private toilet area.
As you travel the stunning staircase, you come to the bridge hallway where there is access to the residential elevator making it convenient for your elderly or infirmed guests to travel the home. Bedroom three and four have generous closet space and private baths while one of the bedrooms enjoys covered balcony access. Bedroom five also has generous closet space and a private bath. The second level utility room includes a sink area and additional counter space. The master retreat is accessed through French doors and offers a private oasis worthy of royalty. The bedroom is a large space with boxed ceiling with private covered balcony access and a morning kitchen. His and her walk-in closets are oversized and includes a dressing area. The master bath is elegantly appointed and enjoys an enormous footprint. The pièce de résistance is the Roman spa tub with window views of the second story balcony. Additionally, there is an oversized shower, dual vanities and double, private toilet areas. This home is a stunning example of traditional Mediterranean design features and offers a staggering amount of usable living space for your family’s comfort.
