Coastal House Plan 168-00048

Sq Ft4,073
Beds4
Baths3
1/2 Baths1
Stories2
Cars2
Width55' 0"
Depth60' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

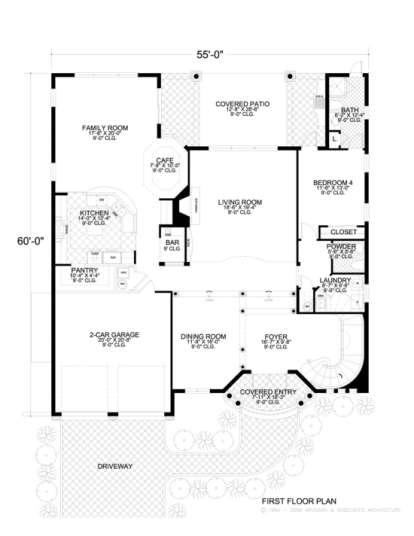

Floorplan 1 for House Plan #168-00048

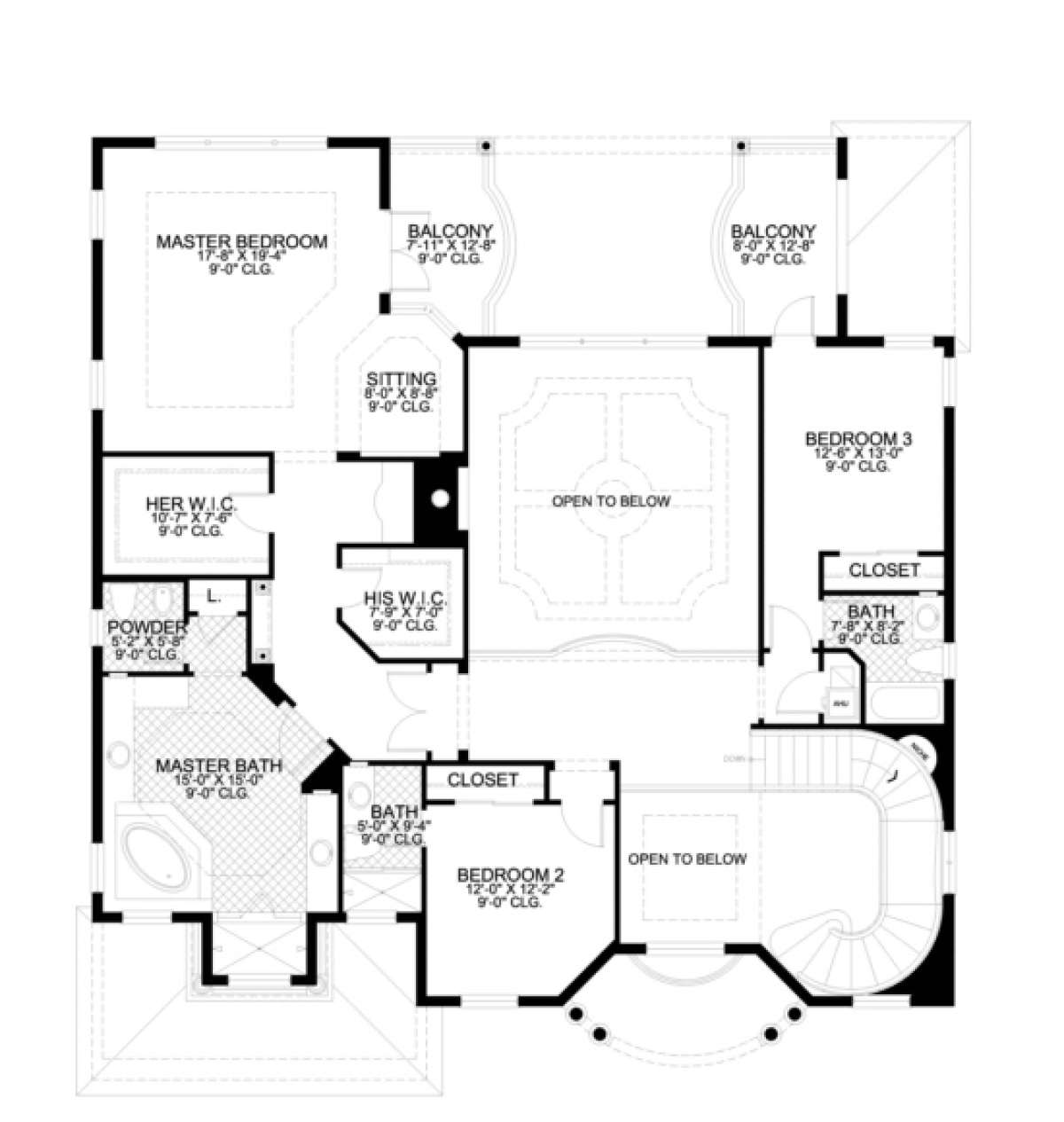

Floorplan 2 for House Plan #168-00048
Floorplan 1
Floorplan 1 for House Plan #168-00048
Floorplan 2
Floorplan 2 for House Plan #168-00048


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautifully designed Mediterranean style home plan is the perfect mix of old world charm and 21st century living. The standards embodied in the design of this home are perfect for families that enjoy a stress free style of living with spaciousness and a comfortable living environment being prime examples of the way in which they desire to live their lives and enjoy their personal spaces. The front covered entrance, decorative tile roofing and flanked columns is dramatic and leads to the spacious foyer with a curved staircase showpiece. The foyer is open to the large, formal dining room and expansive living room which features a gas log fireplace, 9’ ceilings, bar area and an impressive wall of windows with a view to the rear covered patio. The gourmet kitchen with a center island, breakfast bar along with a separate walk-in pantry is open to impressive family room and café. A guest bedroom with generous closet and private bath along with a powder room and large utility room are set apart from the rest of the main floor. A generous two car garage serves as a parking and storage space and completes the main level of the home. The generous proportions and outstanding floor plan are continued upstairs where you will discover bedrooms two and three, both of which offer generous closets and private baths and bedroom three has access to an outdoor balcony. The master retreat defines luxury and grandeur with its generous bedroom size, trey ceiling, an additional sitting area and access to a private balcony. His and her walk-in closets are oversized and the master bath enjoys an outstanding footprint with private powder room, dual vanities, an oversized shower and large roman tub. This home offers the best in luxury and the finest in architectural detail and design and would make the perfect “forever” home for your family.
