Coastal House Plan 5565-00042

Name: House Plan 5565-00042 - Coastal Plan: 3,903 Square Feet, 4 Bedrooms, 4.5 Bathrooms
Brand: America's Best House Plans
SKU: 5565-00042
Price: 3903.00 USD

Sq Ft3,903

Beds4

Baths4

1/2 Baths1

Stories2

Cars3

Width83' 4"

Depth59' 4"

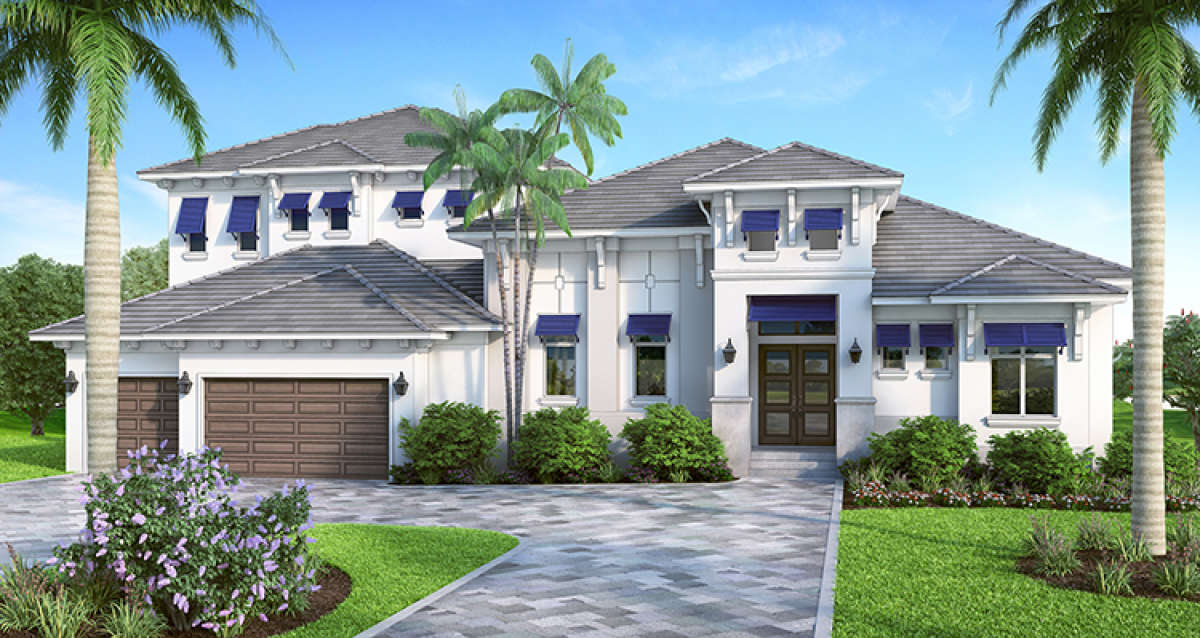

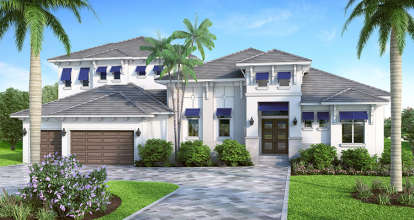

Coastal House Plan #5565-00042 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM $3,903

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Important Note: Plan cannot be built in Collier County, Florida. Lee County, Florida. Or Sarasota County, Florida.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

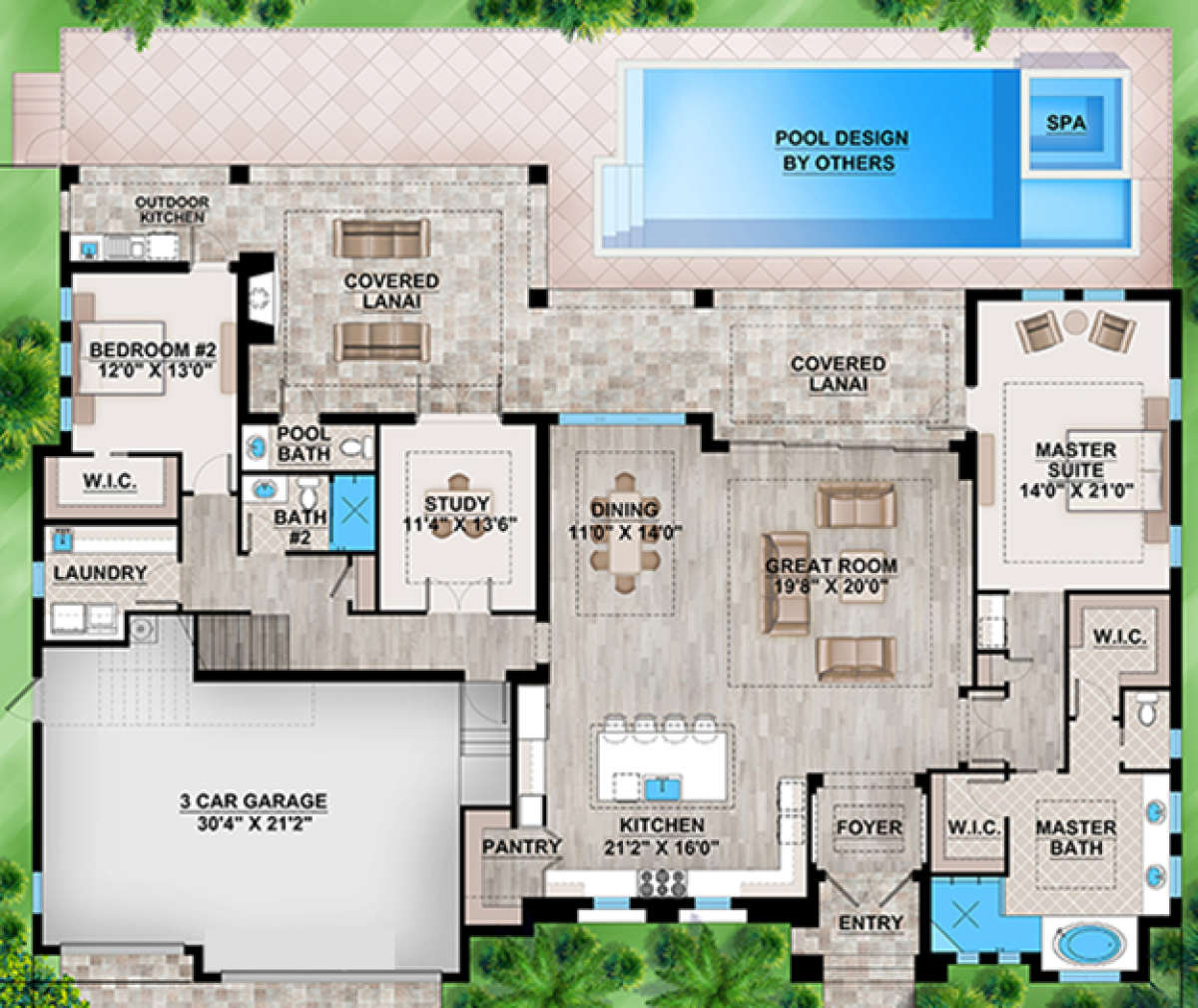

Main

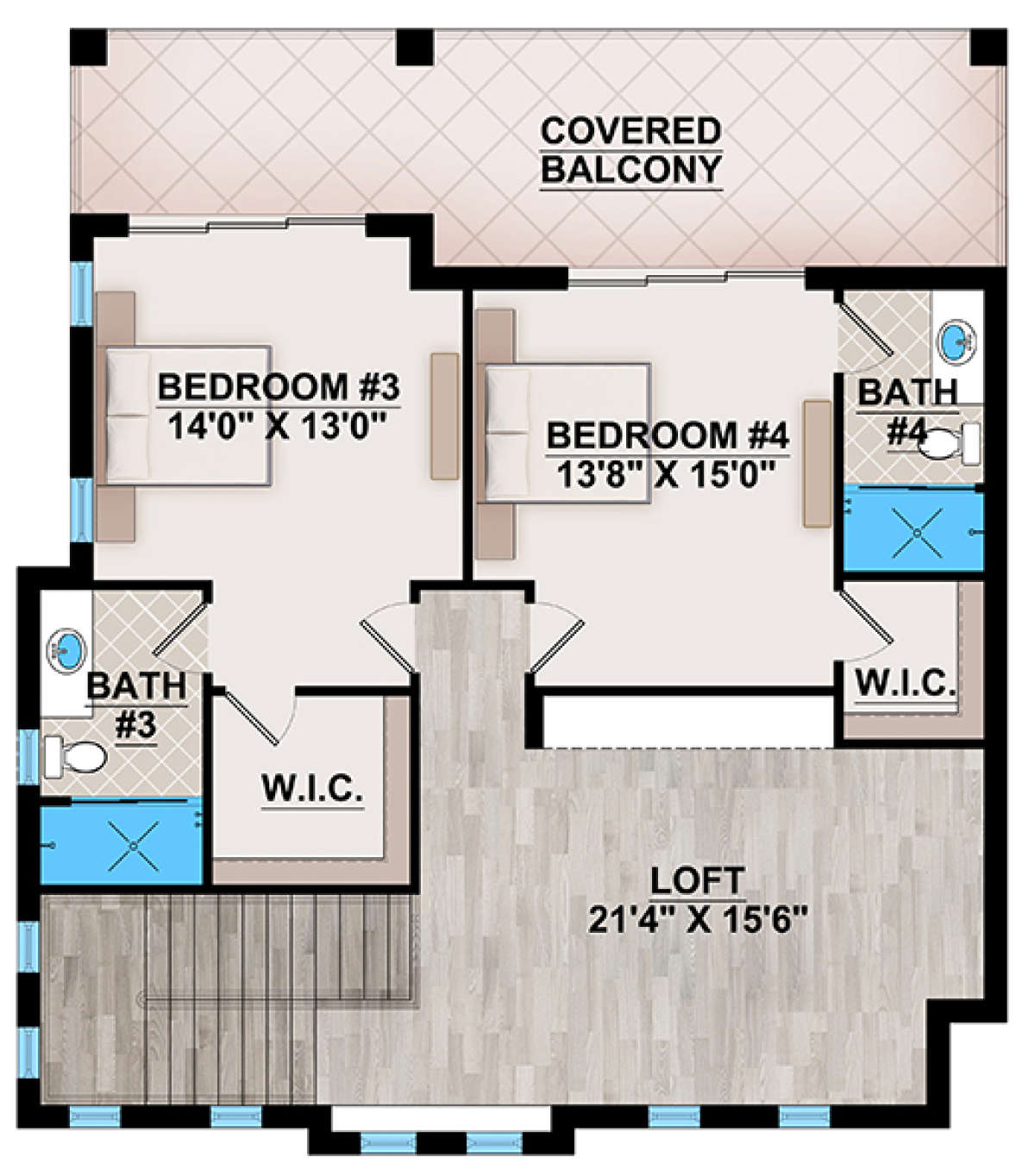

Upper

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:3,903 sq. ft.

-- First Floor:2,743 sq. ft.

-- Second Floor:1,160 sq. ft.

-- Garage:729 sq. ft.

Floors:2

Bedrooms:4

Bathrooms:4

Half Baths:1

Garages:3 car

Width:83ft.-4in.

Depth:59ft.-4in.

Foundation:Slab Foundation

Main Roof Pitch:6:12

Exterior Framing:CMU

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Second Floor:Varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bedroom 2:	12 x 13 x 12
Bedroom 3:	14 x 13 x 10
Bedroom 4:	13-8 x 15 x 10
Dining Room Coffered:	11 x 14 x 14-8
Garage 3 car:	30-4 x 21-2 x 10
Great Room Coffered:	19-8 x 20 x 14-8
Kitchen Coffered:	21-2 x 16 x 14
Lanai Coffered:	x x 12-8
Laundry:	x x 10
Loft:	21-4 x 15-6
Master Bath:	x x 12-8
Master Suite Coffered:	14 x 21 x 13
Study Coffered:	11-4 x 13-6 x 12-8

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Each plan set is drawn at 1/8" to 1/4" = 1' scale and includes the following drawings:
Elevations:
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan:
Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any):
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation or Slab Plan:
Floor and Deck Joist Sizes, Spacing and Direction, Rough-In Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
Roof Framing:
Shows roof outlines, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys.
Section:
Shows a cross-section of the home. Shows Floor Joist Size and Spacing, Floor-To-Floor Heights,
Non-Typical Plate Heights Indicated
Electrical Plan:
A schematic layout of all lighting, switches and electrical outlets.
Typical Wall Section and Cut-through Section
*Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

About This Plan

This 4 bedroom, 4 bathroom Coastal house plan features 3,903 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
