Mediterranean House Plan 168-00047

Name: House Plan 168-00047 - Mediterranean Plan: 4,020 Square Feet, 3-4 Bedrooms, 3.5 Bathrooms
Brand: America's Best House Plans
SKU: 168-00047
Price: 1500.00 USD

Sq Ft4,020

Beds3-4

Baths3

1/2 Baths1

Stories2

Cars2

Width54' 6"

Depth74' 9"

Mediterranean House Plan #168-00047 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM $1,500

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

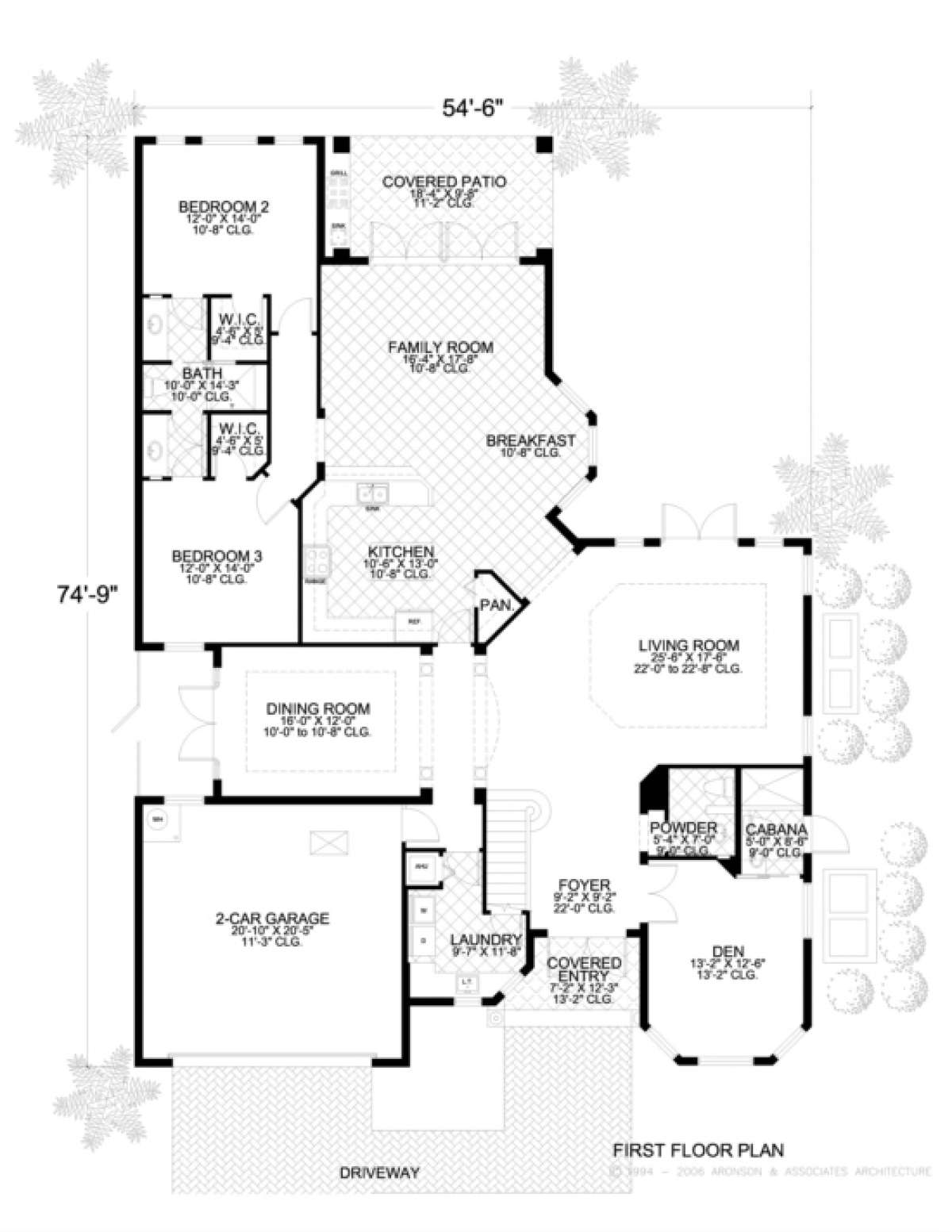

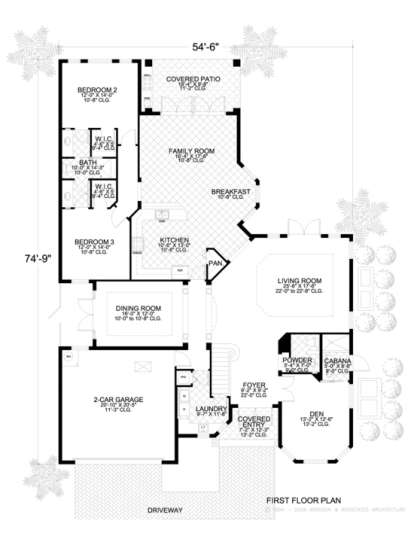

Floorplan 1

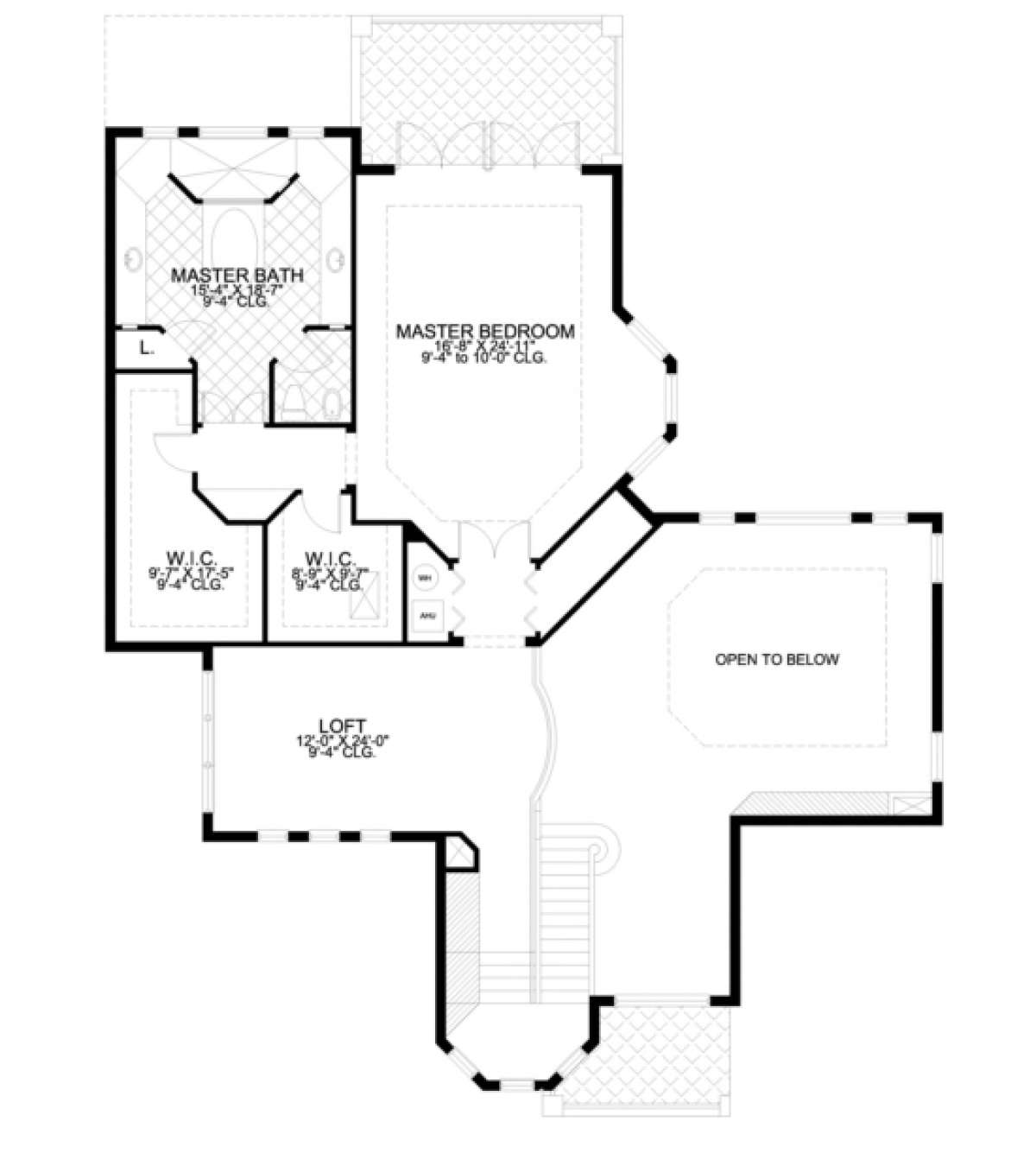

Floorplan 2

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:4,020 sq. ft.

-- First Floor:2,567 sq. ft.

-- Second Floor:1,453 sq. ft.

-- Garage:461 sq. ft.

Floors:2

Bedrooms:3-4

Bathrooms:3

Half Baths:1

Garages:2 car

Width:54ft.-6in.

Depth:74ft.-9in.

Height:31ft.-1in.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU BLOCK

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Second Floor:Varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bath main :	10 x 14-3 x 10
Bedroom 2:	12 x 14 x 10-8
Bedroom 2 Closet:	4-5 x 5 x 9-4
Bedroom 3:	12 x 14 x 10-8
Bedroom 3 Closet:	4-6 x 5 x 9-4
Cabana:	5 x 8-6 x 9
Covered Entry:	7-2 x 12-3 x 13-2
Covered Patio:	18-4 x 9-8 x 11-2
Covered Patio:	18-4 x 9-5 x 11-2
Den/BR4 alt:	13-2 x 12-8 x 13-2
Dining Room Coffered:	16 x 12 x 10-8
Family Room:	16-4 x 17-8 x 10-8
Foyer:	9-2 x 9-2 x 22
Garage:	20-10 x 20-5 x 11-3
Kitchen:	10-6 x 13 x 10-8
Laundry:	9-7 x 11-8
Living Room Coffered:	25-6 x 17-6 x 22-8
Loft:	12 x 24 x 9-4
Master Bath:	15-4 x 18-7 x 9-4
Master Bedroom Coffered:	16-8 x 24-11 x 10
Master Closet 1:	9-7 x 17-5 x 9-4
Master Closet 2:	8-9 x 9-7 x 9-4
Powder Room:	5-4 x 7 x 9

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

This classic Mediterranean home design offers a spacious floor plan with approximately 4,000 square feet and an exterior façade that is architecturally stunning. The use of arched windows, stately columns and artistically crafted balconies gives the home an old world feeling while the interior floor plan is definitely modern and open. The two story covered entrance spills into the dramatic foyer with a 22’ ceiling and conveys a sense of spaciousness and openness. A large den is to the right of the foyer and offers a triple bay window and is accessed through French doors; this is an excellent space which conveys privacy and would be ideal for intimate gatherings or business meetings. Both the dining and living room have spectacular space, high ceilings and are set opposite one another with access to the side and rear yard. The kitchen and breakfast nook are light and airy with the triple bay window opening in the breakfast nook. The kitchen is a chef’s delight and offers the finest in modern conveniences with a separate walk-in pantry, breakfast and an abundance of additional counter and cabinet space. The oversized family room is at the rear of the kitchen/breakfast area and offers a wonderful spot in which the entire family can gather and spend time with one another. The outdoor covered patio is accessed from the family room through double French doors and has a summer kitchen which can be used throughout many months of the year. Two 12’x14’ bedrooms, each with their own walk-in closet, share a jack and jill bath. There is a large utility room, powder room, cabana bath and two car garage to round out the first floor of the home. The master retreat encompasses the entire second floor and offers a private and secluded space in which to relax. As you travel upstairs, you are greeted with a large loft area which would be suitable as a sitting room, office or hobby space. You enter the master bedroom through double doors and are immediately aware of the size of the space which also features a triple bay window and double French doors leading to the private balcony. There are his and her walk-in closets located at the rear of the master bath. The master bath is beautifully designed and is highlighted by a garden tub, a separate oversized shower, a large linen closet, dual vanities and a compartmentalized toilet. This home is designed with light and space in mind and yet, offers an abundance of private spaces for your family and friends to gather.
