Mediterranean Plan 6422-00088


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,835
Beds 3-6
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 88' 4"
Depth 57' 11"

Floorplan Drawings

Main Floor

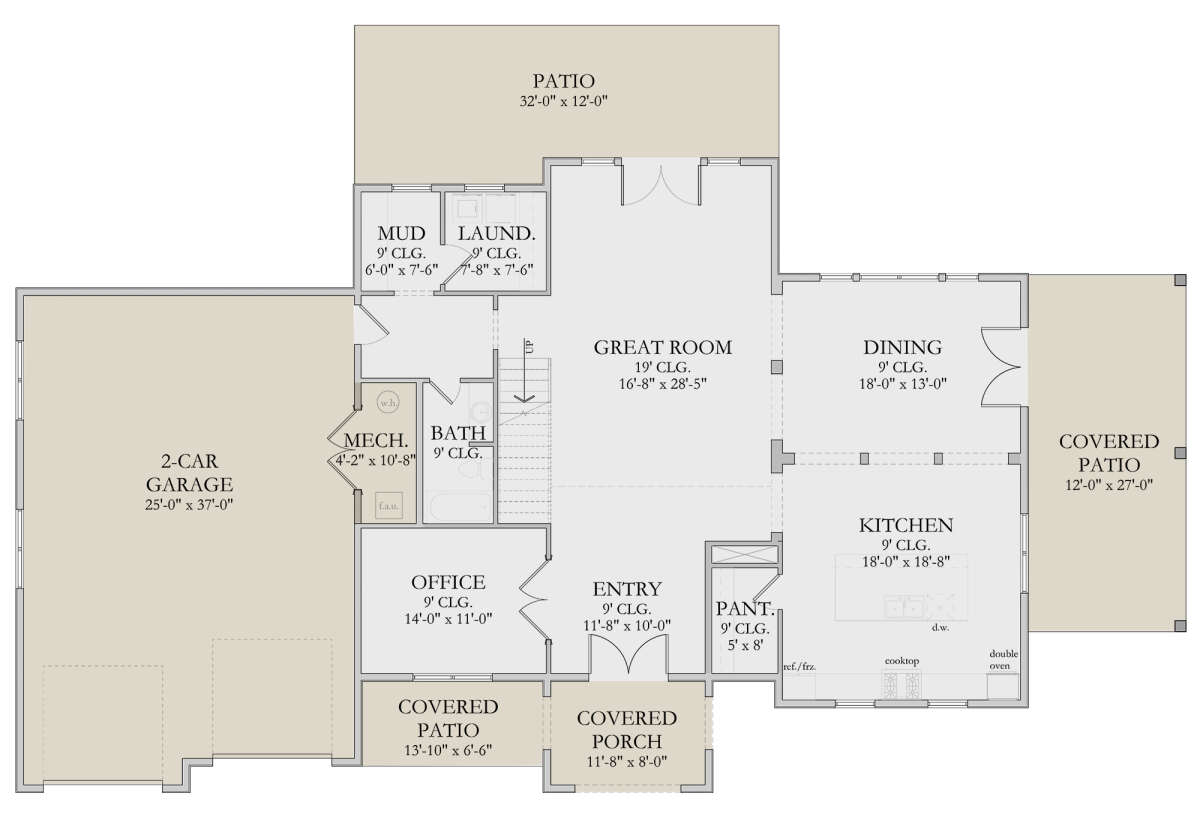

Main Floor  for House Plan #6422-00088
Second Floor

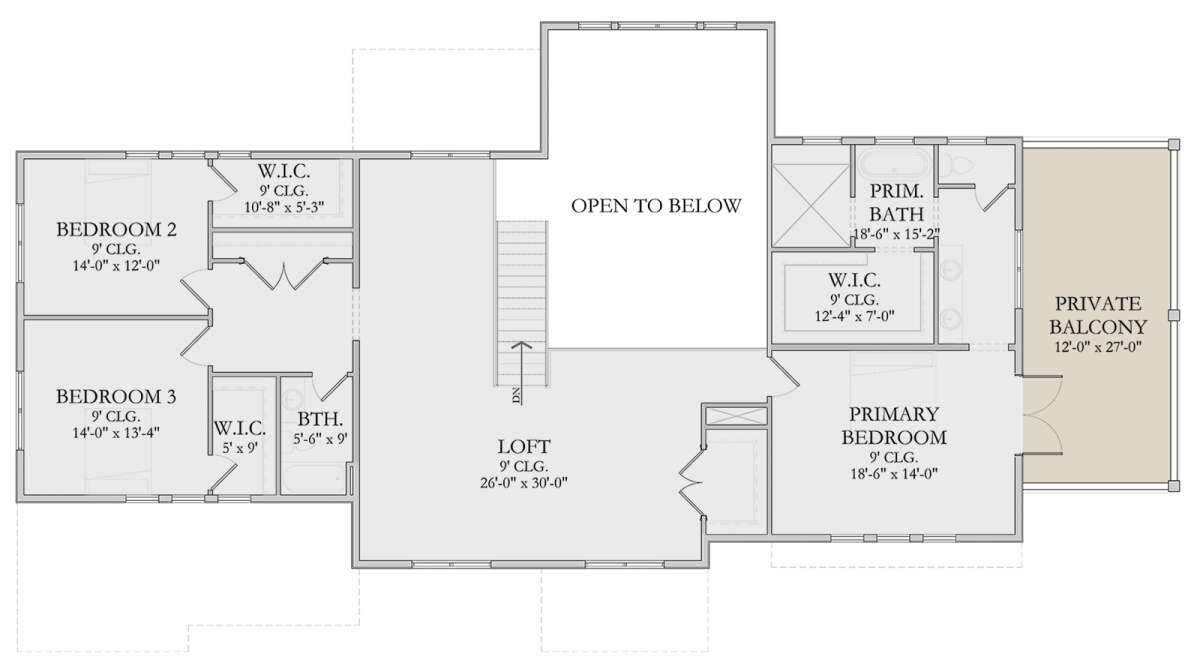

Second Floor for House Plan #6422-00088

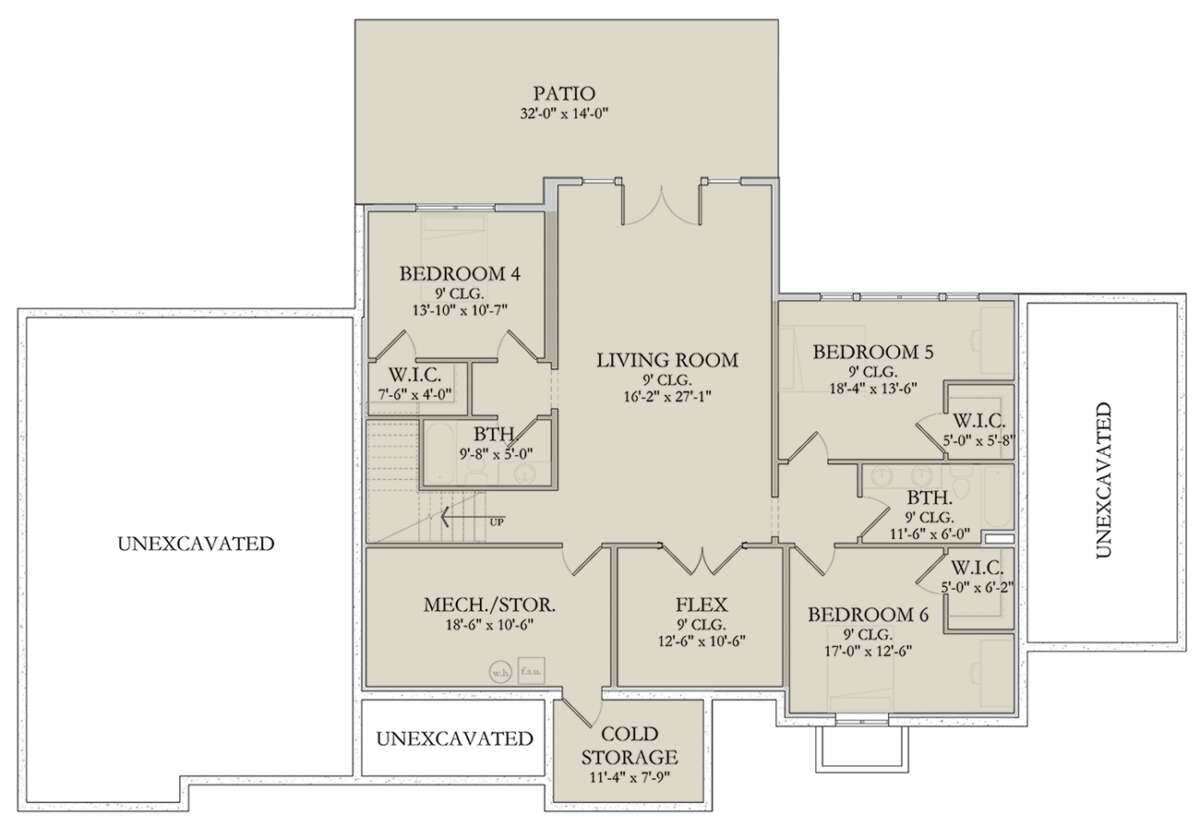

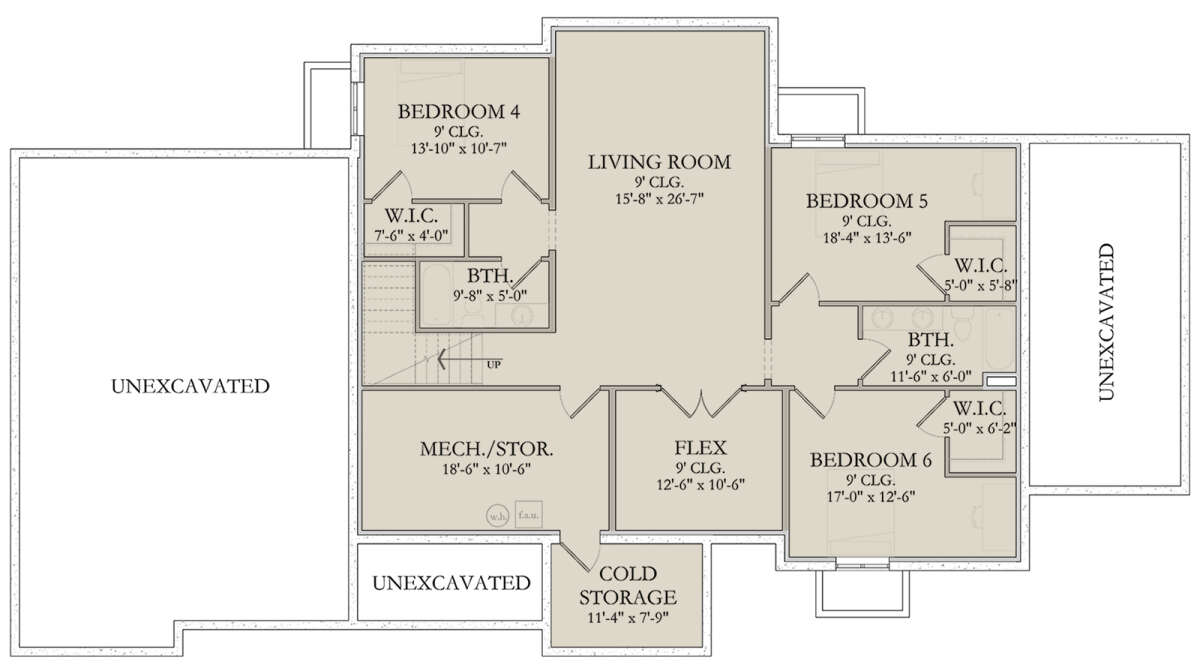

Walkout Basement
Walkout Basement for House Plan #6422-00088
In Ground Basement
In Ground Basement for House Plan #6422-00088

What's Included in these plans?

  • Cover Sheet - will include a front view of the home, along with general floor plans, and an index of the included pages.
  • Foundation Plan - will show the location of the exterior foundation walls, along with the dimensions. Due to the unique structural requirements in different locations, we cannot provide calculations needed for sizing members from snow, wind, and seismic loads. A licensed engineer in your area may be required to provide additional layouts and specifications.
  • Floor Plans - locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements.
  • Dimension Plans - The dimension plans provide measurements for locating walls, windows, and exterior doors on the floor plans.
  • Exterior Elevations - The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections - describe to the builder how a particular home is to be constructed.  Building sections typically show ceiling heights and treatments, truss or stick framing recommendations, or other unique features to help give more detail.
  • Roof Plan - depicts the roof type, plate heights and roof slope of each plane.
  • Electrical Plan - depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 3 bathroom Mediterranean house plan features 3,835 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
