Ranch House Plan #168-00026 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 3,593

Beds 4

Bath 4

1/2 Baths 1

Car 3

Stories 1

Width 76' 9"

Depth 96' 11"

See What's Included

Select Package

PDF (Single Build)

$1,400.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,100.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

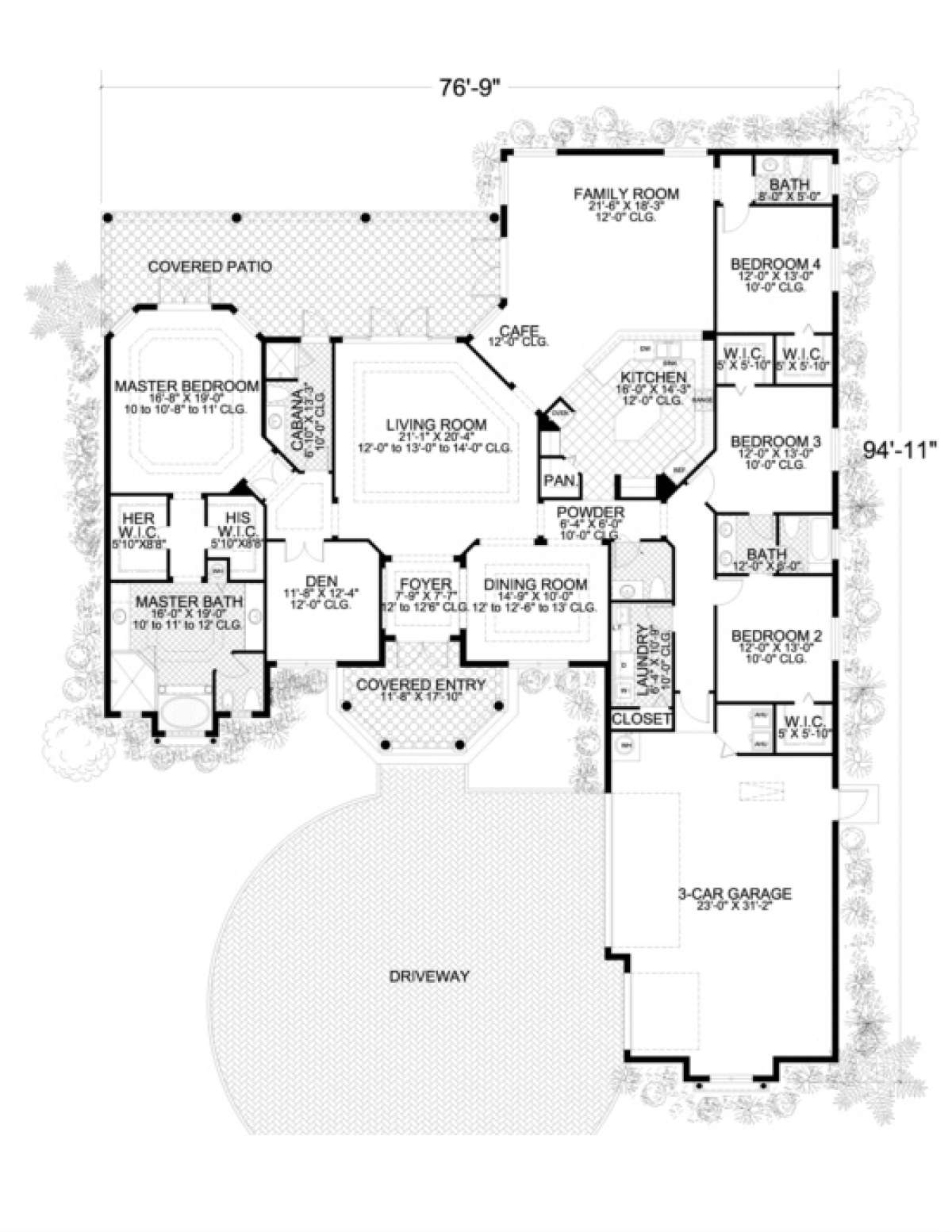

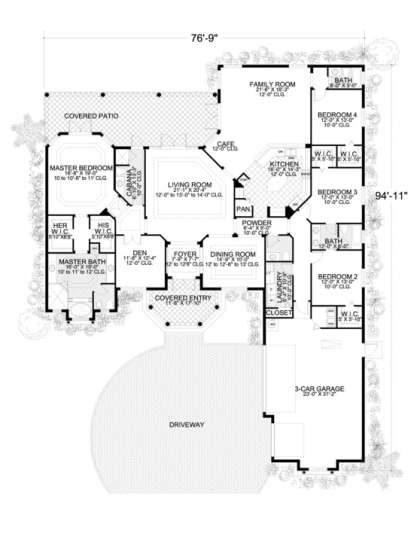

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This impressive Mediterranean style home offers a stunning exterior façade and exciting interior floor plan. As you drive up the brick pavers, you are immediately aware of the grand entrance with graceful columns, arched transom windows and a stunning two door entrance which beautifully offsets the manicured landscape. This Spanish influenced ranch has approximately 3,600 square feet, four bedrooms and four and ½ baths. The back covered patio which anchors the rear of the home offers another 485 square feet of entertaining space and blends in masterfully with the interior portions of the home. The towering grand entrance leads to the spacious foyer which opens on one side to the formal dining room with double trey ceiling. The spacious den is enclosed on the opposite side of the foyer and provides a cozy space in which to relax or intimately entertain family and friends. The formal living room is massive and has rear covered patio access through French doors. The gourmet kitchen has a large center island, breakfast bar, separate walk-in pantry and plenty of additional counter and cabinet space. A breakfast café is tucked into the corner and the family room sits at the rear of the space with covered patio access. This area is semi-self contained and provides a family friendly atmosphere in which to gather and relax. Bedroom two and three each have a walk-in closet and share a jack and jill bathroom. Bedroom four has a private bath and walk-in closet. The master suite is situated on the opposite side of the home for privacy and is accessed through private French doors. The master bedroom enjoys a large footprint and double step trey ceiling with a private entrance to the rear covered patio. His and her walk-in closets line the hallway to the master bath which features a large roman spa tub, separate shower, dual vanities and a compartmentalized toilet. An enormous utility room with closet and plenty of closet space along with a half bath and three car garage completes the home design. This unique house plan beautifully blends the 21st century modern conveniences with the old world charm of traditional homes located on the Mediterranean Sea.
