Mediterranean Plan 168-00012

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,663
Beds 4
Bath 2
1/2 Baths 1
Car 0
Stories 1
Width 30'
Depth 60'

Floorplan Drawings

Floorplan 1

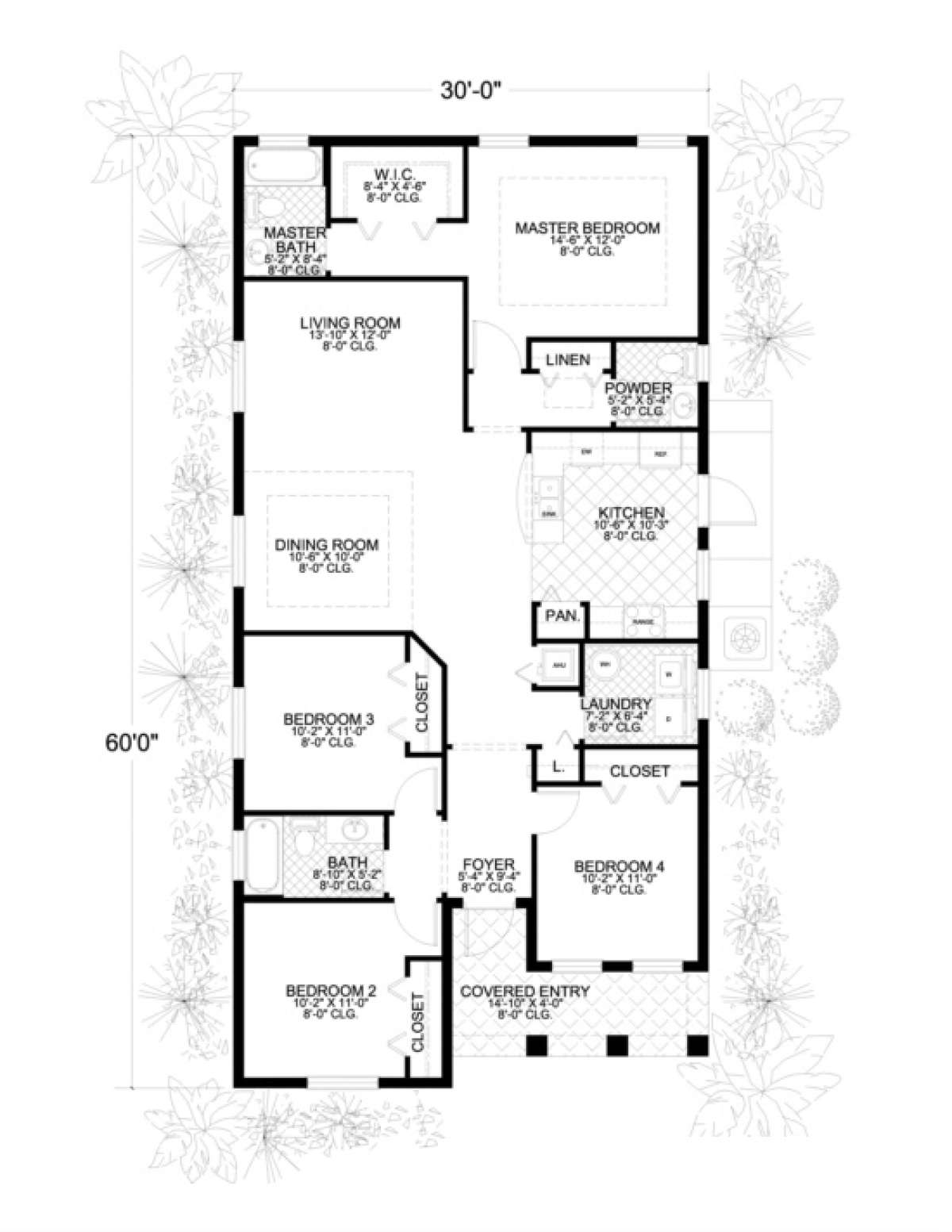

Floorplan 1 for House Plan #168-00012


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming cottage offers classic Spanish features and a floor plan designed to maximize space and comfort. The triple column, front covered entrance is both inviting and offers an inviting space to relax and greet family and friends. The approximate 1,600 square foot home features four bedrooms and two plus bathrooms. The extended foyer and hallway houses three bedrooms and a bath; two bedrooms are located on one side of the hallway along with the shared hall bath. The third bedroom sits across the hall and all the bedrooms are a generous size with ample closet space. A large utility room with sink area and a hall linen closet add additional function and comfort. The common living areas feature a beautiful trey ceiling dining room which has side yard views and is open to the family living room. The gourmet kitchen features a breakfast bar, separate pantry and a plethora of additional counter and cabinet space. The open concept design allows for friendly entertaining and comfortable family living as it maximizes space and the essence of living graciously. A powder room and linen closet line the hallway, for the convenience of your guests, as you access the master suite. The master suite sits at the rear of the home for privacy and provides an oasis from everyday living and a comfortable space in which to relax. The master bedroom is a generous size with a trey ceiling and double windows overlooking the rear yard. A large walk-in closet lines the hallway leading to the master bath which includes a tub/shower combination. This home, while compact, offers an abundance of common living spaces for your family and guest’s enjoyment while also providing private, cozy retreats for family members.
