Mediterranean Plan 168-00011

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,658
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 57'
Depth 50'

Floorplan Drawings

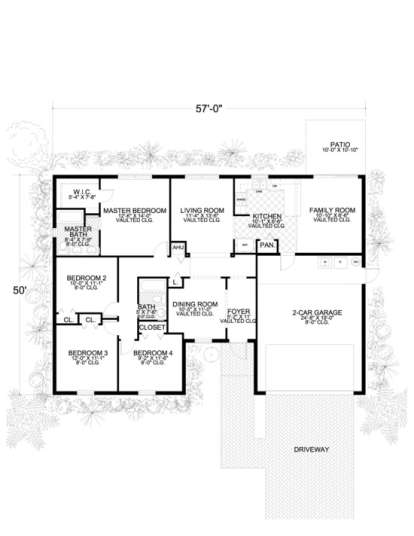

Floorplan 1

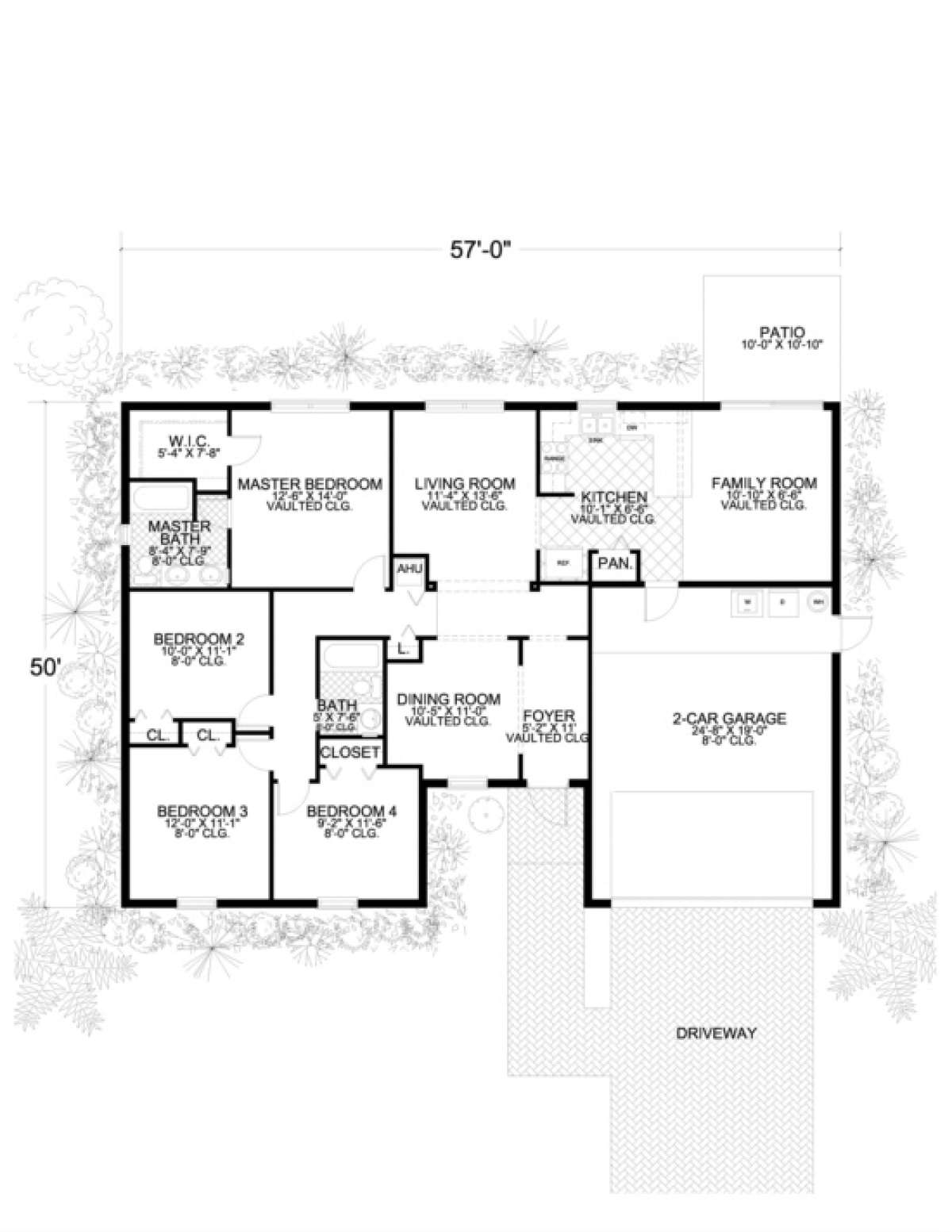

Floorplan 1 for House Plan #168-00011


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This wonderfully designed home has traditional Mediterranean features such as a grand entryway and tiled roofing. The single story home offers approximately 1,600 square feet of usable living space with four bedrooms, two bathrooms and a two car garage. The exterior façade and interior floor plan blend beautifully to create a cozy Spanish styled home. As you enter the home, the vaulted foyer adds to the spaciousness of the home and is open to the formal dining room which is a nice space and vaulted as well. The vaulted living room sits directly across the hallway from the dining room and offers a wonderful area for entertaining large groups of family and friends. The kitchen features a breakfast bar, separate pantry and is open to the rear family room which leads to the outdoor patio. Both the kitchen and family room are vaulted as well as the master bedroom which highlights the interior floor plan’s sense of space. The master bedroom is a generous size with rear window views and a walk-in closet. The master bath features dual vanities and a tub/shower combination. There are three additional bedrooms which share a hall bath and linen closet. A two car garage houses the laundry nook and additional storage while providing a side yard exit for convenience and ease of maintaining the lawn. Although this home is compact, it provides a spacious and generous floor plan which is versatile and comfortable in additional to open spaces which are ideal for entertaining.
