Coastal House Plan 1637-00106

Sq Ft2,810
1/2 Baths0
Width32' 0"
Depth56' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Level for House Plan #1637-00106
Second Floor for House Plan #1637-00106
Garage Floor for House Plan #1637-00106
Optional Bonus Room for House Plan #1637-00106

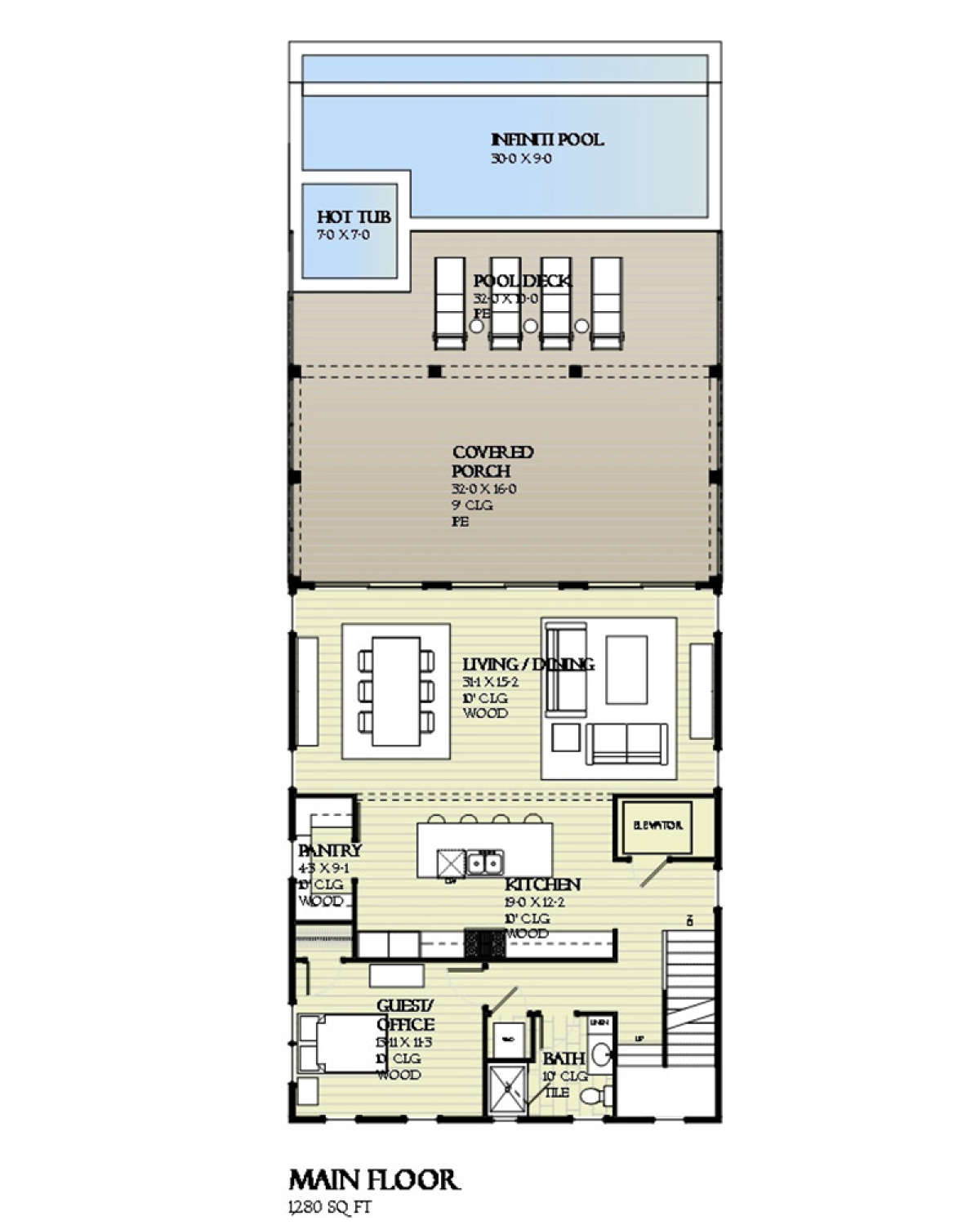

Main Level
Main Level for House Plan #1637-00106

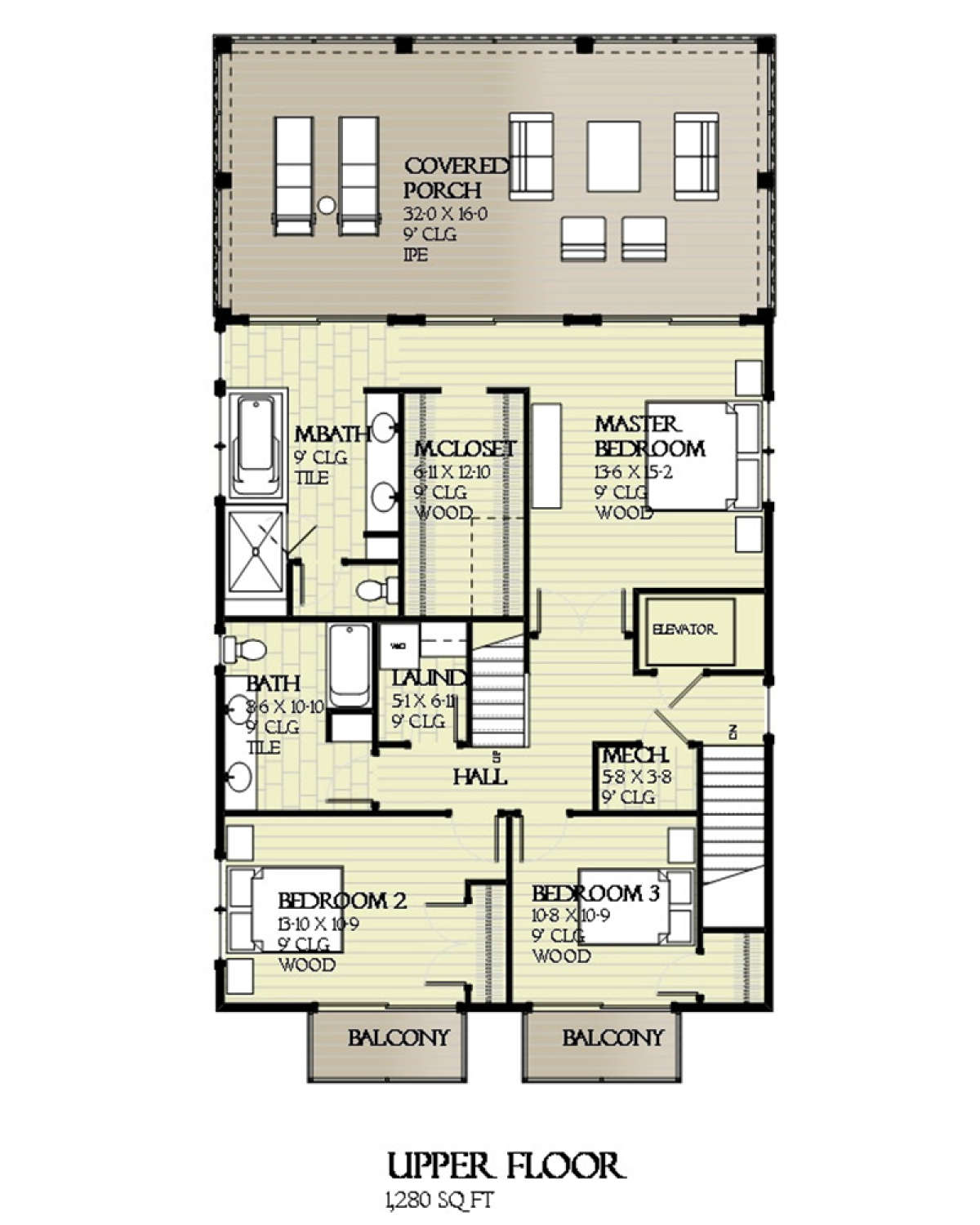

Second Floor
Second Floor for House Plan #1637-00106

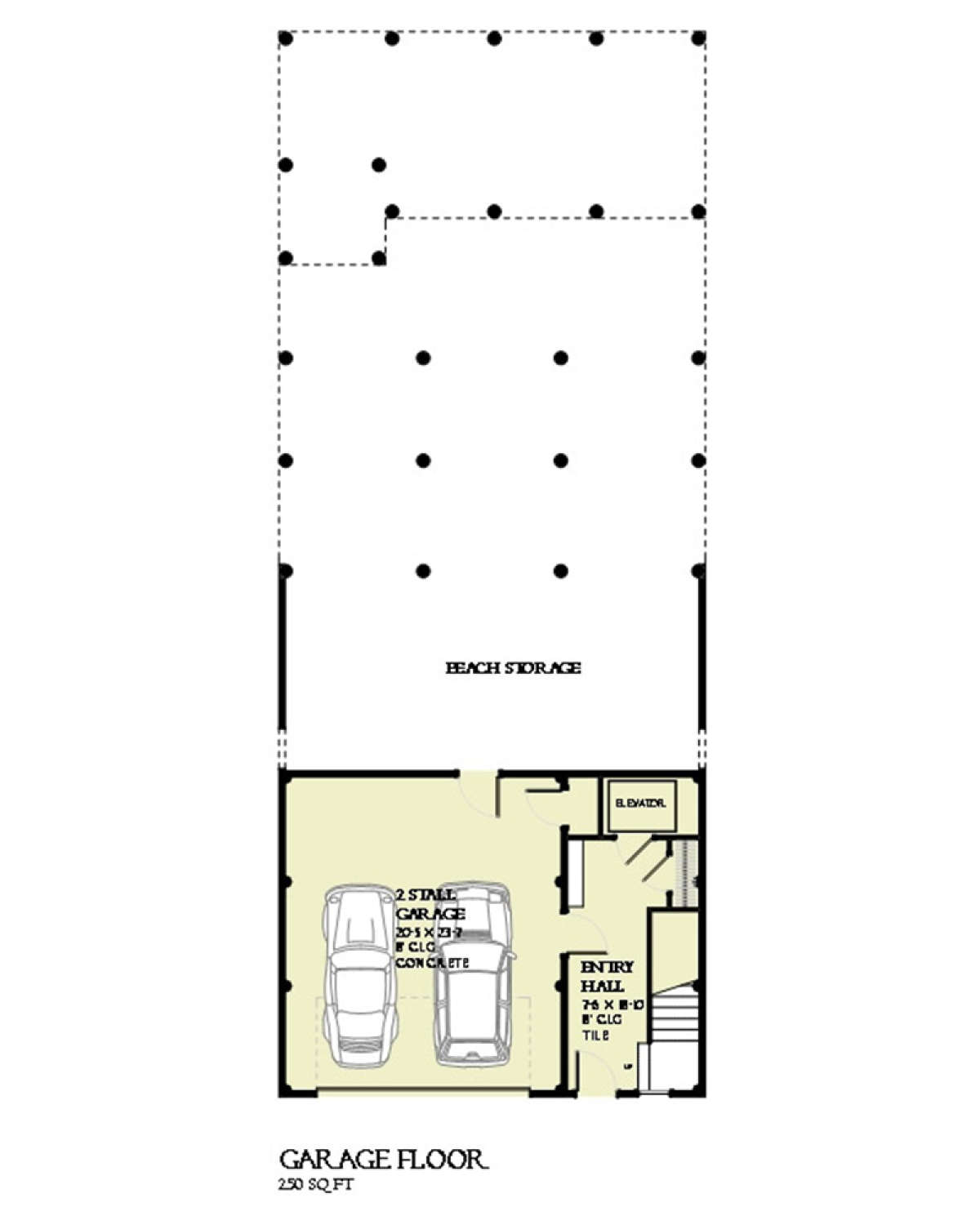

Garage Floor
Garage Floor for House Plan #1637-00106

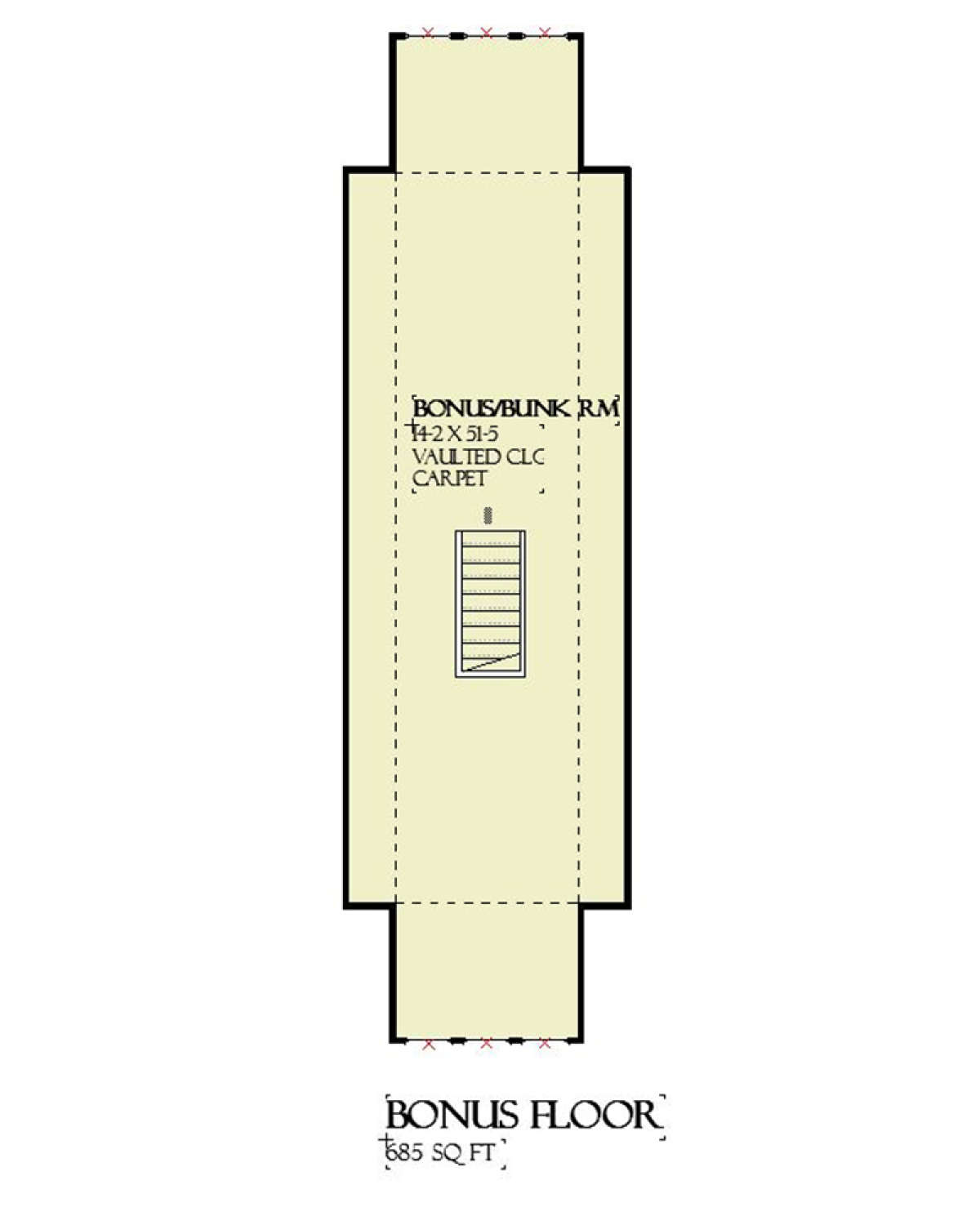

Optional Bonus Room
Optional Bonus Room for House Plan #1637-00106

Frequently Asked Questions


What's Included in these plans?

  • Construction Ready Main Level Floor Plan (1/4"=1-0')
  • Construction Ready Upper Floor Plan (if applicable) (1/4"=1'-0")
  • Lower Level Floor Plans/Foundation (1/4"=1'-0")
  • Construction Ready Elevations (all four) with Materials, Wall Heights, Details, etc noted (1/4"=1')
  • Building Sections/Wall Sections/Eave Details
  • Exterior Details of Railings, Columns, Shutters, Flowerboxes etc.
  • Roof Overview Plan


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Coastal house design features an amazing array of outdoor space and an interior that is functional, versatile and contains practical space that includes plenty of storage space for outdoor equipment. There is a two car garage with a separate tiled entry and loads of storage space that lie beyond the garage; additionally, there is a residential elevator to access the upper levels of the home which is convenient for packages, groceries and elderly and/or infirmed guests. The main floor of the home is highlighted with an open floor plan designed for casual living; there is a large kitchen with a huge breakfast bar, a back wall of counter and cabinet space and a massive food storage pantry. The living and dining rooms are great space for entertaining and features access onto the rear covered porch which measures 32’x16’. Beyond the porch is an open pool deck with spa tub and an infinity pool where outdoor entertaining is uncompromising and consistent with the remainder of the home. There is a main level guest suite/office space as well that features beautiful window views, plentiful closet space and an adjacent full bath.

The upper level of the home continues with the theme of blended indoor/outdoor space beautifully. Two bedrooms are quite spacious and each is highlighted with a private balcony and generous closet space. There is a laundry room and shared hall bath with double sinks along the main hallway. The opposite side of the floor features the master suite; this space is completely devoted to the pleasure and comfort of the homeowners. There is a large master bedroom, a massive walk-in master closet and an en suite bath elegantly appointed with modern amenities that include dual vanities, a large soaking tub and an oversized shower. The showpiece of the master suite is the accompanying private covered porch which spans the width of the home and overlooks the infinity pool and pool deck below. This home, while designed for comfortable living, features elegant and modern amenities aligned with a casual coastal lifestyle.
