Vacation Plan 6849-00024

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,515
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 39' 5"
Depth 66' 1"

Floorplan Drawings

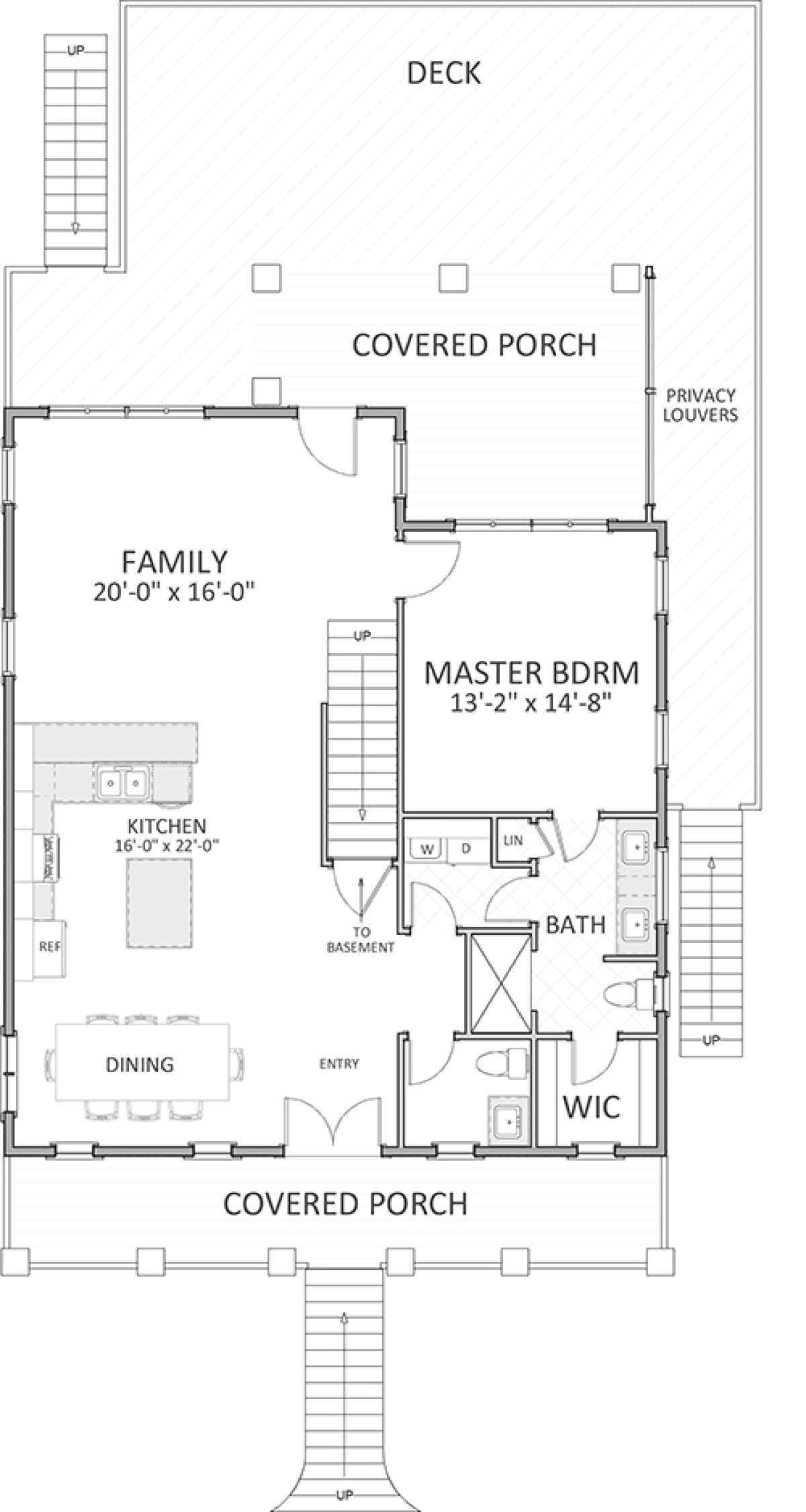

Main
Main for House Plan #6849-00024

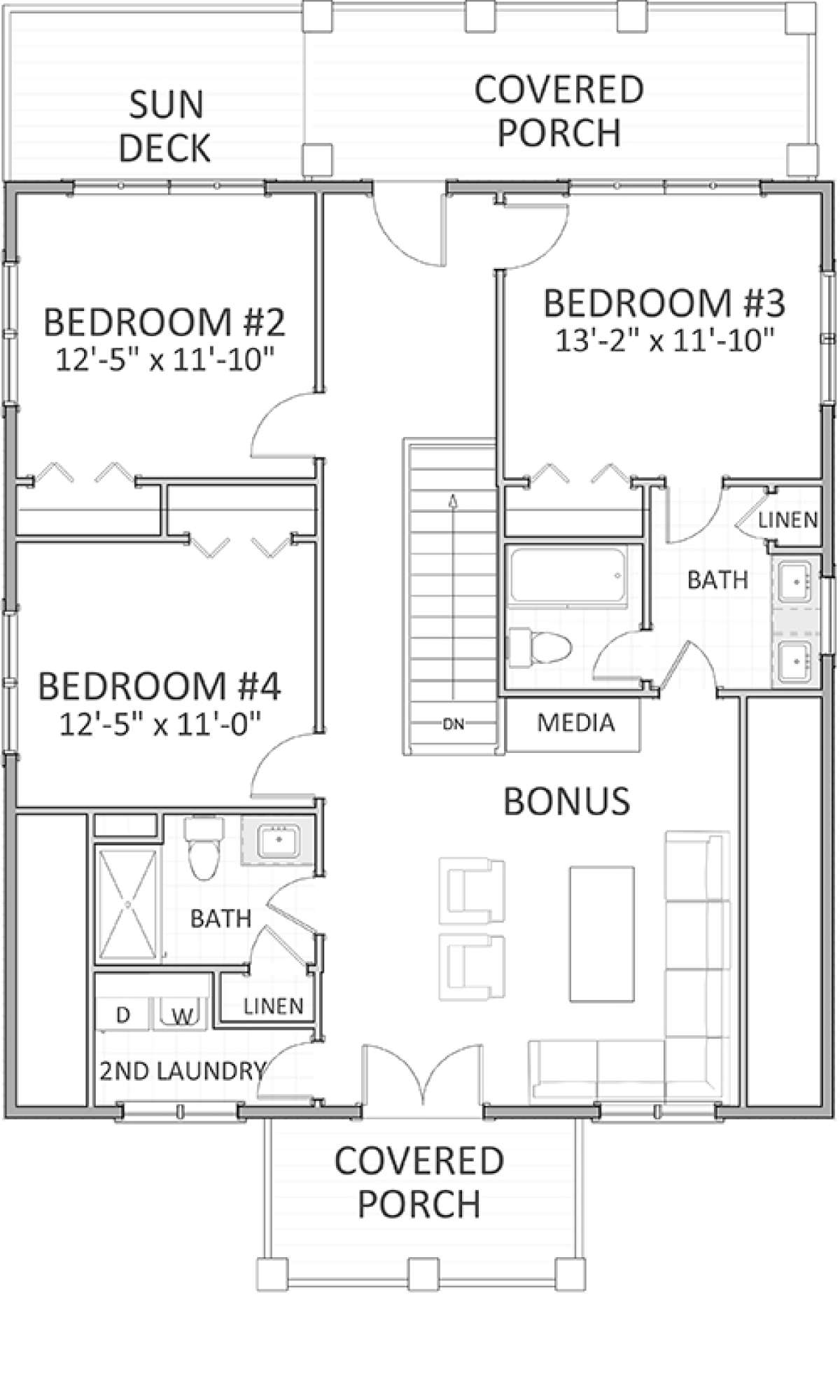

Upper
Upper for House Plan #6849-00024

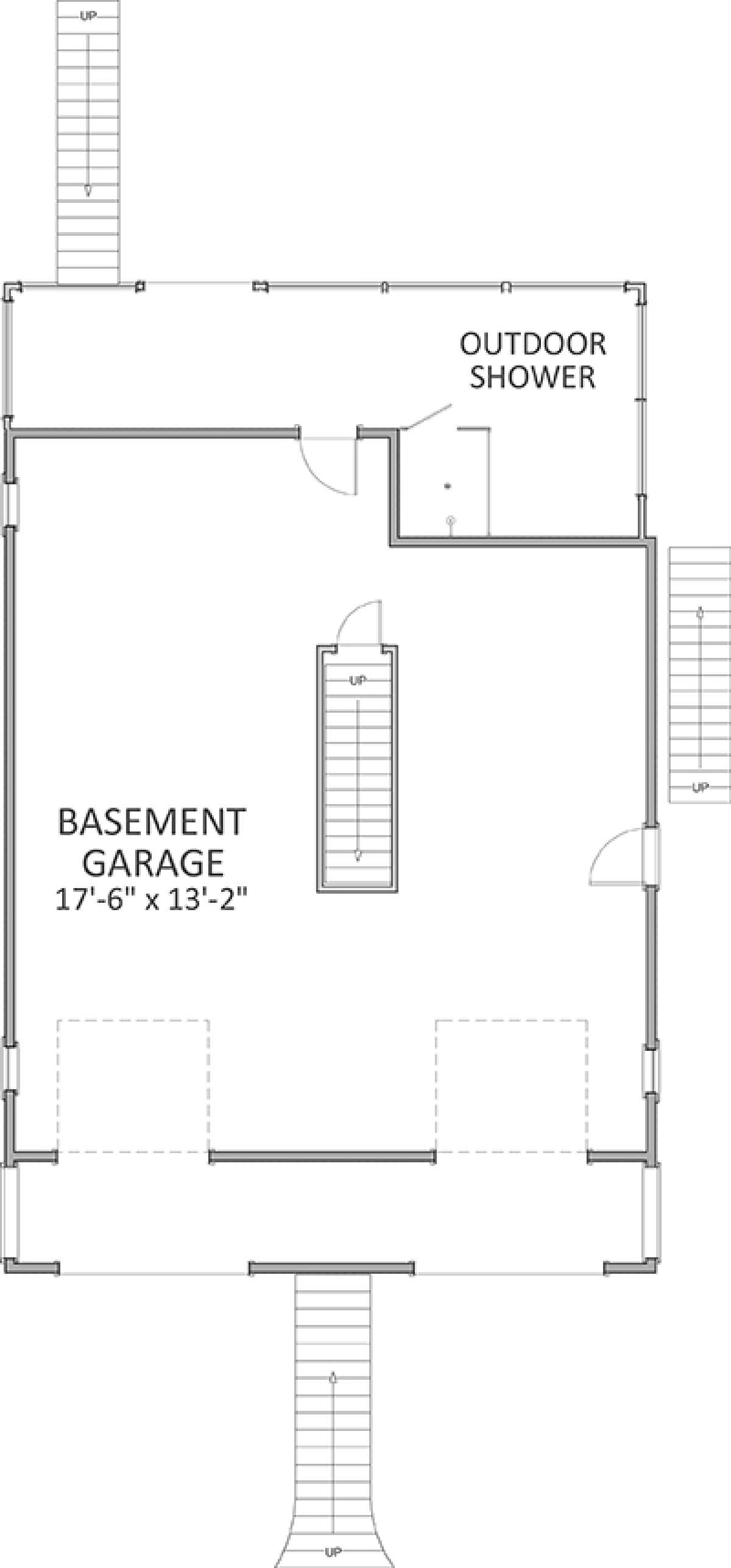

Lower
Lower for House Plan #6849-00024


What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Foundation Plan  (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level
  • Floor Framing plans at each framed floor level
  • Exterior Elevations   (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section   (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Roof Plan
  • Electrical Plans at each finished level  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

*Allow 2 weeks for the shipment of this home plan*
