Cottage House Plan 1502-00003

Sq Ft400
Beds1
Baths1
1/2 Baths0
Stories1
Cars0
Width24' 6"
Depth20' 0"

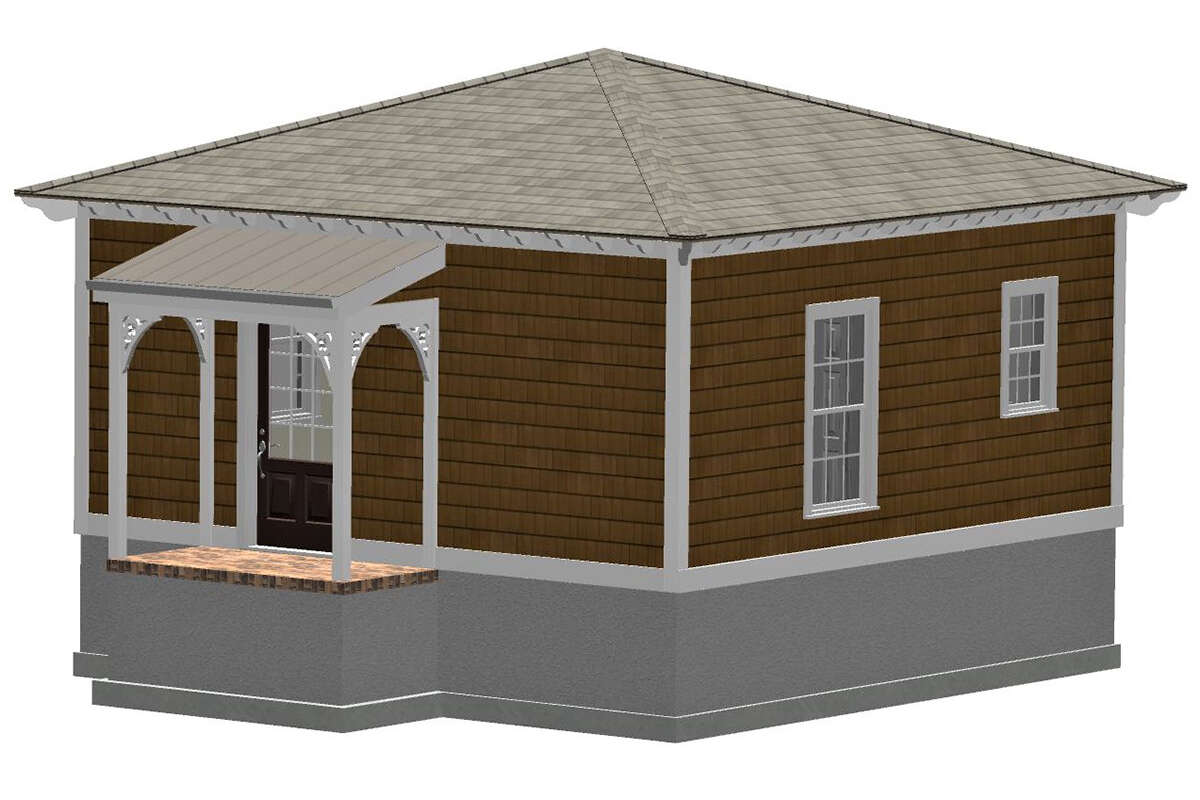

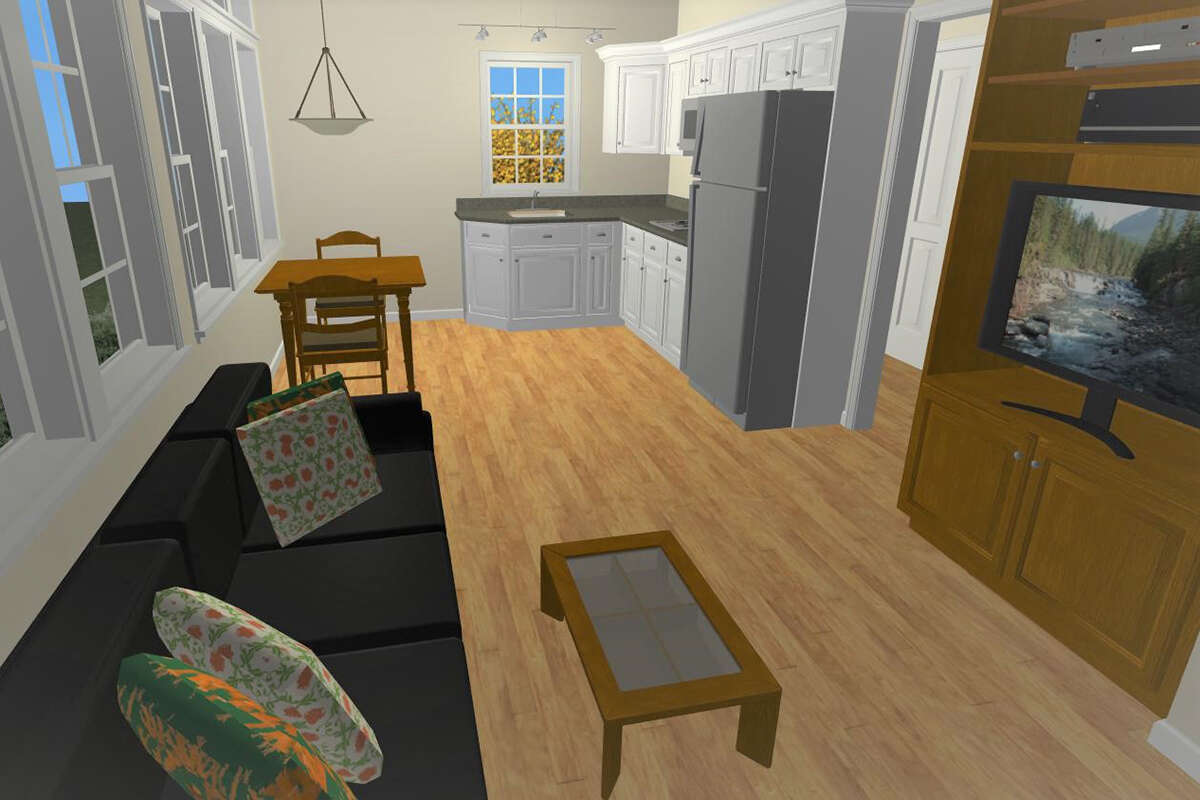

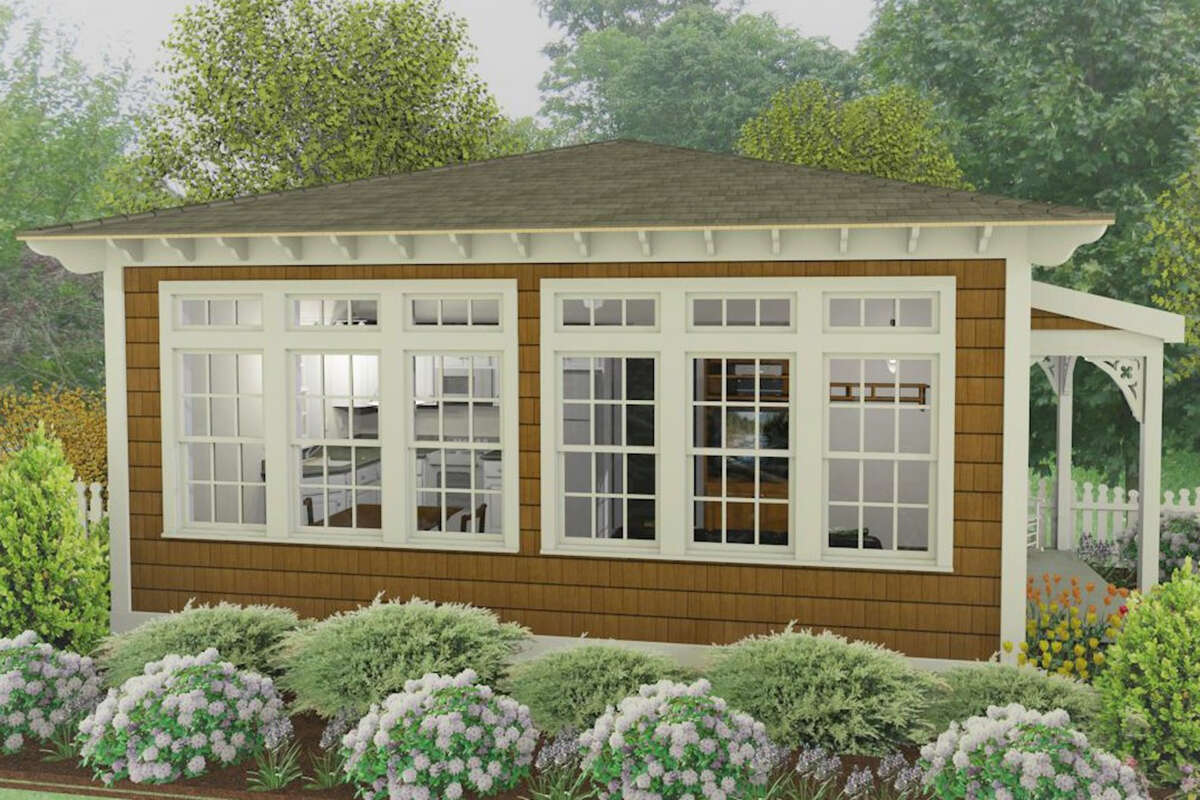

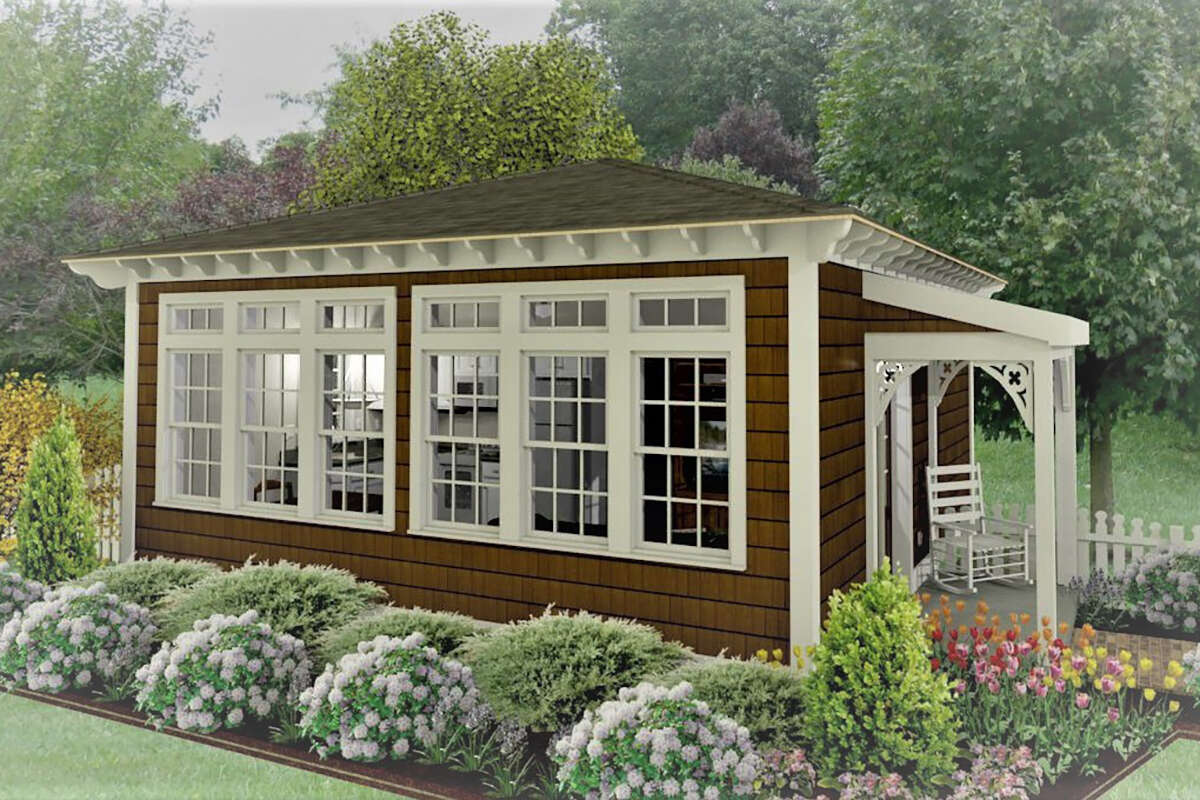

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

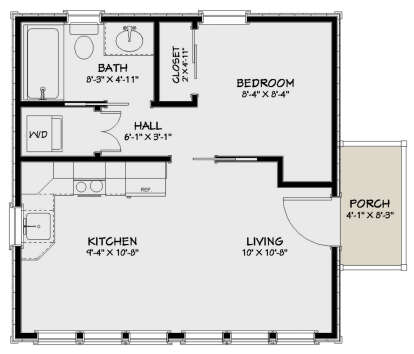

Main Floor for House Plan #1502-00003
Main Floor
Main Floor for House Plan #1502-00003


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Sheet 1 -   COVER SHEET
Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.

Sheet 2 - FOUNDATION PLAN
Foundation plan in ¼" scale, 3D view, construction details and notes.

Sheet 3 - FLOOR PLAN
Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.

Sheet 4 - CEILING & ROOF FRAMING
2D and 3D views of framing.

Sheet 5 - FRAMING DETAILS
Generic wall, ceiling and roof framing details. Lumber and framing notes.

Sheet 6 - ELEVATIONS
Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.

Sheet 7 - CROSS SECTIONS
Cross section views with framing details.

Sheet 8 - KITCHEN PLAN
Kitchen and bath plans, elevations and schedule.

Sheet 9 - ELECTRICAL PLAN
Electric layout plan, schedule and notes.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1 bedroom, 1 bathroom Cottage house plan features 400 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
