Craftsman Plan 110-00904


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,594
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 1.5
Width 73' 2"
Depth 88' 2"

Floorplan Drawings

Floorplan 1

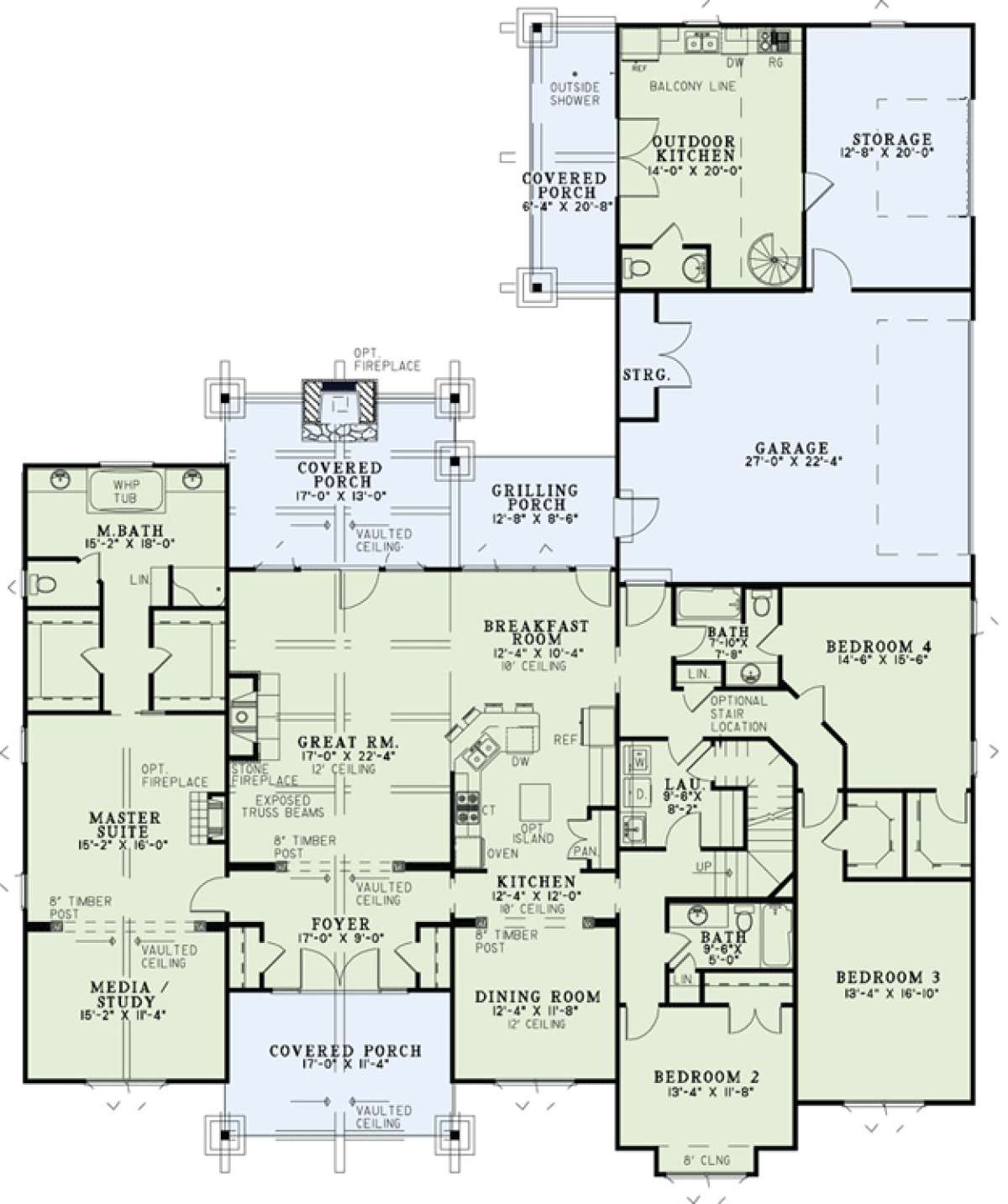

Floorplan 1 for House Plan #110-00904
Floorplan 2

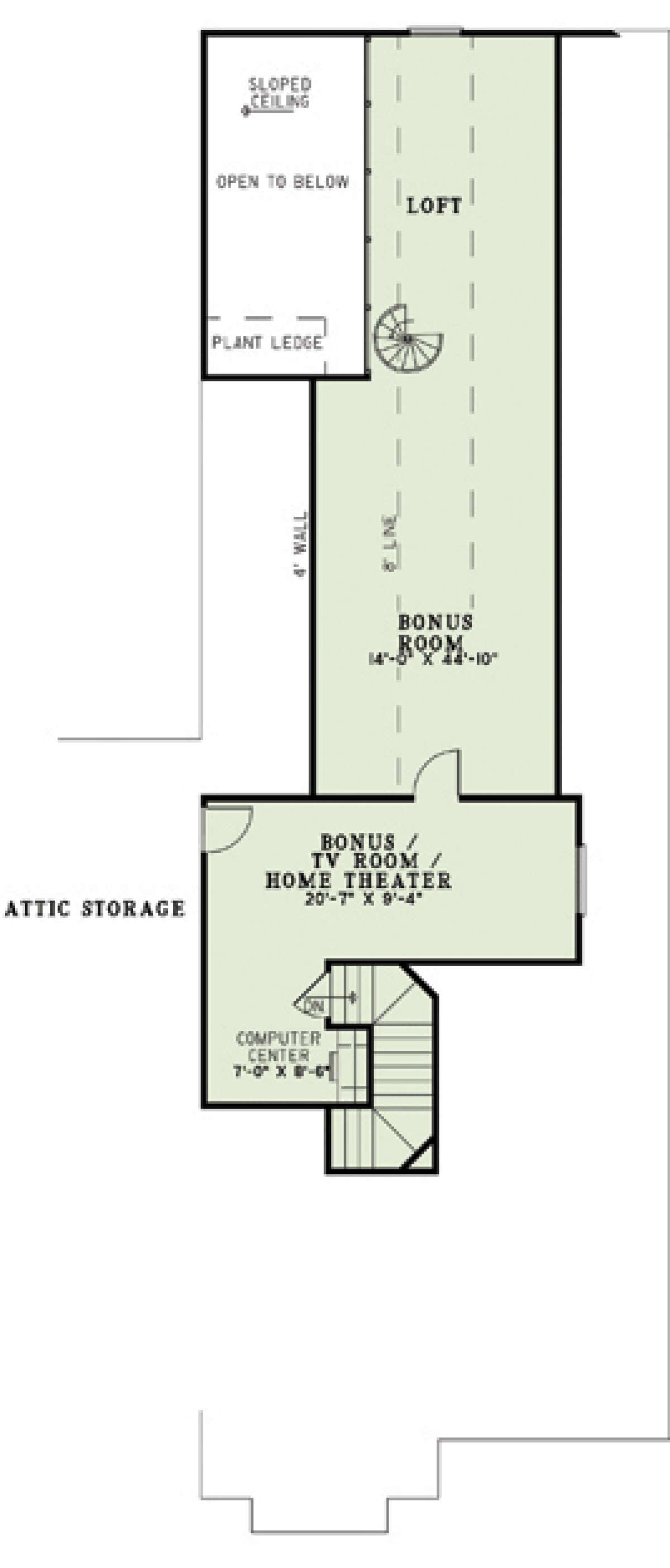

Floorplan 2 for House Plan #110-00904

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

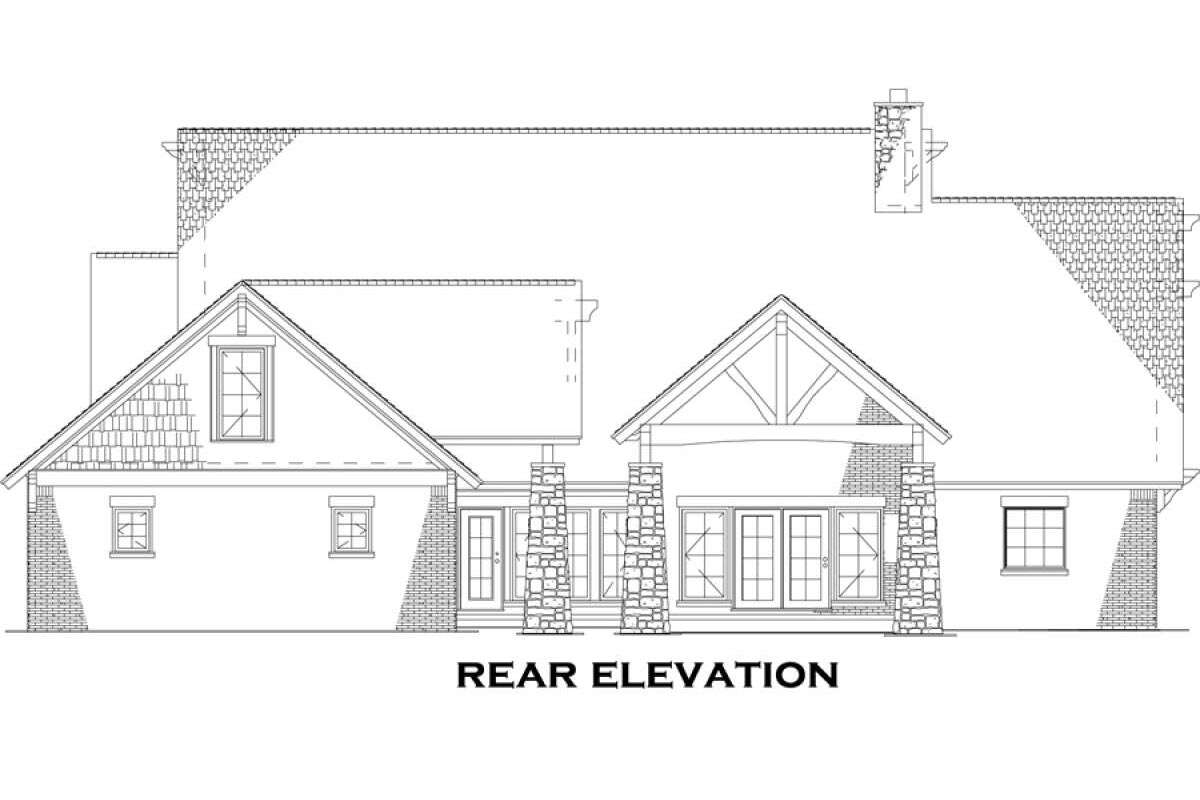

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An exterior façade with an amazing array of gorgeous architectural design features is highlighted in this low maintenance home plan. Brick work, cedar shakes, stacked stone and a gabled dormer combine beautifully with decorative wood work tucked into the gables and a front covered entrance. The front entrance is highlighted with double doors decorated with transom windows positioned along the perimeter. The interior floor plan is equally stunning and includes approximately 3,580 square feet of living space which incorporates four bedrooms and three plus baths into the 1.5 storied home. A 604 square foot bonus room and 879 square foot garage adds a plethora of space to expand and store vehicles and other paraphernalia. The vaulted ceiling exterior covered porch extends from the front of the home to the rear of home and encompasses the main living space. The foyer is quite large and is flanked by two coat closets before opening onto the great room which is highlighted with soaring ceiling heights, exposed truss beams, a stone fireplace and access to the rear covered porch. The rear porch offers outstanding outdoor entertaining space with its continued use of vaulted ceilings, an optional outdoor fireplace and adjacent grilling porch. Additionally, there is a second covered porch with an attached outdoor shower and enclosed second kitchen which includes a half bath and access to a large storage space off the garage where a second, smaller storage space is available as well. There is a formal dining room and casual breakfast room that is anchored by the grand kitchen. The kitchen features an optional center island, a breakfast peninsula, a separate pantry and loads of additional counter and cabinet space. The large utility room is conveniently situated off the garage entrance along with a staircase to the second level of the home. The second story space can be configured to house a computer center, media/theatre room, a library or hobby room along with a home office or study. Surrounding the expansive staircase are three family bedroom suites and baths. The second bedroom features a large footprint, plentiful closet space and there is an adjacent full bath with linen closet. Bedrooms three and four are generously proportioned with walk-in closets and there is a hall linen closet and shared hall bath which the fourth bedroom has private access to. The master suite is privately situated on the other side of the home and boasts of occupying one wing of the home. The master bedroom is sumptuous with a warming fireplace, vaulted ceilings and an adjoining media room/study or the space could be utilized as a sitting room or library. His and her walk-in closets line the hallway to the master bath that defines luxury and grandeur with its whirlpool tub flanked by dual vanities, a separate shower, linen closet and a compartmentalized toilet. This gorgeous home has a striking exterior, unbelievable outdoor entertaining spaces and an interior floor plan that is spacious, versatile and fully functional.
