Mountain Rustic House Plan 8504-00089

Sq Ft4,128
1/2 Baths1
Width48' 0"
Depth36' 0"
Mountain Rustic House Plan #8504-00089 Elevation Photo

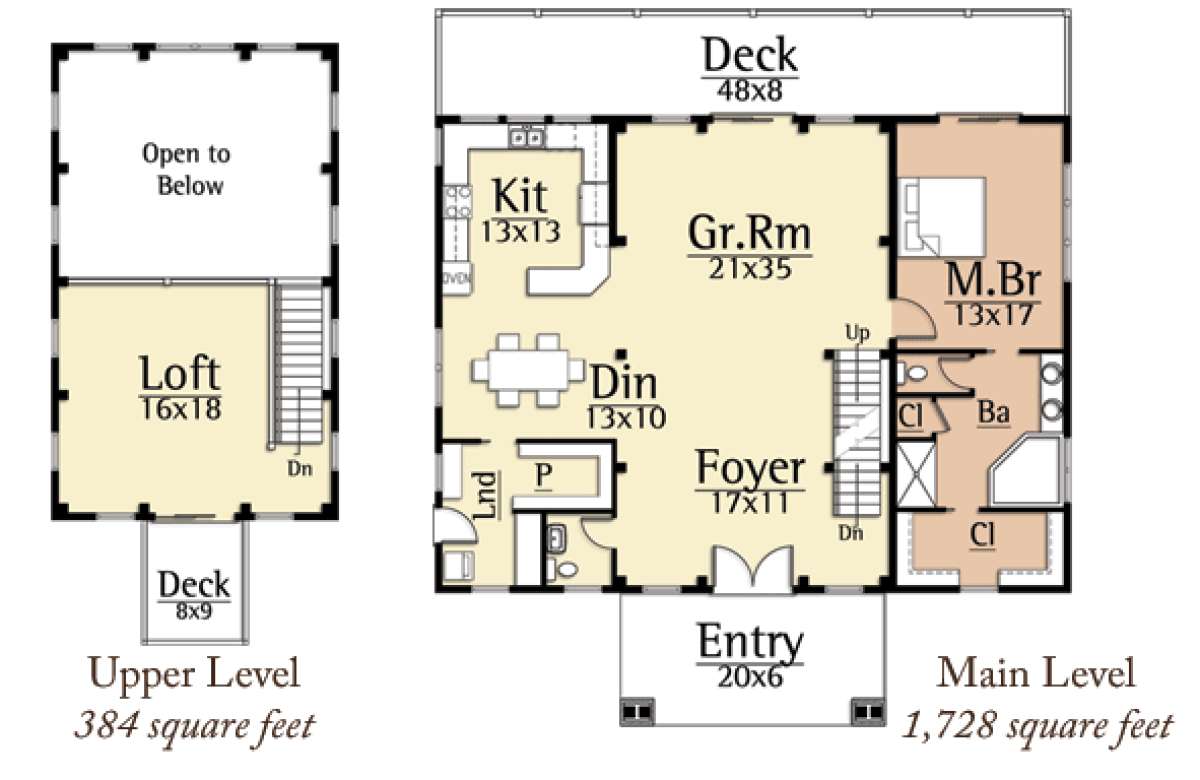

Floorplan 1
Floorplan 1 for House Plan #8504-00089

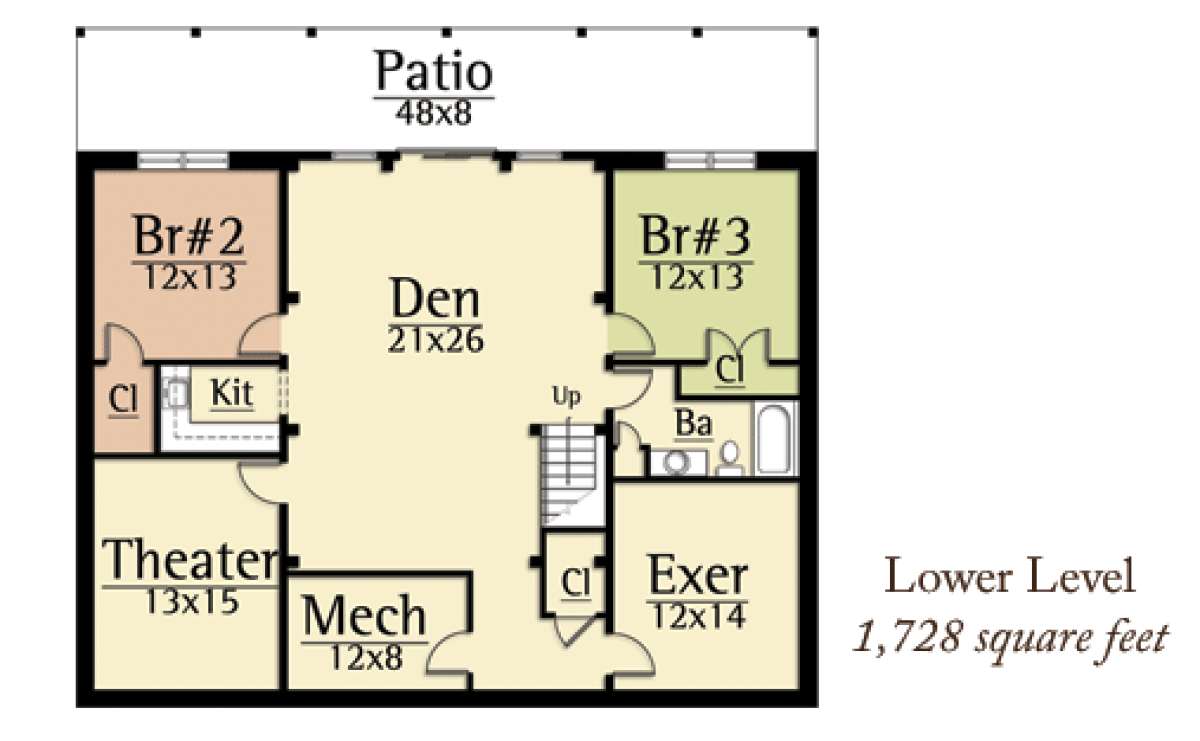

Lower Level
Lower Level for House Plan #8504-00089
Garage for House Plan #8504-00089
Mountain Rustic House Plan #8504-00089 Elevation Photo
Floorplan 1 for House Plan #8504-00089
Lower Level for House Plan #8504-00089
Garage for House Plan #8504-00089
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00089
Lower Level for House Plan #8504-00089
Garage for House Plan #8504-00089
Floorplan 1
Floorplan 1 for House Plan #8504-00089
Lower Level
Lower Level for House Plan #8504-00089
Garage for House Plan #8504-00089

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mountain Rustic House Plan features an attractive exterior façade outlined in natural design elements to include stone, warm woods and a decorative overhead gable. The interior floor plan is equally stunning with its approximate 3,840 square feet of living space that incorporates three bedrooms, two plus baths and a walk-out basement into the home’s interior. There is a two car detached garage with approximately 624 square feet of vehicle and storage space that is accessed through the breezeway. The main level of the home features a large open floor plan perfect for entertaining and family living. Double door entry into the foyer reveals the open layout which includes a spacious great room and sliders onto the rear deck. There is an adjacent dining room with double window views and an adjoining U-shaped kitchen. The kitchen is highlighted with a peninsula bar for additional seating, double sink window views and loads of counter/cabinet space. At the opposite end of the space is a walk-in food storage pantry, the laundry room with outdoor access and a powder room for guests. The main level master suite occupies one wing of the first floor and offers a spacious bedroom with rear deck access, a huge walk-in master closet and the master bath. The en suite bath includes modern amenities comprised of a private toilet area, a separate shower, corner garden tub and dual sink vanity. The second floor of the home features an oversized loft with overlooks onto the great room below and a private deck in which to enjoy outdoor space.

The terrace level of the home is highlighted with an abundance of space for children and guests. There is a large den, measuring 21’ x 26; perfect for entertaining and “hanging out” as a family that provides slider access onto the rear covered patio. Additionally, a private theater/media room is located on this floor for family movie nights and the nearby kitchenette is great for snacks and drinks. There is an exercise room as well, a large mechanical room that also doubles as storage space and an additional closet space is nearby. Bedrooms two and three are of equivalent size, each have great closet space and double window views. The shared hall bath features a toilet area, vanity space and a tub/shower combination. This fabulous family home offers a versatile and functional floor plan, great outdoor space and an attractive exterior façade.
