Southern Plan 110-00573


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,486
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1
Width 59' 6"
Depth 64' 2"

Floorplan Drawings

Main Floor

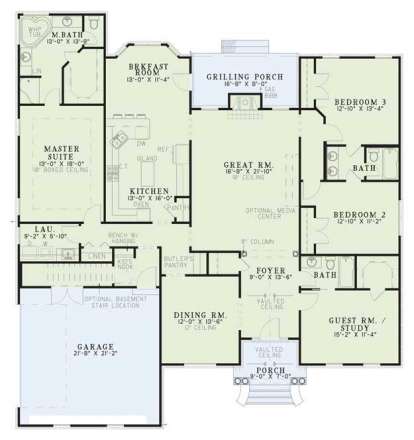

Main Floor for House Plan #110-00573

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

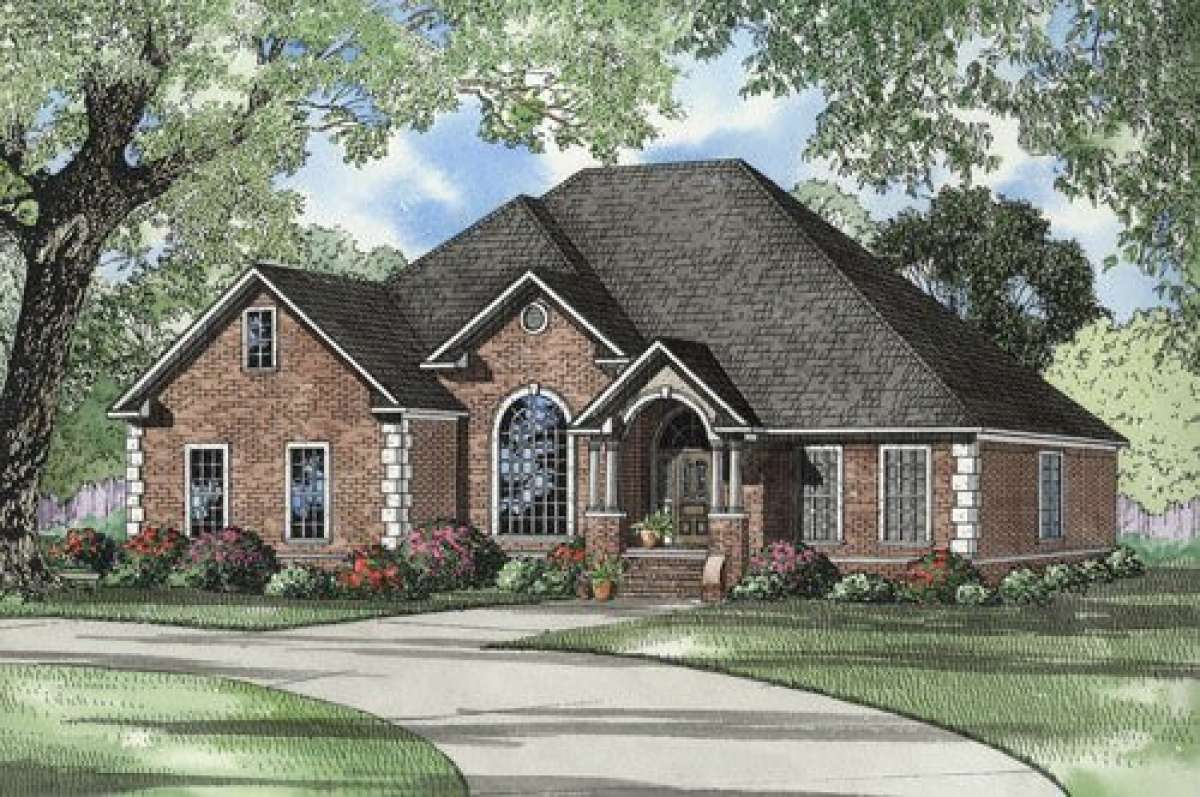

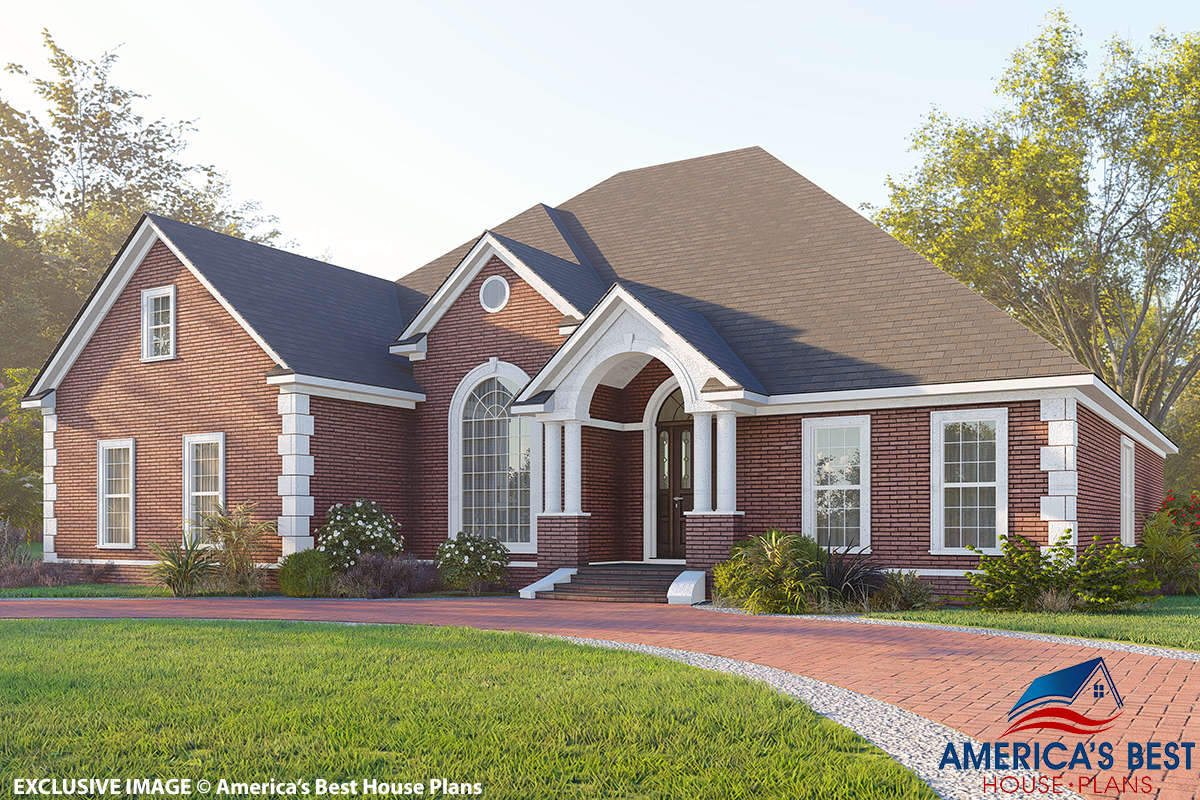

A beautifully crafted Southern house plan displaying handsome architectural design features, which highlight the charm and character of gentle living. The home’s exterior features a hip roof, brick front exterior, Palladian windows, and front covered porch. The porch possesses a barrel vault ceiling with columned beams and brick columns creating a welcoming and inviting entryway into the home.

The home’s single-story interior floor plan incorporates four bedrooms and three bathrooms into approximately 2,486 square feet of living space. Soaring ceiling heights continue into the dramatic foyer which is flanked by a formal dining room and private study/guest room. The guest room features a walk-in closet and private access to the full bathroom. The great room offers an optional entertainment center and a warming fireplace. A butler’s pantry is situated off the dining room and there is an entrance into the gourmet kitchen. The kitchen has modern conveniences and amenities any chef would envy; there is a center island, an oversized pantry, a peninsula breakfast bar and a surplus of additional counter and cabinet space. The adjoining breakfast room is nestled into large bay windows and provides access to the rear grilling porch. The two car side entry garage is conveniently located off the family laundry/mudroom.

Bedroom #2 and #3 are situated off the main hallway and both enjoy generous floor space, plentiful closet space, and Jack and Jill bathroom with double vanities. The master bedroom is quite large with a dramatic boxed ceiling and double window views. There is an oversized walk-in closet and the en suite bathroom is highlighted by dual vanities, a separate shower, a compartmentalized toilet, and a corner relaxing whirlpool tub. This family-friendly Southern house plan features an abundance of space and an exciting exterior façade.
