Lake Front Plan 1070-00361

 Alabama

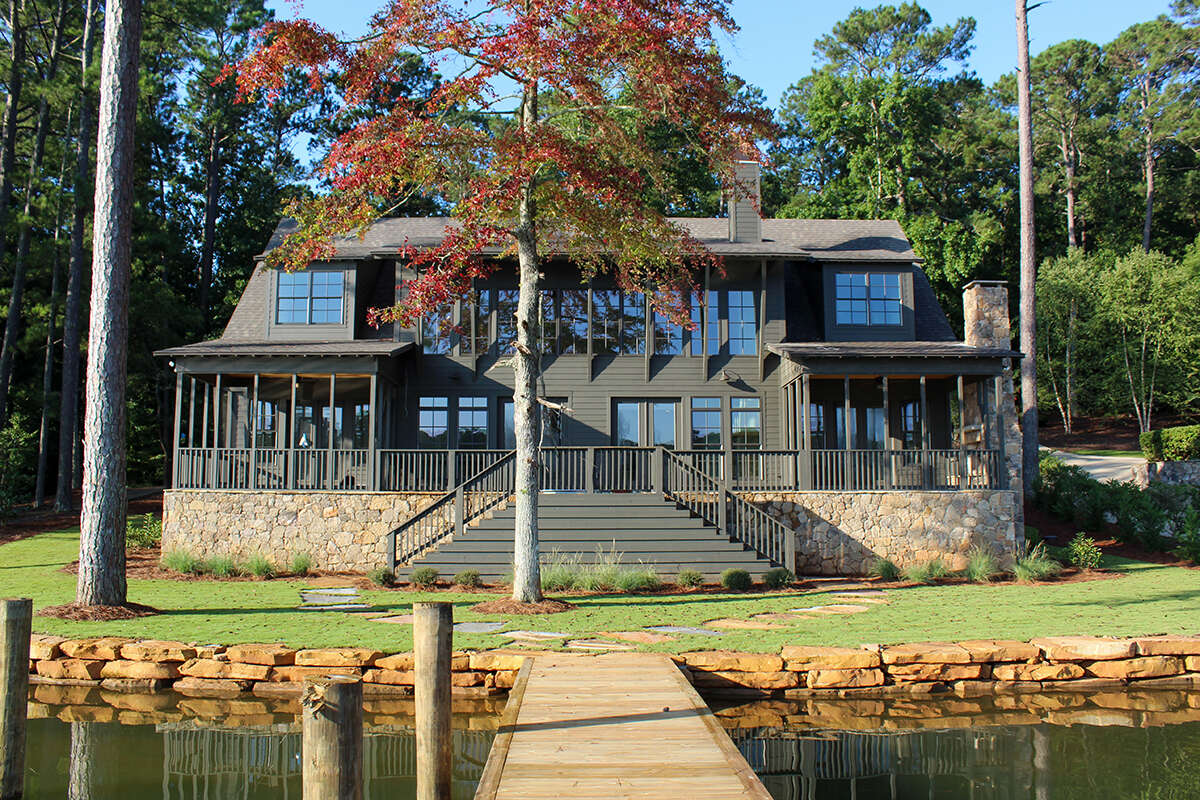

Lake Front House Plan #1070-00361 Build Photo
 Alabama

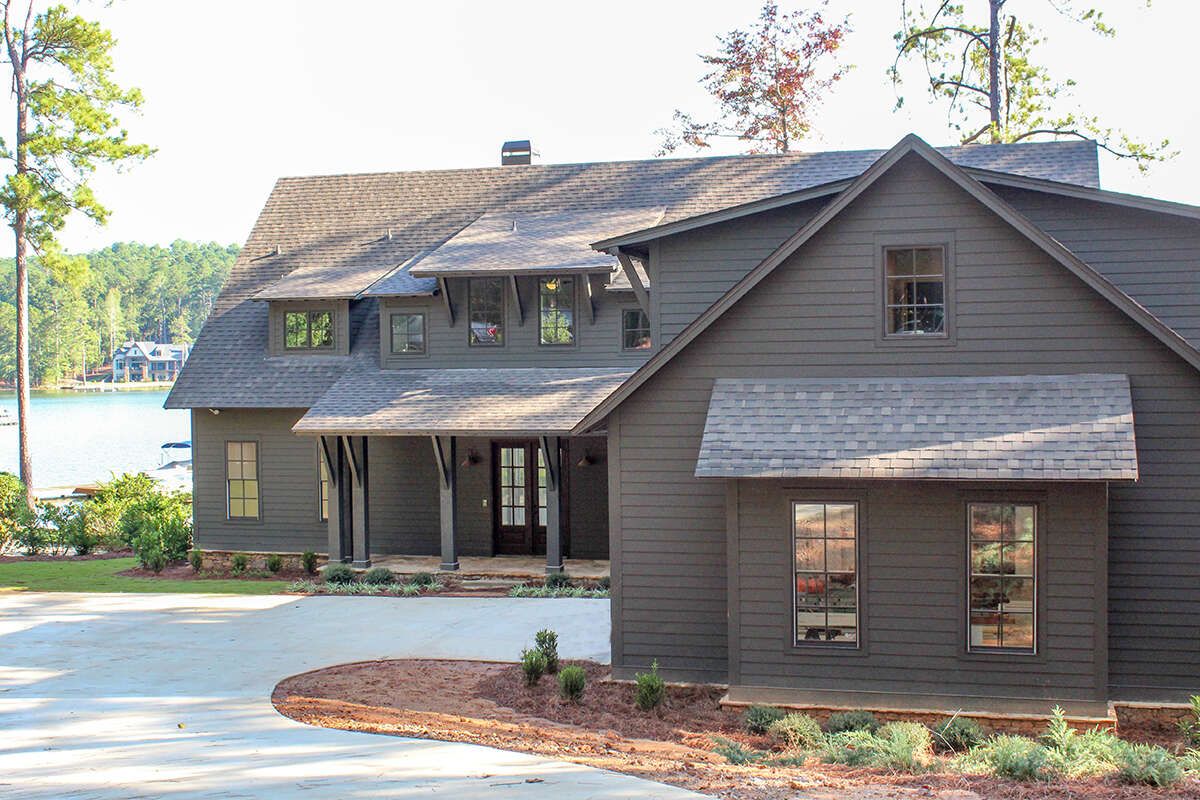

Lake Front House Plan #1070-00361 Build Photo
 Alabama

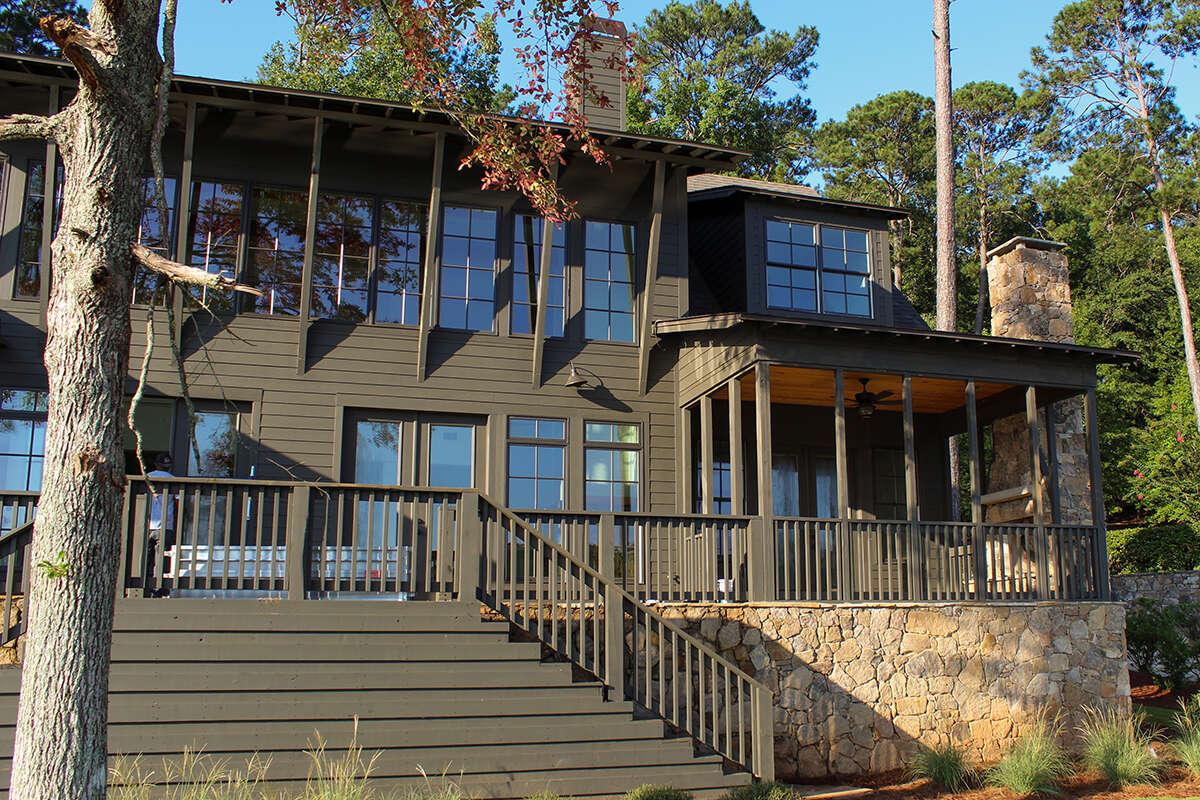

Lake Front House Plan #1070-00361 Build Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,850
Beds 5
Bath 5
1/2 Baths 1
Car 2
Stories 2
Width 68' 10"
Depth 88' 2"

Floorplan Drawings

Main Floor

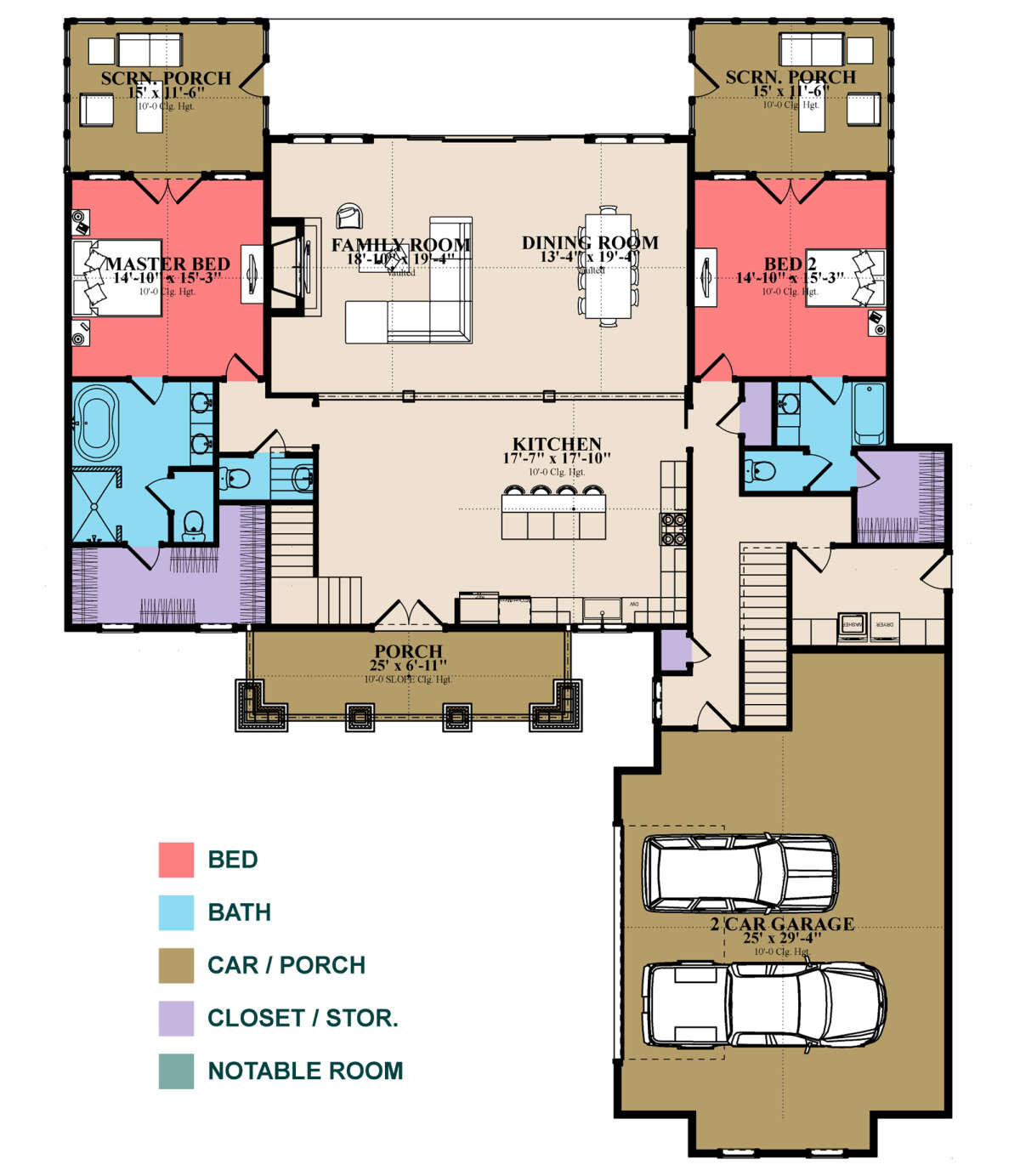

Main Floor  for House Plan #1070-00361
Second Floor

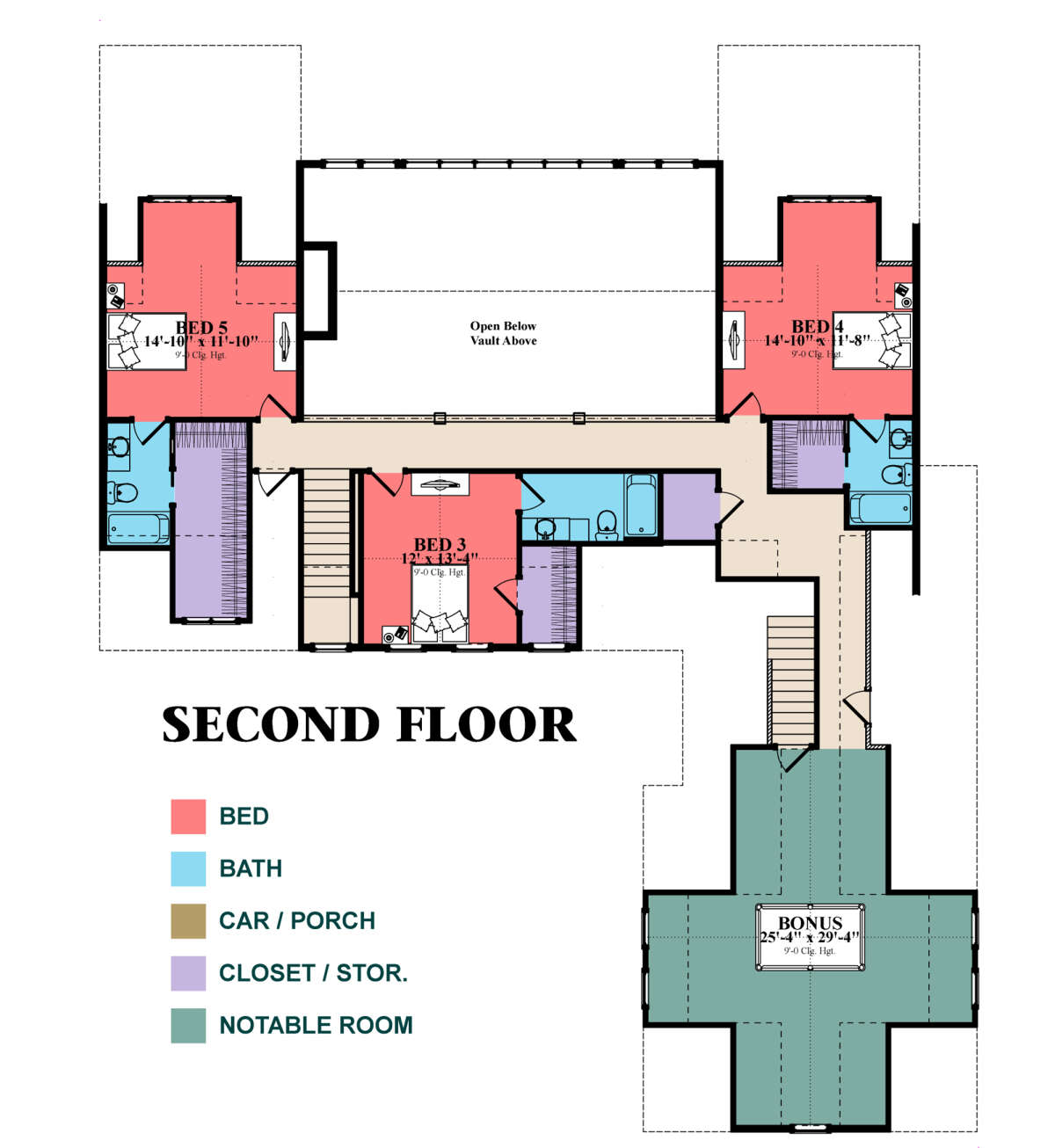

Second Floor for House Plan #1070-00361


What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 5 bedroom, 5 bathroom Lake Front house plan features 3,850 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
