Mountain Rustic House Plan 8504-00046

Sq Ft3,906
1/2 Baths1
Width80' 0"
Depth55' 0"

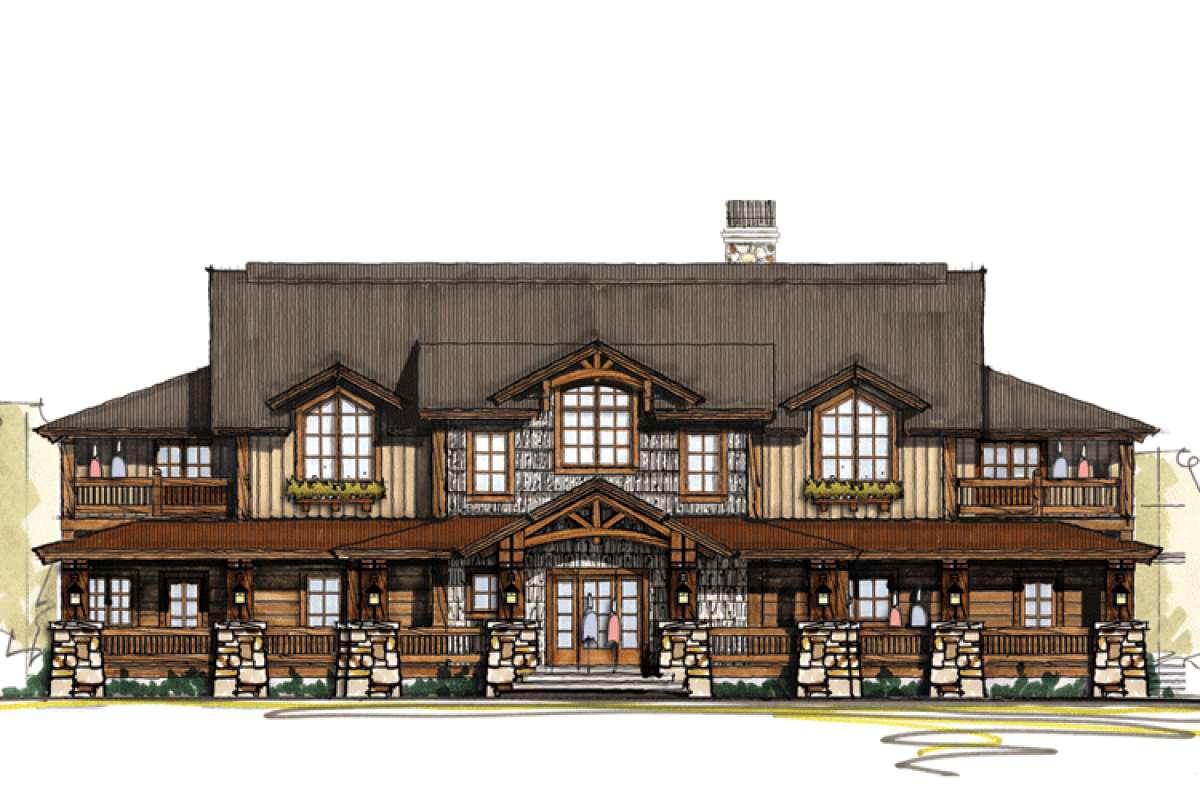

Mountain Rustic House Plan #8504-00046 Elevation Photo

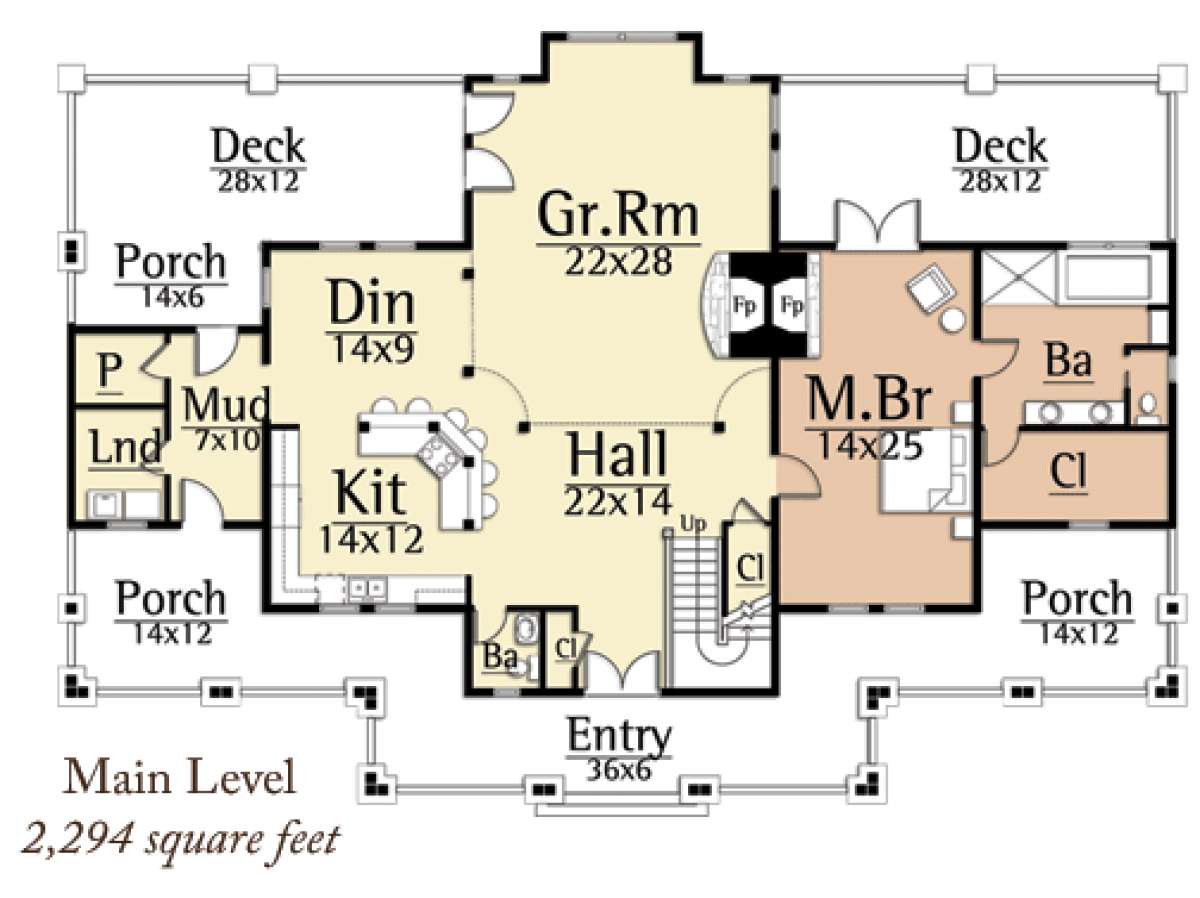

Floorplan 1
Floorplan 1 for House Plan #8504-00046

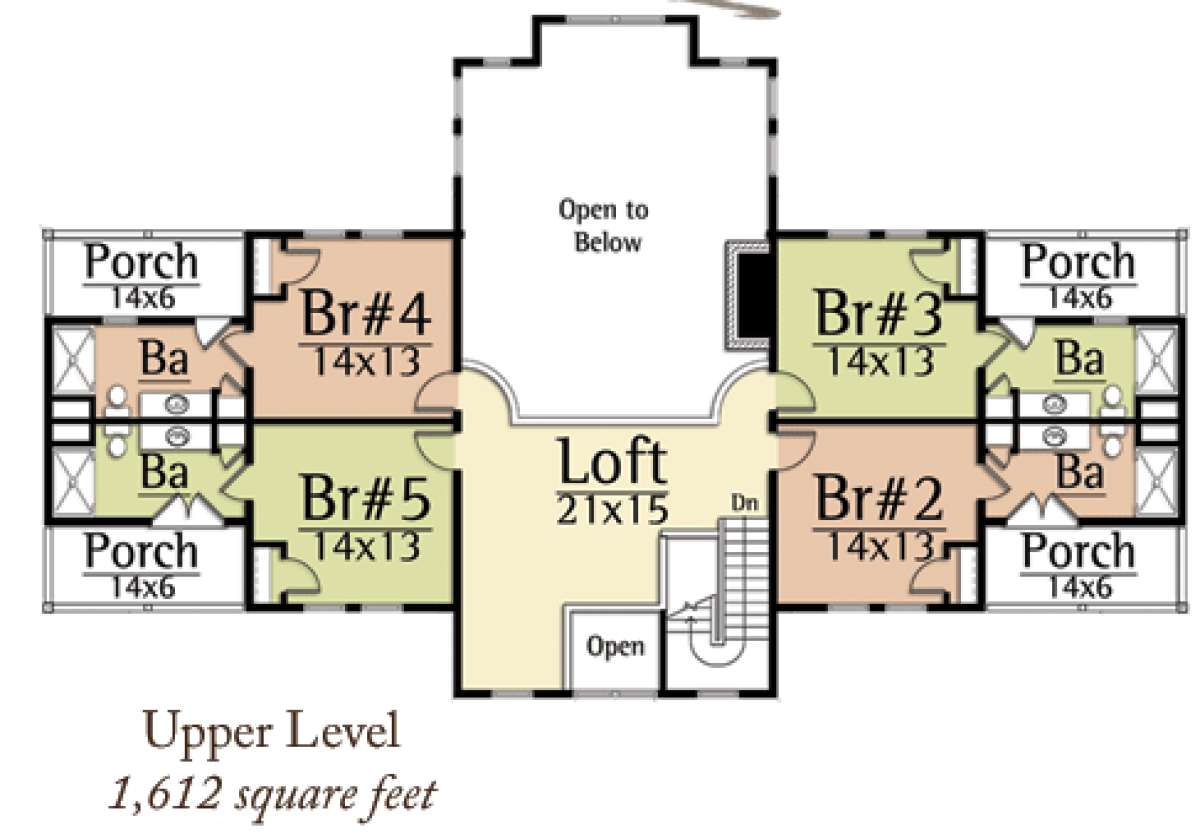

Floorplan 2
Floorplan 2 for House Plan #8504-00046
Garage for House Plan #8504-00046
Mountain Rustic House Plan #8504-00046 Elevation Photo
Floorplan 1 for House Plan #8504-00046
Floorplan 2 for House Plan #8504-00046
Garage for House Plan #8504-00046
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00046
Floorplan 2 for House Plan #8504-00046
Garage for House Plan #8504-00046
Floorplan 1
Floorplan 1 for House Plan #8504-00046
Floorplan 2
Floorplan 2 for House Plan #8504-00046
Garage for House Plan #8504-00046

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mountain Rustic house plan features a spectacular exterior with loads of outdoor relaxing and entertaining space. There is a large front covered porch which extends across the width of the home’s front exterior and two separate rear decks and a porch. The front porch is handsomely built with amazing design elements consisting of substantial stone pillars, open railing and warm wood beams. There is an overhead decorative gable as well detailing the front entrance of the home beautifully and the second floor of the home also offers outdoor space as well. Double overhead porches are attached to two of the second floor bedrooms on the front of the home while the two rear bedrooms also feature attached rear porches. All four of these spaces are private, measure 14’ x 6’ and afford great outdoor space for the upper level bedrooms. The interior floor plan is highlighted with approximately 3,906 square feet of living space with an open floor plan, five bedrooms and five plus baths. There is a two car detached garage with 624 square feet of vehicle and storage space. The front double door entrance into the home’s interior is centrally located and reveals the interior open floor plan. A large foyer and entry hallway house a coat closet, the upper level staircase and second large closet. Beyond the foyer is the large great room which is highlighted with a warming fireplace, beautiful window views and access to the rear outdoor space. The adjoining dining room is bright and airy with lovely window views and the grand kitchen features an angled breakfast bar and generous counter and cabinet space. There is a food storage pantry, mudroom and laundry room situated between the front covered porch and one of the rear decks for easy clean-up and a tidy home environment. The opposite wing of the first floor holds the master suite where there is an oversized bedroom with window views overlooking the front covered porch and French door access to the rear outdoor space. A large walk-in closet and master bath featuring dual vanities, a garden tub, toilet area and a separate shower are attached to the master suite.

Upstairs are four additional bedrooms suites, a shared loft space and outdoor space. Each of the four bedrooms suites are equivalent in size, measuring 14’ x 13’, with identical closet space and a private bath with a linen closet, a shower, an extended vanity and a toilet area. Additionally, each suite features a private outdoor covered porch for the bedroom’s use. The center loft area is great gathering space for family and friends and there is private access from the loft into each bedroom suite. This beautifully designed home features an amazing interior floor plan designed for family living and an exterior that offers attractive design features.
