Ranch House Plan 1070-00242

Sq Ft2,185
1/2 Baths0
Width57' 0"
Depth68' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

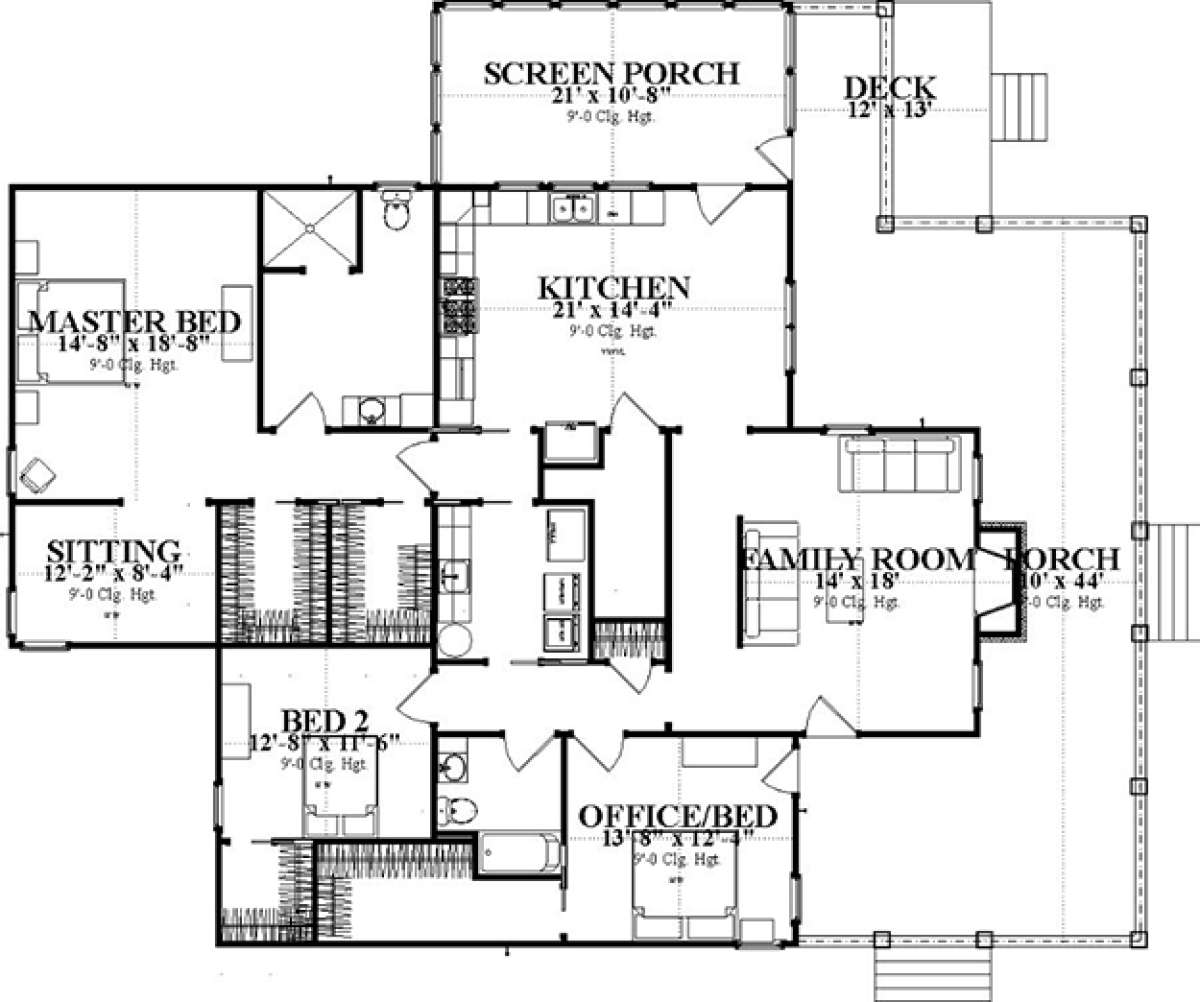

Floorplan 1 for House Plan #1070-00242
Floorplan 1
Floorplan 1 for House Plan #1070-00242

Frequently Asked Questions


What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This striking Ranch house design features one level family living and an abundance of outdoor living space. Three separate walk-up staircases are featured on the exterior as well as open railing, large substantial columned beams and a beautiful brick exterior chimney. The covered porch is deeply set and widely proportioned offering an extensive amount of entertaining and relaxing space. There is also an open deck area and a screened in porch as well. The screen porch is quite large, measuring in excess of 21’ x 10’ and featuring 9’ ceiling heights; great outdoor space for relaxing, dining al fresco or during inclement weather. The home’s interior floor plan features approximately 2,185 square feet of living space with three bedrooms and two baths on a single floor. Nine foot ceiling heights run throughout the home lending an airy and spacious quality to the interior.

The family room features generous floor space, a warming fireplace and picturesque window views that flank the fireplace. The grand kitchen is highlighted with plenty of counter and cabinet space, double window views overlooking the porch on one side and a triple set overlooking the screened porch as well as access onto the screened porch. A coat closet lies on one end of the family room and the kitchen features access to a large storage space; great for a walk-in pantry. The utility room is highlighted with a sink area, counter space and freezer space with connecting hallways on either side of the room. One hallway features access to the secondary bedrooms and shared hall bath. Bedroom two is spacious with a walk-in closet and nearby access to the bath which features a vanity space, toilet area and a tub/shower combination. The third bedroom/office is slightly larger, offers covered porch access and contains an enormous walk-in closet. Down the remaining hallway is the master suite which is highlighted with oversized his and hers walk-in closet before accessing the bedroom. Across from the closets is the master bath which offers a walk-in shower, vanity area and a toilet. The bedroom features good floor space, a window view and there is an adjacent sitting room with corner windows creating a relaxing oasis. This beautiful Ranch house plan offers a fantastic exterior with loads of outdoor space and an interior floor plan that is functional and versatile.
