Ranch Plan 1070-00232


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,366
Beds 3
Bath 2
1/2 Baths 1
Car 0
Stories 1
Width 63' 6"
Depth 57' 10"

Floorplan Drawings

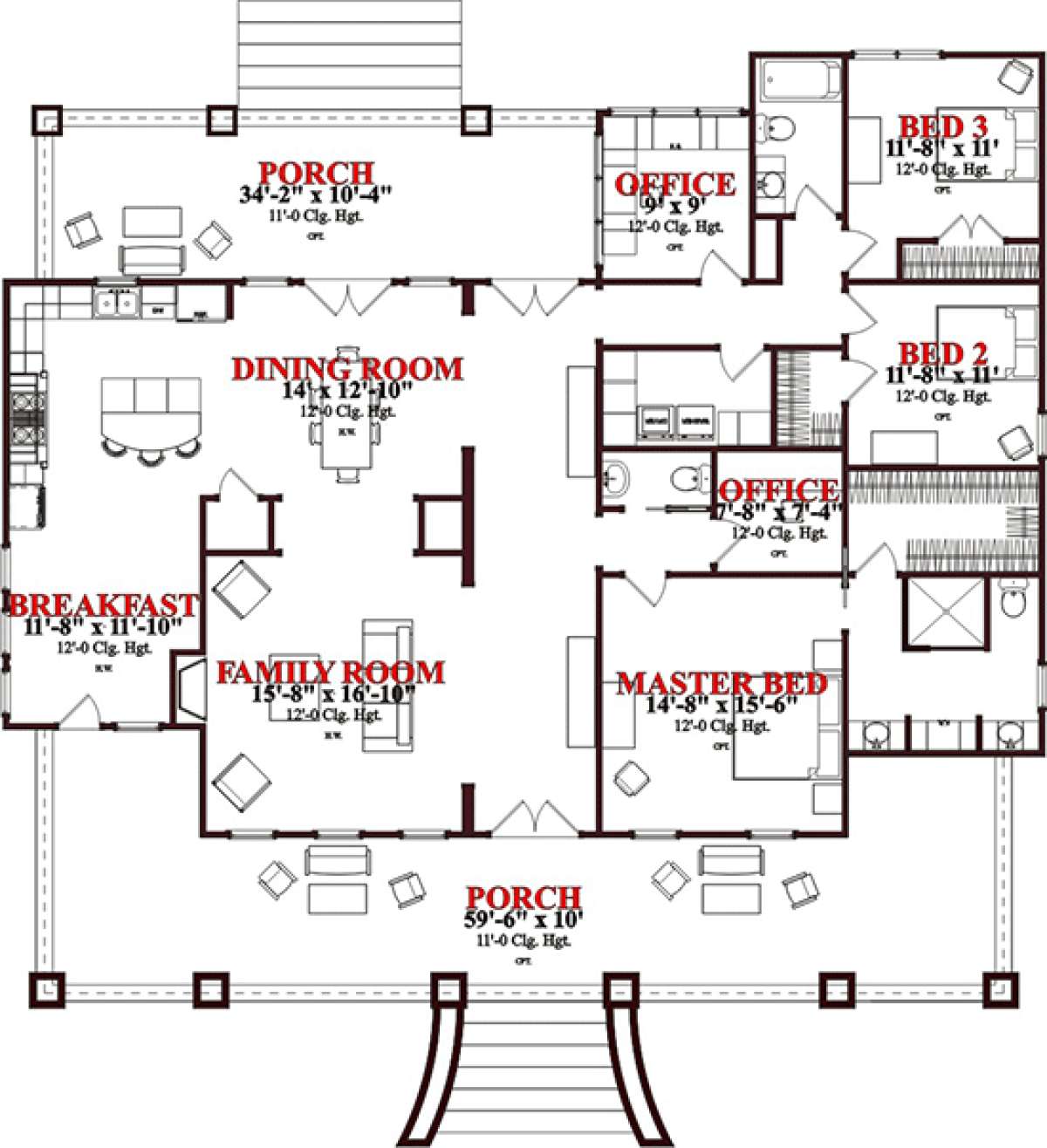

Floorplan 1
Floorplan 1 for House Plan #1070-00232

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch home has a stylish exterior façade awash in muted colors and appealing architectural design elements. The walk-up to the front porch is highlighted with a brick staircase and warm hues of cedar shake ground the home in character. The broad, deep and square front covered porch stretches out to encourage interaction with neighbors, friends and family allowing for generous hospitality. Tapered columned beams sit atop stacked brickwork; open railing, double panel wooden shutters and a double window door completes the alluring front exterior. The single story home has in excess of 2,360 square feet of living space which consists of three bedrooms and two plus bathrooms. The impressive interior floor plan features 12’ voluminous ceiling heights throughout the home which significantly increases the spaciousness and comfort of the home. The front foyer spans the length of the home and creates a back hallway to the rear where a second covered porch is revealed. The addition of the two expansive outdoor spaces frames the home beautifully and allows for the continuation of superior entertaining and private family time. A large family room, with warming fireplace, provides optimal flow into an equally generously sized dining room where French door access onto the rear covered porch is provided. The grand kitchen features a center island with a breakfast bar, a separate pantry and double sink window views overlooking the rear porch. There is an adjacent casual breakfast room with front porch access making this space bright and airy and allowing for outdoor dining.
The master suite features excellent bedroom space and there is a master bath with dual vanities, a private toilet area and an oversized shower; to the rear of the bath is an enormous master walk-in closet. Off the master suite is a flex space where either a home office/study or library could be incorporated. A large laundry room with plenty of additional space and a powder room for guests is available before stepping to the rear of the home. An additional flex space is featured; this space could be used as a second home office providing separate working spaces or as a playroom or homework station for the children. There is a shared hall bath and two family styled bedrooms beyond the office. Both bedrooms are spacious; one has generous closet space while the other features a walk-in closet. This home features an exterior exuding charm and character and an interior floor plan that is comfortable and offers a versatile layout.
