Lake Front Plan 1070-00129


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,375
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 43' 4"
Depth 48'

Floorplan Drawings

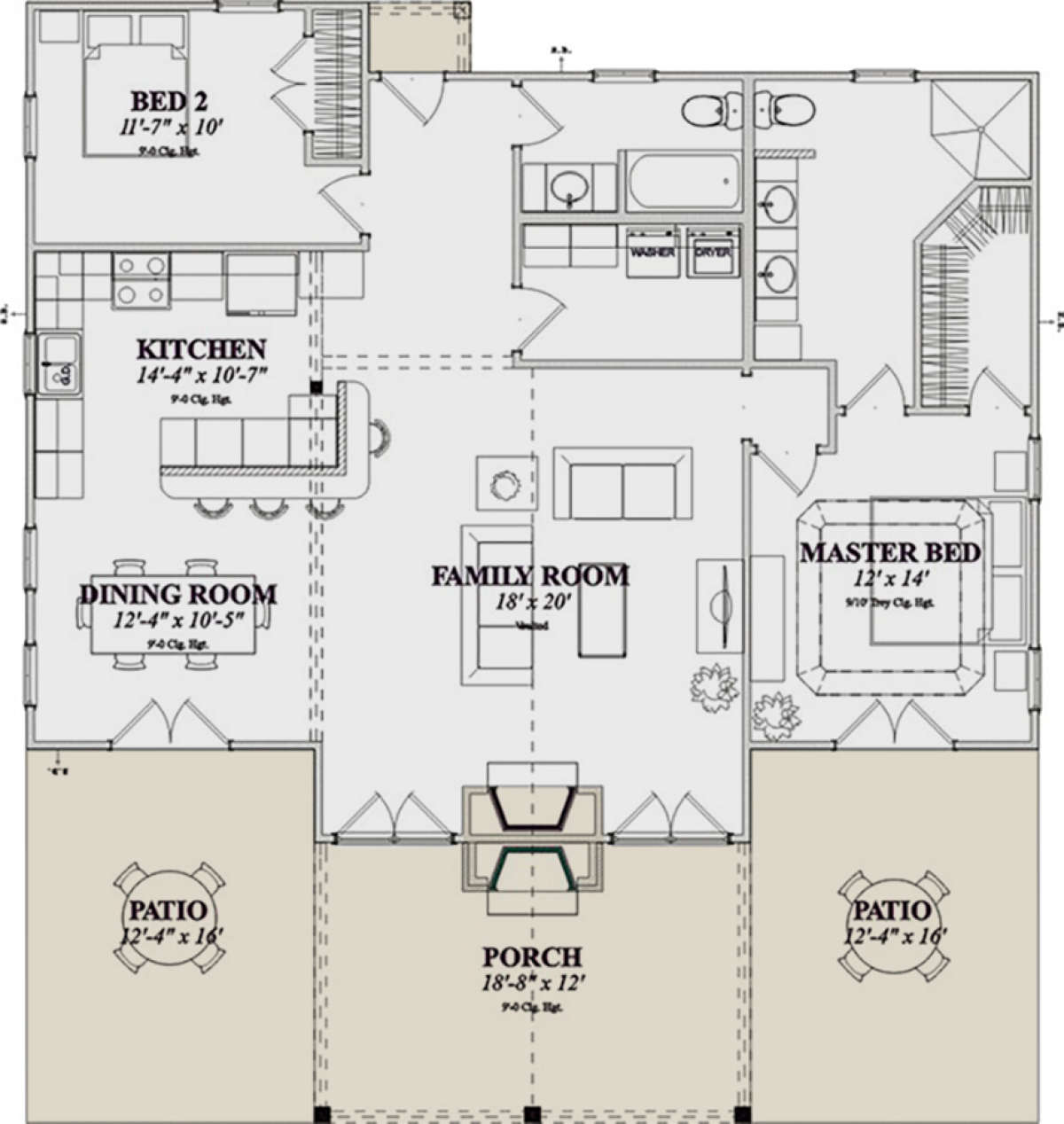

Main Floor
Main Floor for House Plan #1070-00129

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

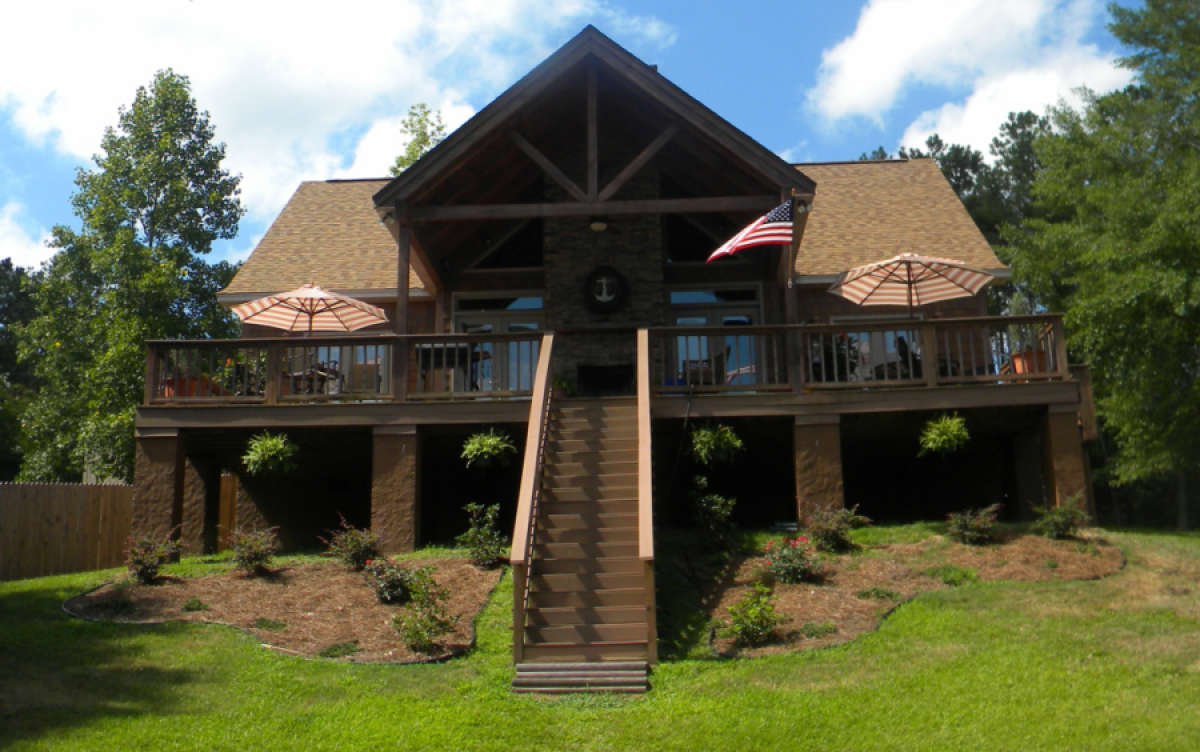

This is a fantastic house plan for a lakefront or mountain view property lot; there is an abundance of outdoor living spaces and window views which allow for comfortable and easy living. The outdoor spaces consist of a covered front porch highlighted with decorative beams and a stacked stone chimney flanked by double patios. This outdoor space is excellent for entertaining, relaxing, reading or hanging out with family and friends. The interior floor plan offers 1,375 square feet of living space which features two bedrooms and two bathrooms on the main floor.

Entrance into the home is provided through double French doors off the front covered porch which opens onto a sumptuous family room. In this space, you’ll find a double-sided fireplace, vaulted ceilings, and an abundance of room in which to configure and maximize the family’s living space and furniture. The open concept plan features a casual dining area which opens onto one of the patio spaces through French doors and contains a triple wall of windows; you can imagine dining al fresco with family and friends in this open space. The family-friendly kitchen is highlighted by an L-shaped breakfast bar, double window sink views and plenty of additional counter and cabinet space. There is an enormous center rear space which houses the home’s laundry facilities including plenty of counter space and the back wall adjoins to the full bathroom. The adjacent second bedroom is spacious with plentiful closet space and window views. The owner's retreat is situated on the opposite side of the home for privacy and features a large bedroom with a double step tray ceiling, an oversized walk-in closet and French door access to the second outdoor patio space where having morning coffee while enjoying nature takes on special meaning. The en suite bathroom features dual vanities, a corner shower, and a private toilet area. This Collection of Lake Front house plan make for an outstanding vacation or permanent dwelling for a small family or empty nesters looking for purposeful living in a functional and comfortable interior floor plan.
