Luxury House Plan #1018-00219 Elevation Photo

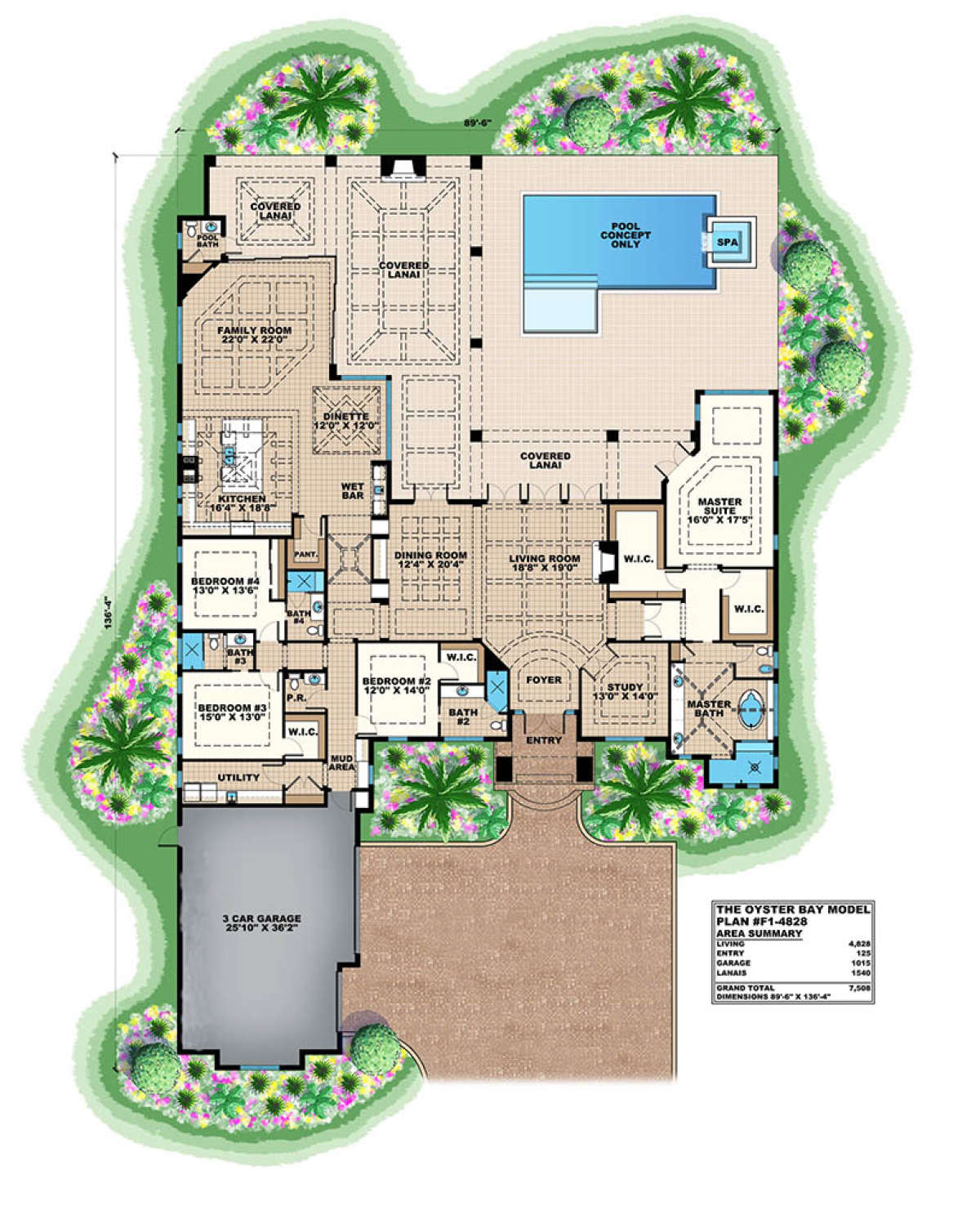

Main Floor Plan for House Plan #1018-00219

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,828

Beds 4

Bath 4

1/2 Baths 2

Car 3

Stories 1

Width 89' 6"

Depth 136' 4"

See What's Included

Select Package

PDF (Single Build)

$4,050.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

Reproducible (Single Build)

$4,050.00

PHYSICAL FORMAT
One printed set of house plans mailed to you that comes with the copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$4,050.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $450.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x4 Conversion $450.00

Convert the exterior framing to 2x4 walls.

2x6 Conversion $450.00

Convert the exterior framing to 2x6 walls.

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

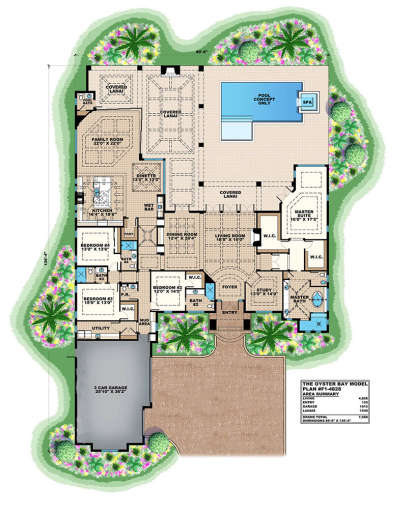

Main Floor Plan

Images copyrighted by the designer.

What's Included in these plans?

Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)
