Lake Front Plan 110-01031

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,264
Beds 4
Bath 3
1/2 Baths 2
Car 3
Stories 1
Width 103' 11"
Depth 88' 6"

Floorplan Drawings

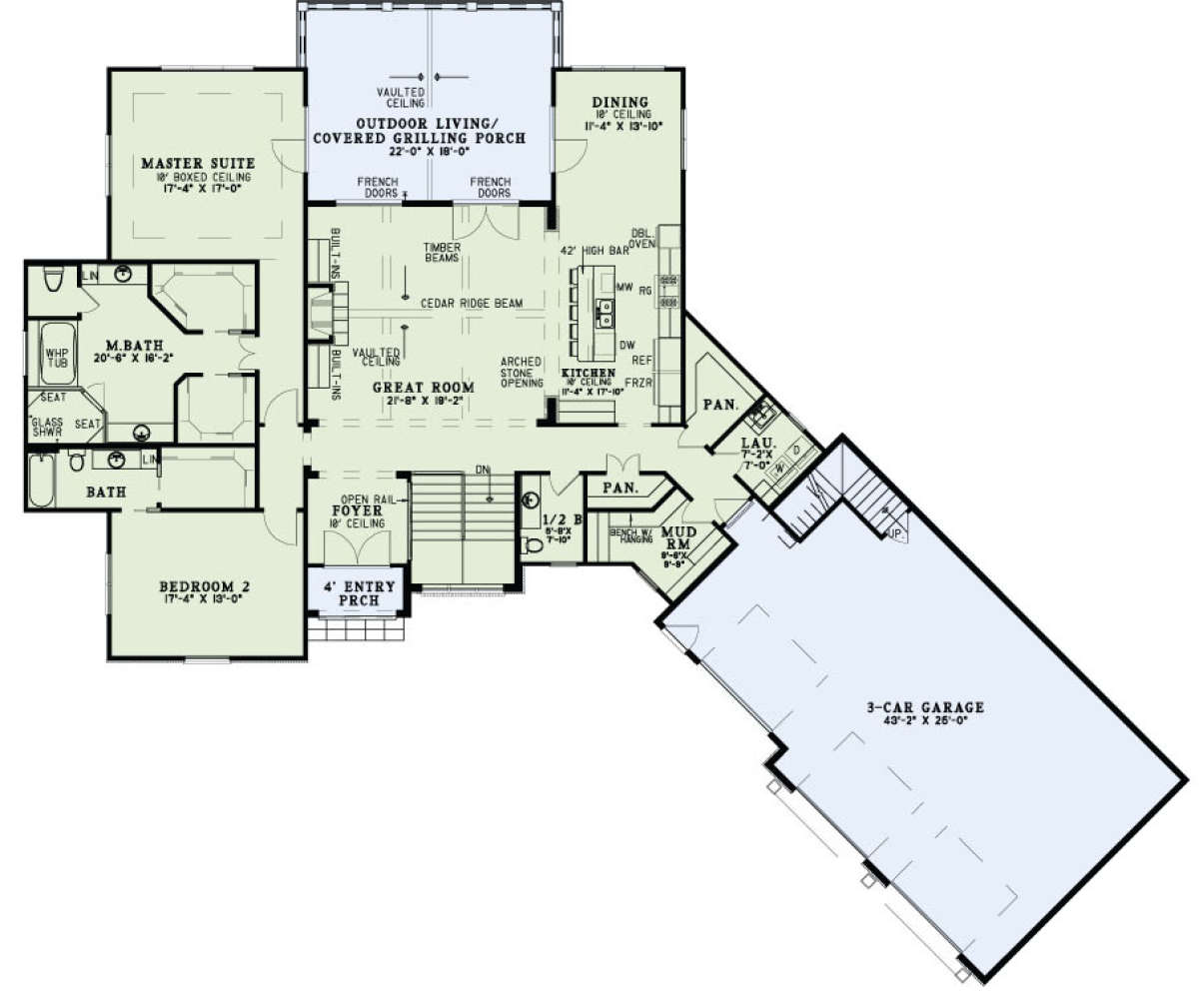

Main Floor Plan
Main Floor Plan for House Plan #110-01031

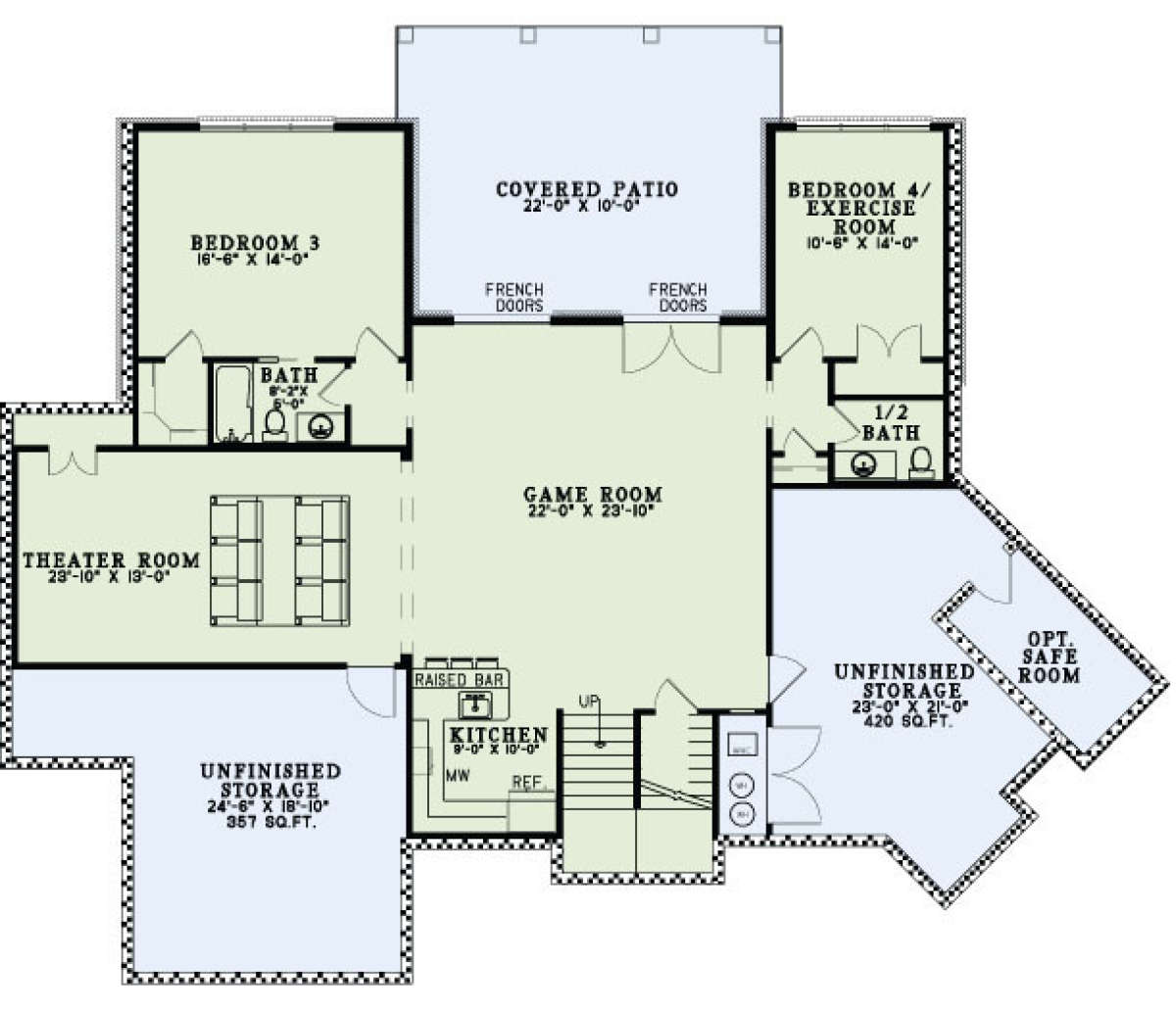

Basement Floor Plan
Basement Floor Plan  for House Plan #110-01031


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

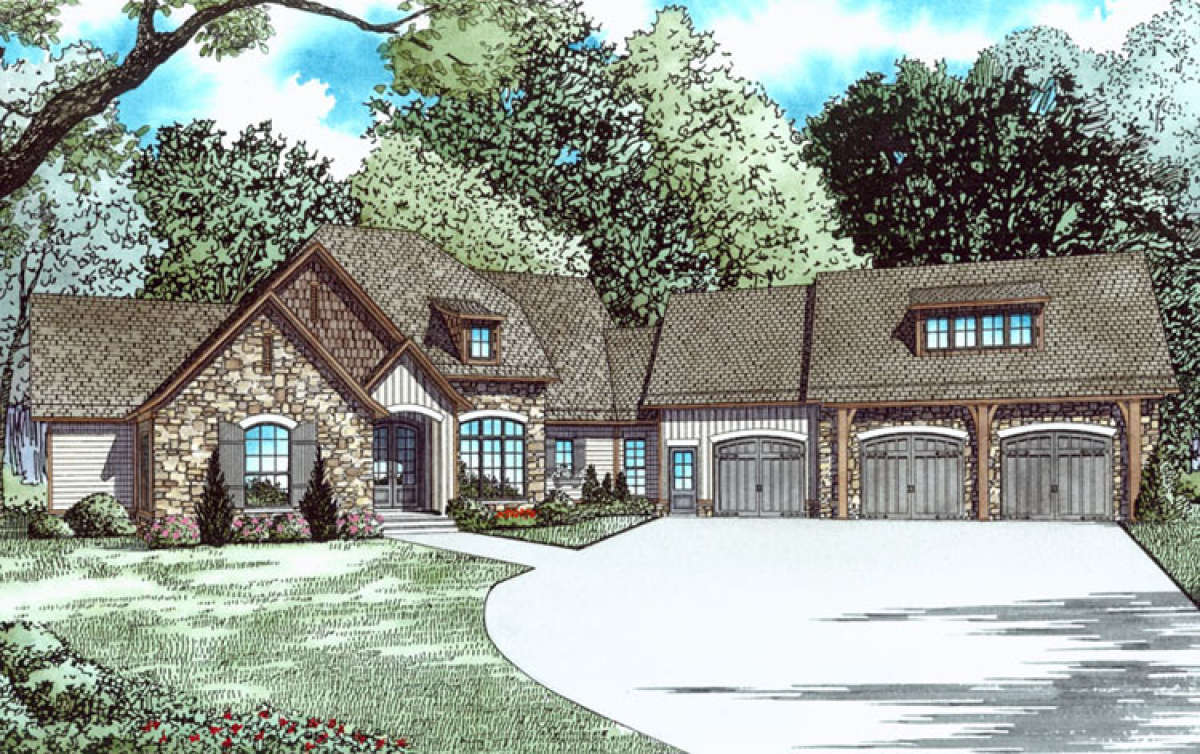

Ideal for a lakefront property lot, this home features a gorgeous exterior and a spacious interior floor plan situated on a daylight basement foundation. The façade is trimmed in natural design elements consisting of stonework, wood beams and shutters and cedar shakes. The interior floor plan features approximately 4,264 square feet of usable living space with four bedrooms and four baths. The entry porch is highlighted with double doors and leads into the foyer where 10’ ceiling heights are found. Beyond the foyer, a large open concept floor plan includes a great room, grand kitchen and dining area. The great room measures in excess of 21’ x 19’ and is beautifully appointed with arched stone openings, timbered beams, vaulted ceilings, a handsome fireplace and built-in cabinetry. A double set of French doors are on the rear wall of the great room granting access to the enormous outdoor living and grilling covered porch area. This is great space for entertaining, relaxing with family and friends or dining al fresco. The kitchen is highlighted with a center bar island offering additional seating, plenty of counter and cabinet space and there are two large walk-in food storage pantries located directly off the kitchen. The dining room is quite spacious and the triple window wall provides a bright and airy quality to the space. There is a three car garage which leads into the home’s laundry room, adjacent mudroom and a nearby powder room for guests. There is a staircase to the overhead bonus room from the garage area; this is a large space featuring an additional 754 square feet which could be utilized as numerous room configurations such as bedrooms, multi-purpose family rooms or a home office/studio. The main level master suite is a nice arrangement of well-designed and spacious rooms; there is a large master bedroom with box ceiling accent and private access to the rear porch. French doors lead to the huge his and her walk-in closets before accessing the master bath. The master bath enjoys a generous footprint and features split double vanities, a separate shower, whirlpool tub, linen closet and a compartmentalized toilet area. A second bedroom suite is also located on the main floor where there is an oversized bedroom, a walk-in closet and a full private bath. The lower level is finished space containing a large game room with an open bar and kitchenette for ease of family entertaining space. There is an adjacent theater room measuring in excess of 29’ x 13’; another great space for entertainment. A third bedroom features overly generous floor space, a walk-in closet and a full private bath. The fourth bedroom also has closet space and there is an adjacent bath and linen closet. Another double set of French doors leads to the outdoor covered patio off the centrally located entertaining space. Two complementary unfinished/storage spaces could be left “as is” or be converted into usable living space. This family friendly home features flexible and versatile family and entertaining spaces, an attractive exterior and usable outdoor space for family fun.
