Cottage Plan 048-00296

Sq Ft 1,001
Beds 1
Bath 1
1/2 Baths 1
Car 0
Stories 1
Width 26'
Depth 56'

Floorplan Drawings

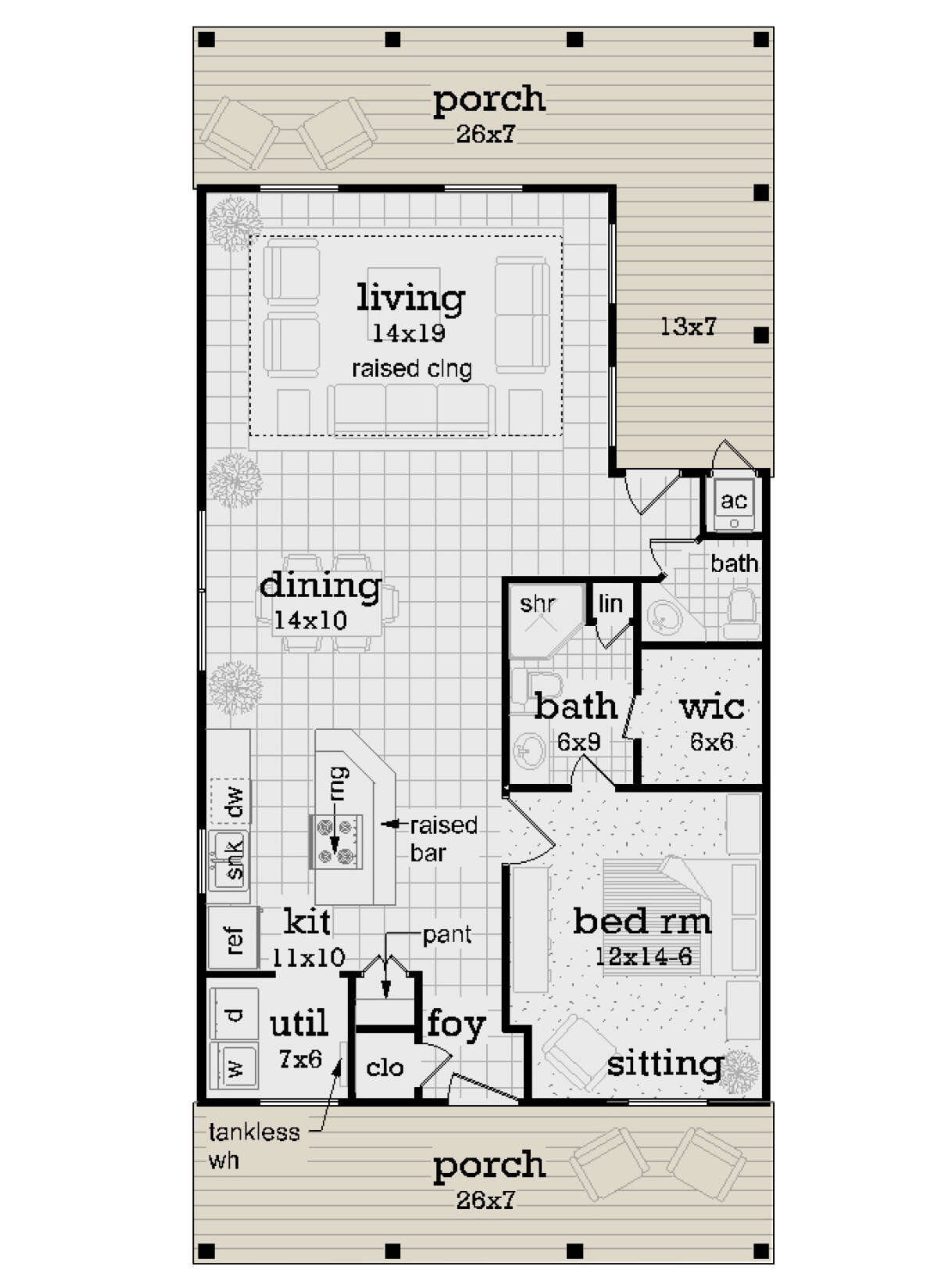

Main Floor
Main Floor  for House Plan #048-00296
Images copyrighted by the designer.


What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.

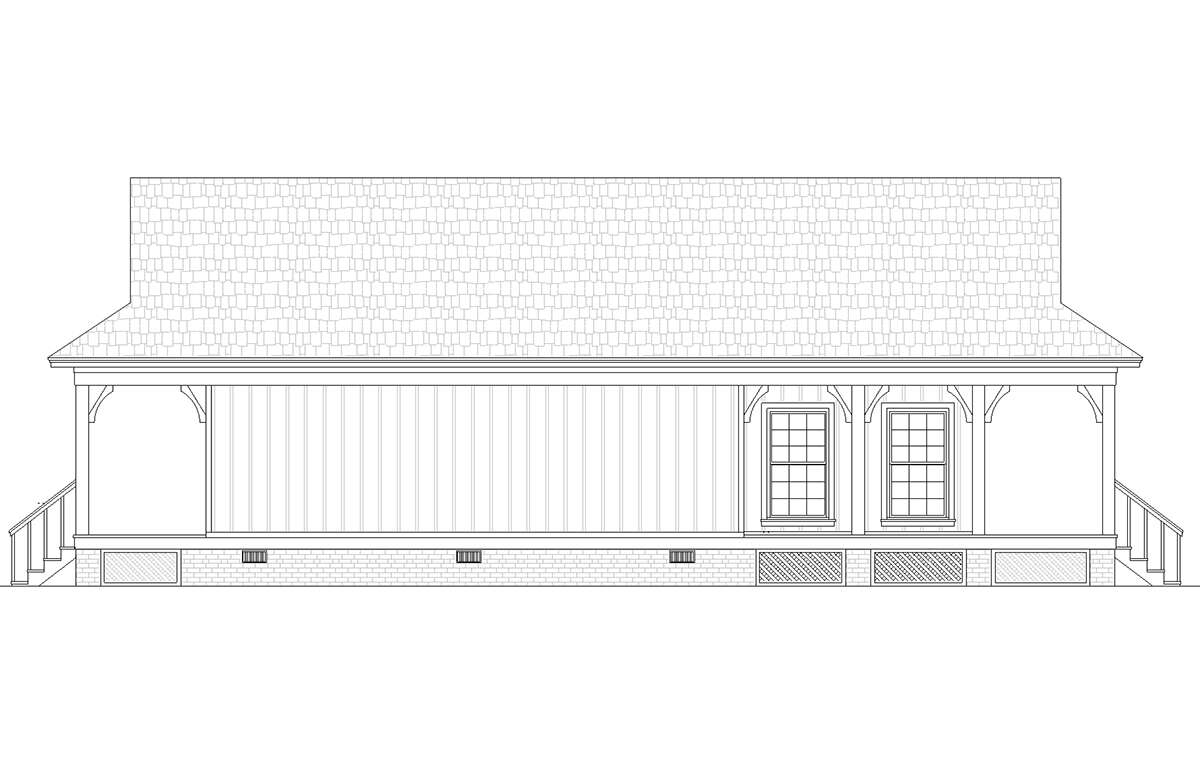

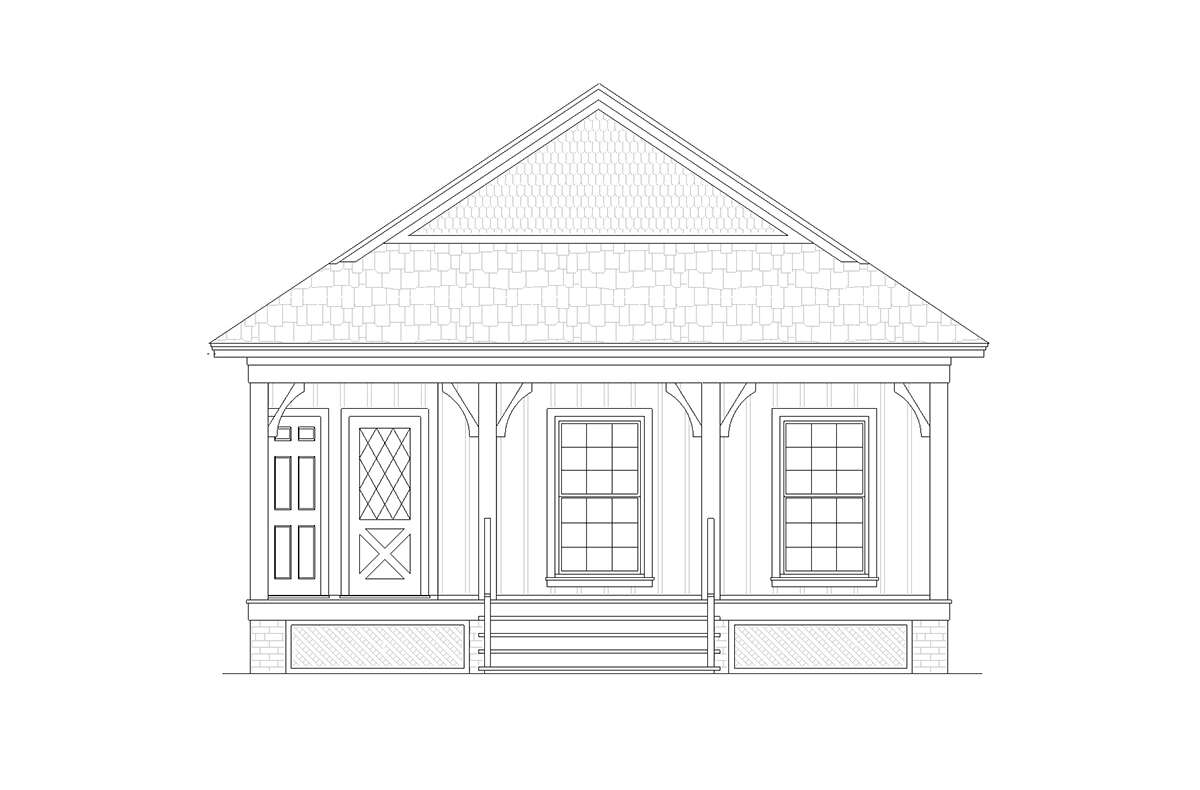

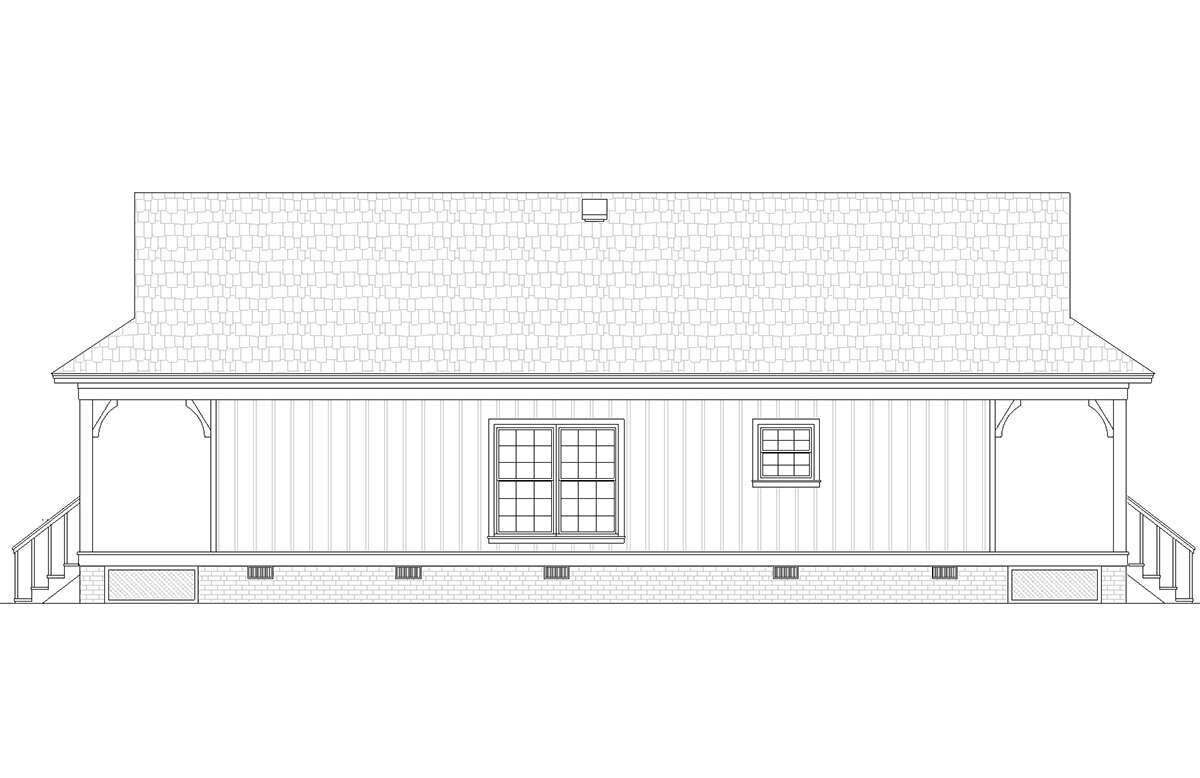

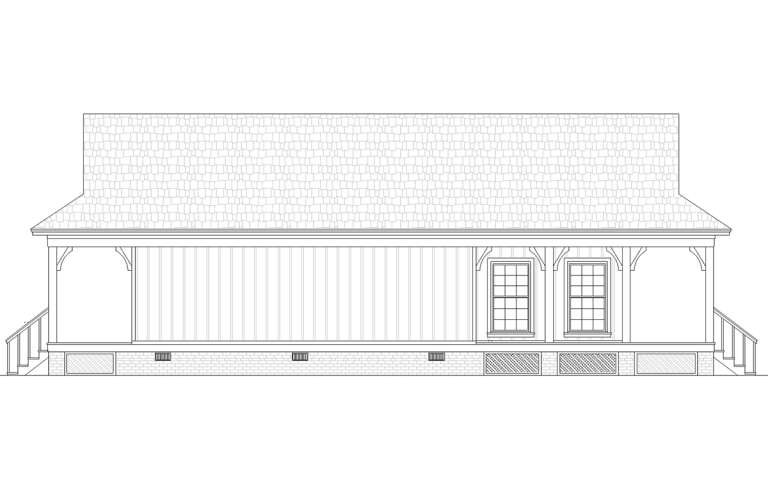

  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1 bedroom, 1 bathroom Cottage house plan features 1,001 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
