Cottage Plan 8080-00005

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 720
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 24'
Depth 30'

Floorplan Drawings

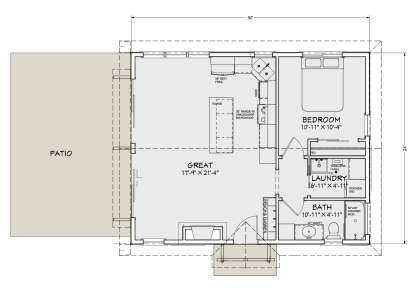

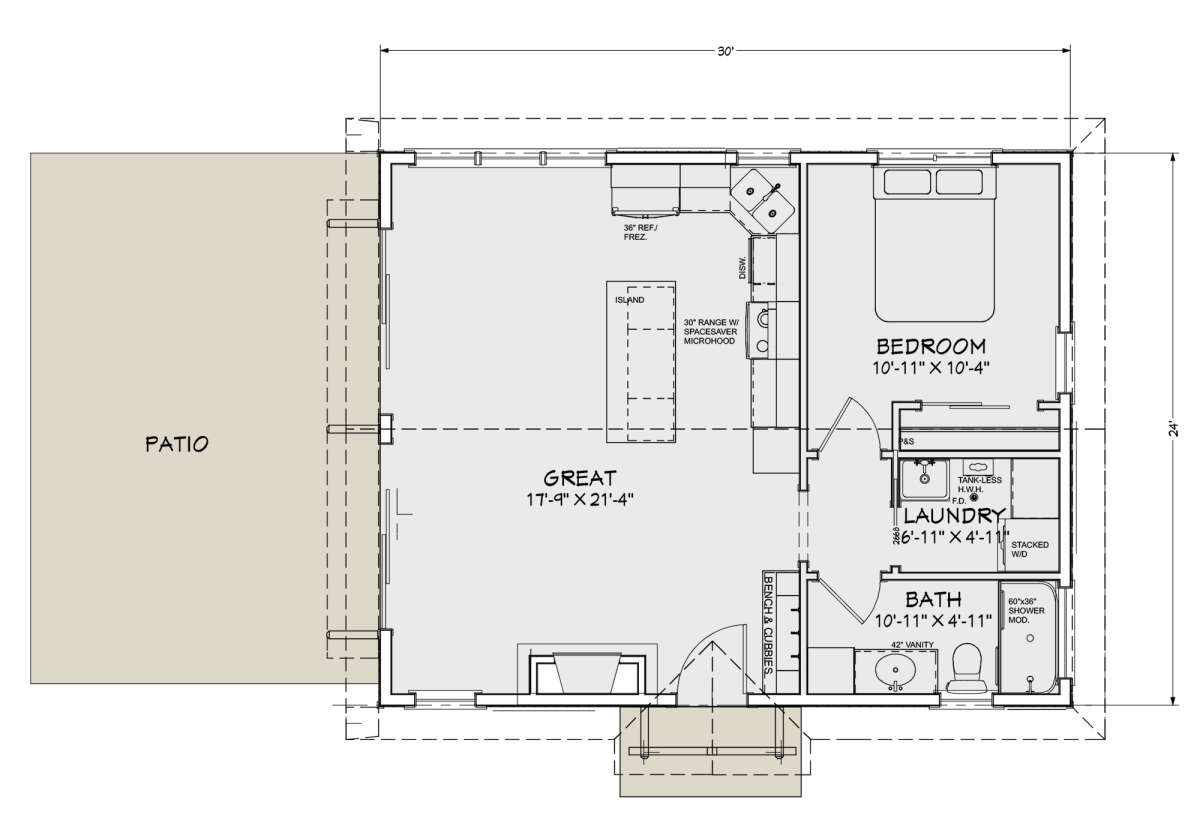

Main Floor
Main Floor  for House Plan #8080-00005


What's Included in these plans?

  • Dimensioned floor plan layouts with door sizes and general notes in a ¼ scale.
  • Dimensioned foundation plan in ¼ scale with general and structural notes.
  • Roof plan in 1/8 scale.
  • Four exterior elevations in ¼ scale with general material notes, dimensioned floor elevation heights, window and exterior door sizes.
  • Building sections in ¼ scale and a typical detailed wall section in ½ scale.
  • Kitchen elevations.
  • Electrical plans in ¼ scale with legend and general electrical notes.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1 bedroom, 1 bathroom Cottage house plan features 720 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
