Craftsman House Plan 041-00193

Sq Ft3,366
Beds4
Baths3
1/2 Baths1
Stories1
Cars3
Width98' 0"
Depth75' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

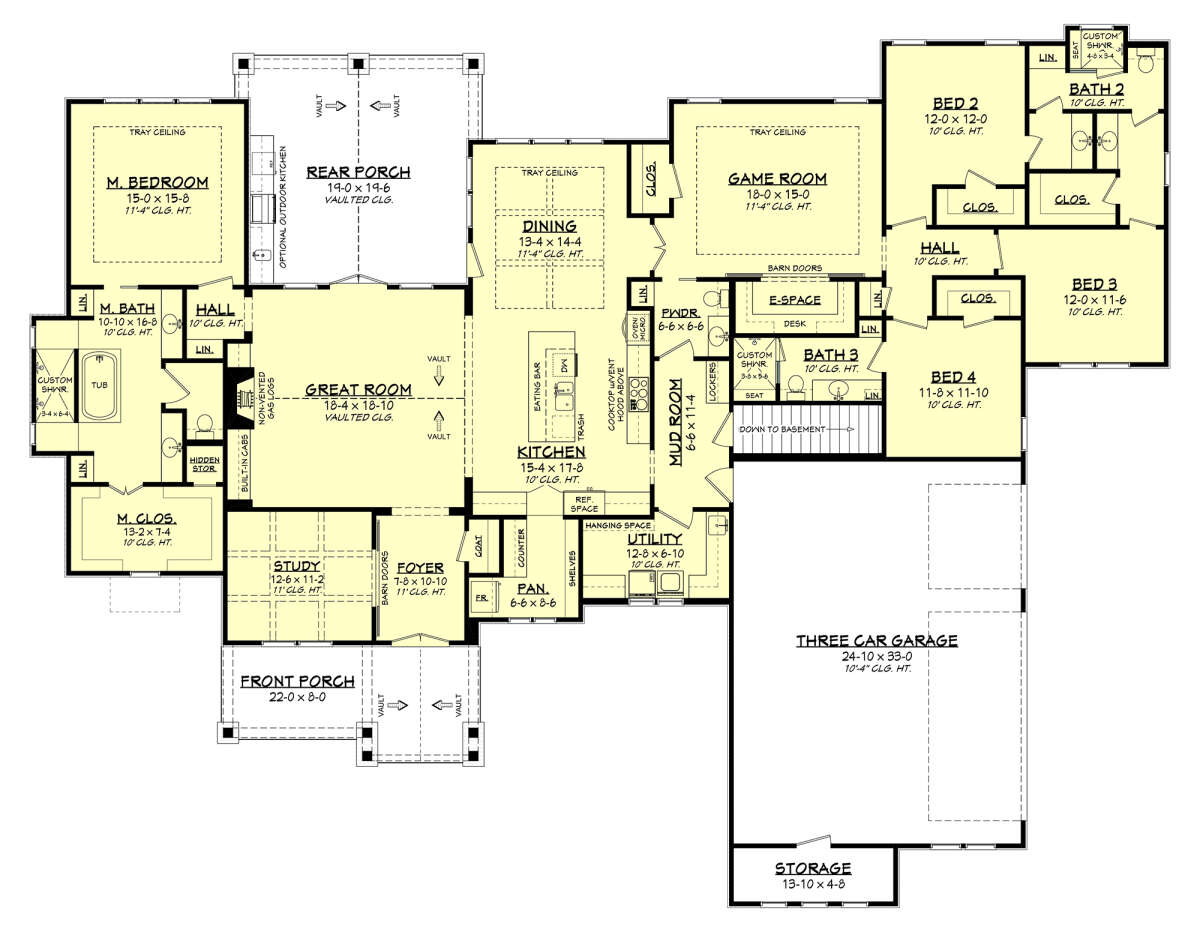

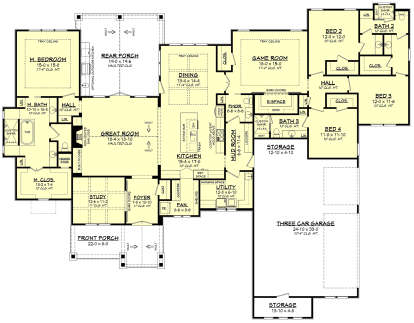

Main Floor for House Plan #041-00193
Main Floor
Main Floor for House Plan #041-00193


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This stunning Craftsman house plan dazzles as a single-story home with a well mapped-out interior layout to complement its beautiful board and batten and stone exterior. Measuring approximately 3,366 square feet with four bedrooms, three plus bathrooms, an open floor plan, a large game room, volume ceilings, a luxurious master suite, a study, a gas log fireplace, an island kitchen with an unbelievable pantry, barn doors, and an incredible rear porch with an optional outdoor kitchen, this Craftsman house plan is ready to be called “home sweet home.”
