European Plan 041-00159


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,641
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 76' 4"
Depth 67' 4"

Floorplan Drawings

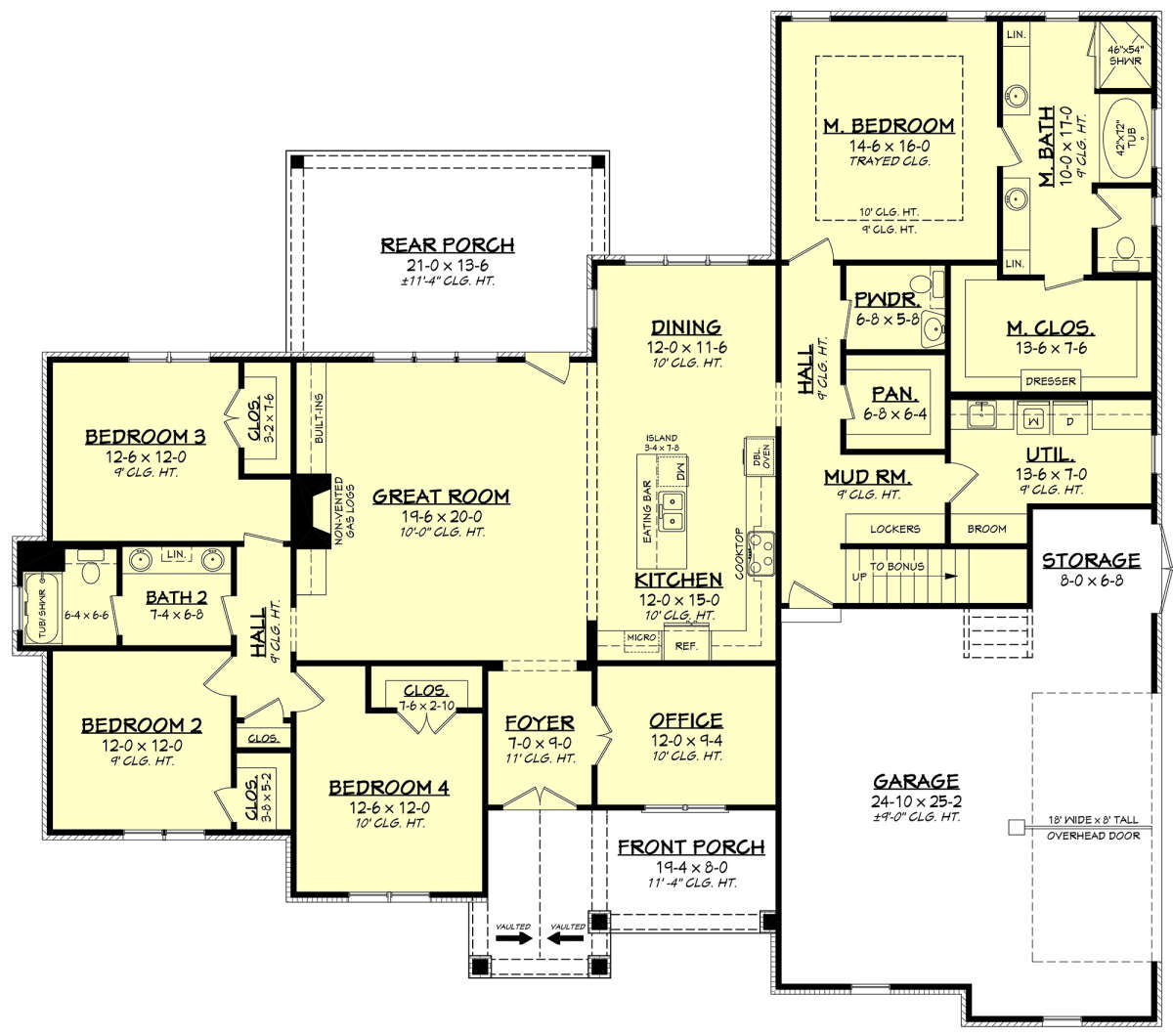

Main for House Plan #041-00159

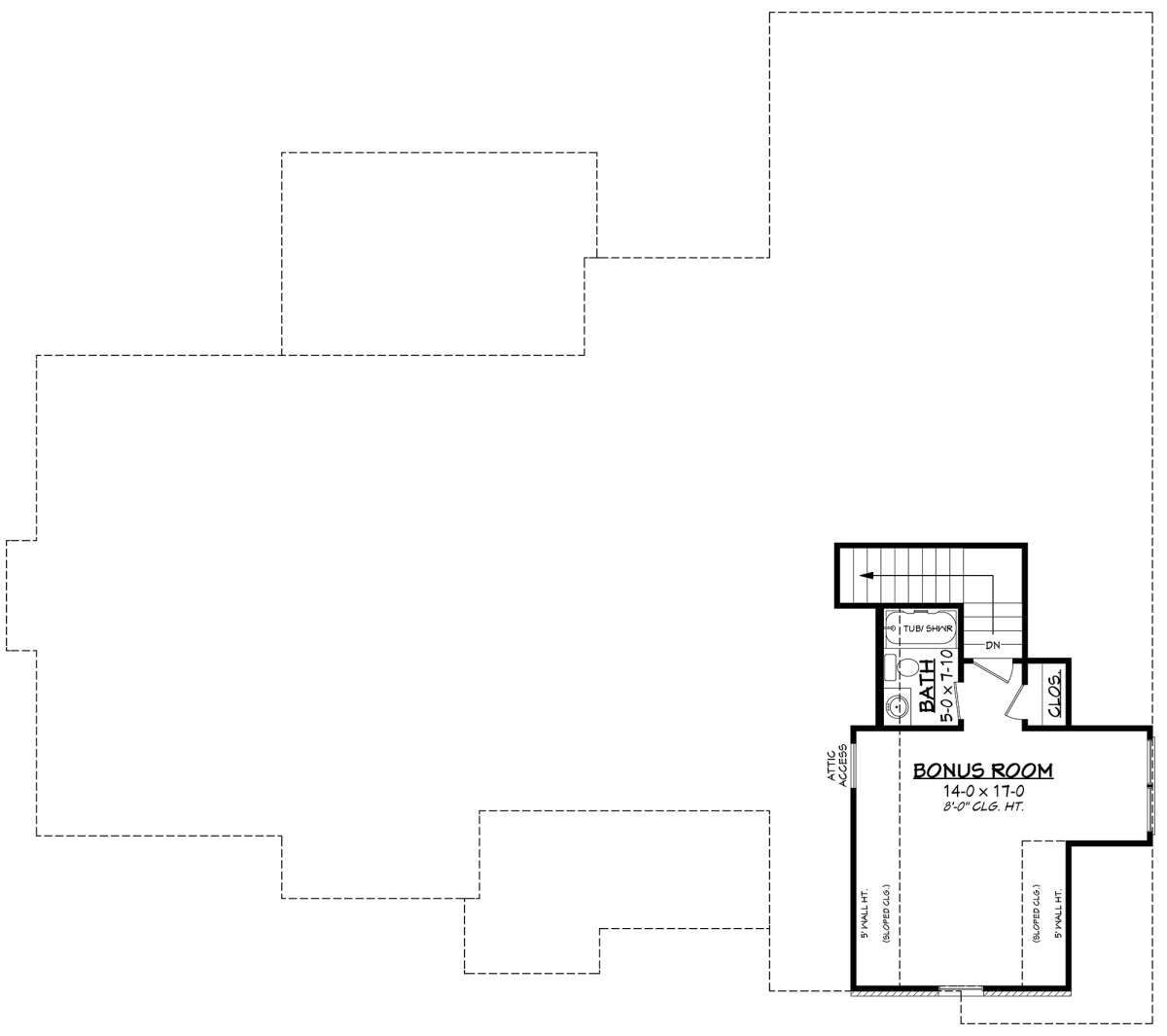

Bonus for House Plan #041-00159

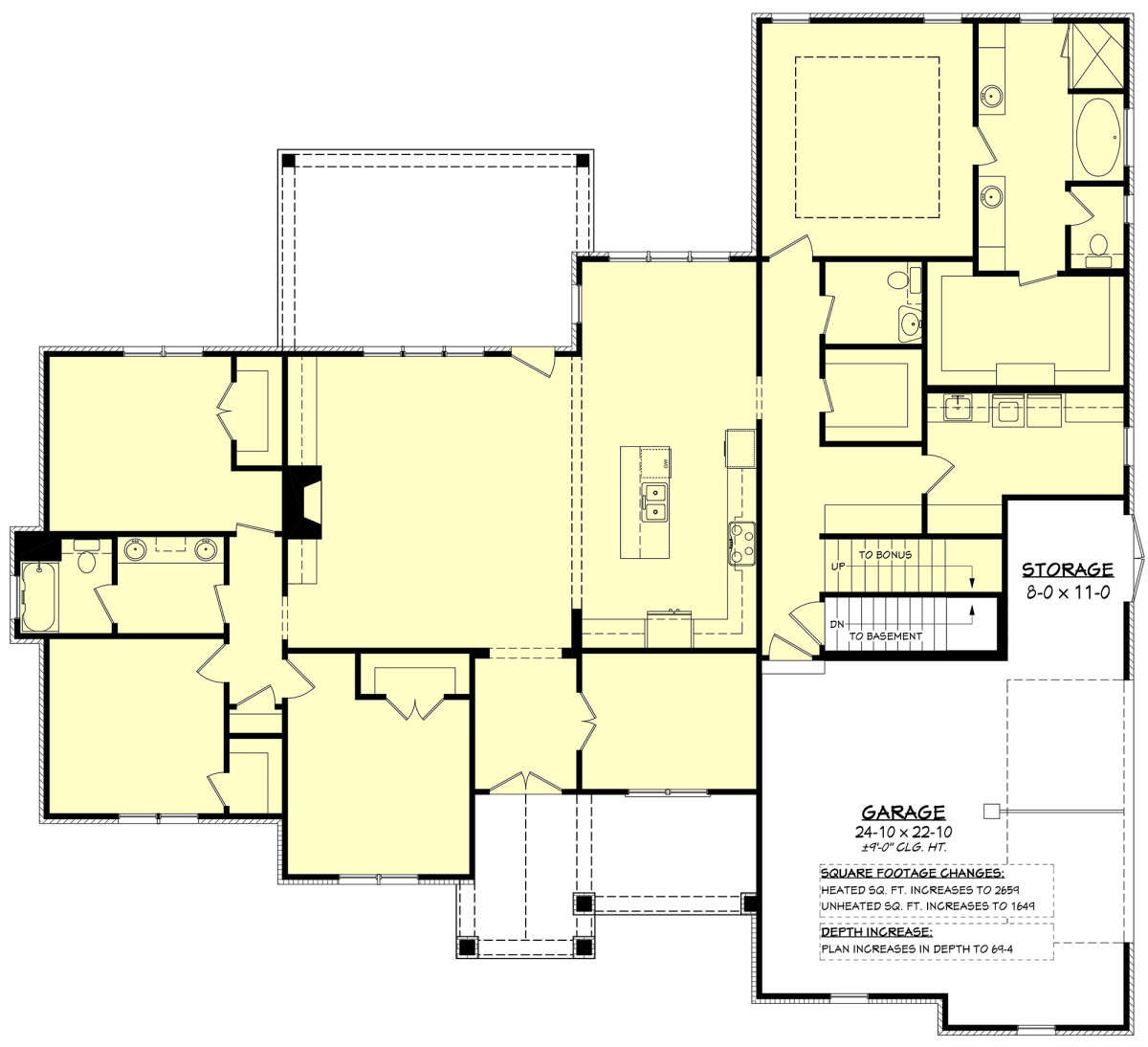

Basement Stair Location
Basement Stair Location for House Plan #041-00159

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

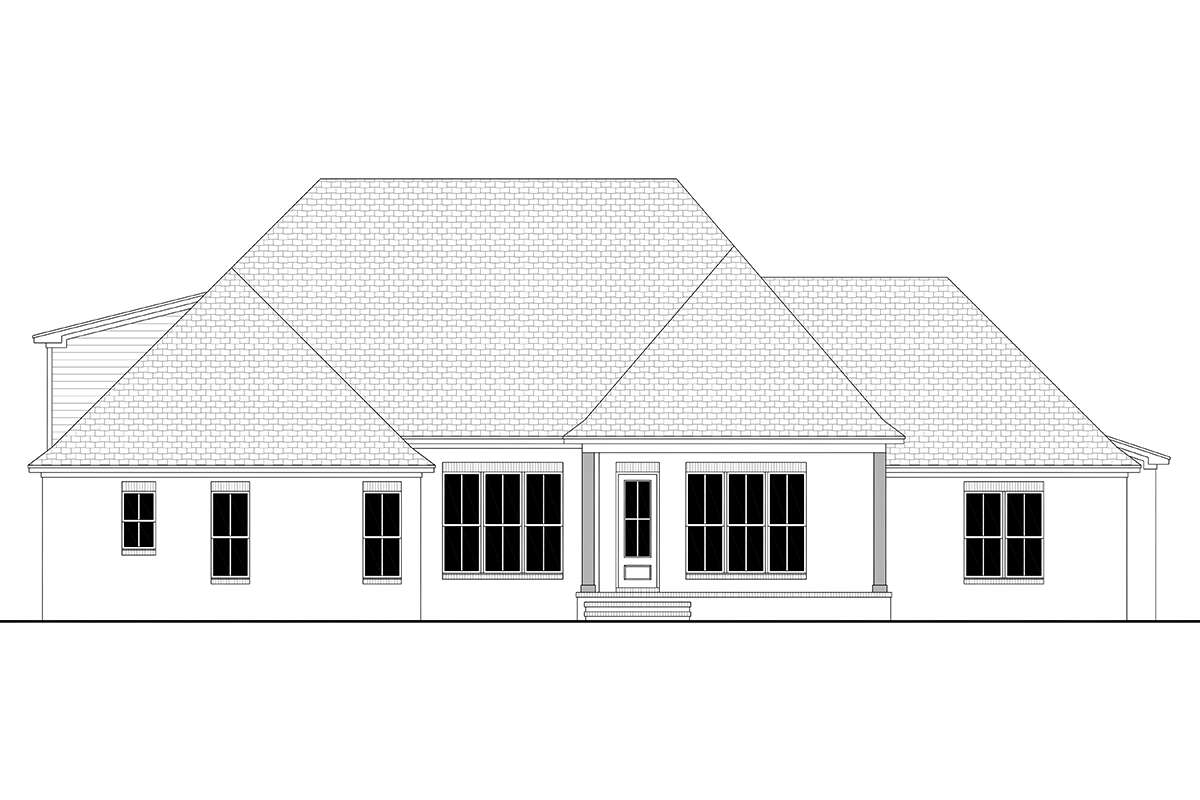

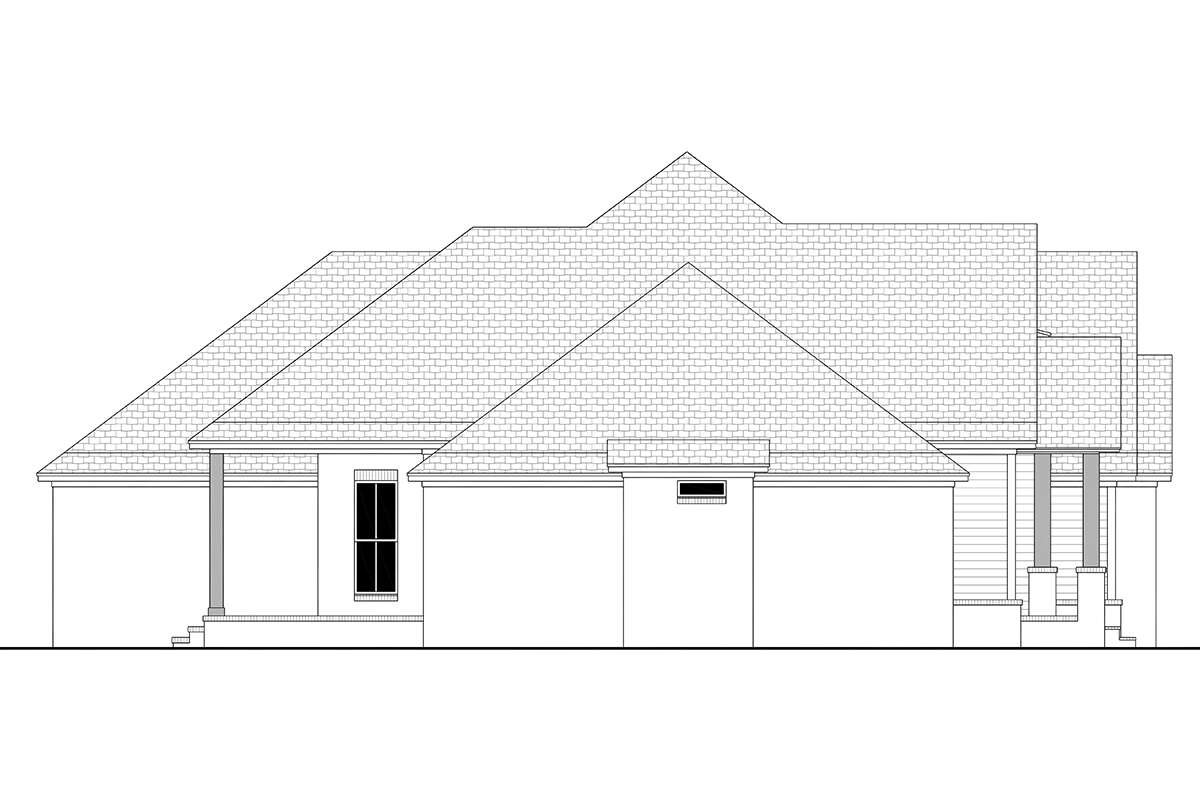

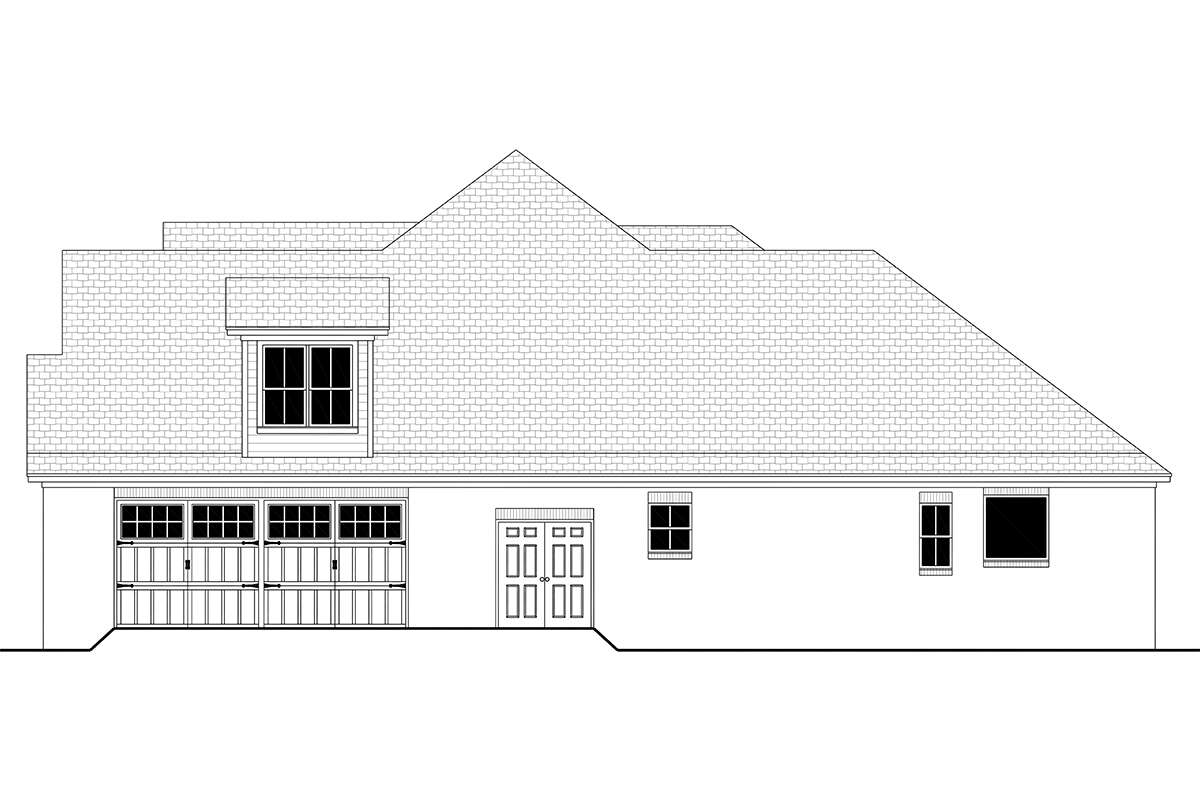

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

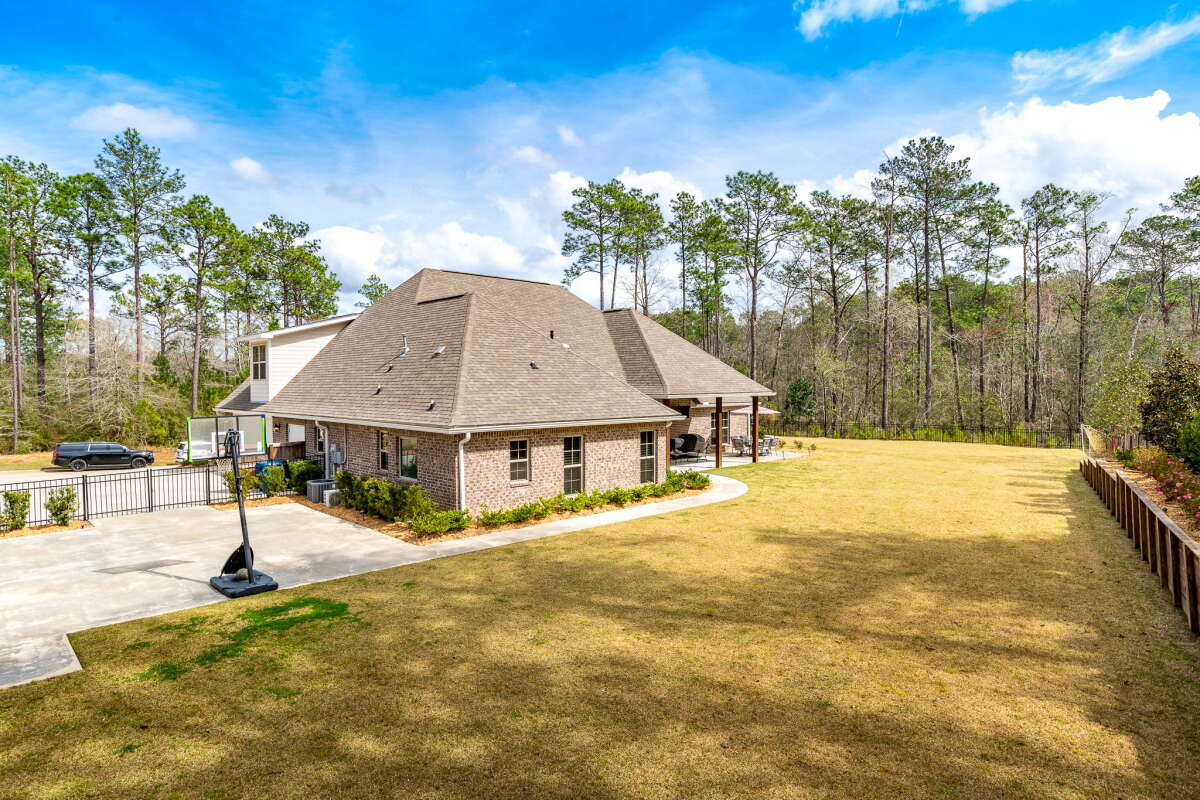

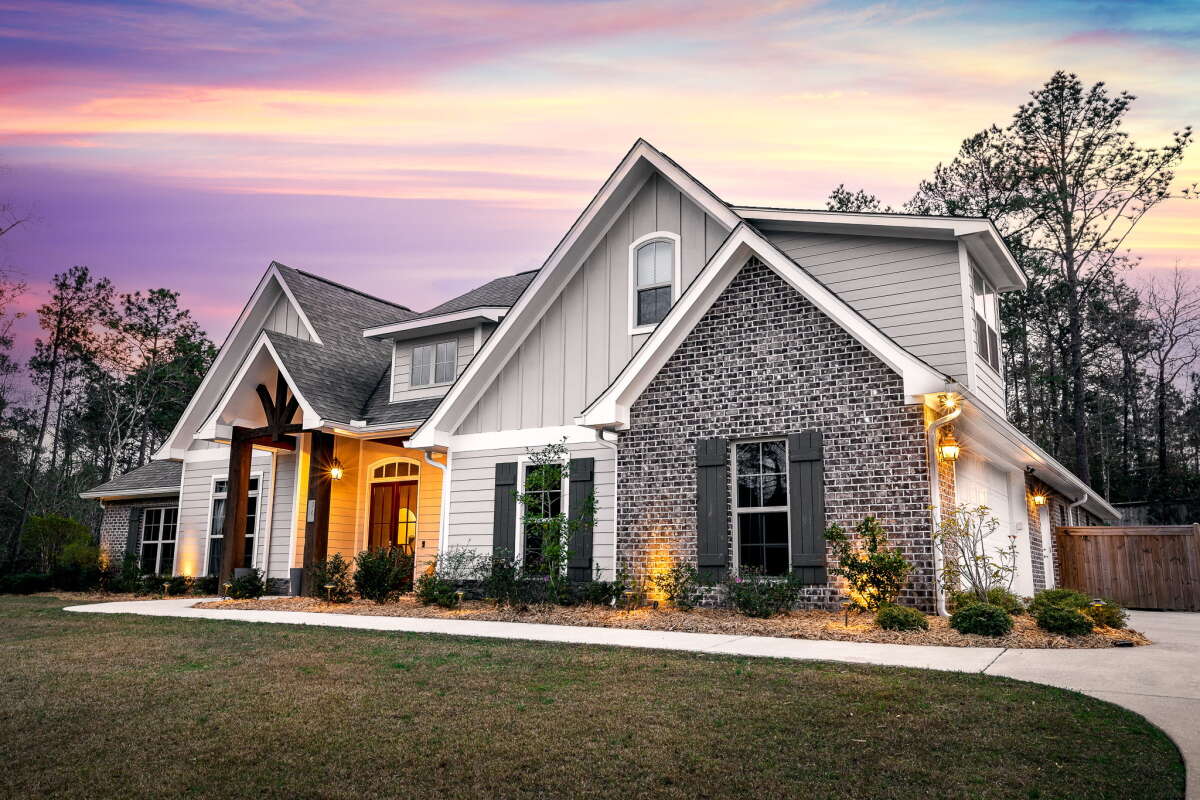

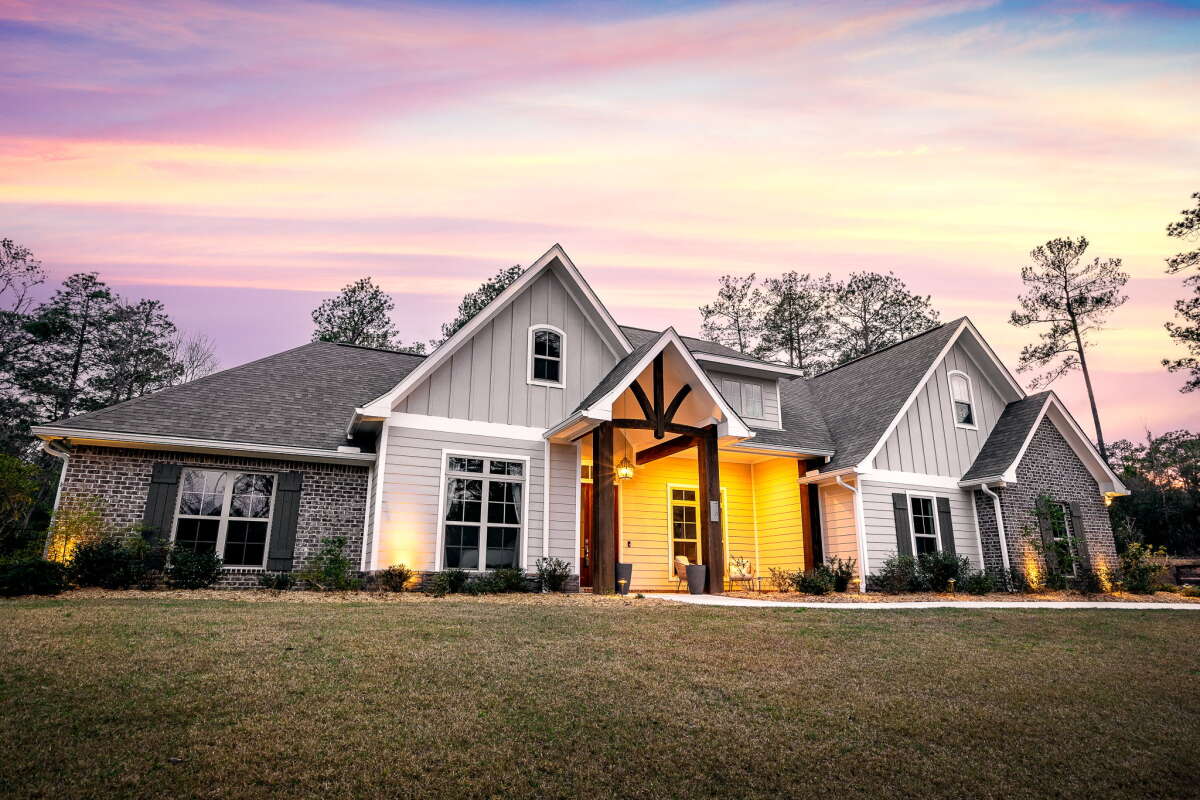

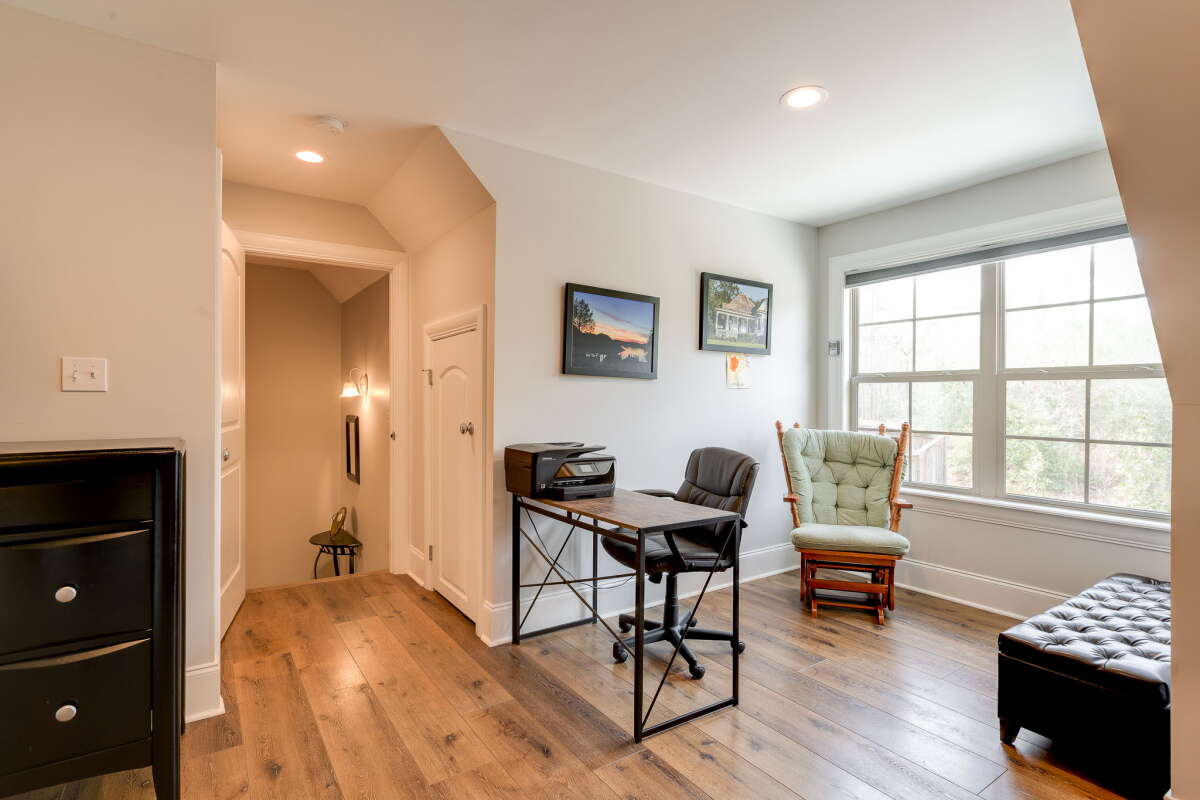

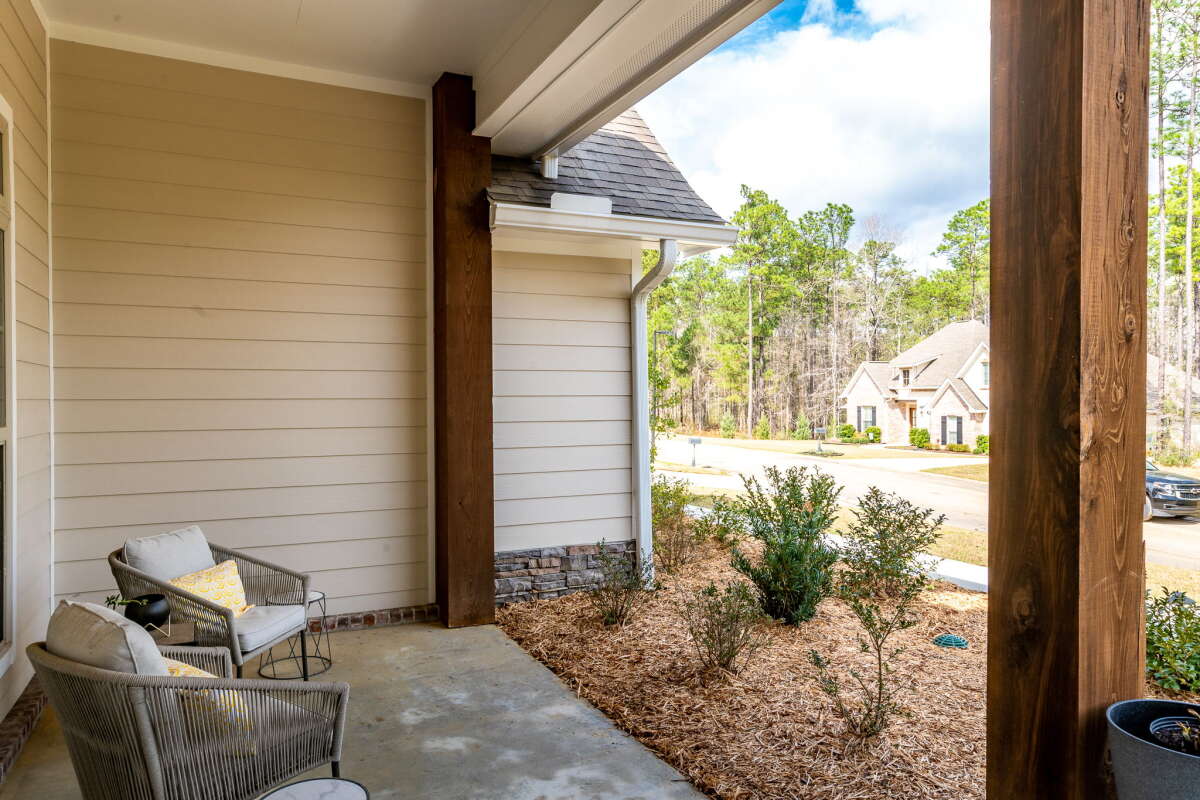

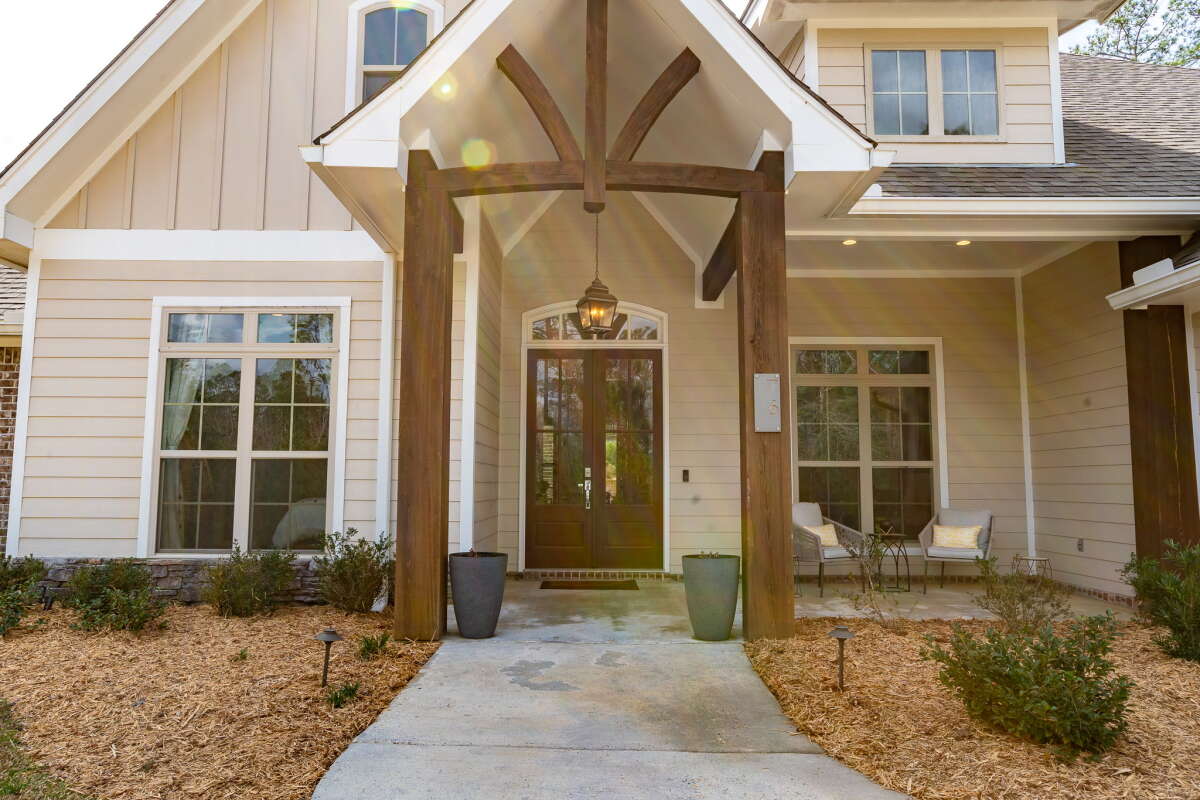

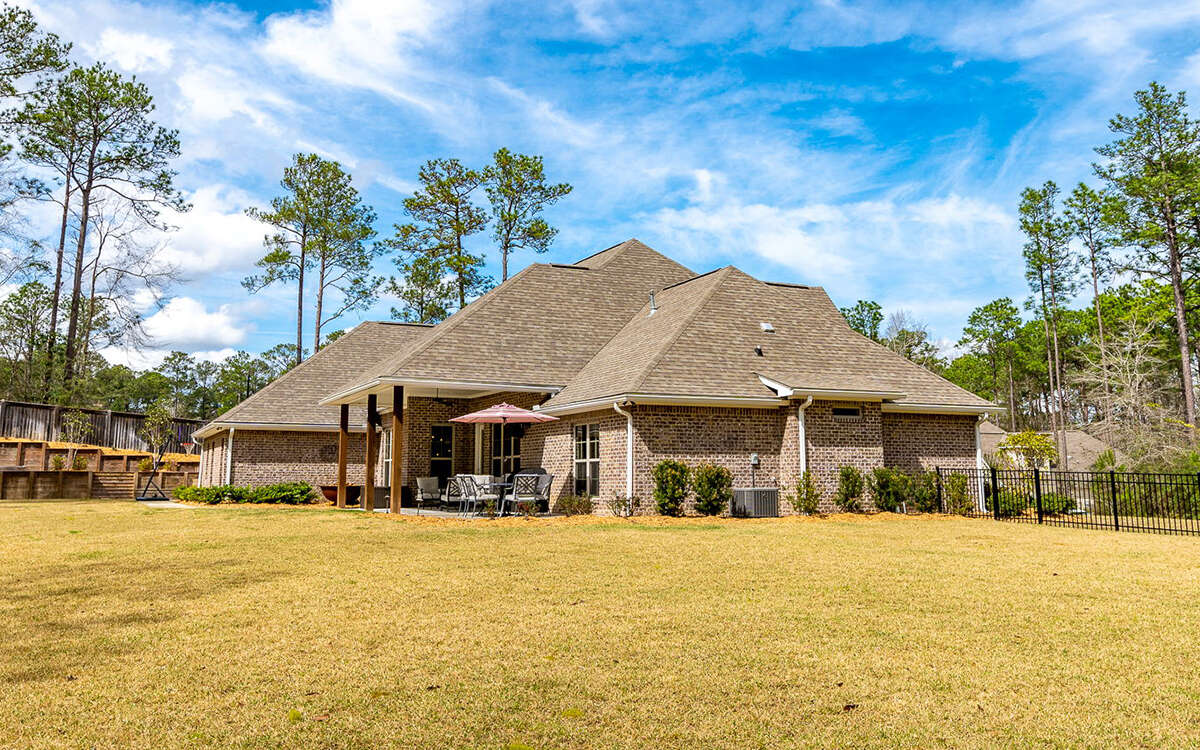

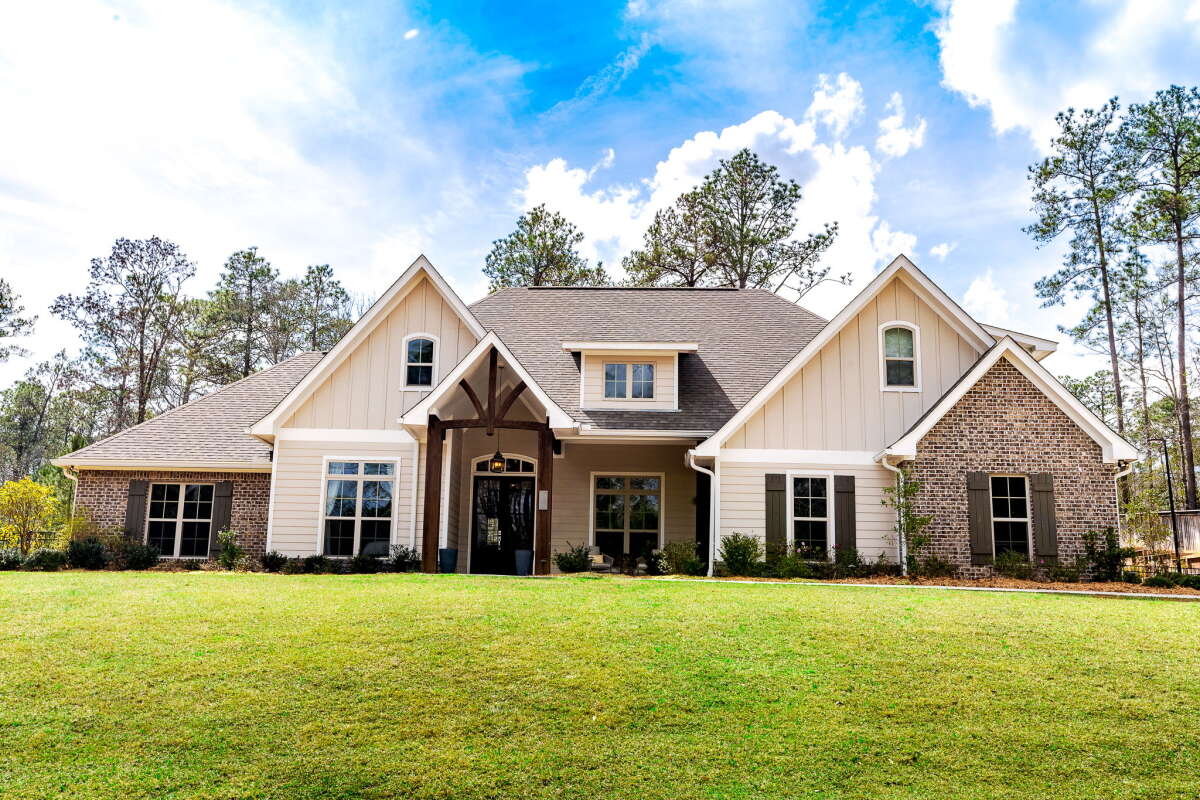

This beautiful European house plan features amazing design elements and architecturally pleasing visual appeal. The exterior is highlighted with board and batten gables, double end brick work, a stone perimeter skirt and a front covered porch. The porch is a lovely offset to the home’s exterior with its warm beams, stone pillars and double door front entry. The one story home offers four bedrooms, two plus baths and an open floor plan in approximately 2,641 square feet of living space. There is additional square footage located in the overhead bonus room measuring 355 square feet; this space could be configured to include an additional bedroom, closet and bath, a multi-purpose room or a hobby/craft room. A two car side loading garage features good vehicle space and there is an adjoining storage room.

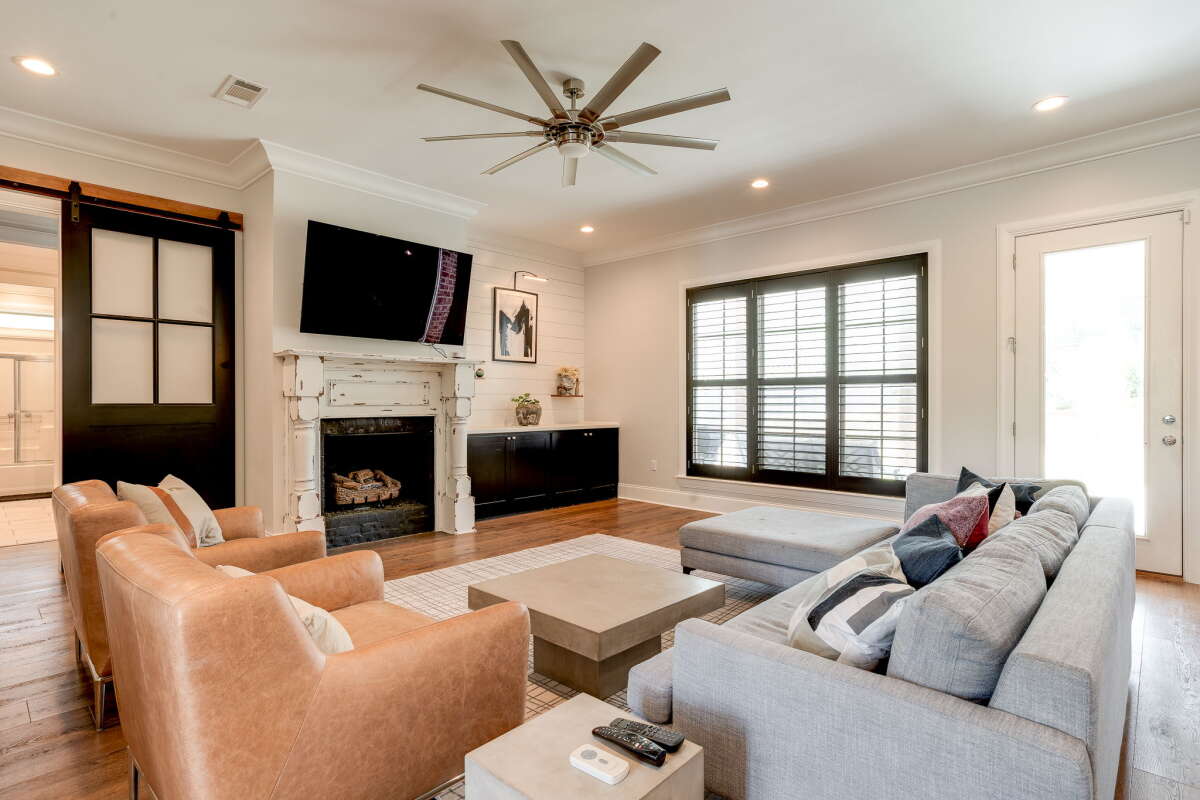

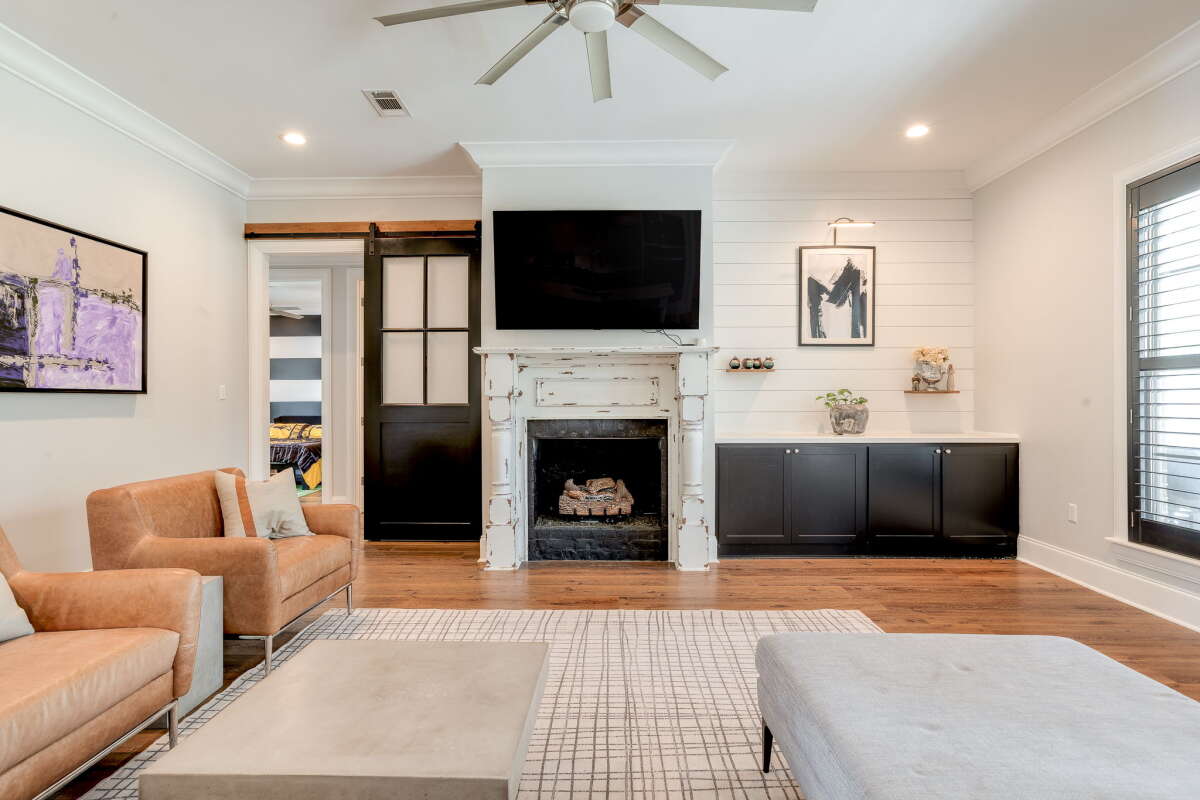

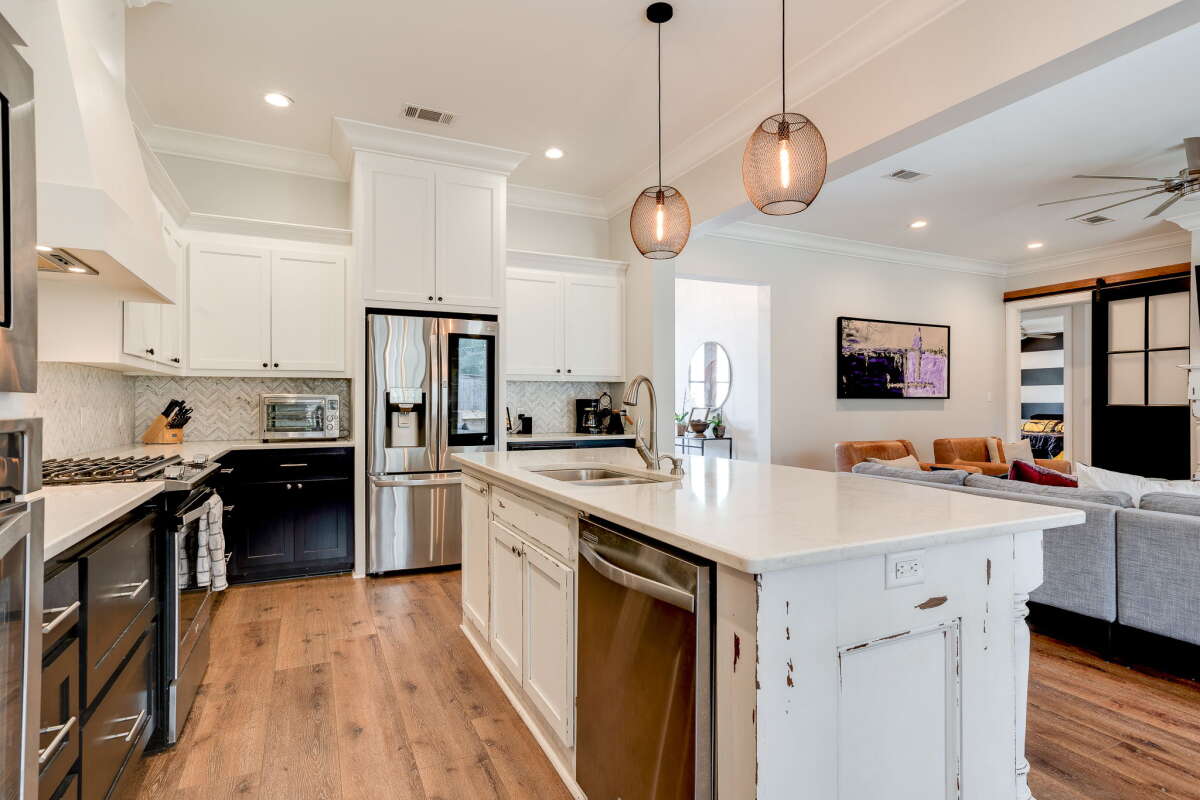

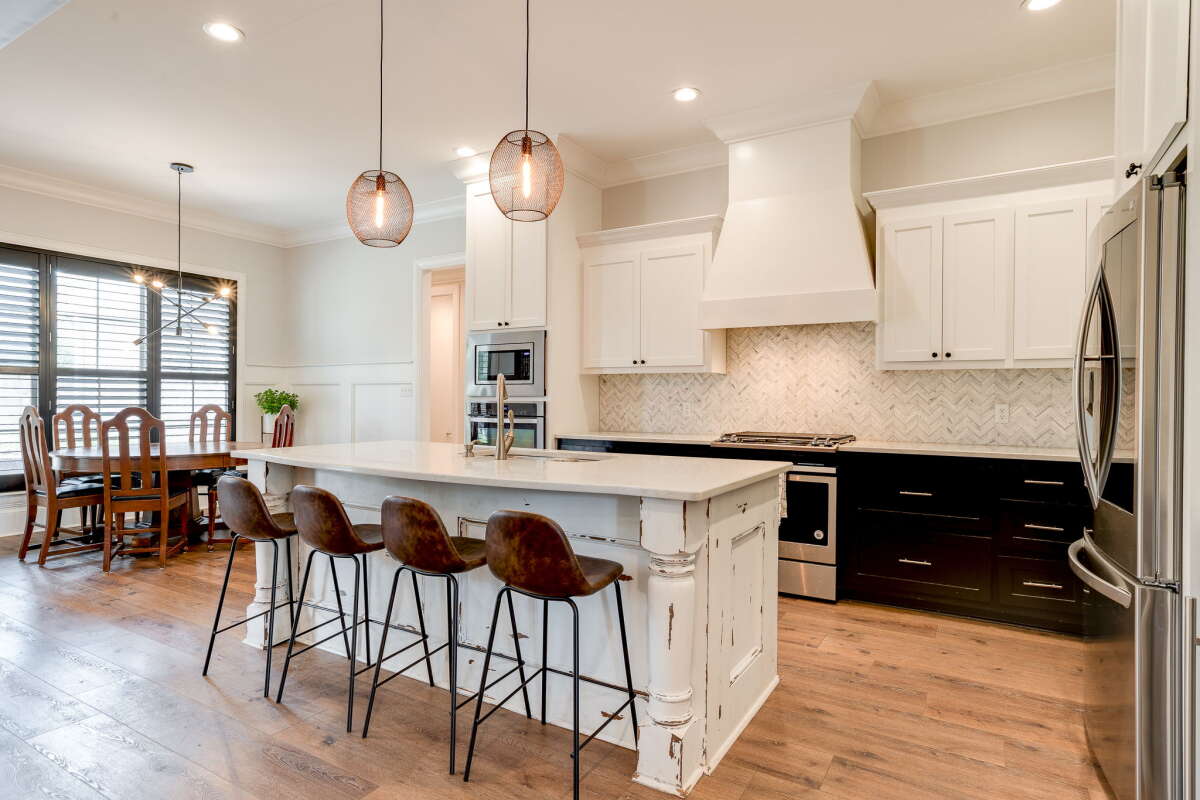

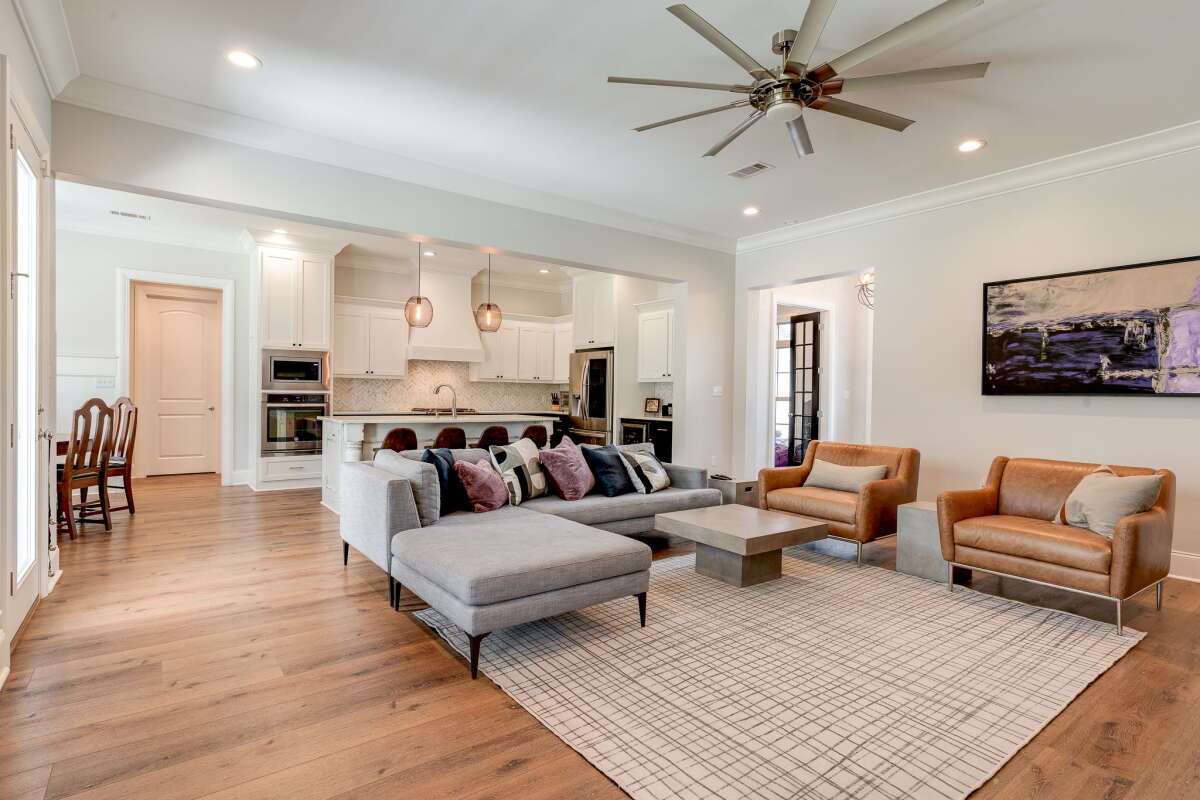

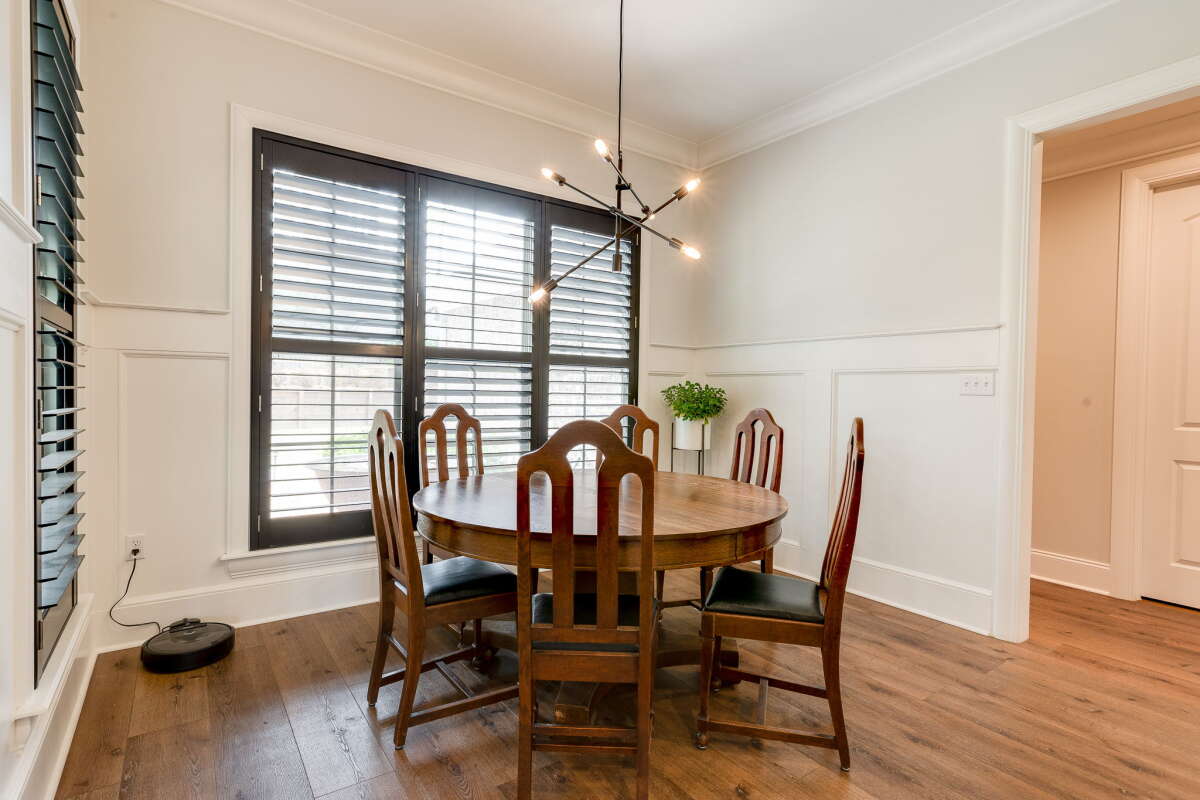

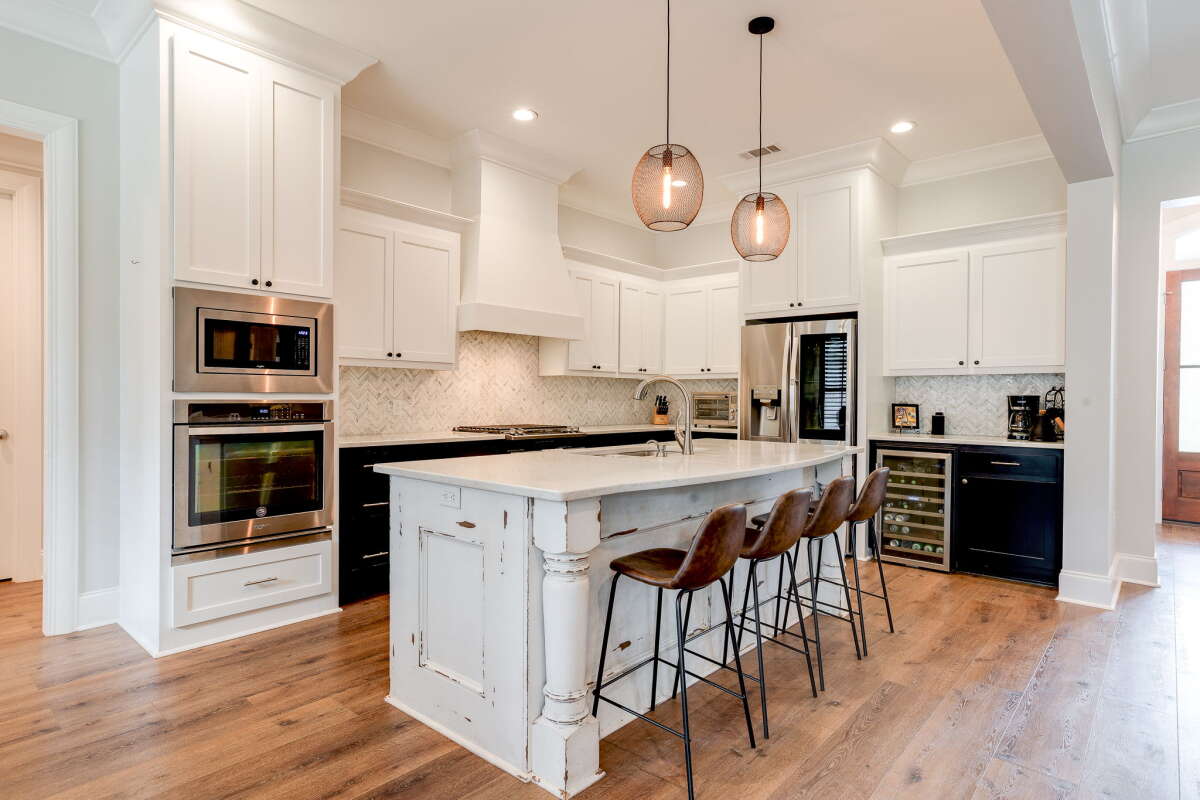

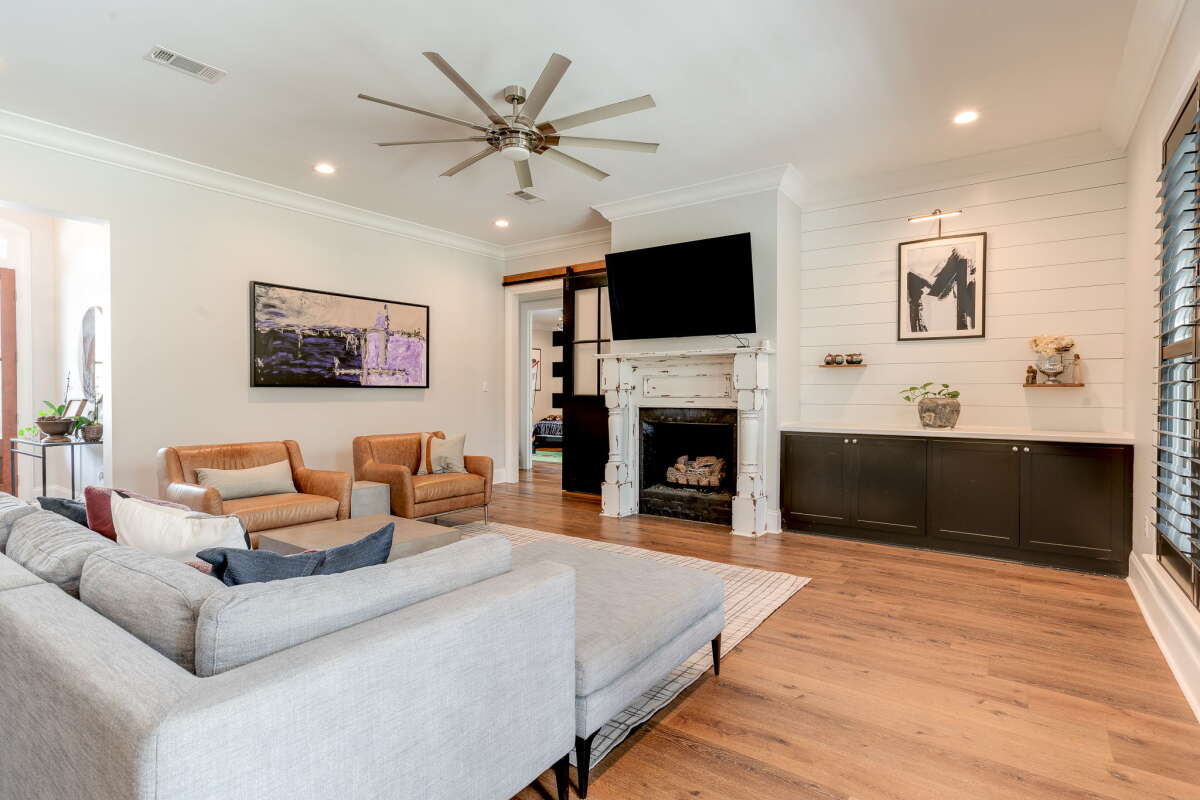

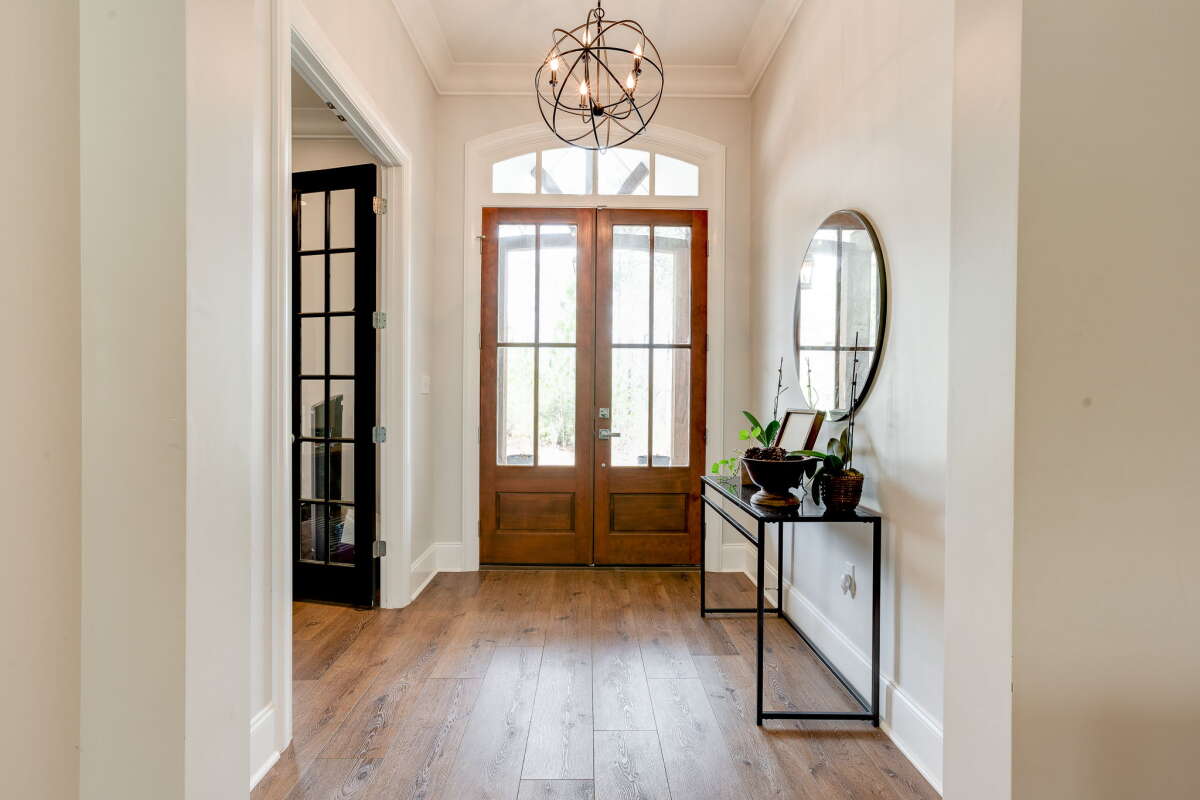

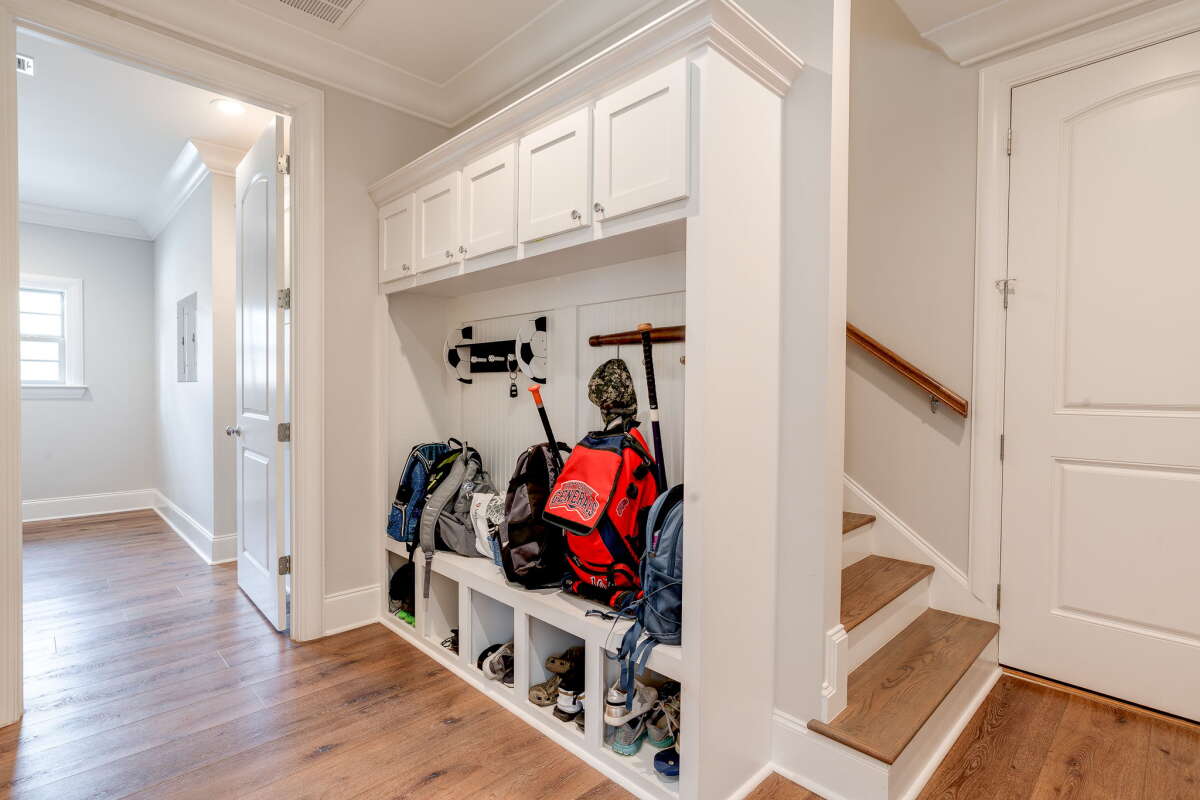

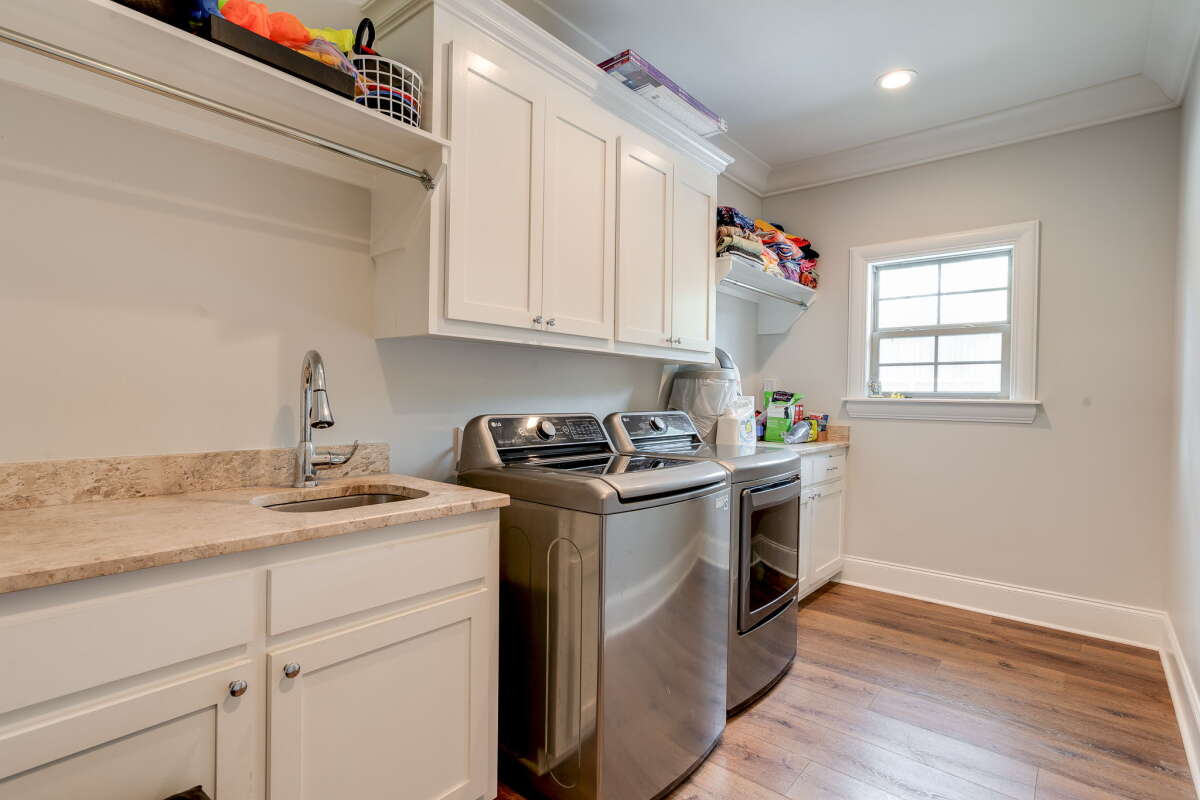

Once inside the interior of the home, there is a large utility room with a sink, counter space and a broom closet. Between the laundry room and garage exit is a drop-off zone with lockers; great for back packs, winter gear and assorted other items. The interior floor plan is highlighted with a spacious foyer featuring 11’ ceiling heights that opens onto the office and great room. The office is accessed through French doors and offers double window views overlooking the front porch. The great room is large with 10’ ceiling heights, a warming fireplace, built-in cabinetry and rear covered porch access. The kitchen and dining room are open to the great room and offer generous floor space and modern amenities. The dining room is bright and airy with its abundance of window views and the kitchen showcases a center island with an eat-in breakfast bar, plenty of cabinet and counter space and there is a large walk-in food storage pantry located directly off the nearby hallway. The split bedroom plan features three secondary bedrooms on one side of the home along with a shared hall bath. All three bedrooms are almost equivalent in size with double window views and plentiful closet space. There is a hall closet for linens and/or storage and a second linen closet is located in the shared bath along with double lavatories, a toilet area and a tub/shower combination. The primary suite is situated on the opposite side of the home for privacy where the large bedroom features a trey ceiling and wonderful window views. The accompanying bath includes separate dual vanities, a compartmentalized water closet, double linen closets, a garden tub and a separate shower. The oversized walk-in closet is located adjacent to the en suite bath and features excellent clothing and accessory storage space. This attractive European house design features classic design detail, expansion space and a family friendly interior layout.
