Craftsman House Plan 041-00174

Sq Ft2,589
Beds4-5
Baths2
1/2 Baths1
Stories1
Cars2
Width76' 4"
Depth67' 4"

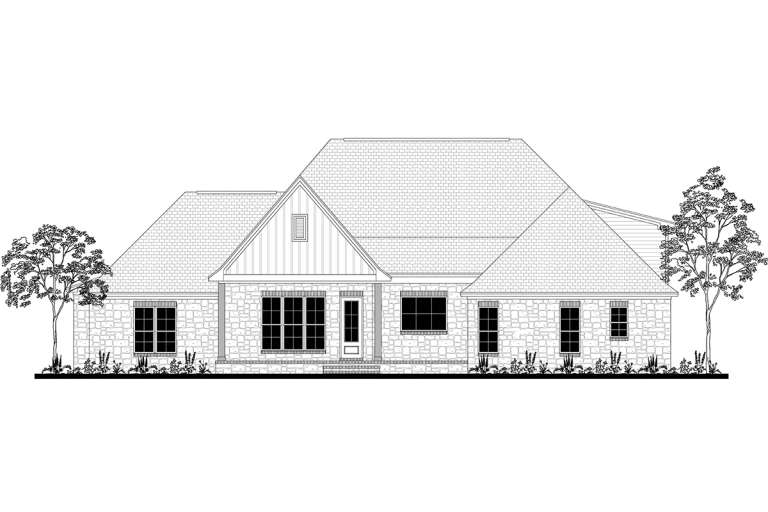

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

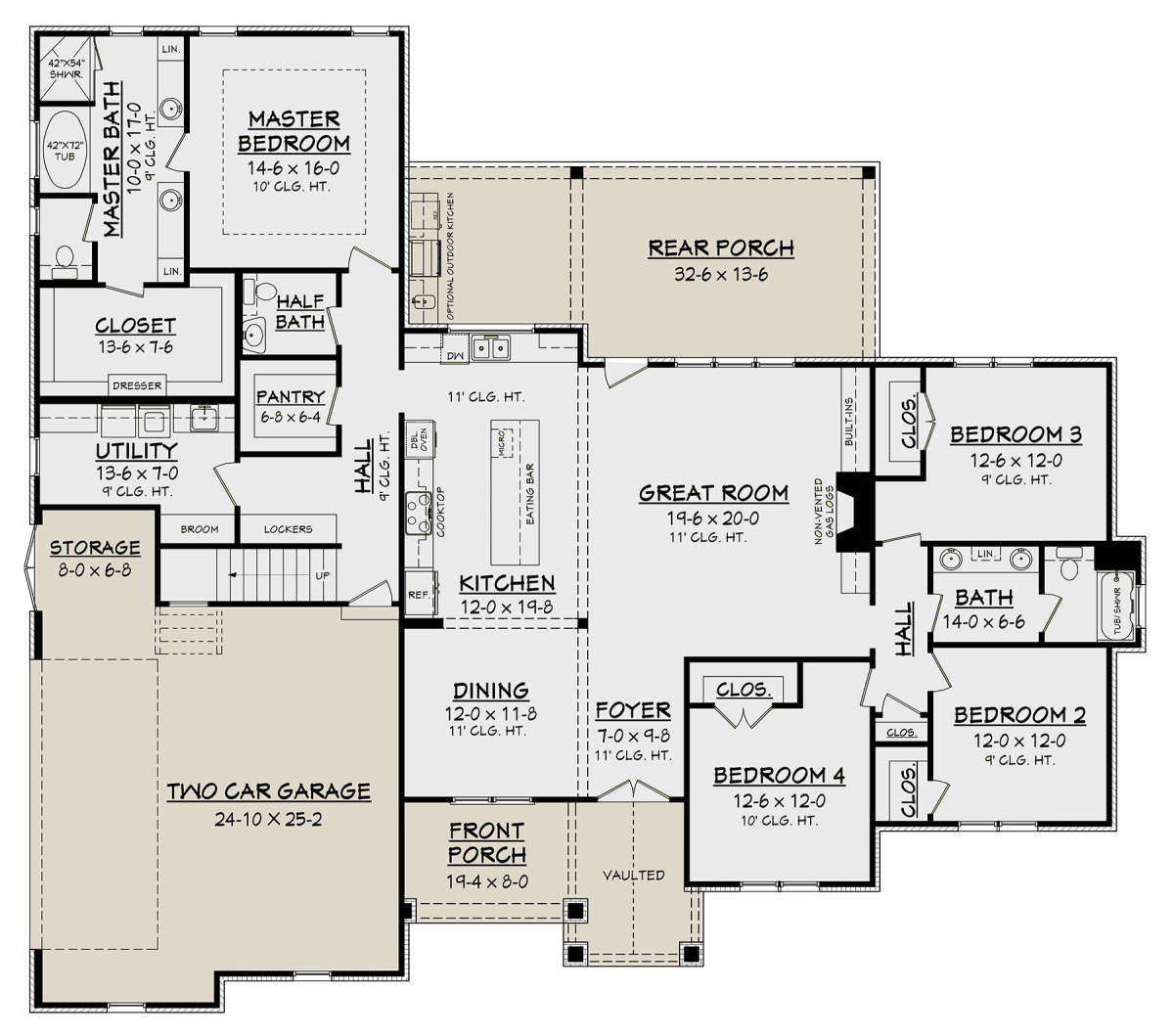

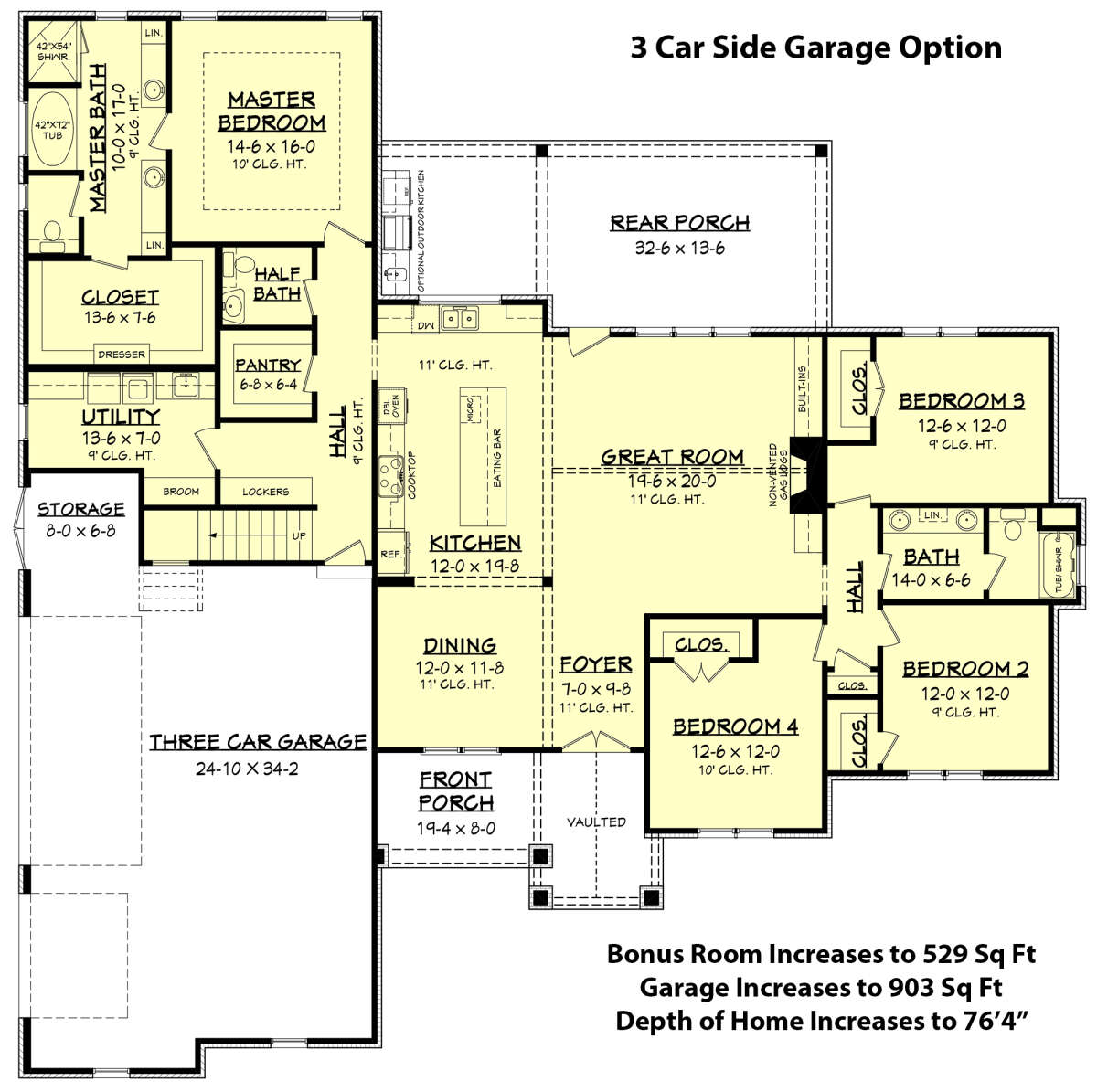

Main Floor for House Plan #041-00174

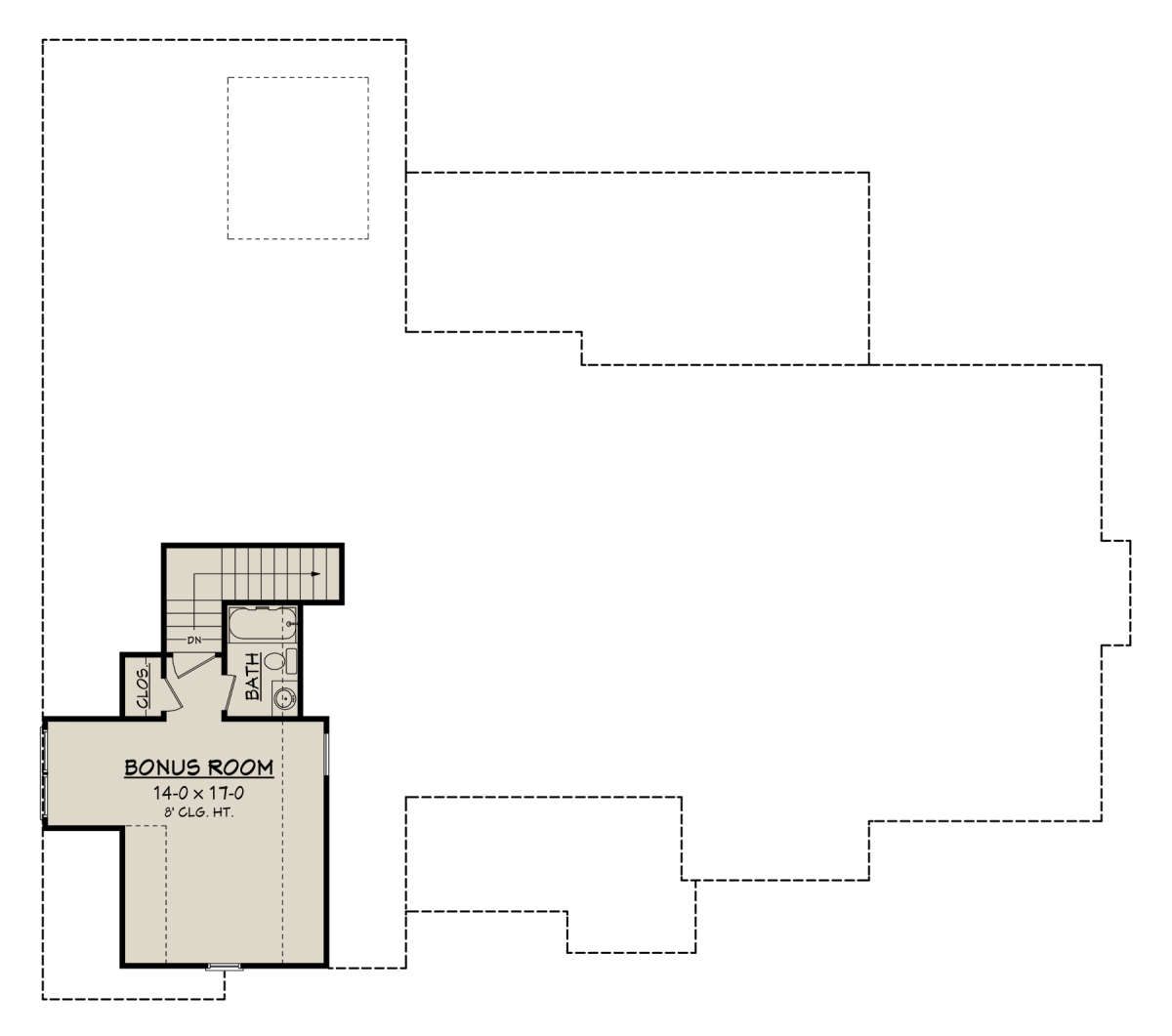

Bonus Room for House Plan #041-00174

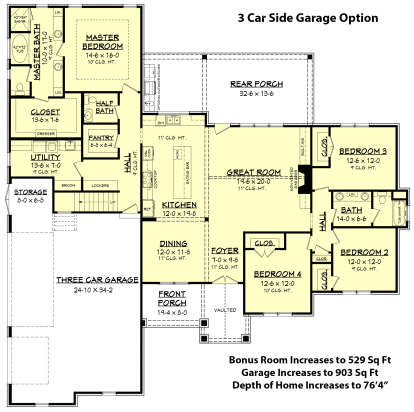

Main Floor

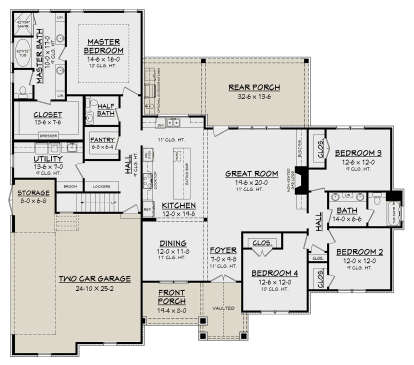

Main Floor for House Plan #041-00174
Bonus Room
Bonus Room for House Plan #041-00174


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Interior cabinet views depict the overall design and layout of all interior cabinets. These include kitchen cabinets, bathroom cabinets, built-in cabinets, and other specialty items designed within a particular home.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This one-story beauty features an open floor concept with split bedroom design and an overhead bonus room in approximately 2,589 square feet of living space. The exterior is highlighted with gorgeous architectural elements that convey inviting curb appeal with its use of stone accent walls, board and batten vertical planks, a substantial entry gable, and a perimeter stone skirt. The front covered porch is good space to greet family and friends and the dramatic double door entry adds visual appeal to the design. A two car side entry garage features good vehicle space and there is separate storage space as well.

The main vaulted entry leads to the foyer which boasts of 11’ ceiling heights and opens onto the common family spaces where 11’ ceiling heights are also found in the dining room, kitchen and great room. The dining room features double window views overlooking the front porch and offers columned beams delineating the space. The kitchen is perfect for prepping and cooking family meals with its large center island, breakfast bar area, and additional counter and cabinet space. Conveniently located off the rear wall of the kitchen is a large walk-in pantry. The great room takes center stage and is the focal point of the open floor plan with a large amount of entertaining space, a gas log fireplace, and built-in cabinetry. There is a triple window wall with rear porch views as well as access onto the outdoor space; this comprehensive space includes an optional outdoor kitchen and plenty of room to relax and entertain large groups of people.

The split bedroom plan features a master suite with a tray ceiling bedroom, an en suite with separate dual vanities, double linen closets, a garden tub, private walk-in closet, and a separate shower. A guest powder room, lockers and the large utility room with a broom closet and sink area are located off the garage. The three remaining bedrooms feature similar floor space, window views, and plentiful closet space is available in each. There is a shared hall bathroom with double sinks and a linen closet separate from the toilet area and tub/shower combination. This Craftsman house plan is highlighted with a gorgeous exterior, a functional and expandable floor plan, and fantastic outdoor space perfect for entertaining.
