Cottage Plan 041-00121


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,184
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 24'
Depth 93' 4"

Floorplan Drawings

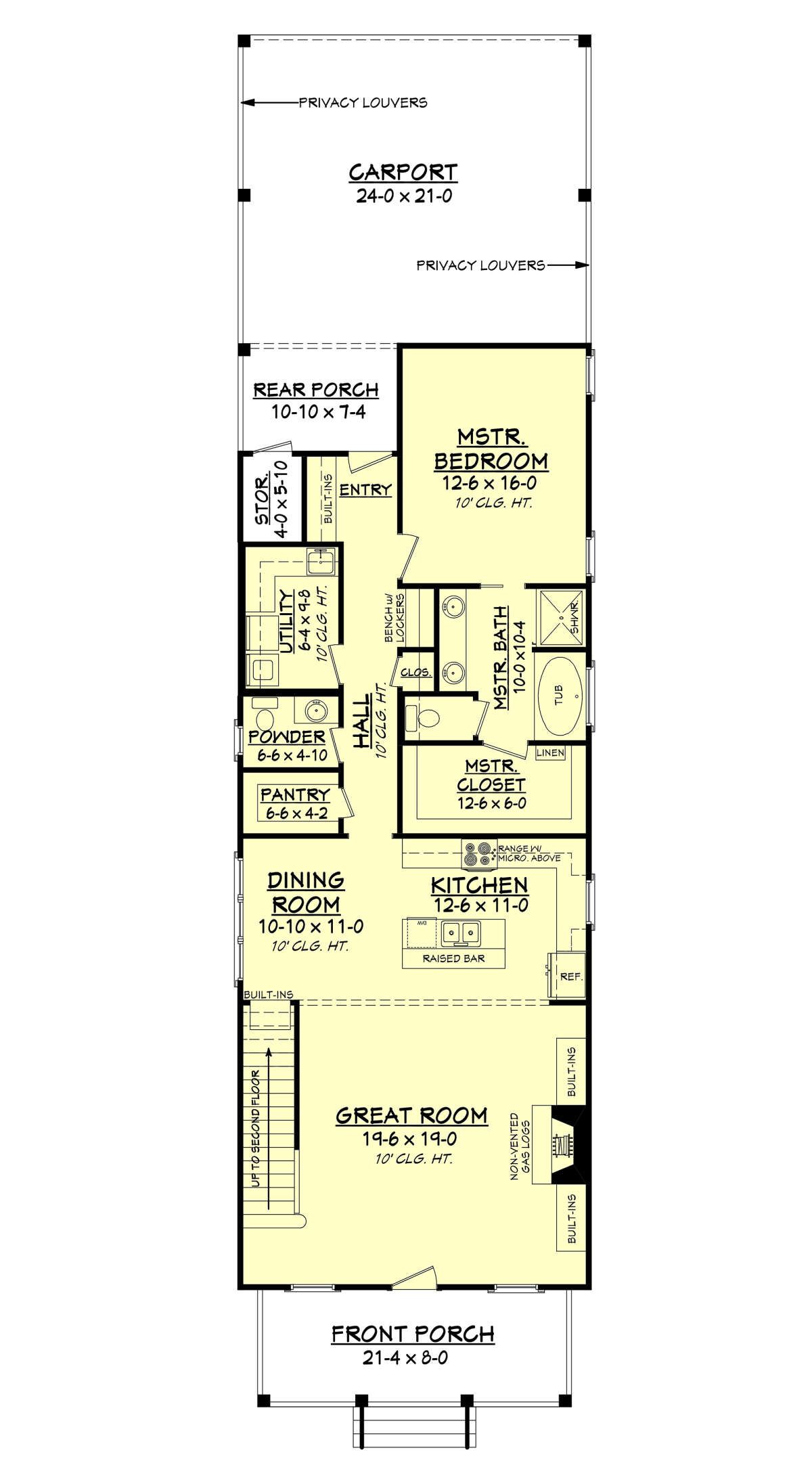

Main Floor
Main Floor  for House Plan #041-00121

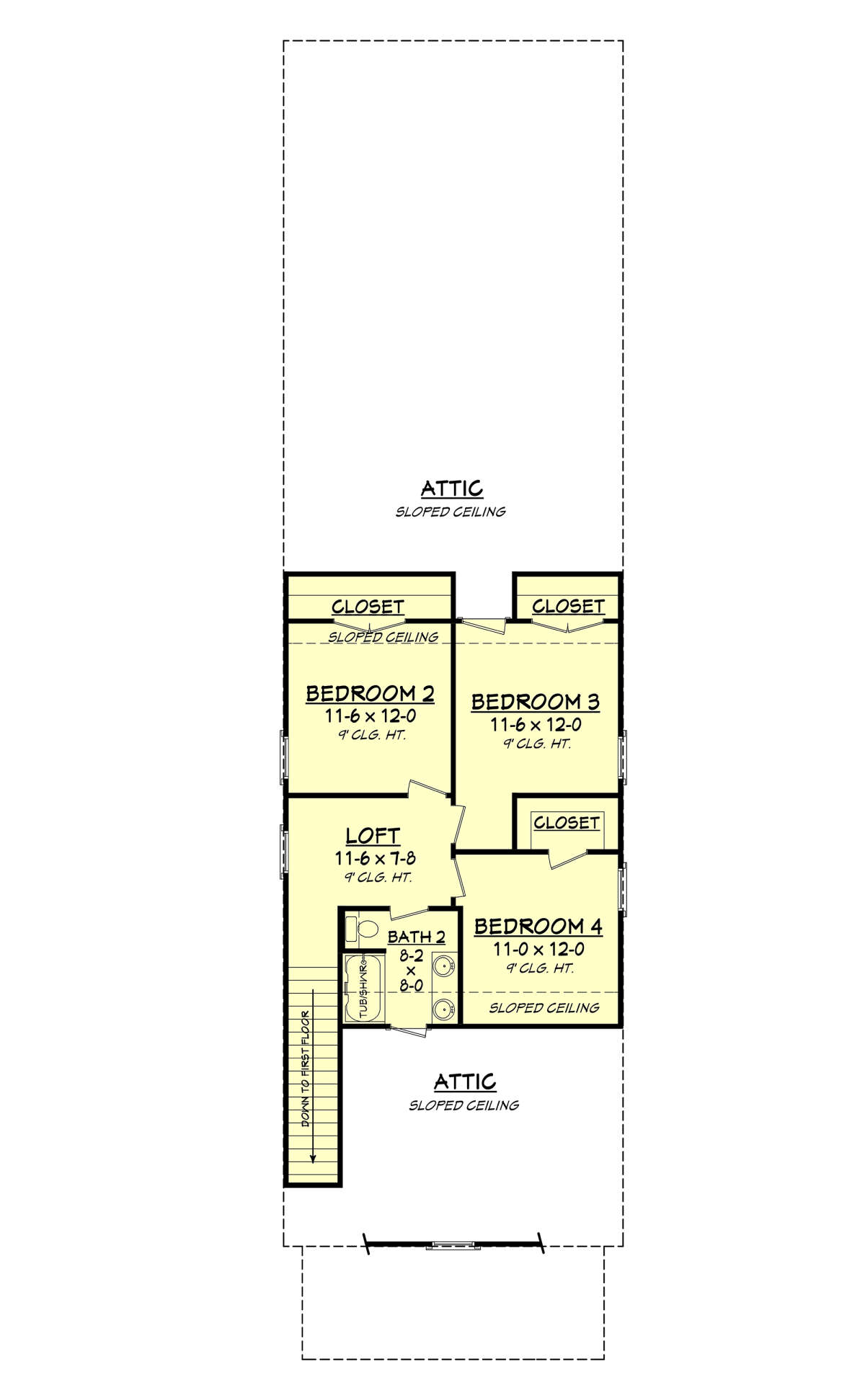

Second Floor
Second Floor for House Plan #041-00121

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

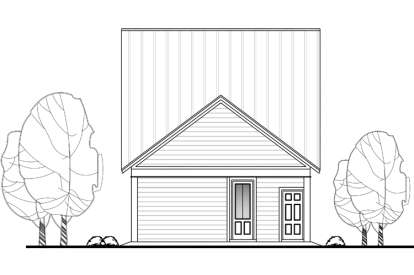

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage style house design features an inviting and welcoming exterior façade. There is a front covered porch with open railing, a centrally located front entrance and an overhead gable and exposed rafters. The home’s width dimension, 24’, is perfect for a narrow urban property lot and yet, the home is highlighted with a spacious interior featuring approximately 2,184 square feet of living space. The two storied home features four bedrooms, two plus baths and the efficient use of space and 10’ ceiling heights on the main floor give a spacious quality to the home. The front covered porch opens onto the huge great room where there is a handsome fireplace, built-in cabinetry and the second story staircase. Beyond the great room is a large kitchen with a center island work and prep space along with a raised bar area and an adjacent walk-in pantry. The dining room is spacious and well lit with its three window wall. There is a guest powder room, large laundry room, benches, locker space and built-ins along the rear hall for convenience and storage. The rear covered porch grants access into the home as well as containing additional storage space. There is a rear positioned two car carport area with privacy louvers off the rear porch. The main level master suite features a large master bedroom, a huge master walk-in closet and the master bath features dual vanities, a garden tub and a separate shower. Loads of attic space frames the second story landing where there is a loft area, bedrooms and a bath. The loft area is spacious and perfect for a playroom for small children or a homework station/lounge for older children. There are three spacious bedrooms with generous closet space and window views along with a shared hall bath that features double sinks and a tub/shower combination. The attic space is situated on either side of the second story; it is comprehensive space and can be accessed from the bath and third bedroom for ease of storage. This quintessential American Cottage home is highlighted with a delightful exterior and a versatile and functional interior floor plan.
