Bungalow Plan 041-00092

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,396
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 31' 6"
Depth 60'

Floorplan Drawings

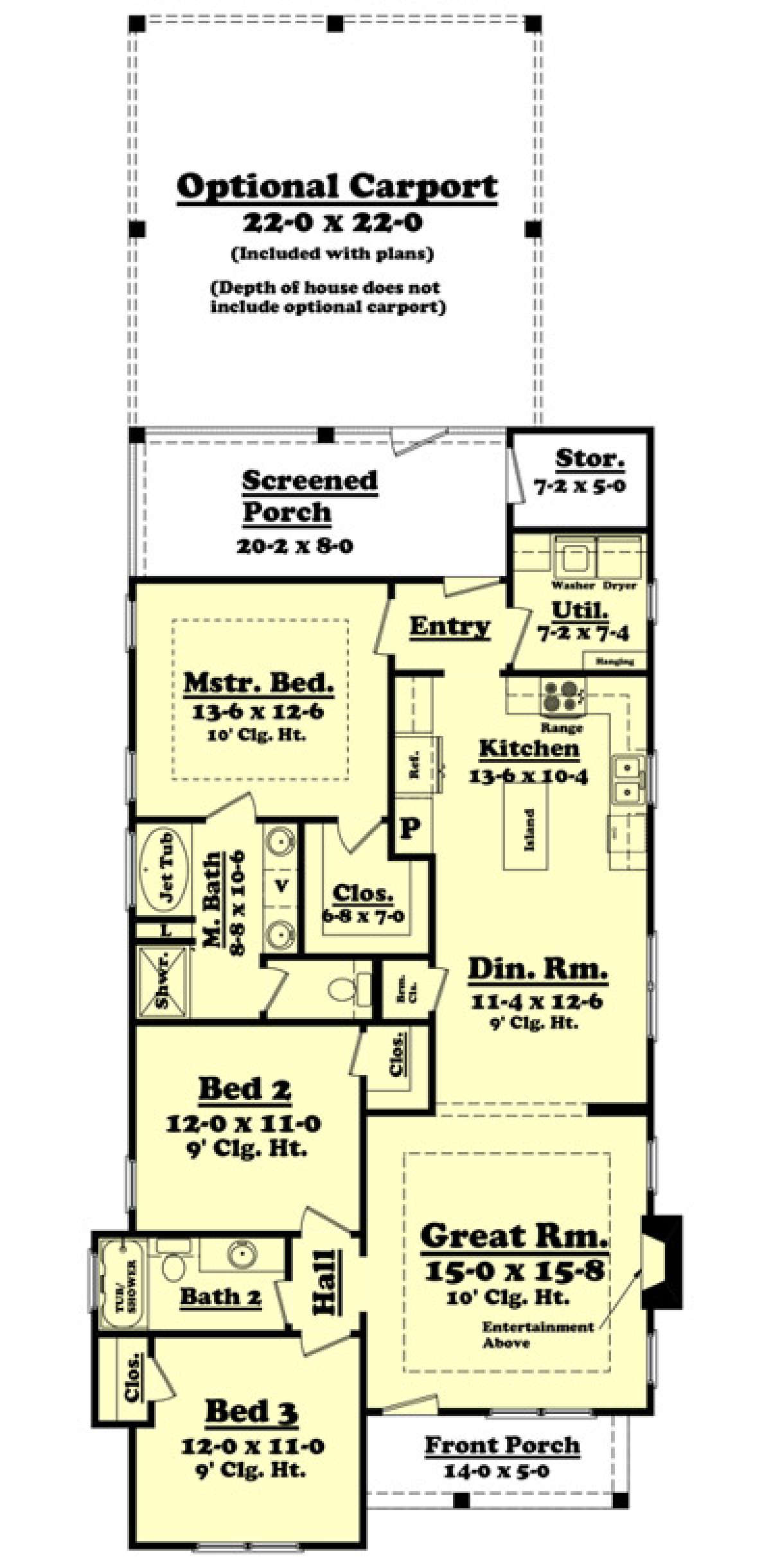

Main Floor
Main Floor for House Plan #041-00092


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

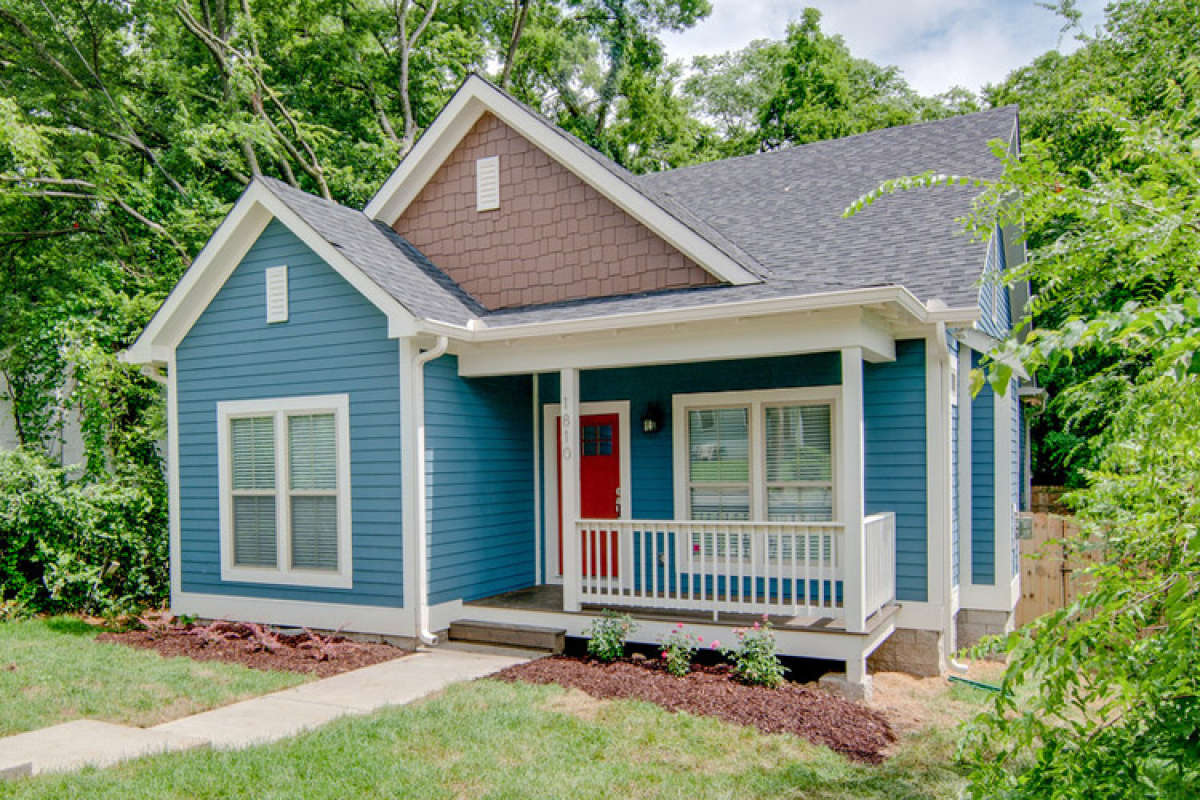

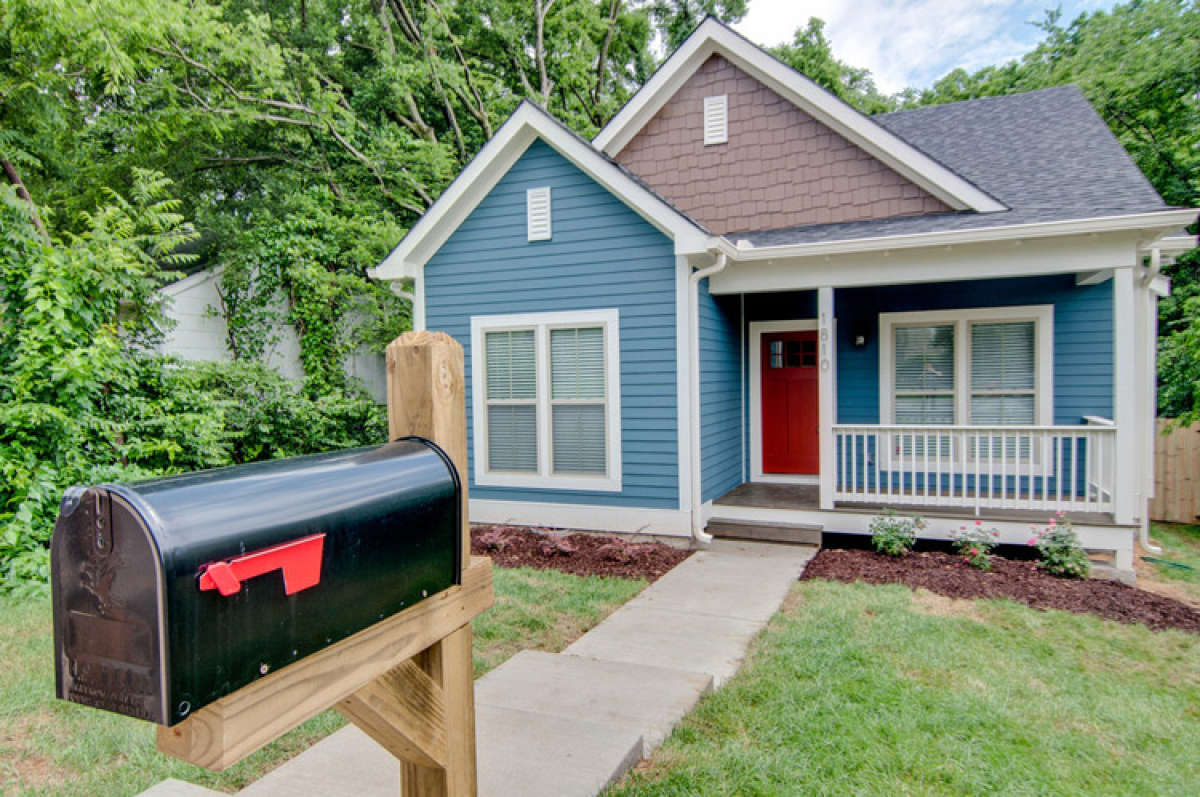

This attractive Bungalow house design features a charming exterior and an interior that although compact, features a spacious amount of living and private family space through the use of an efficient and functional floor plan. The exterior façade offers simple construction principles, a cedar shake detailed gable, wide eaves and a front covered porch highlighted with open railing, double window views and great space for relaxing and/or greeting family and friends. The interior layout is deceptively roomy with an open floor plan, three bedrooms and two plus baths in approximately 1,396 square feet of living space. This house design, along with featuring a comfortable layout, is perfect for a narrow property lot with its 31’ plus foot width dimensions. There is a choice of a slab or crawl space foundation with the plans; however, an optional basement foundation is also available for possible expansion space. The front covered porch grants access into the home’s great room where ten foot ceiling heights, picturesque window views and a warming fireplace with an overhead entertainment niche are revealed. Beyond the great room is the open dining room with beautiful window views and the grand kitchen. The kitchen is highlighted with a separate pantry, a center island and additional counter and cabinet space. There is a rear entry hall where the utility room is located and the screened porch at the rear of the home is quite spacious, measuring 20’ plus x 8’, featuring storage space access and there is also access to the two vehicle optional carport that is included with the plans.

The three bedrooms are all located on one side of the home as are the bathrooms. Bedrooms two and three are of equivalent size with nine foot ceiling heights and walk-in closets. The second bedroom features a window view and bedroom three is highlighted with double window views overlooking the front of the home. There is a shared hall bathroom that lies between the bedrooms featuring a large vanity, a toilet area and a tub/shower combination. The master suite is situated at the rear of the home for privacy and offers a master bedroom with window views, a trey ceiling and easy access to the rear screened porch. There is an attached walk-in master closet and the master bath features elegant amenities consisting of dual vanities, a separate shower, jetted tub and a private toilet room. This Bungalow house plan features a plethora of modern conveniences found in much larger homes; abundant living and dining space, beautiful outdoor space and a master suite with modern touches and luxuries.
