Bungalow Plan 041-00059

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,550
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 33' 4"
Depth 90' 10"

Floorplan Drawings

Main Floor

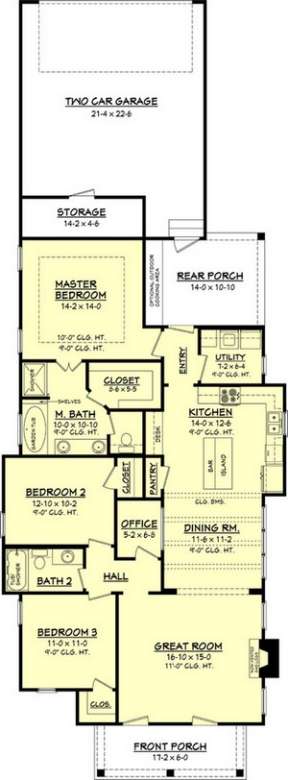

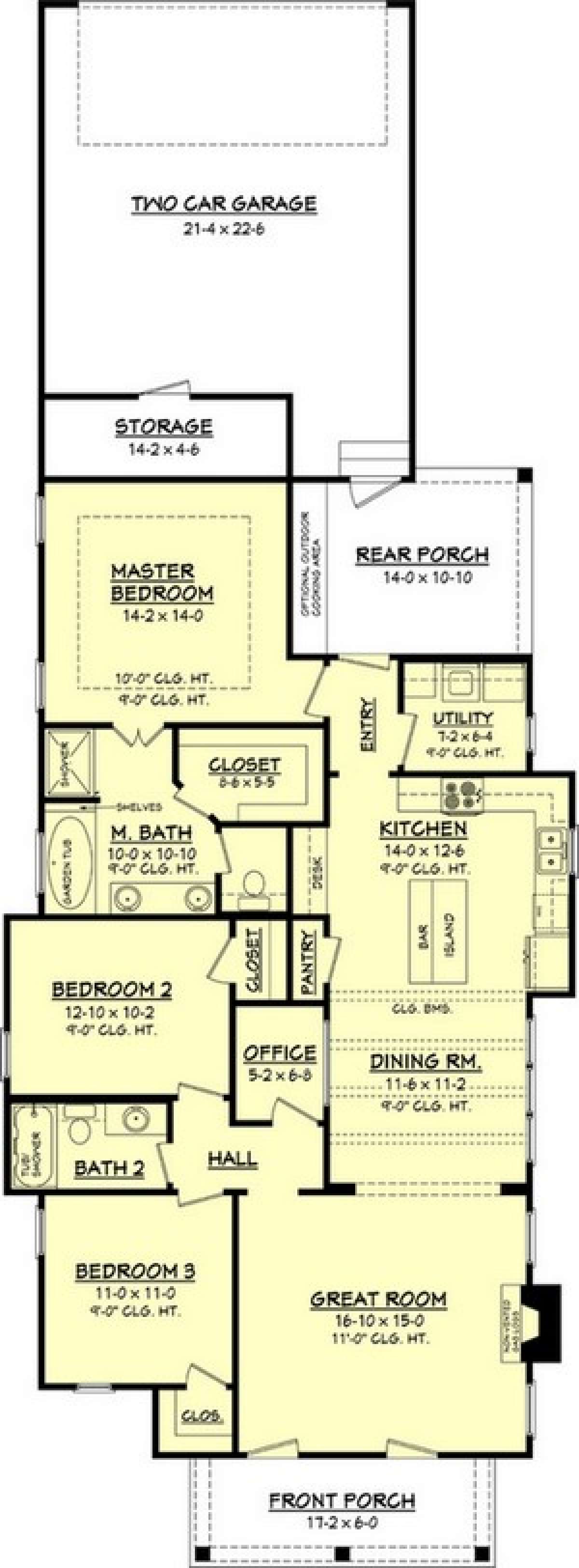

Main Floor for House Plan #041-00059


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This house plan is ideal for a narrow lot and measures approximately 33’wx90’d in over 1,500 square feet. The covered front porch is an inviting entrance into the home and flows into the large great room with gas log fireplace. The spacious dining room with beam ceilings has a small office area tucked into its side. The kitchen is a chef’s delight with a large center island with breakfast bar, built-in desk, walk-in pantry and an abundance of additional counter and cabinet space. A laundry room is situated at the rear of the home for convenience. Two bedrooms, each with walk-in closets, share a hall bath. The master retreat offers a truly luxurious design with a trey ceiling bedroom, oversized walk-in closet and master bath which features dual vanities, a garden tub, separate shower and a compartmentalized toilet. A front and large rear porch anchor the home while the two car garage with additional storage is situated at the rear of the home. This home will speak to you with its use of fine detail, design friendly elements and comfortable living spaces.
