Vacation House Plan 039-00309

What's Included in these plans?

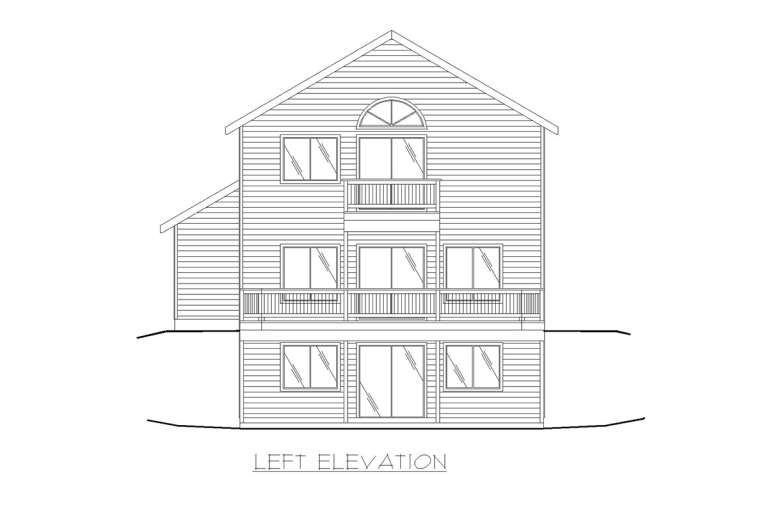

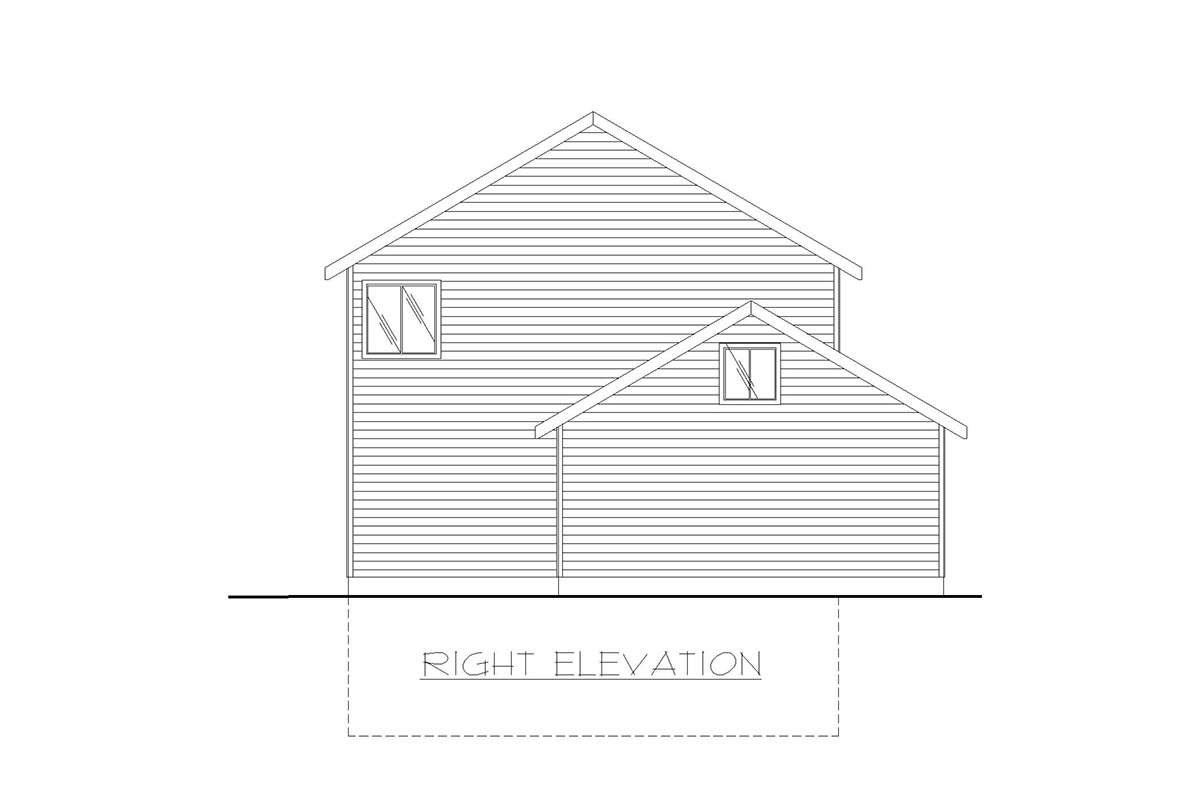

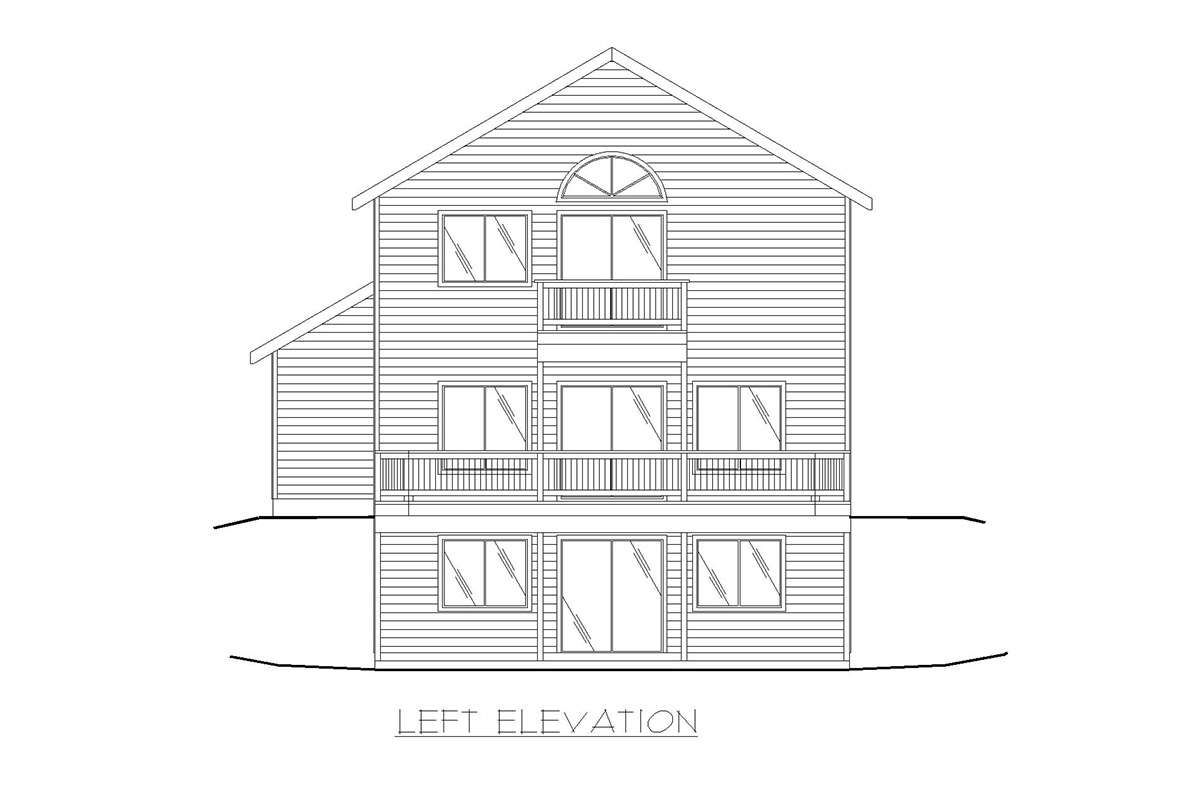

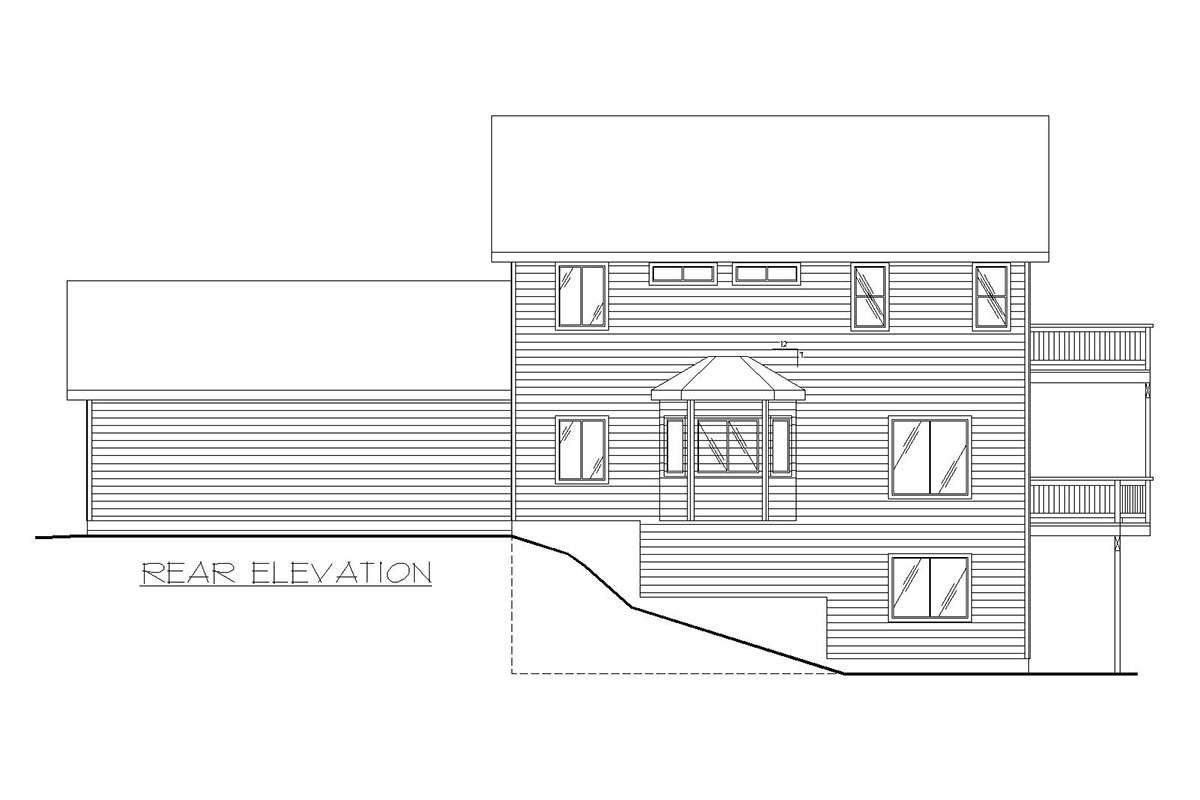

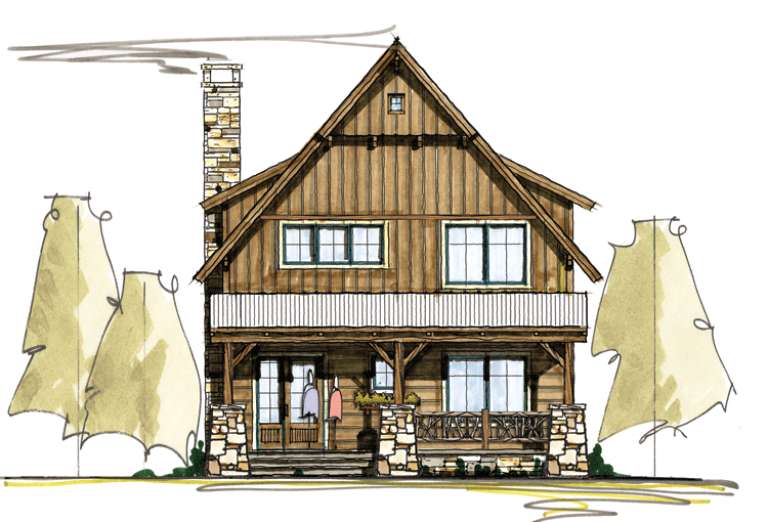

• Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.

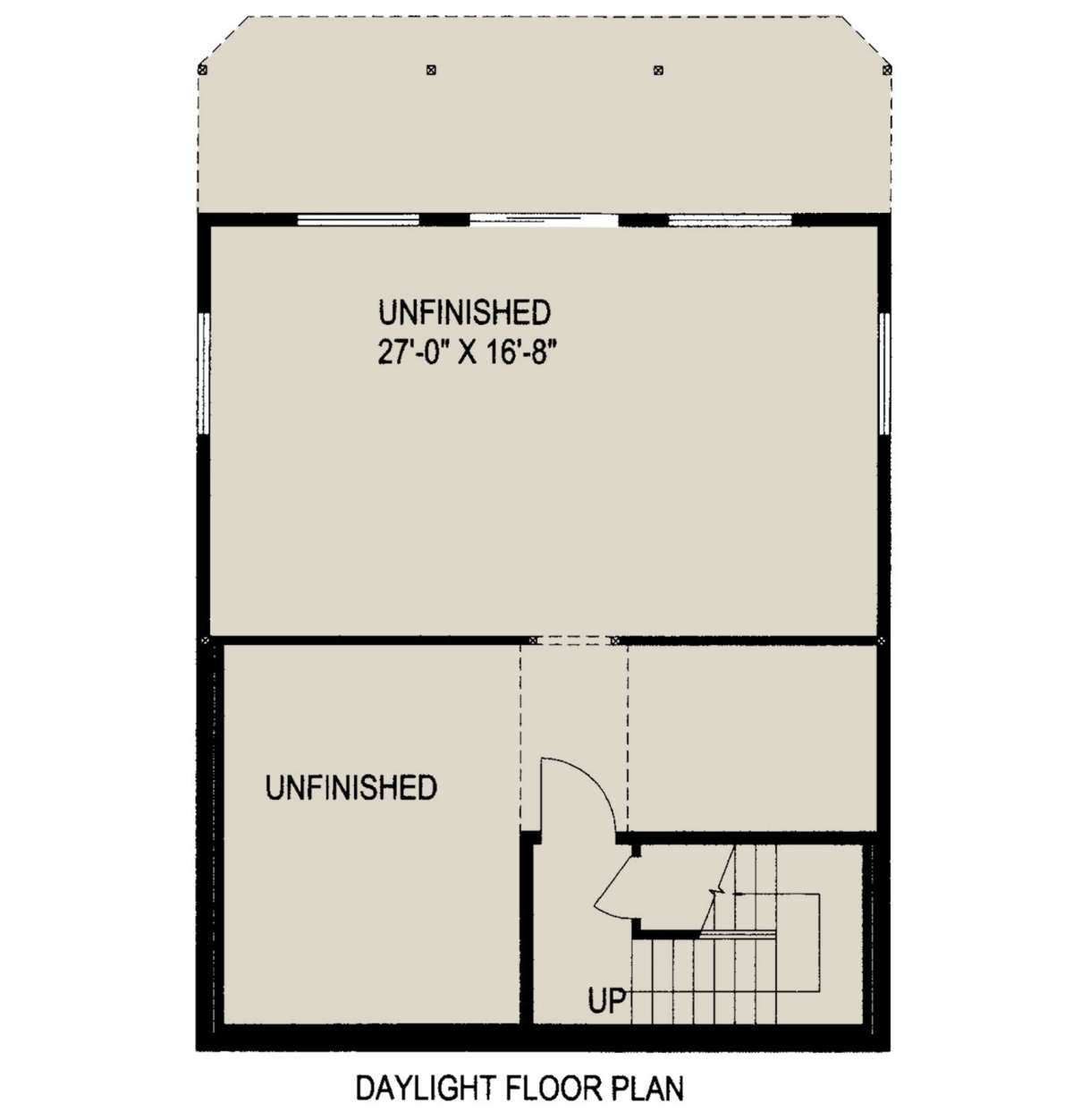

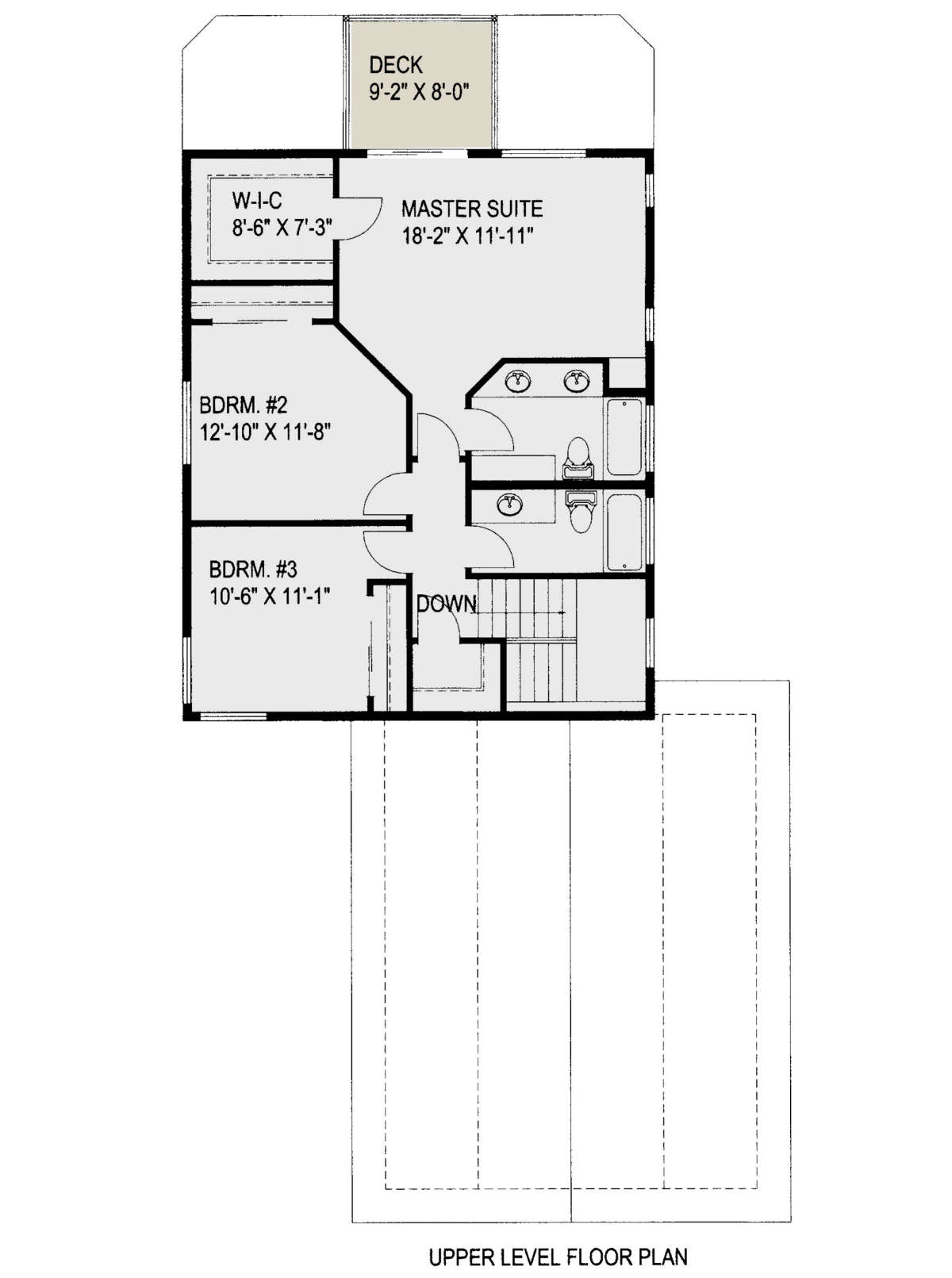

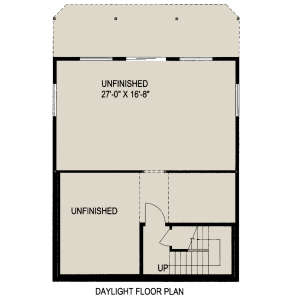

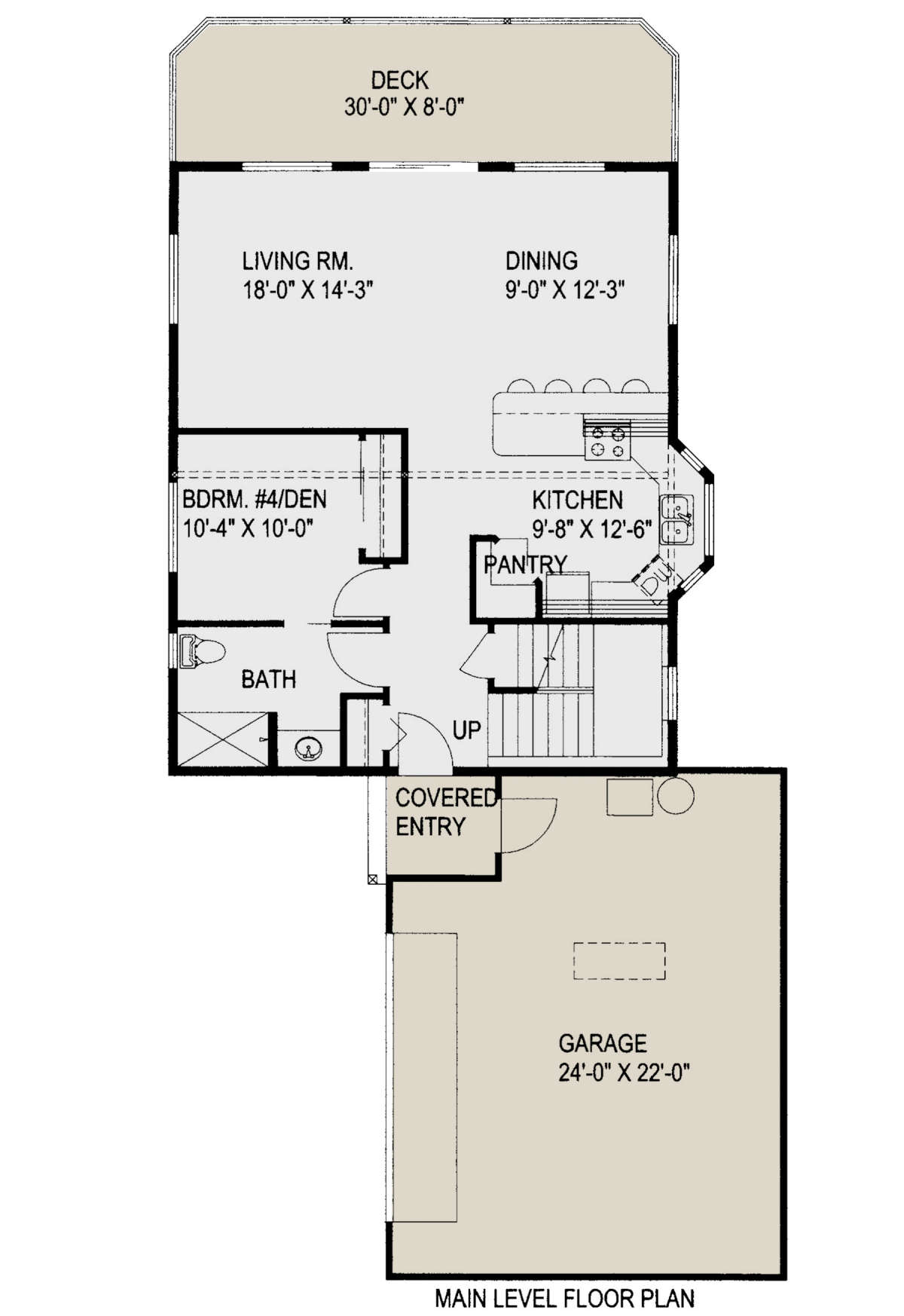

• Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
• Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
• Upper floor framing plans are included with two story homes or homes with lofts.
• The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
• Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
• Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
• General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.
