Mountain Plan 033-00100


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,732
Beds 3-4
Bath 2
1/2 Baths 0
Car 1
Stories 1
Width 31'
Depth 60'

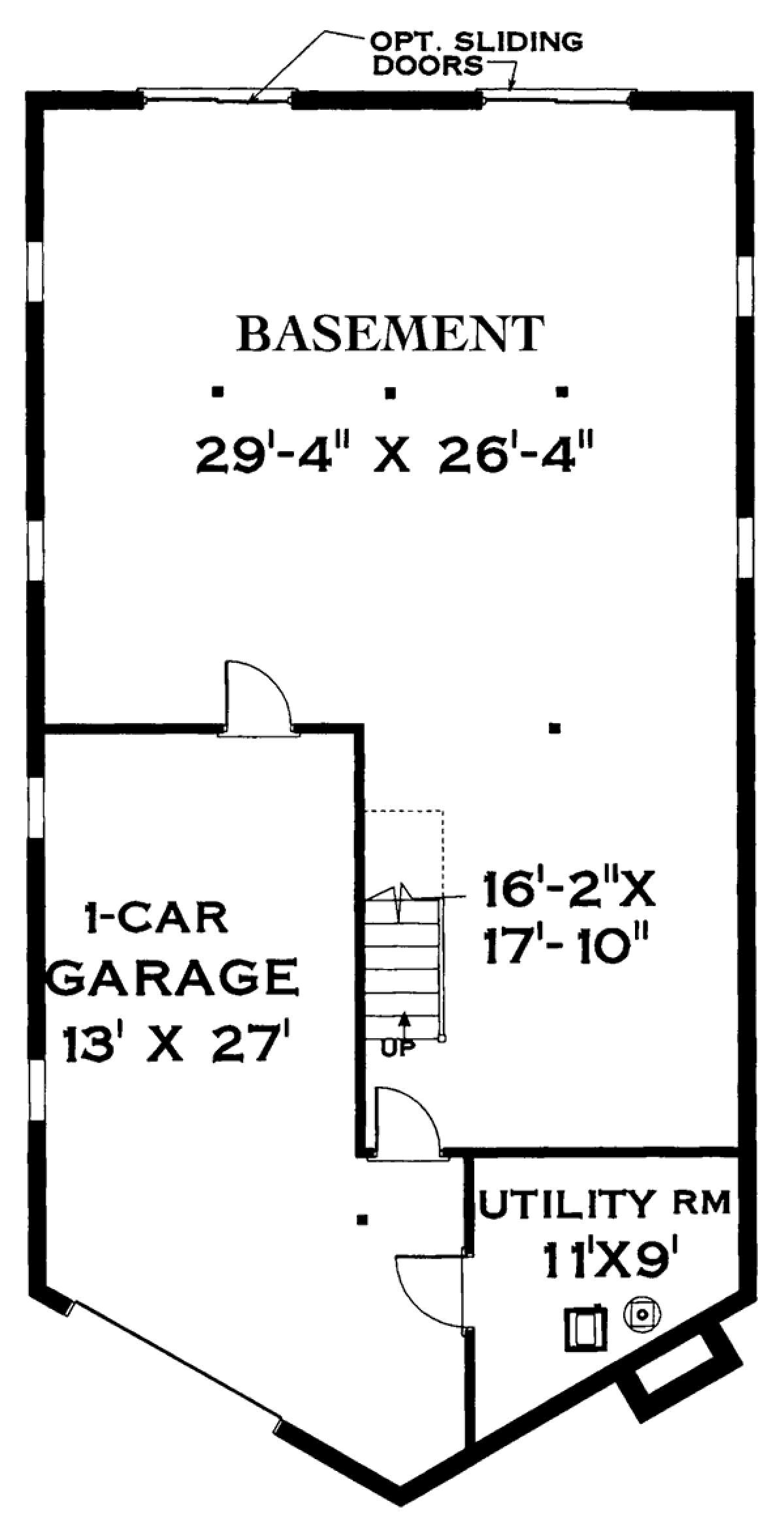

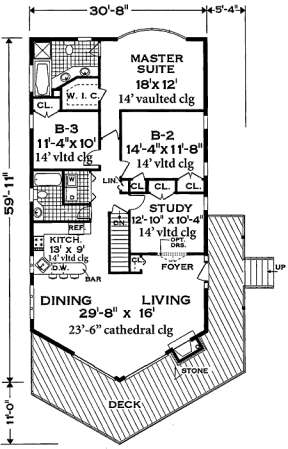

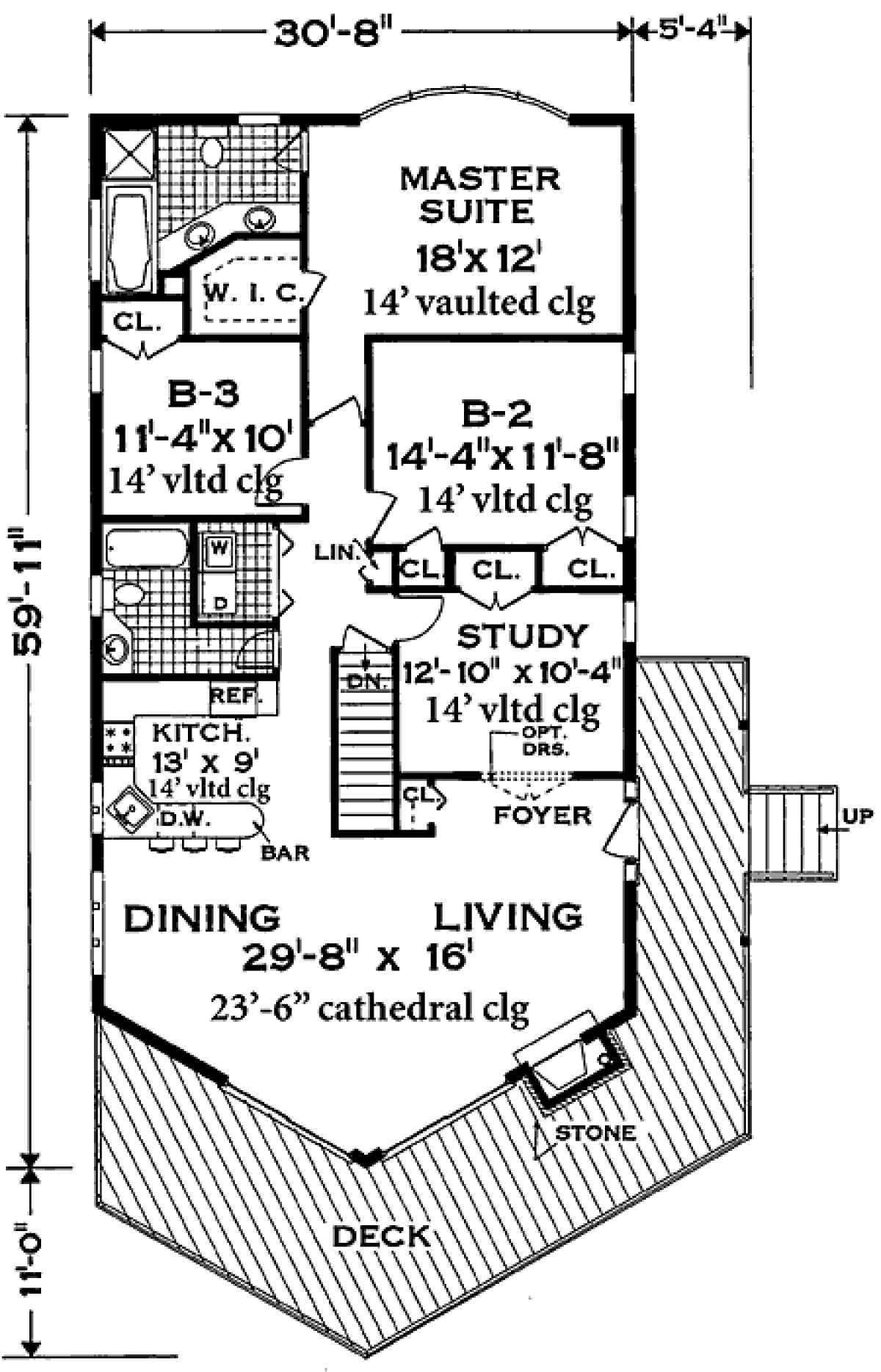

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #033-00100
Floorplan 2
Floorplan 2 for House Plan #033-00100

What's Included in these plans?

  • Foundation Plans (1/4" =1') Basement and crawl space
  • Slab on grade plan (1/8"=1')
  • Floor Plans (1/4"=1')
  • All 4 Elevations (1/4"=1')
  • Building Sections (1/4" =1') as needed per plan
  • Kitchen  Elevations (1/4"=1')
  • Miscellaneous Details (1/4" & 1"=1') as needed per plan
  • Roof  Plan (1/4"=1' or 1/8"=1')
  • Specifications and Legends
  • Plumbing Riser Diagram
  • Electrical layout
  • Window and door schedule

Code Compliance: This plan is drawn to meet the International Residential Code or the code at the time the plan was designed. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout. The structure are for stick construction ( studs, joists, beams, etc), All structural members are designed and included on the plans or as per minimum size allowed by code. All steel posts and beams designed is included.
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information, slopes, insulation, structural members,etc.
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
These are included for many interior and exterior conditions that require more specific information for their construction.
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any crickets.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This rustic Mountain house plan is accentuated with an exterior brimming with lumber, floor to ceiling glass insets and a stacked stone chimney feature. The natural beauty of the front wraparound deck highlights the rustic exterior and provides an enormous amount of entertaining space and pleasurable mingling with the outdoors. The interior floor plan consists of 1,732 square feet of living space which includes three to four bedrooms and two bathrooms. Additionally, there is an unfinished basement with a massive amount of space for future expansion possibilities. Optional sliding doors highlight the lower level exit and there is a utility room, a one car garage and a plethora of square footage to be converted into a workshop, hobby/craft room, additional bedrooms or multi-purpose rooms. The home is ideally suited for a narrow lot with its 31’width dimension and a serene lakefront lot or mountain view lot would be a beautiful backdrop for the home.

The interior floor plan enjoys an open concept design with a front foyer and coat closet lined entryway. The living and dining spaces are huge with cathedral ceiling heights which highlight the spaciousness of the rooms and there is a warming fireplace for those chilly autumn nights. The U-shaped kitchen houses a peninsula breakfast bar, vaulted ceilings and plenty of additional counter and cabinet space. There is a laundry nook along the hallway and a shared hall bath and linen closet for the two family bedrooms. Bedroom one is spacious with plentiful closet space and there is an option for French door access off the foyer if the room was used for a study/home office. The second bedroom is slightly larger with double closets and double window views. Across the hall is the third bedroom where spaciousness is enhanced with vaulted ceilings and generous closet space. The owner's retreat is situated at the back rear of the home for privacy and, once again, is highlighted by vaulted ceilings; additionally, the suite enjoys a large footprint measuring 18’x12’, and a gracefully bowed window feature. There is a large primary walk-in closet and the owner's bath which provides dual vanities, a separate shower, large soaking tub with a window view and a toilet area. This wonderful vacation or “forever” home has an abundance of space in a carefully laid out house plan which is comfortable and fully functional and also includes an aesthetically pleasing exterior façade.
