Mountain Plan 048-00226


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,292
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 51' 6"
Depth 77'

Floorplan Drawings

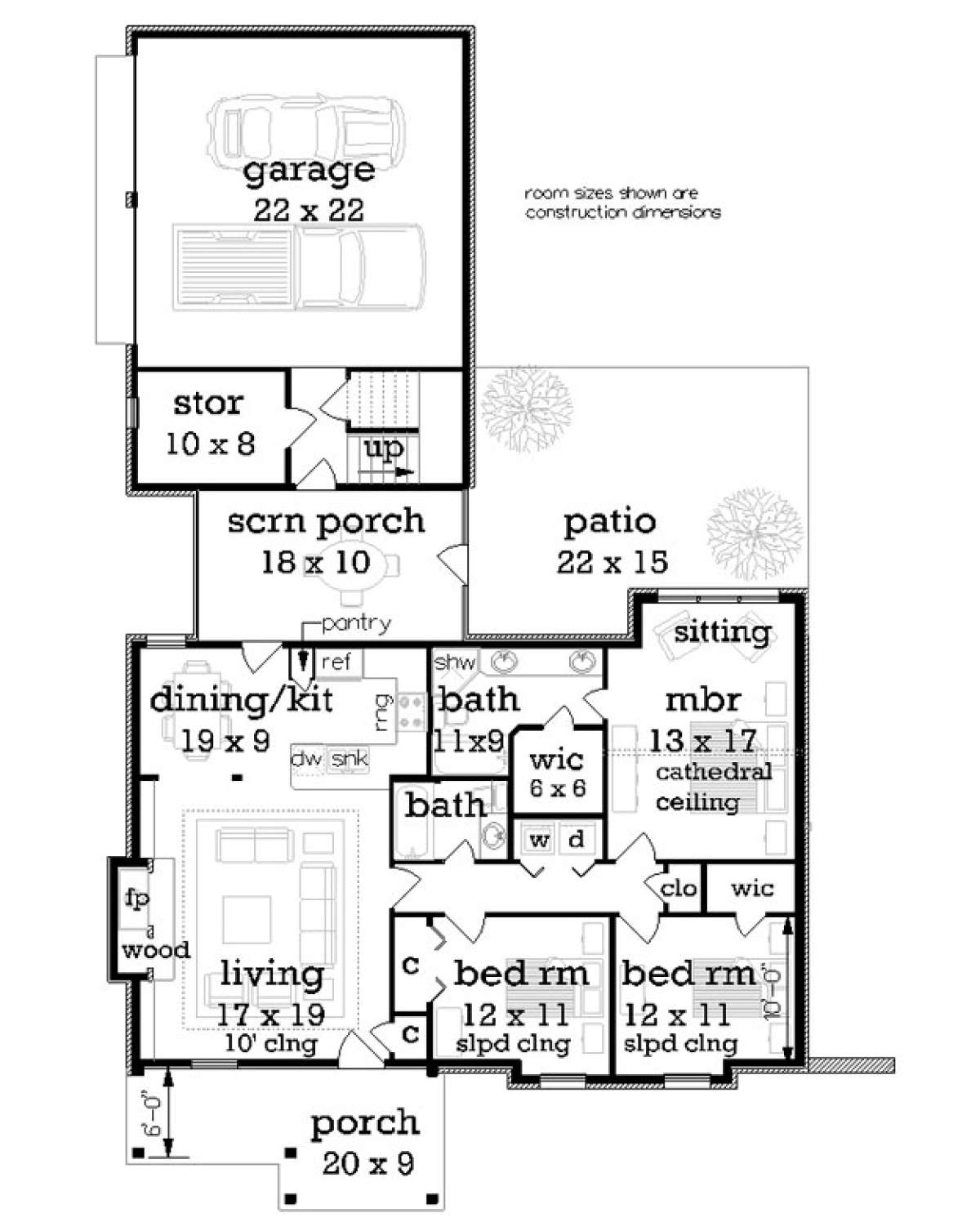

Floorplan 1
Floorplan 1 for House Plan #048-00226

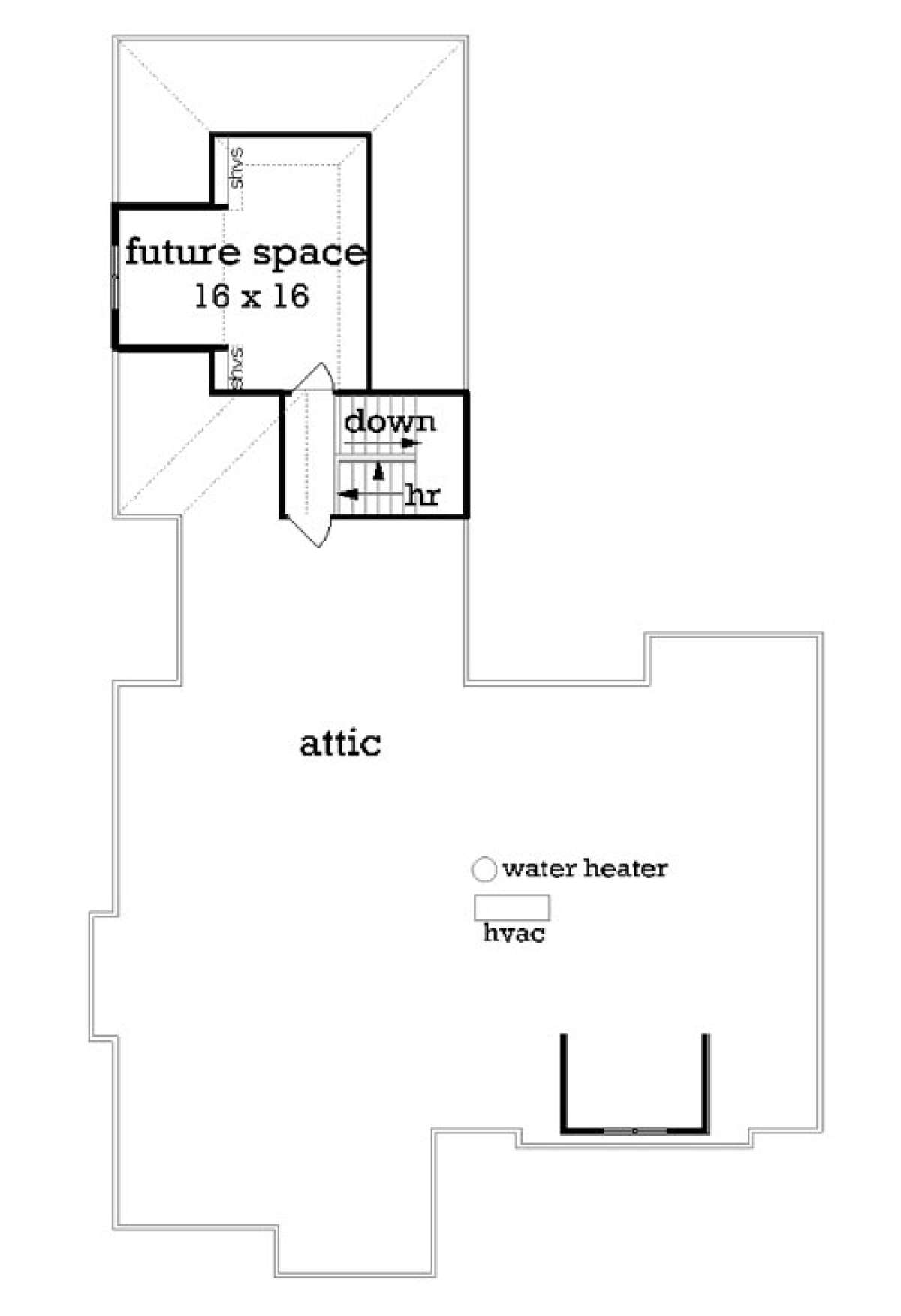

Floorplan 2
Floorplan 2 for House Plan #048-00226

What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.
  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

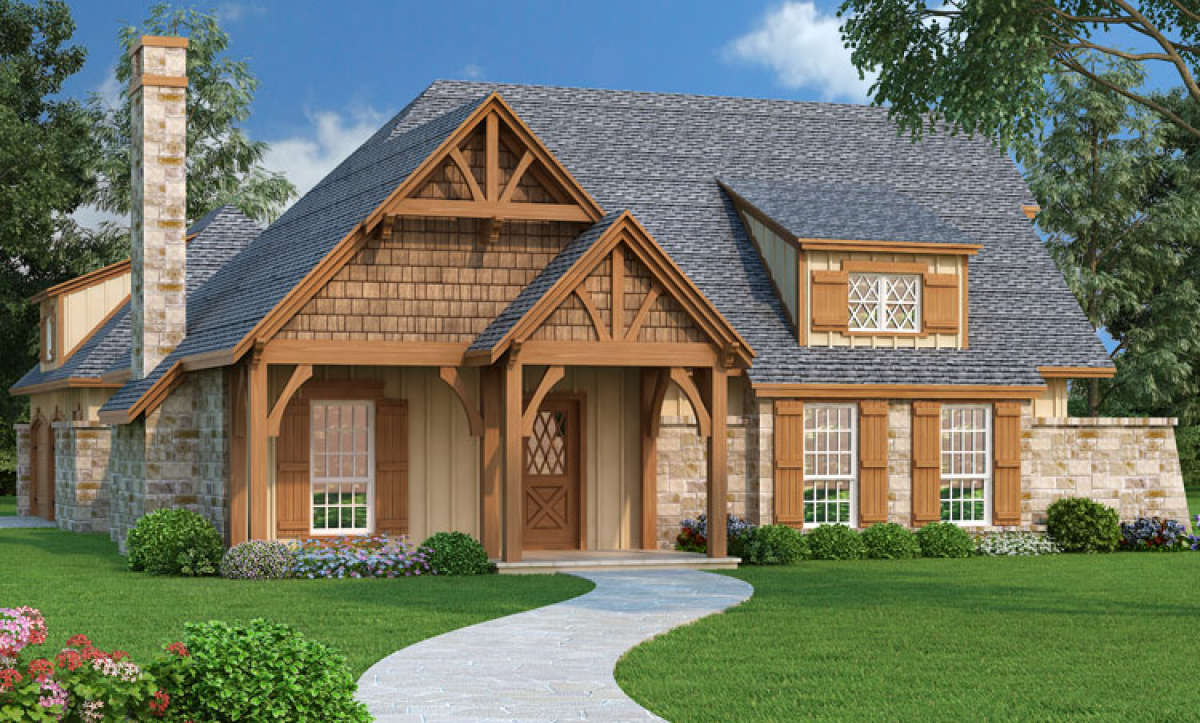

This charming Mountain house plan features an attractive exterior reminiscent of a chalet and an interior highlighted by an open layout and an upper level bonus room. The façade is a delightful assortment of stonework, decorative gables, dormer sheds and lattice window features. The addition of the front covered porch makes greeting family and friends a pleasure before entering the home’s interior. Approximately 1,292 square feet of living space is found on the main living floor and the overhead bonus space adds an additional 243 square feet of living space. The future space would be ideal as a home office, artist’s studio or a multi-purpose family room and there is abundant attic space nearby as well. There are three bedrooms and two baths on one side of the home while the open floor plan occupies the other half. Entering through the front covered porch, a large living room with a warming fireplace and ten foot ceiling heights is revealed. Beyond the living room, there is a dining room and a U-shaped kitchen; both spaces are comfortable and provide opportunities to prepare meals and dine together. Located directly off the dining room/kitchen is access onto the rear screened porch; this is a large space, measuring 18’ x 10’ and allows for enjoyable outdoor dining and entertaining. A large patio is adjacent to the screened porch and provides great space for grilling and family relaxing. The rear positioned two car side loading garage allows for unobstructed sight lines onto the front exterior of the home. A large storage room and a rear staircase to the bonus room are nearby.

The three bedrooms consist of a master suite and two secondary bedrooms. The second and third bedrooms feature equivalent floor space and one features a large closet while the other contains a walk-in closet. There is a shared hall bath with large vanity, a toilet area and a tub/shower combination along with a hall linen closet. The laundry room is tucked into the hallway for convenience and as a space saver. The master suite is highlighted with cathedral ceilings, good floor space and a sitting room overlooking the rear patio. A spacious walk-in master closet is located off the en suite master bath where modern conveniences are highlighted. There are dual vanities, a separate shower, garden tub and a toilet area. This family friendly homes “packs a punch” with its exciting exterior and well laid-out floor plan.
