Coastal House Plan 028-00064

Sq Ft2,082
1/2 Baths1
Width50' 0"
Depth62' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

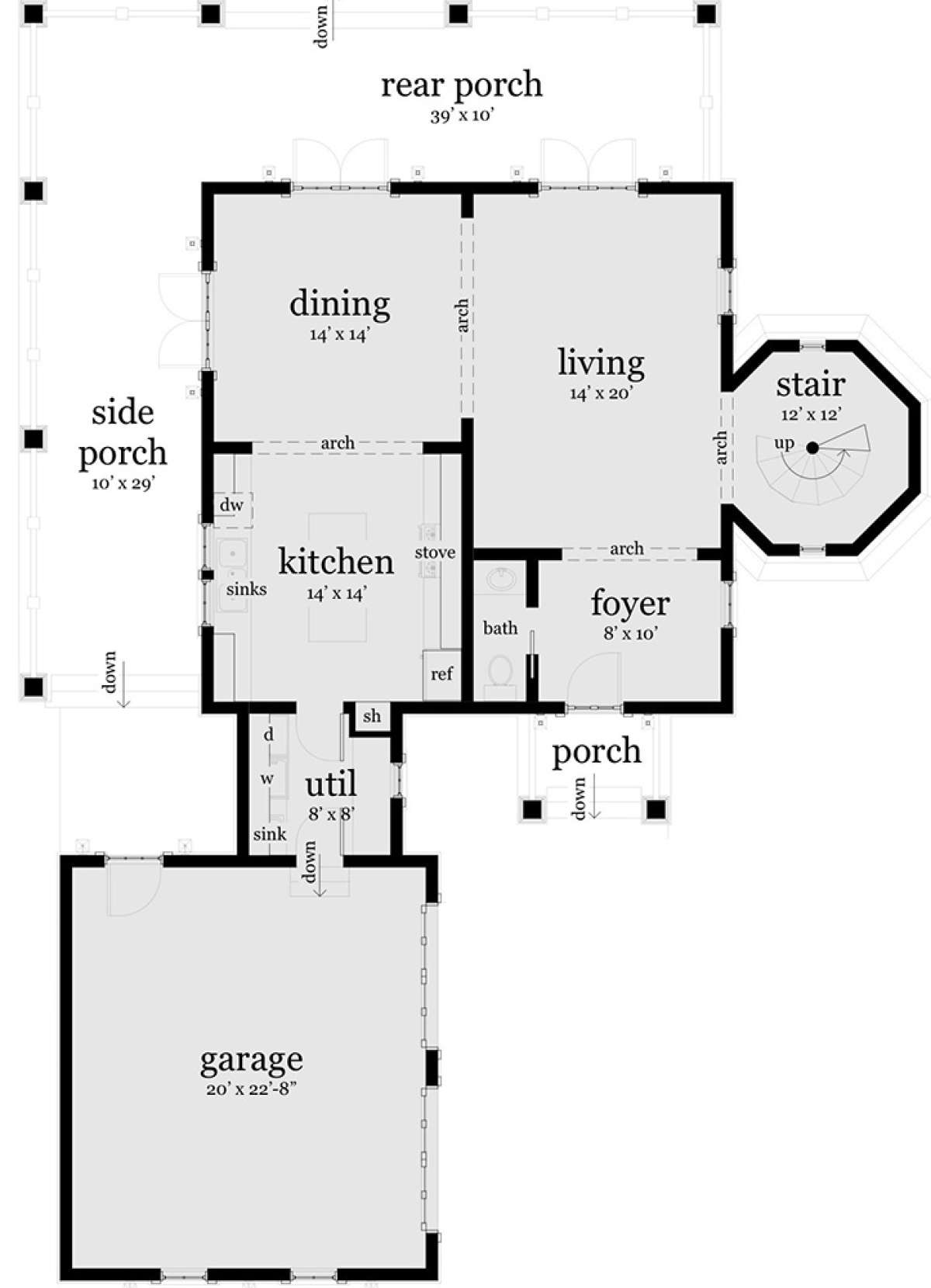

Main Floor for House Plan #028-00064

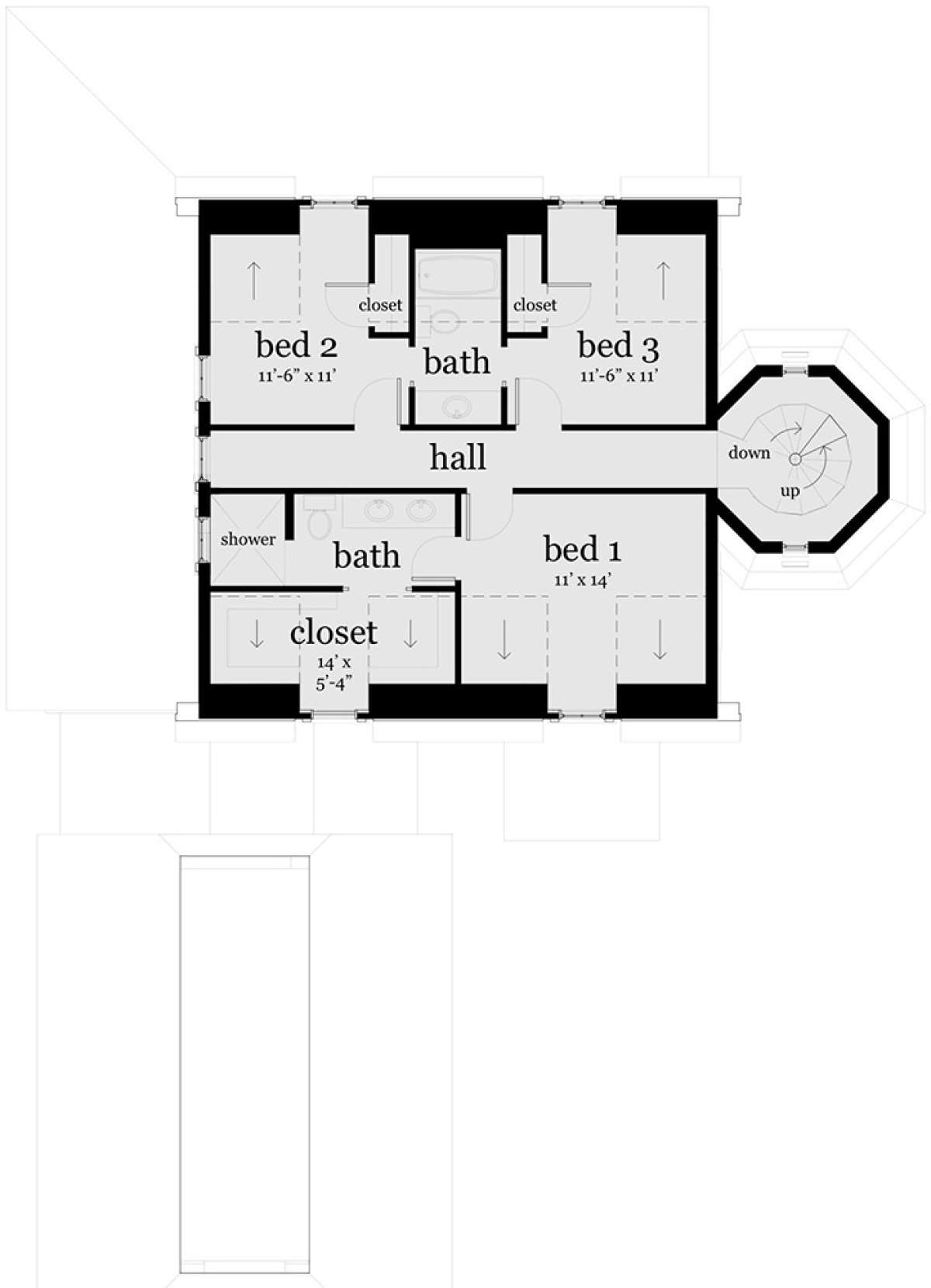

Second Floor for House Plan #028-00064
Main Floor
Main Floor for House Plan #028-00064

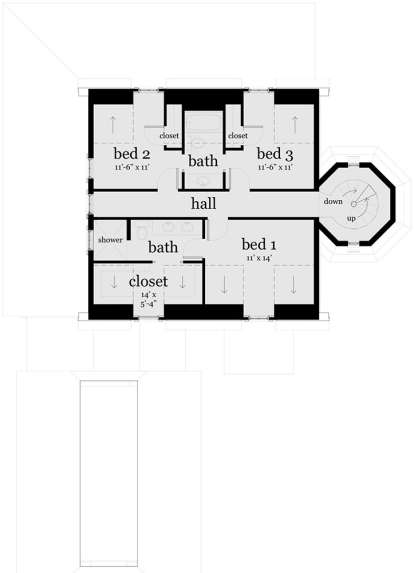

Second Floor
Second Floor for House Plan #028-00064

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

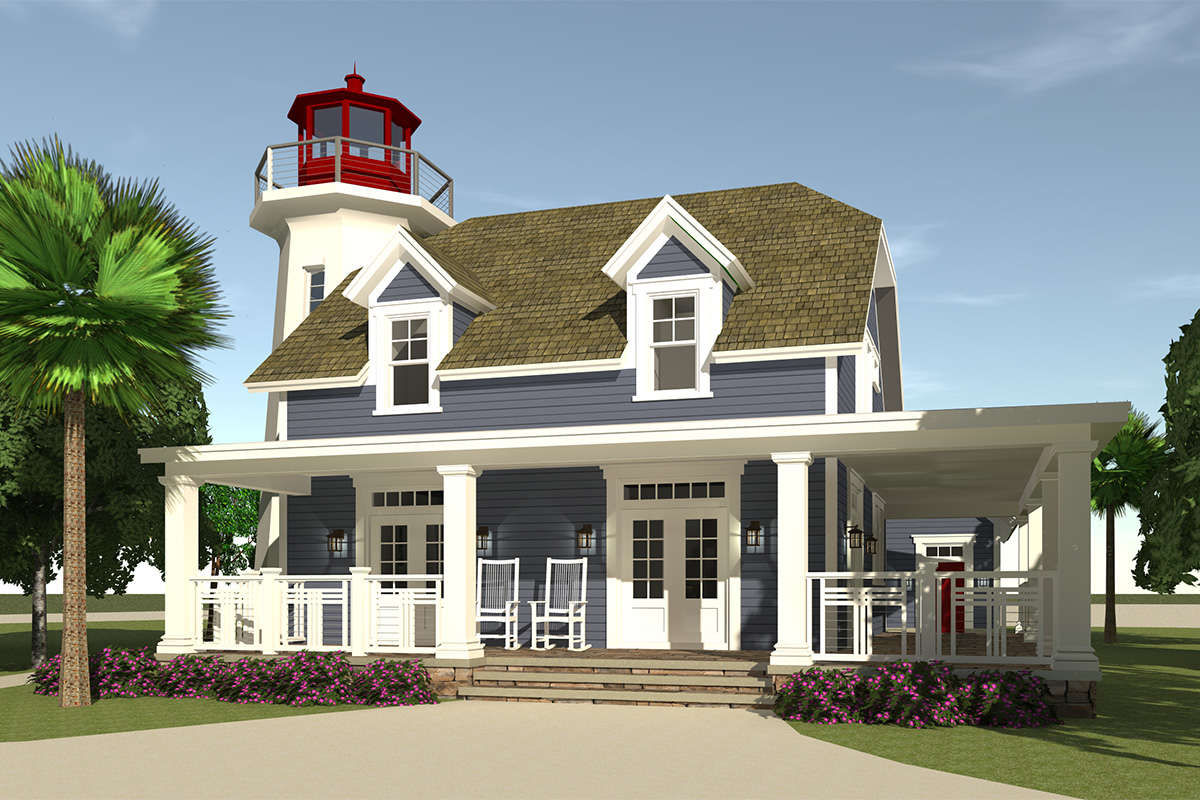

This unique house design has its own lighthouse and features a functional interior floor plan. The exterior of the home is striking and attractive with a central home, a motor court feature with two car garage and a lighthouse which offers wonderful outdoor and coastal views. There are in excess of 2,000 square feet of living space in the home which incorporates three bedrooms and two plus baths in the two storied home. This Coastal home is fashioned in the New England style and is highlighted by clean roof lines, multiple window dormers and simple architectural elements which enhances, not distracts, from the home’s exterior façade. Nine foot ceiling heights and an open concept design increase the home’s spaciousness and appeal. The broad foyer opens onto the expansive living room and provides access to the lighthouse. The dining room is open to the living room and provides generous entertaining and family living space. The chef’s delight kitchen features a center island, an abundance of additional counter and cabinet space and leads to the rear utility room which is spacious and functional. The second story is reached through the lighthouse and features an extended hallway where you will find two family style bedrooms and a bath on one side. Both bedrooms are spacious with open closet space and there is a jack and jill bathroom with private access from each bedroom. The master suite features a spacious bedroom with an en suite bath containing dual vanities, a private toilet area and a shower. The enormous walk-in master closet sits at the rear of the bath for privacy and convenience. This Coastal home has a striking exterior façade and an interior floor plan designed for enjoyable and effortless entertaining and great family relaxing space.
