Vacation House Plan 028-00040

Sq Ft3,325
1/2 Baths1
Width42' 0"
Depth81' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

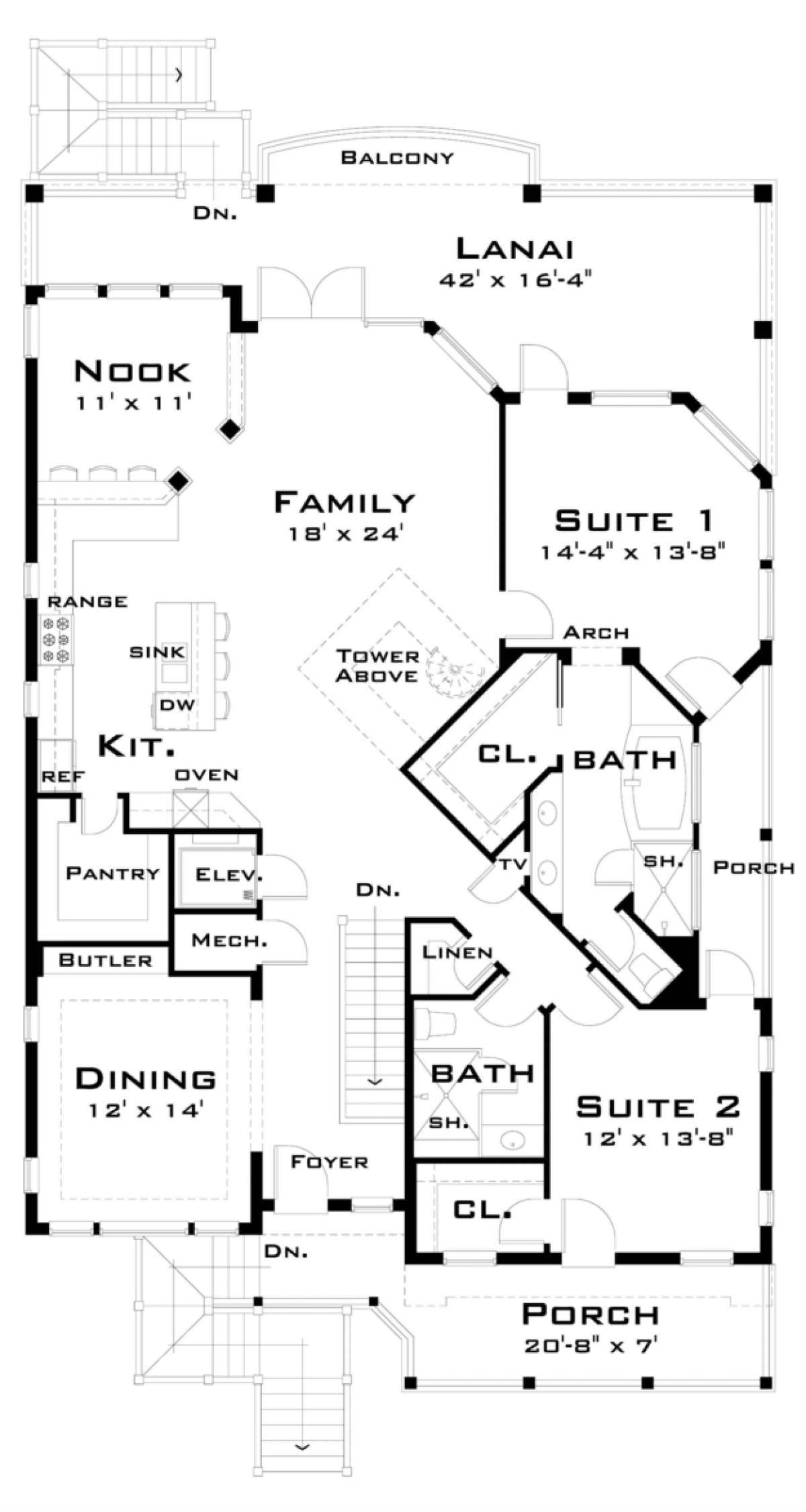

First Floor for House Plan #028-00040

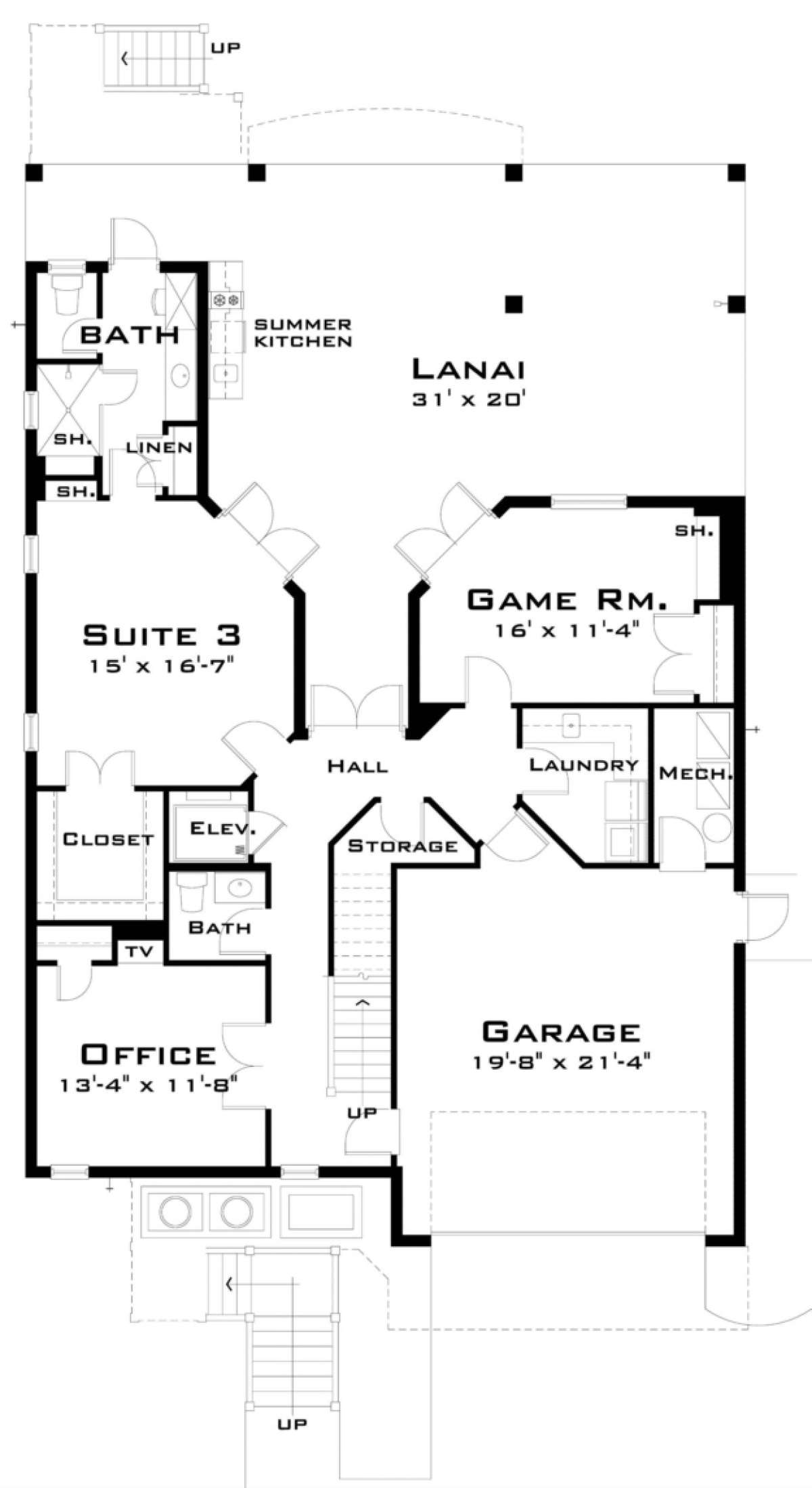

Second Floor for House Plan #028-00040
First Floor
First Floor for House Plan #028-00040
Second Floor
Second Floor for House Plan #028-00040

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This stylish vacation home is perfect for ocean viewing and beach living. Architectural elements reminiscent of Key West and coastal living are present in the home and outstanding outdoor space is the key to this home’s charm. Winding staircases highlight the front and rear of the home’s exterior along with fabulous window views. There are approximately 3,325 square feet of living space in the home featuring three bedrooms and three plus baths. The spacious foyer houses the second story staircase and residential elevator; the elevator is ideal for elderly or infirmed family members or guests. A formal dining room with trey ceiling accent and butler’s pantry is open to the foyer. The gourmet kitchen features great cooking and entertaining space and is highlighted by double breakfast bars. One sits at the edge of the center island where there is a sink area and prep space while the other opens onto the breakfast nook which is surrounded by window views. An abundance of additional counter and cabinet space is available in the kitchen along with an enormous walk-in pantry. The family room measures 18’x24’, houses the tower staircase and provides French door access to the rear lanai. This outdoor space is expansive and is great for entertaining large gatherings of family and friends. There is a bedroom suite which is accessible from the lanai and side porch; it features a large bedroom and an oversized walk-in closet. The attached private bath is highlighted by dual vanities, a separate shower, tub and a compartmentalized toilet. The second bedroom suite is situated on the main level as well and features double access points to the front and side porch and a large walk-in closet. An adjacent hall bath and linen closet complete the main level.
The terrace level of the home provides plentiful interior and outdoor space. There is a large home office/study with closet space which could also function as a fourth bedroom. A family styled game room features French door access to the patio lanai and built-in shelving and a closet are available as well. The terrace level lanai is huge with multiple access points into the home and a summer kitchen. A three bedroom suite features an oversized bedroom and walk-in closet along with a private bath. Additionally, an enormous utility room with sink area and counter space along with a half bath and garage are situated on the terrace level. This vacation home is a masterful use of space; there is plenty of private space, entertaining space and the outdoor space in the home is plentiful and functional.
