Charleston House Plan 028-00019

Sq Ft3,694
1/2 Baths1
Width42' 0"
Depth81' 0"

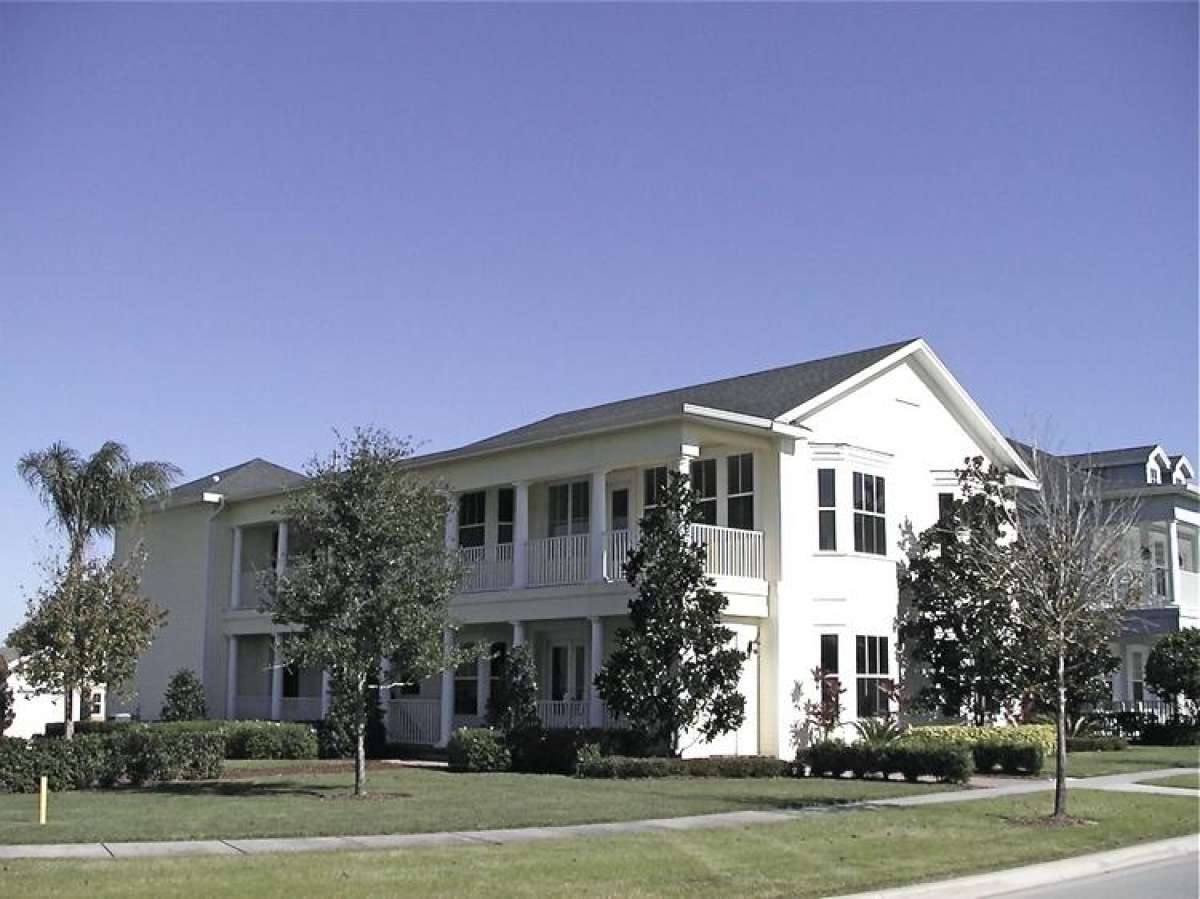

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

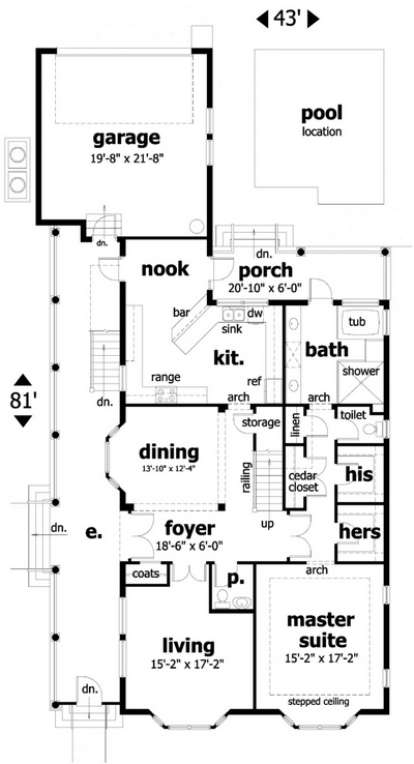

First Floor for House Plan #028-00019

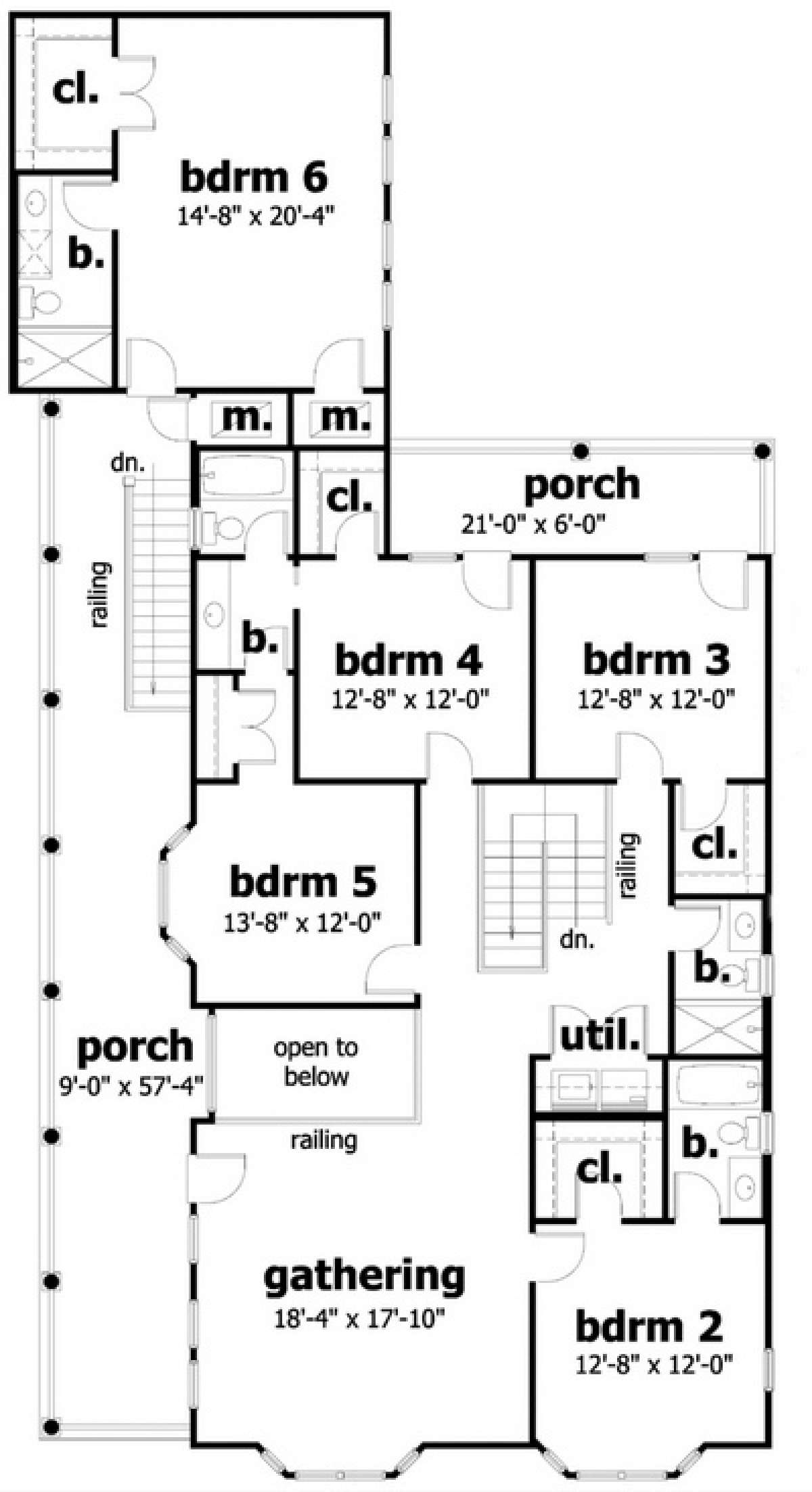

Second Floor for House Plan #028-00019
First Floor
First Floor for House Plan #028-00019
Second Floor
Second Floor for House Plan #028-00019

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical

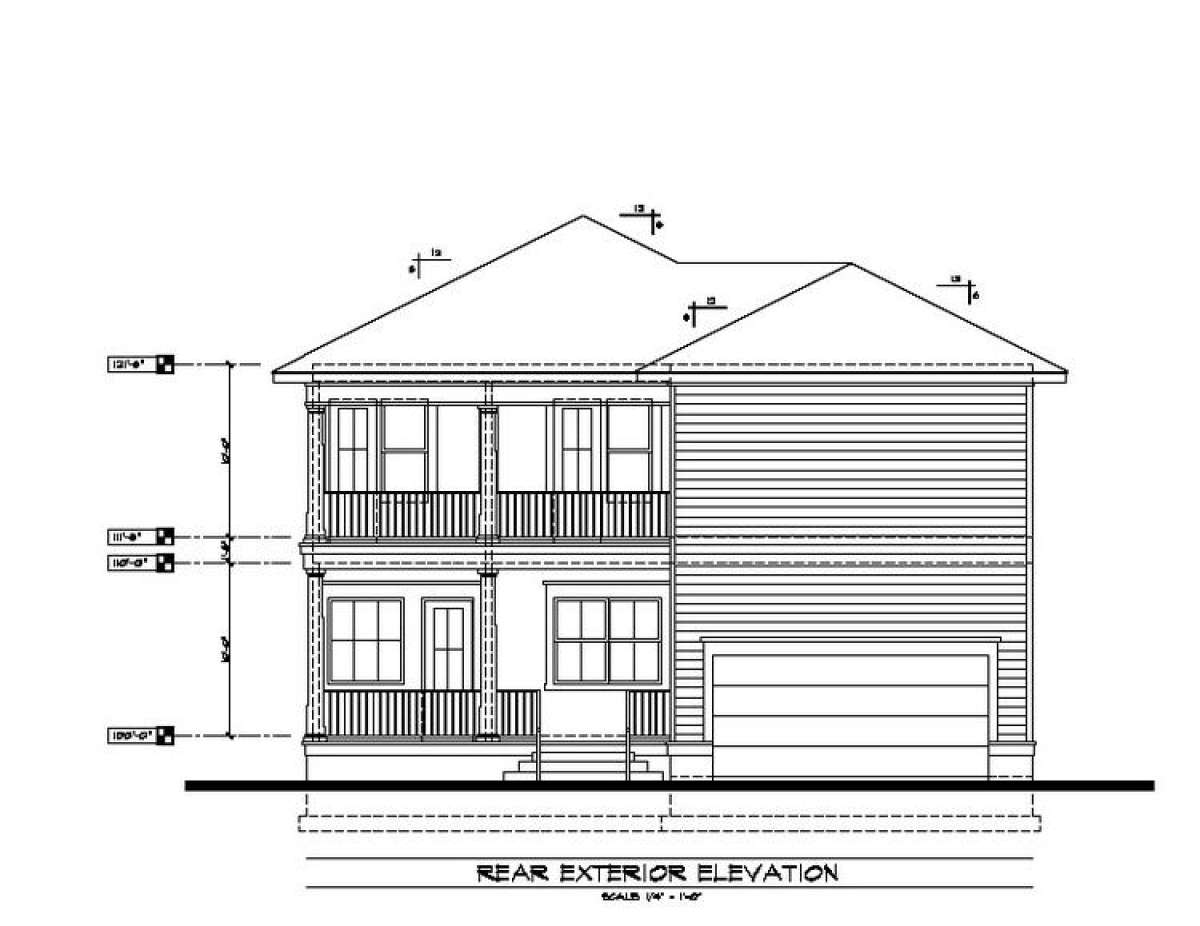

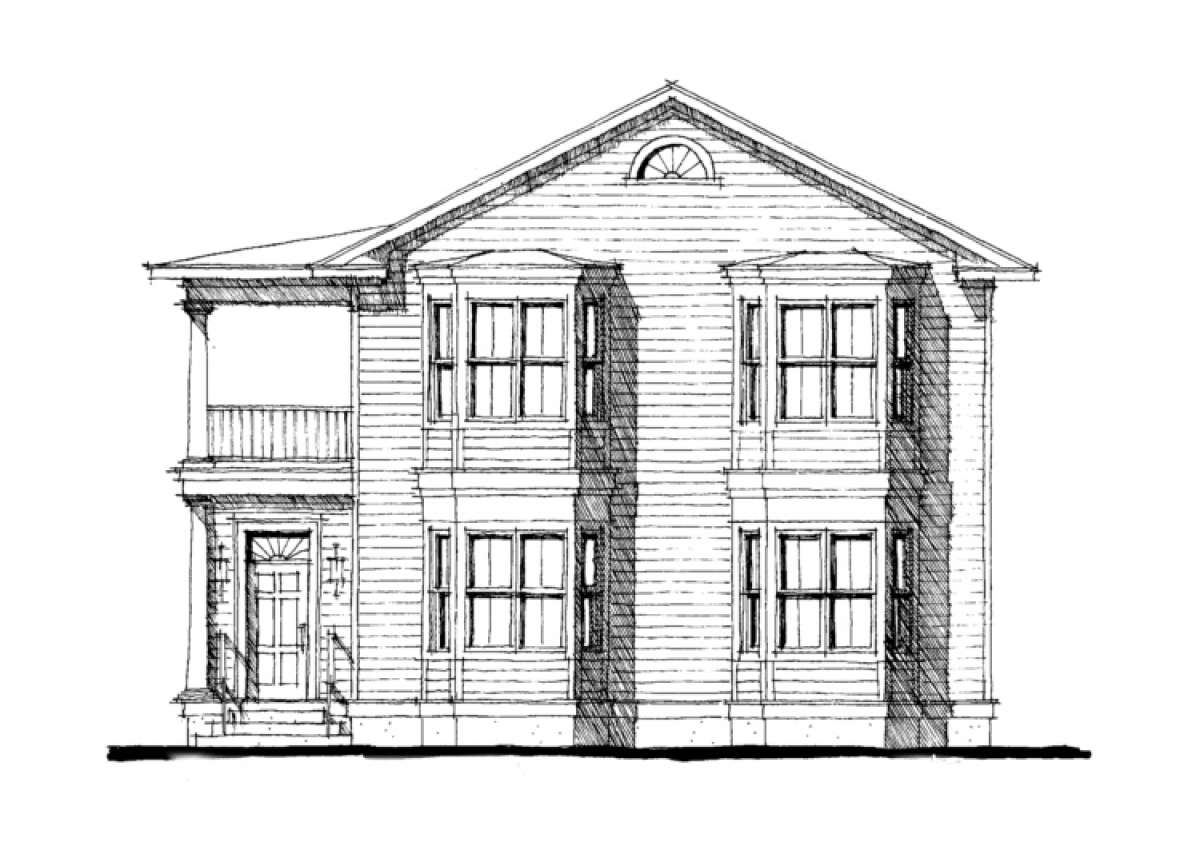

  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Six bedrooms and five plus bathrooms are highlighted in this Charleston style home design. An abundance of interior space in two stories gives this luxurious home plenty of room for entertaining and private family space. Period detailing such as column beams, expansive porches, French door access and arched openings gives the home a unique level of attention to detail. Architectural details inherent to this home are stunning and begin in the grand two story foyer which opens onto the formal dining room where a triple bay window and arched opening are highlighted. The formal living room is accessed through French doors and reveals a large space and bay window as well. An angled breakfast bar is featured in the gourmet kitchen along with a plethora of additional counter and cabinet space and the breakfast nook provides access to the front and rear porches. The rear of the home houses a pool area and garage protecting the sight lines from distraction. An enormous master suite is showcased on the main level for privacy and features a spacious bedroom with trey ceiling accent and triple bay window. His and her walk-in closets, along with a cedar closet, line the hallway to the elegantly designed master bath. Dual vanities, a tub, separate shower, linen closet and compartmentalized toilet are featured in the bath and rear porch access is provided.
Expansive space is provided on the second floor of the home, including an abundance of interior and outdoor space. A large family style gathering room is situated off the landing where wonderful window views, a triple bay window and access to the covered porch provide an open feel. The laundry room is situated on this floor, as well, for ease and convenience. Five additional bedrooms and multiple bathrooms sit on the second floor of the home; bedroom two is spacious and is highlighted by a bay window and walk-in closet and there is a private bath. Bedrooms three and four feature walk-in closets and access to the rear porch while the fifth bedroom has ample closet space and a bay window. Access to two full baths is provided for the three bedrooms. A sixth bedroom is clearly oversized with a walk-in closet and private bath. This luxury home features a stately exterior fa├žade and outstanding interior and outdoor space, perfect for a large family.
