Charleston House Plan 028-00031

Sq Ft3,772
1/2 Baths1
Width45' 0"
Depth99' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

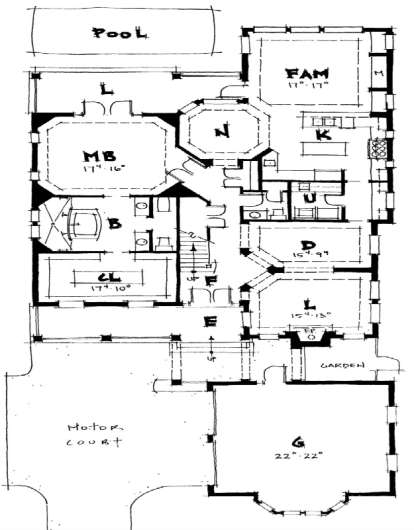

First Floor for House Plan #028-00031

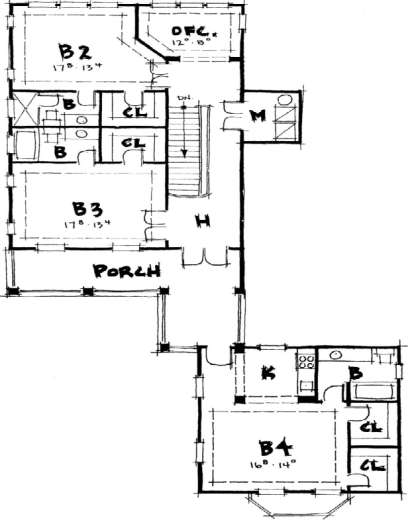

Second Floor for House Plan #028-00031

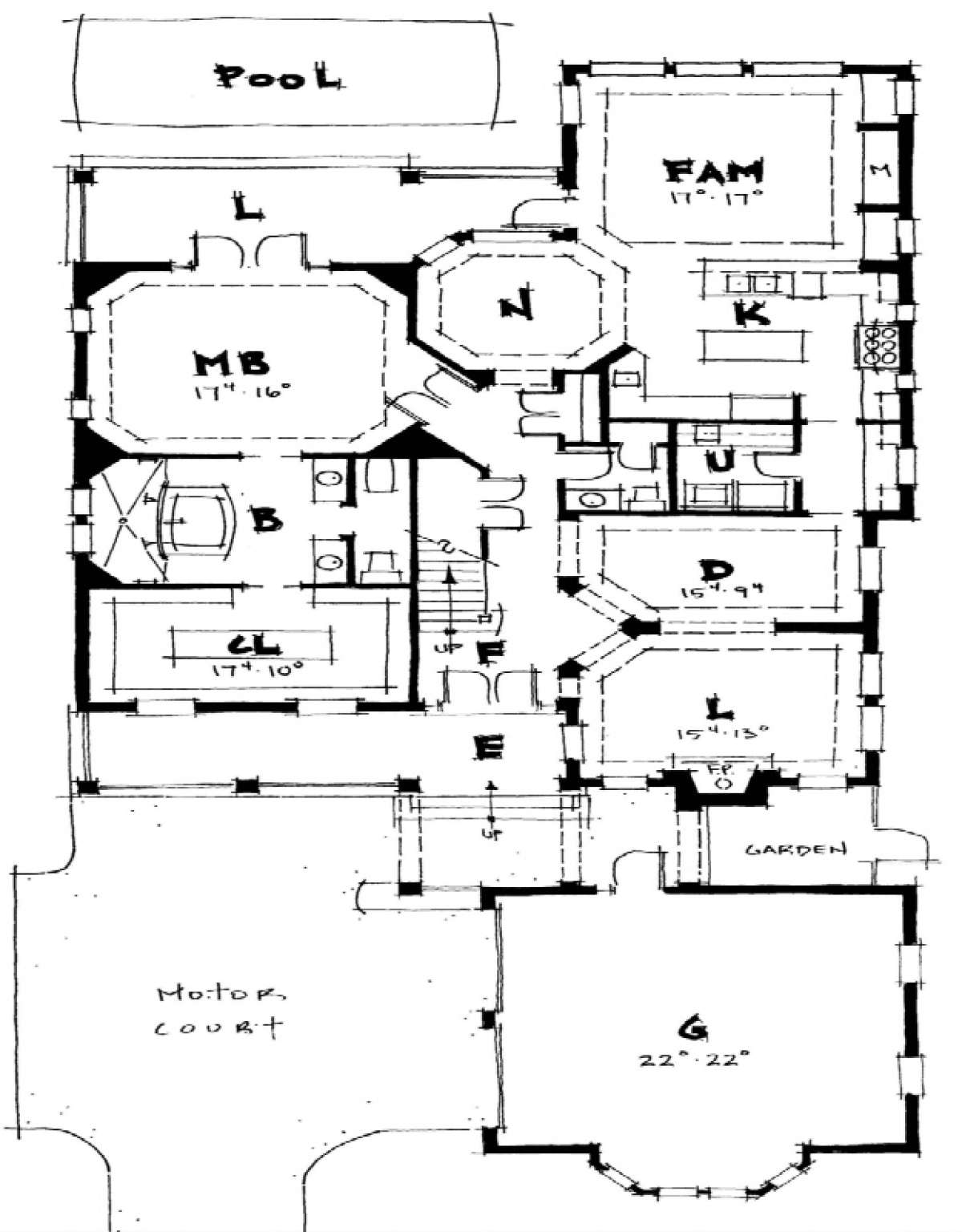

First Floor
First Floor for House Plan #028-00031
Second Floor
Second Floor for House Plan #028-00031

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

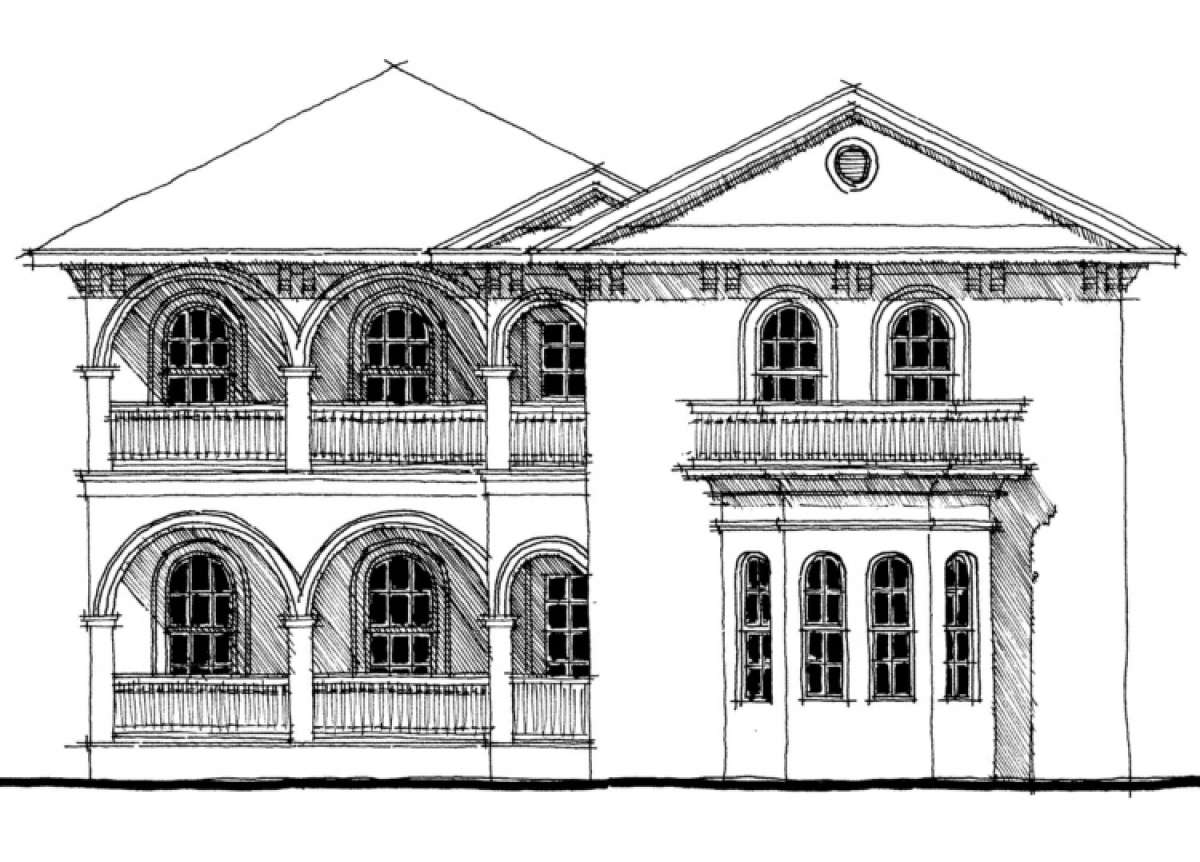

This beautiful Charleston home has a distinctive historical exterior façade with rows of columns creating open archways and gorgeous ironwork supporting an open balcony. This Southern style house design boasts of an abundance of outdoor space and an interior floor plan which is traditional and functional. The square footage in the home comes in at just under 3,800 square feet where four bedrooms and four plus baths are incorporated into it. The stylish two car courtyard entry garage adds an additional 570 square feet to the house plan. Double door access into the home is through the foyer which houses the second story staircase and opens onto the formal living and dining rooms. Both rooms are quite spacious with trey ceiling accents and there is a stately fireplace situated in the living room. The rear of the home features great family space which is comprised of the kitchen, breakfast nook and family room. The family room boasts of built-in cabinetry, a trey ceiling, a rear wall of windows and access to the rear porch. The gourmet kitchen is highlighted by a breakfast bar, a center island and loads of additional counter and cabinet space. The octagon shaped breakfast nook affords the family great views overlooking the rear porch and pool area. The main level master suite features a spacious bedroom with a trey ceiling and French door access to the rear porch. There is an elegantly designed bathroom which features dual sinks, a separate shower, tub and private toilet area. The master closet which boasts of larger dimensions than some bedrooms is situated at the rear of the space for privacy. A powder room for guests and large utility room complete the main level of the home.
The second floor boasts of two oversized bedrooms of equal proportion; each has a walk-in closet and private bath. The backend of the hallway features a home office/study which could also function as a homework station or playroom for the children. The front end of the hallway is highlighted by French door access to the second story porch and there is a private mother-in-law suite. The suite offers consummate accommodations for family members or could be used as a guest suite. There is a large living/sleeping space which features a trey ceiling and private access to the balcony along with a functional open kitchen. Double closets and a full bath complete the suite. This charming home has loads of character and space making it ideal for a large family.
