Colonial House Plan 028-00016

Sq Ft3,325
1/2 Baths1
Width44' 0"
Depth86' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

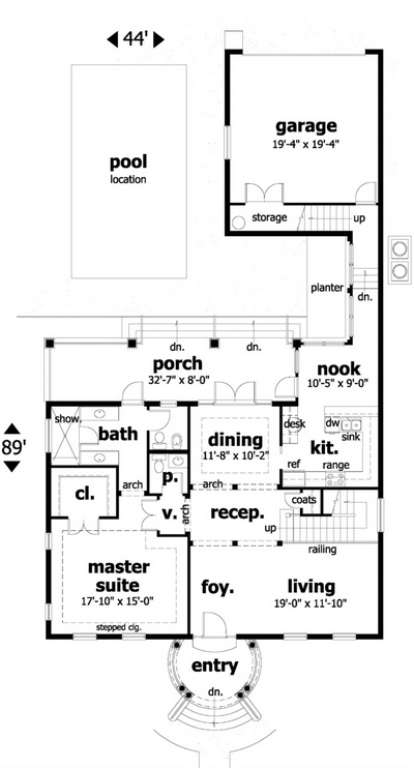

First Floor for House Plan #028-00016

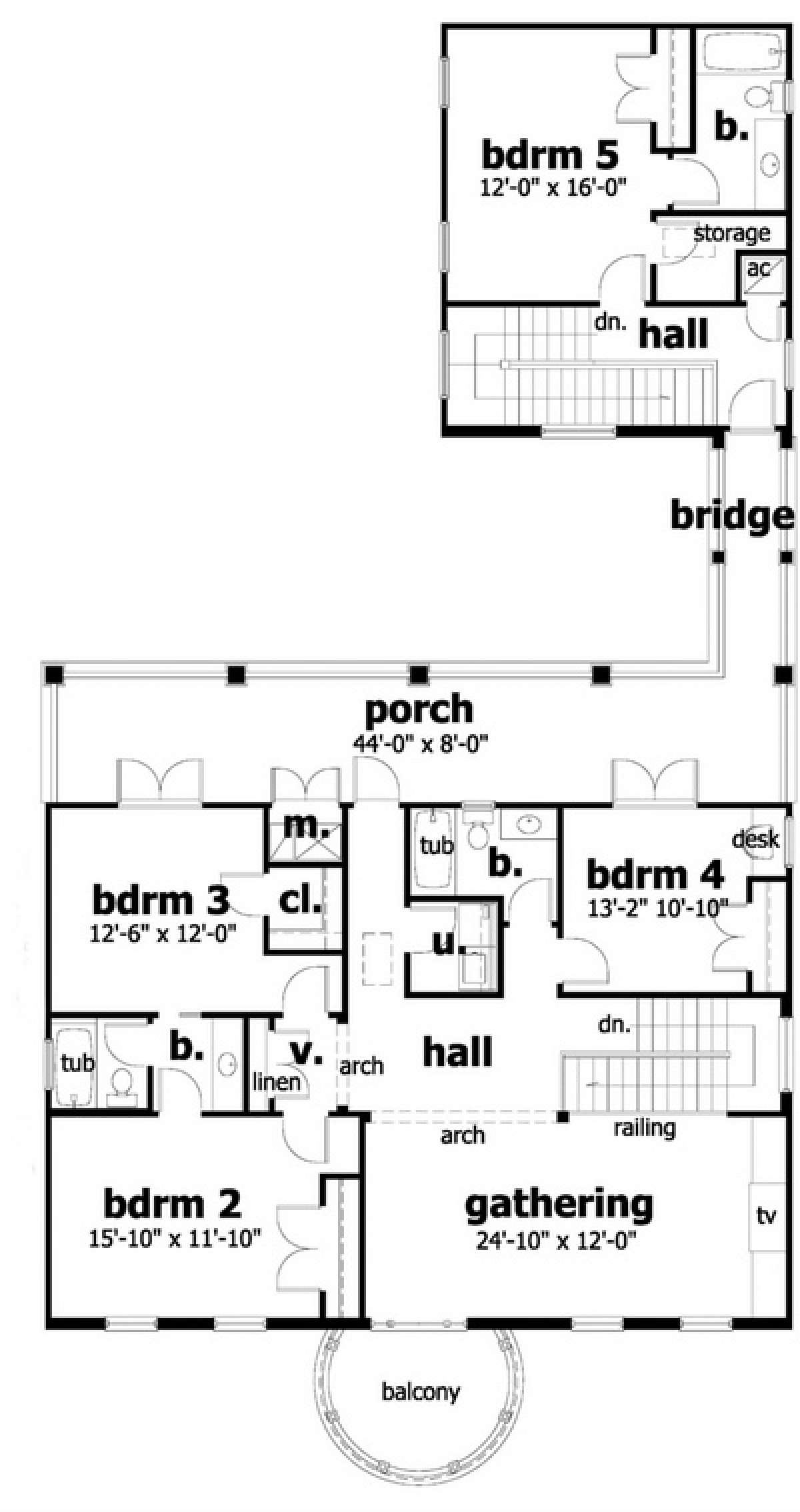

Second Floor for House Plan #028-00016

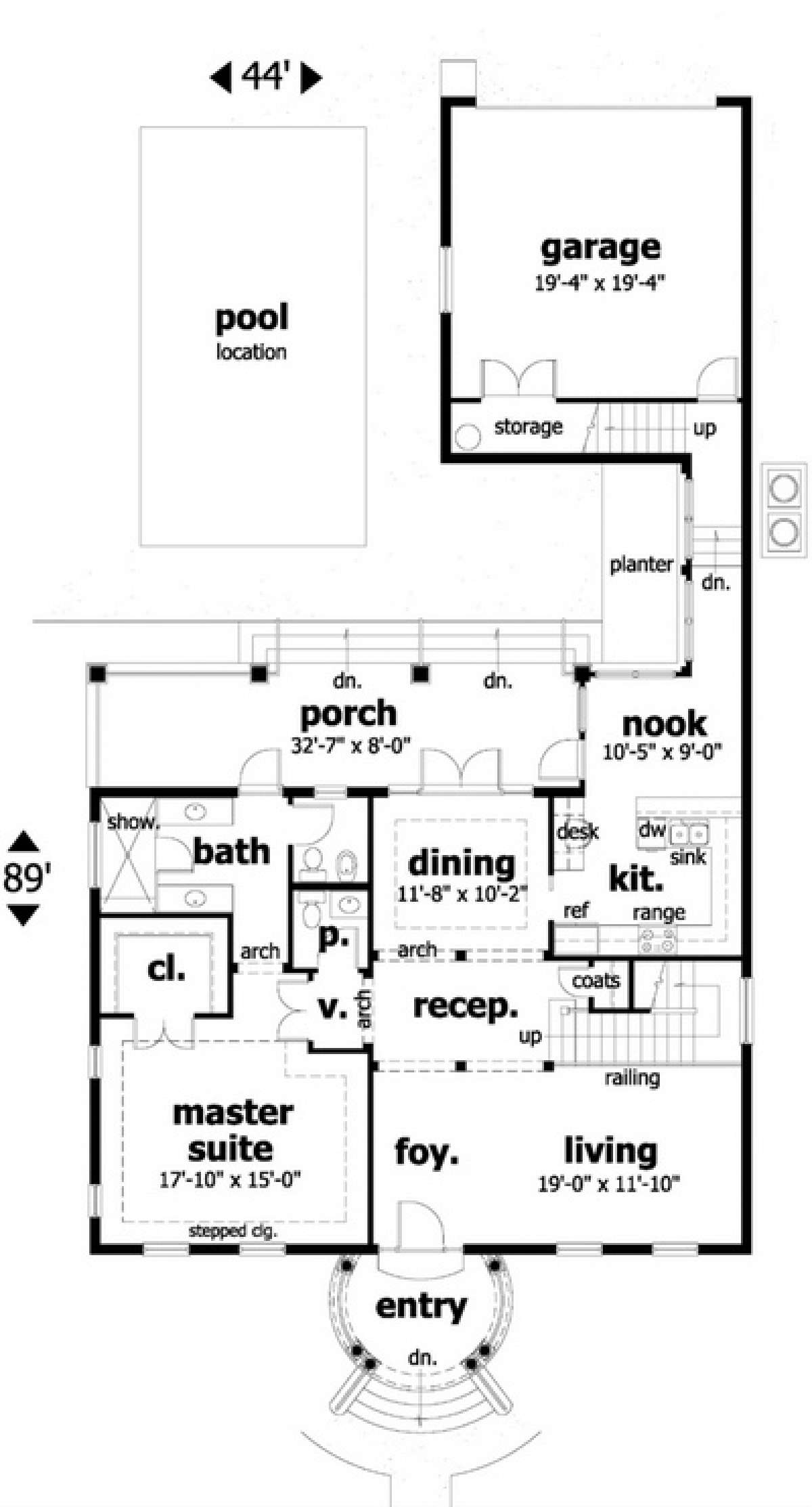

First Floor
First Floor for House Plan #028-00016
Second Floor
Second Floor for House Plan #028-00016

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

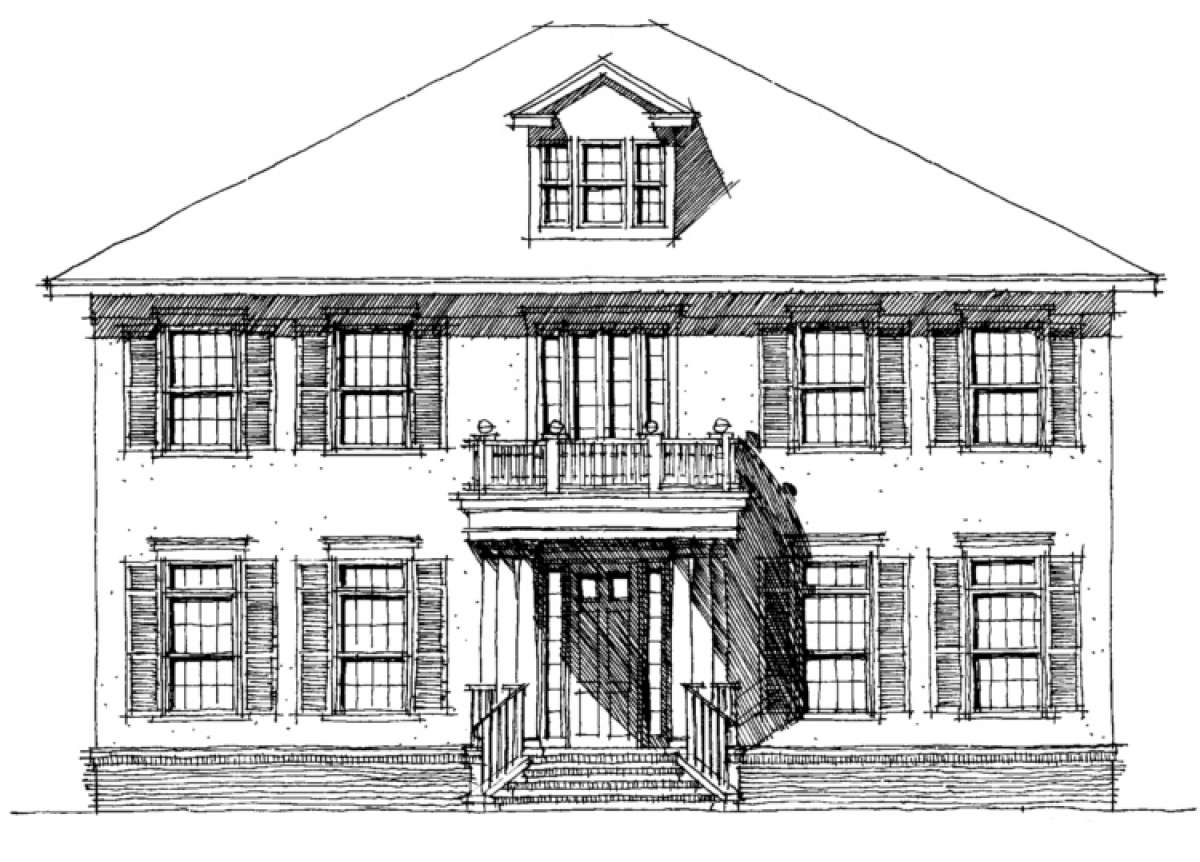

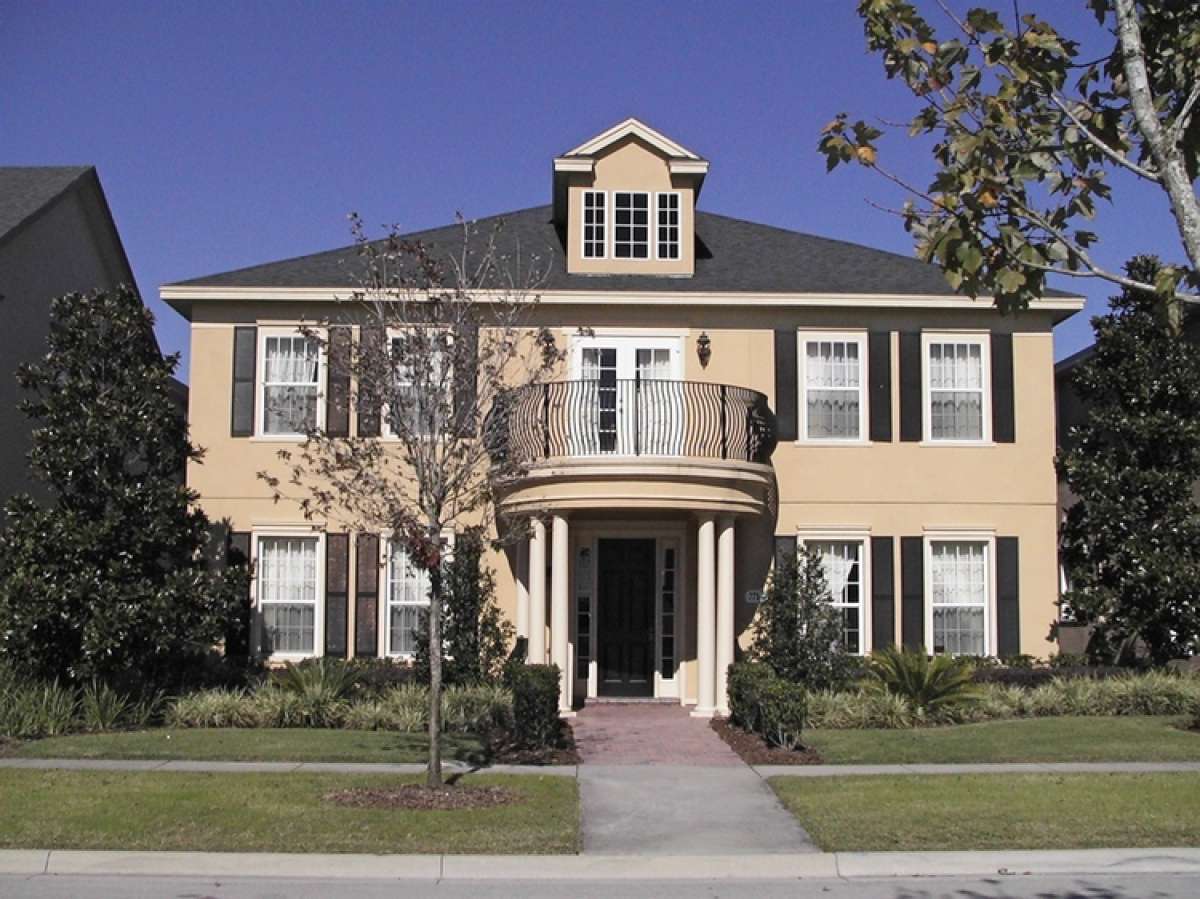

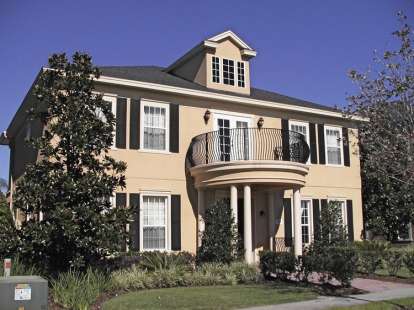

This stately Colonial house plan features a gorgeous exterior highlighted with columns and iron railing on the second floor balcony. A window dormer and the boxy exterior provide balance and symmetry to the home’s decorative half moon architectural elements. The interior floor plan is spacious and features 3,325 square feet of living space which is comprised of three bedrooms and four plus bathrooms. The circular entrance leads into the spacious foyer and living room; a subsequent reception area provides access to the second story staircase and entrance into the master suite. Beyond the reception area is the formal dining room which is highlighted by a stepped ceiling, columns and features French door access onto the rear porch. The rear porch is expansive, measuring in excess of 32’x8, and overlooks the pool area creating a magnificent area in which to entertain and host special family events. The gourmet kitchen features a breakfast bar, desk area, plenty of additional counter and cabinet space and opens onto the bright breakfast nook. A hall passageway leads to the garage which features additional storage; along the way is a private staircase to the fifth upper level bedroom. The master suite is situated on the main level for privacy and is highlighted by a large bedroom with a trey ceiling accent and oversized master closet. The master bath features dual vanities, a shower, a compartmentalized toilet and private access to the rear porch.
Great family space is evident on the second story where you have an enormous gathering room off the hallway. This room features built-in entertainment space, an arched opening and access to the second story balcony. The utility room is also situated on the second floor for ease and convenience along with four oversized family styled bedrooms. Bedroom two is spacious with ample closet space while bedroom three features a walk-in closet and private access to the rear porch; both bedrooms share a jack and jill bathroom. The fourth bedroom has a walk-in closet, a built-in desk area, private access to the rear porch and there is an adjacent full bath. The fifth bedroom has a private staircase and is situated above the garage; additionally, the bedroom can be bridged from the upper level porch. Bedroom five features an oversized space with ample closet space, extra storage space and a private bath. This beautiful home features great family and entertaining space and a plethora of outdoor space.
