Ranch Plan 9940-00005

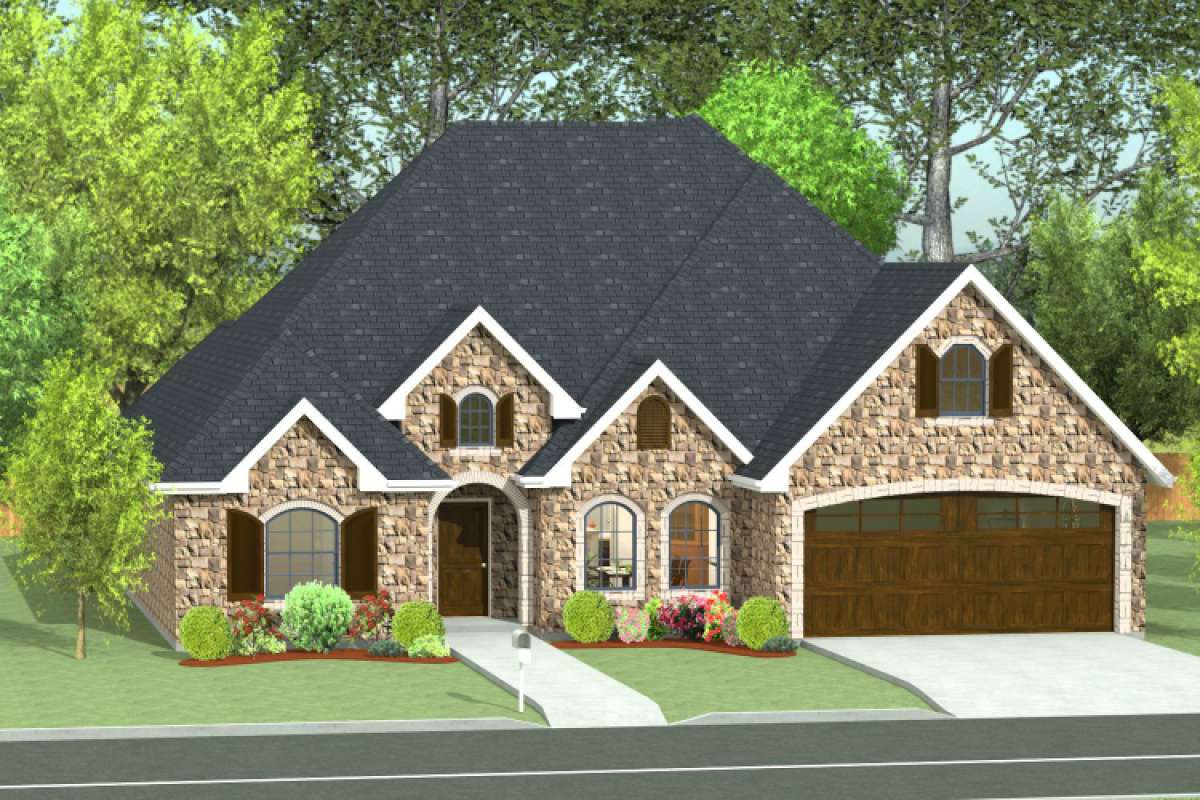

Ranch House Plan #9940-00005 Elevation Photo
Ranch House Plan #9940-00005 Elevation Photo

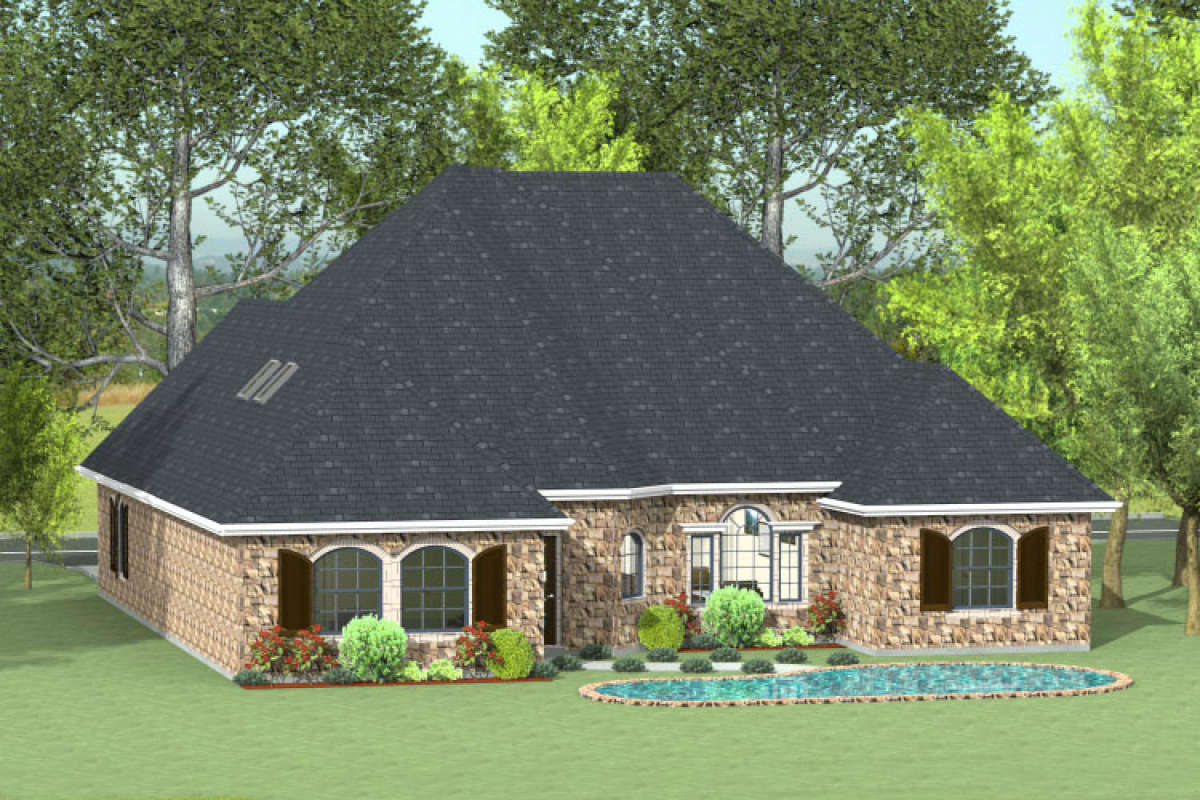

Ranch House Plan #9940-00005 Additional Photo
Ranch House Plan #9940-00005 Additional Photo
Ranch House Plan #9940-00005 Additional Photo

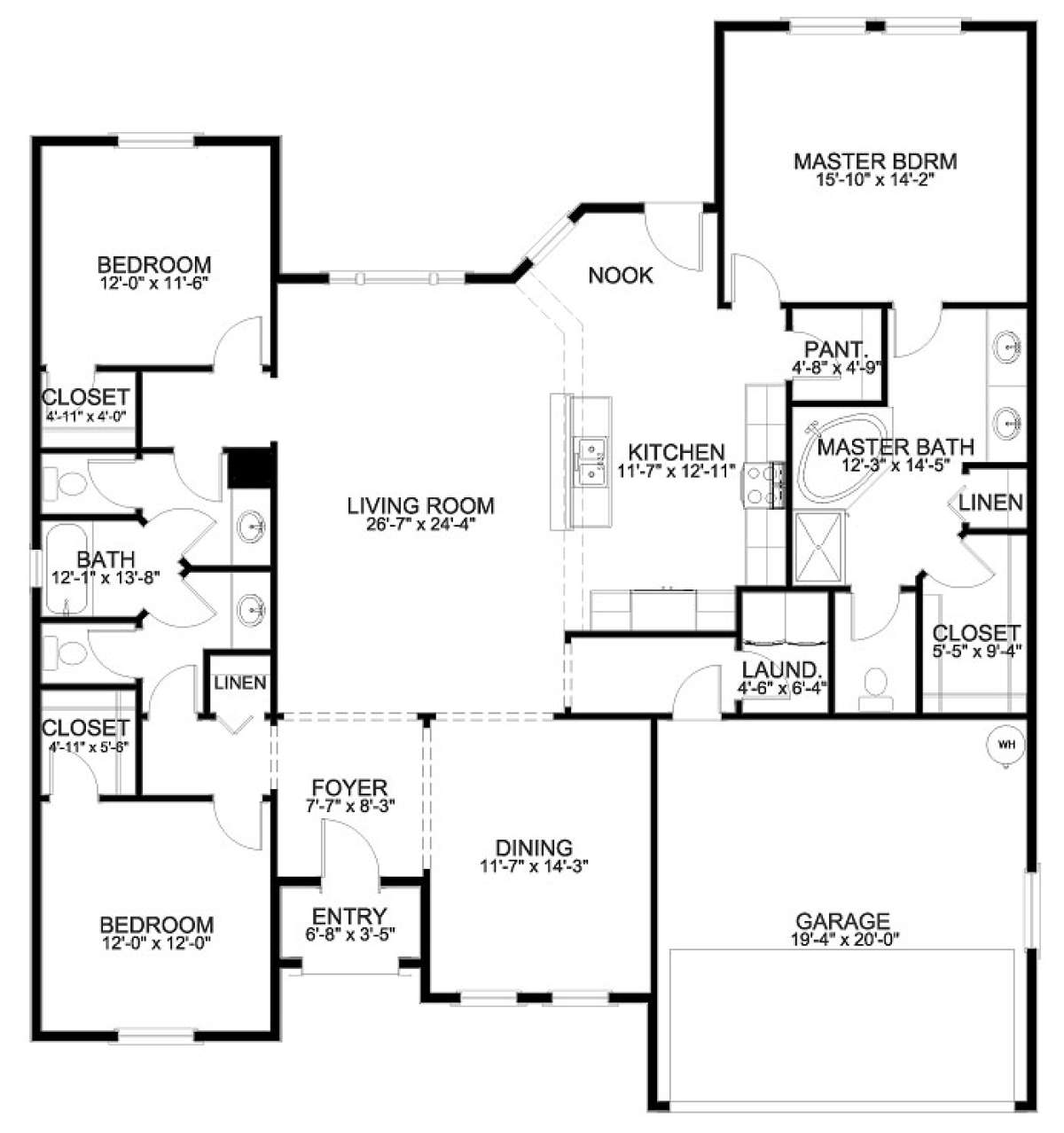

Floorplan1 for House Plan #9940-00005
6 Images

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Square Footage Icon Sq Ft 2,065
Beds Icon Beds 3
Baths Icon Baths 2
Half Baths Icon 1/2 Baths 0
Cars Icon Cars 2
Stories Icon Stories 1
Width Icon Width 52' 8"
Depth Icon Depth 57'

Floorplan Drawings

 PRINT  DOWNLOAD

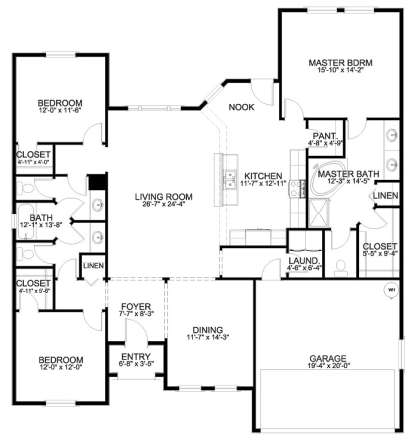

Floorplan1 for House Plan #9940-00005
Floorplan1
Floorplan1 for House Plan #9940-00005
Images copyrighted by the designer.


What's Included in these plans?

  • Cover Sheet
  • General Notes
  • Foundation Plans, drawn at 1/4" scale
  • Floor Plans, drawn at 1/4" scale
  • Roof Plan, drawn at 1/4" scale
  • Elevations, drawn at 1/4" scale
  • Electrical Plans, drawn at 1/4" scale
  • Interior Elevations
  • Section Details
  • Cross Section Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

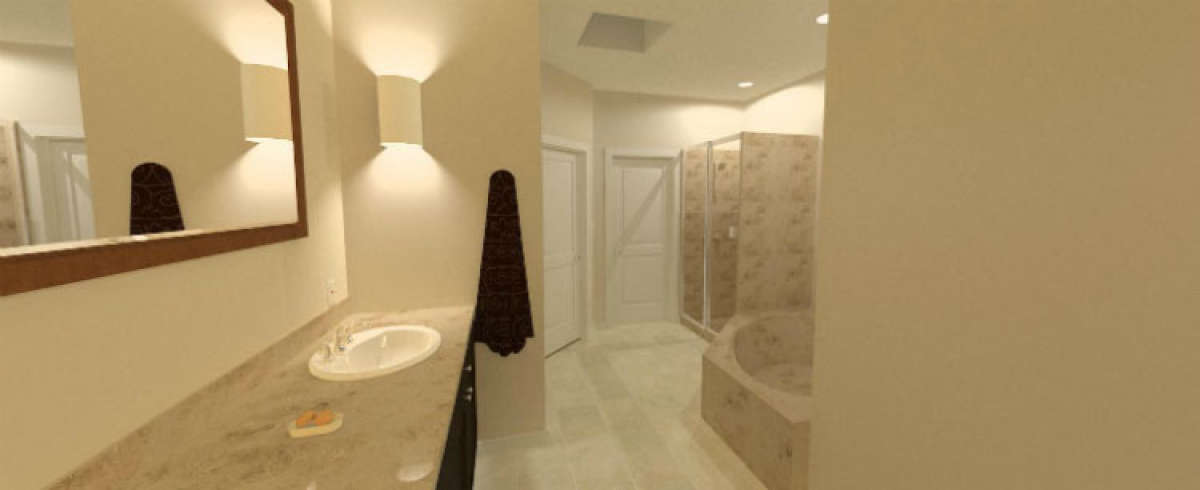

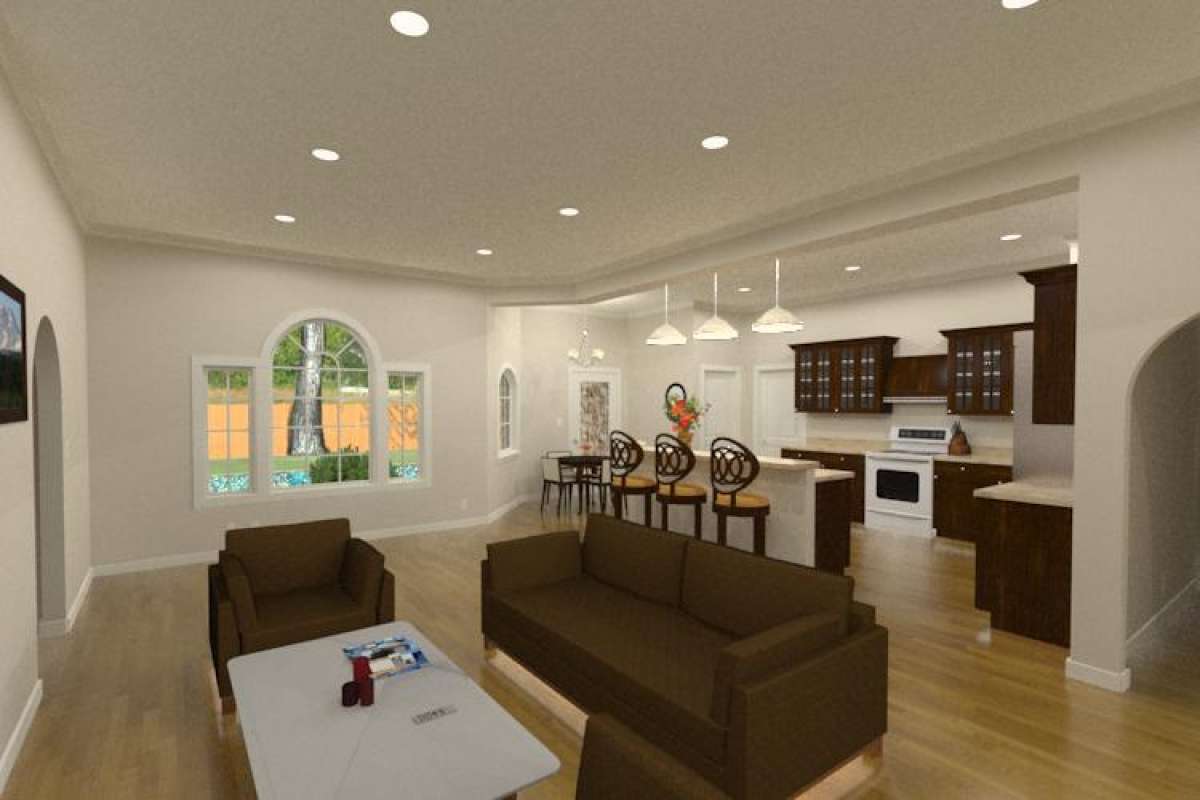

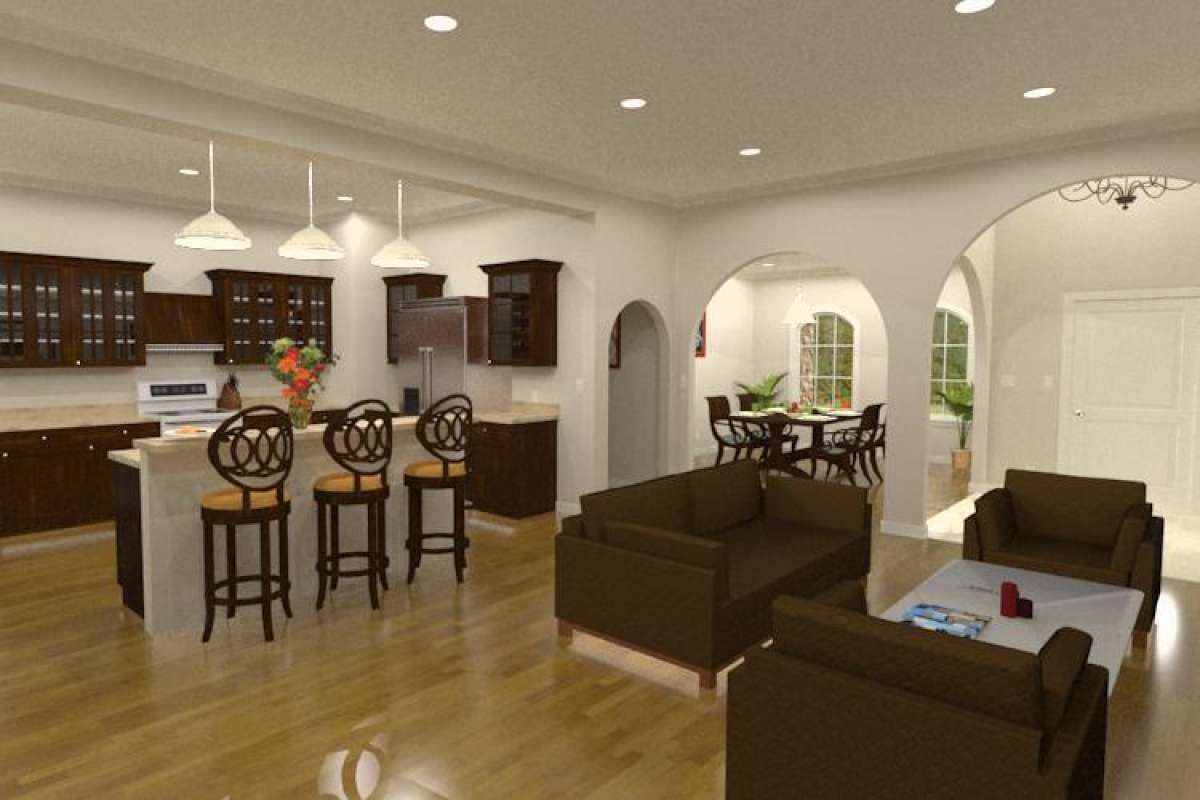

Gorgeous stonework, wooden shutters and a multi-tiered hip roof frame this Ranch house plan beautifully. There is also a recessed entrance highlighted with an arched opening that provides entry into the home’s interior where there are approximately 2,065 square feet of living space. The spacious foyer is open to the formal dining room and subsequent living area; both rooms offer generous space in which to entertain and relax with great window views as well. The open kitchen offers a breakfast bar for casual dining and there is plentiful work space and a walk-in pantry. The breakfast room is directly connected to the kitchen and features outdoor access. The two car front loading garage leads into the laundry room for ease of clean-up and a tidy home environment. The three bedroom, two bath layout is split between both sides of the home. The master suite lies on one side of the home offering plenty of privacy for the homeowners. There is a large master bedroom with great window views on the backside of the room, an en suite bath and a large walk-in master closet. The master bath enjoys a large footprint with a corner garden tub, a separate shower and dual vanities for a modern touch to the master suite. The two remaining bedrooms feature good floor space, walk-in closets and window views. The shared jack and jill bathroom is quite large and offers private vanities and toilet areas with a shared tub/shower combination and there is a hall linen closet as well. This home features great space and an inviting and welcoming exterior façade.
