Barn Plan 963-00773


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,982
Beds 4
Bath 2
1/2 Baths 0
Car 3
Stories 1
Width 114' 4"
Depth 43' 4"

Floorplan Drawings

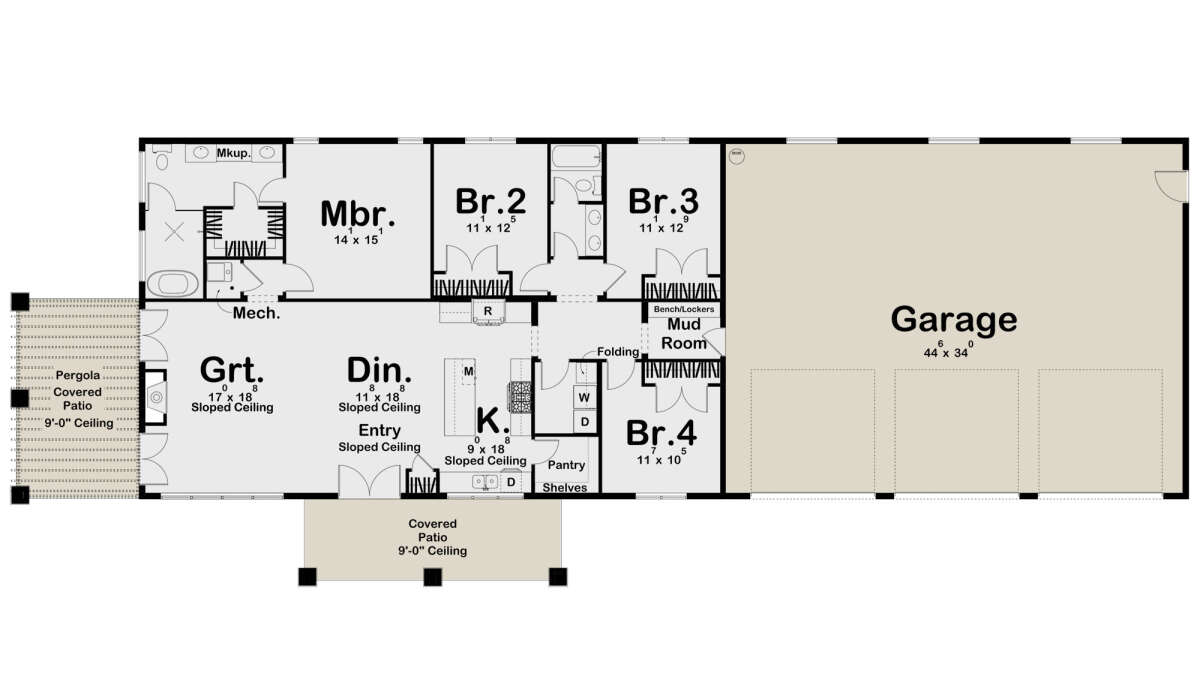

Main Floor
Main Floor  for House Plan #963-00773

What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

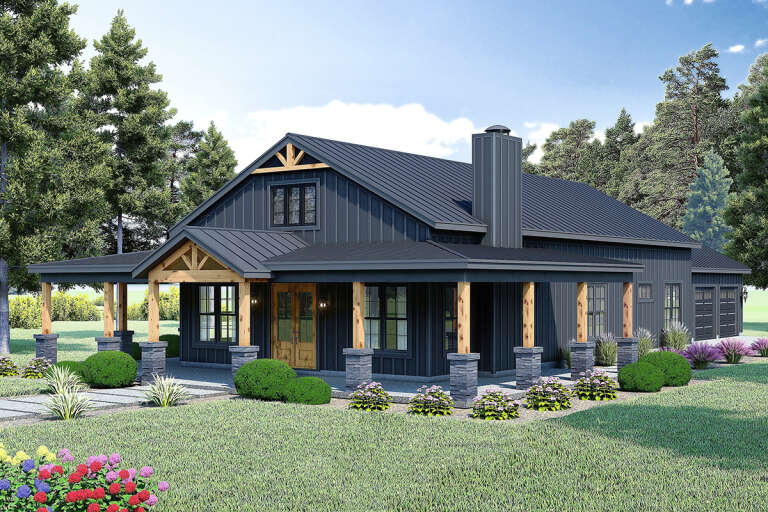

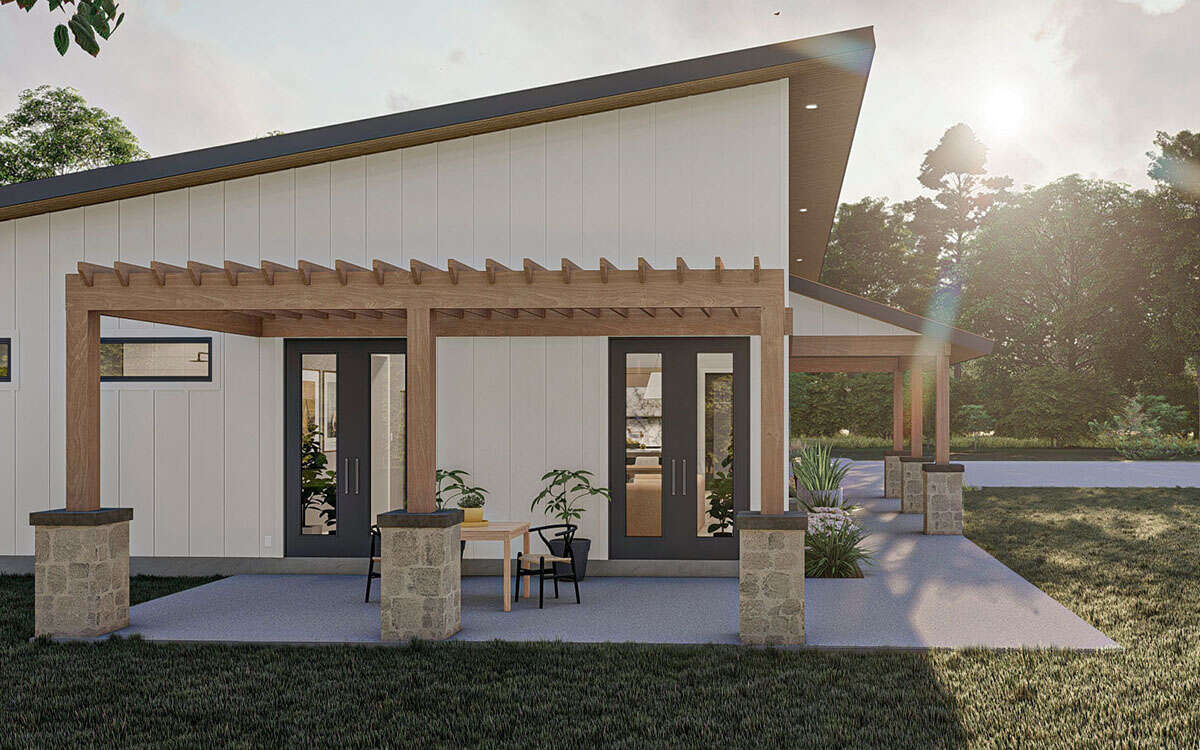

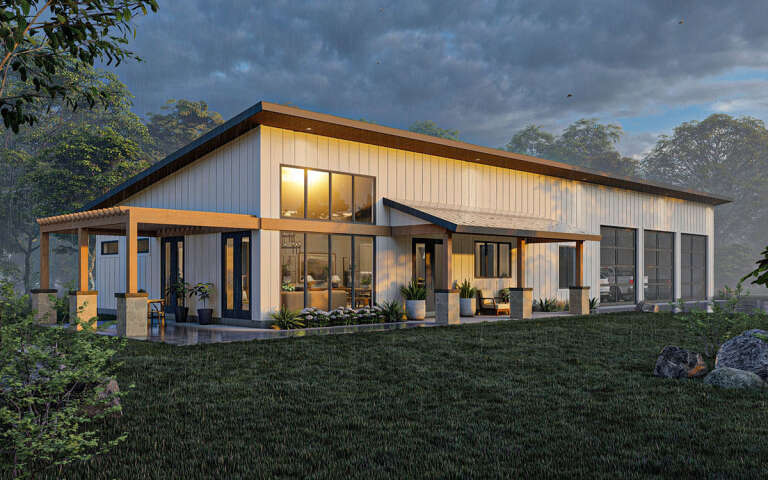

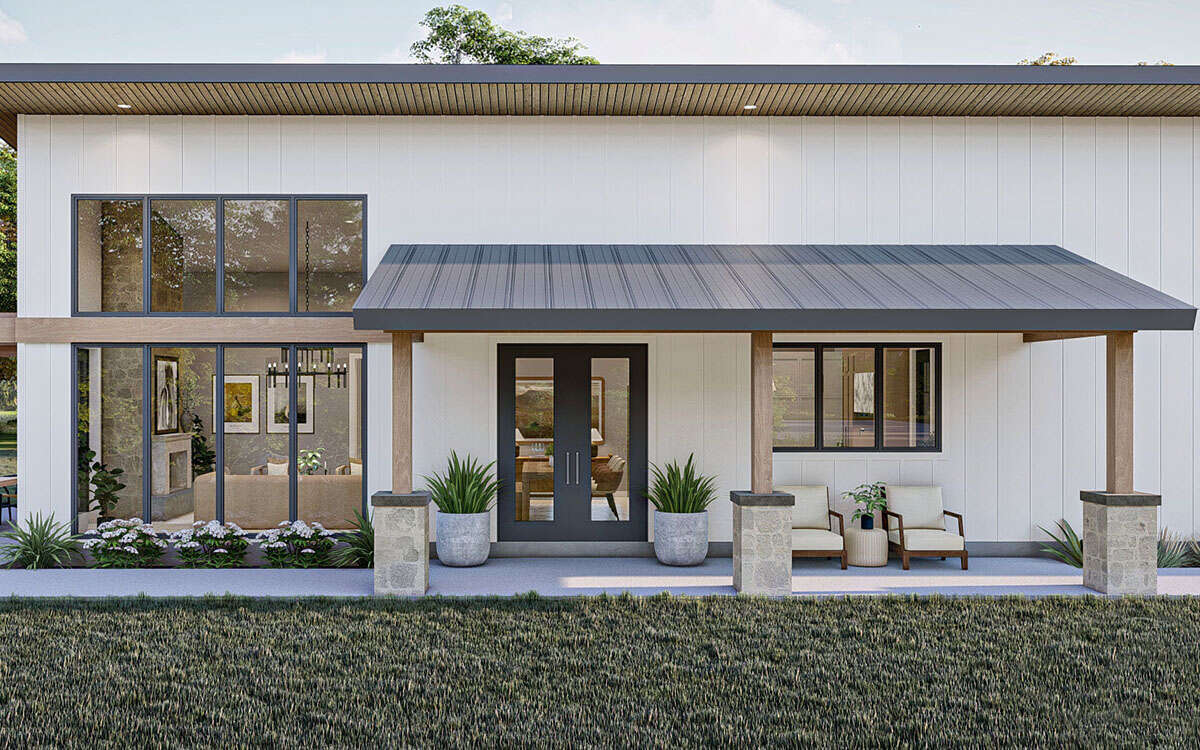

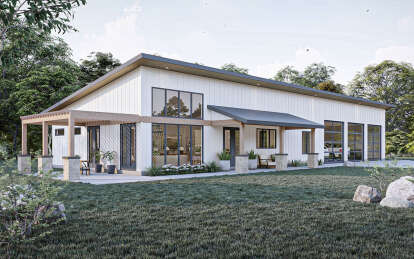

This gorgeous Shouse/Barndominium plan is light and airy with an abundance of window views, clean, fresh vertical siding, stone pillars and warm beams highlighting the front covered entrance and side covered patio. The far side of the Shouse style plan features a huge, measuring approximately 1,576 square feet, 3 car garage with plenty of space for vehicles, a workshop, storage or any number of potential uses the homeowner may have.

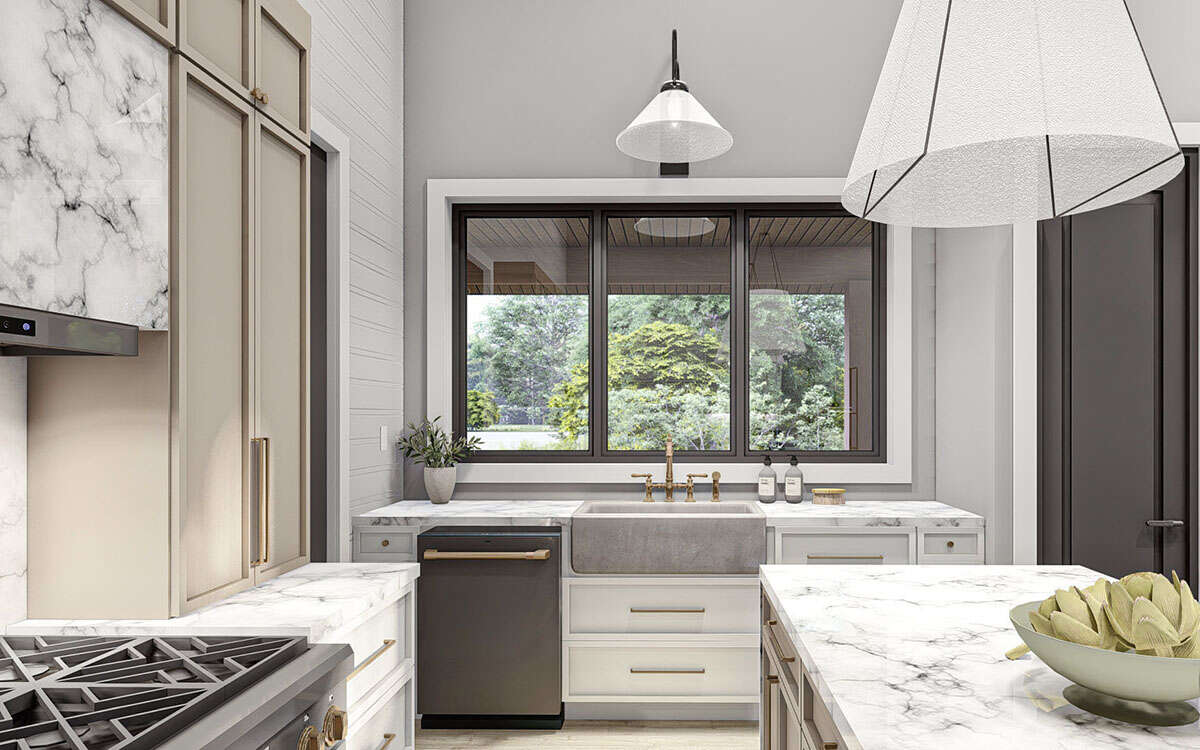

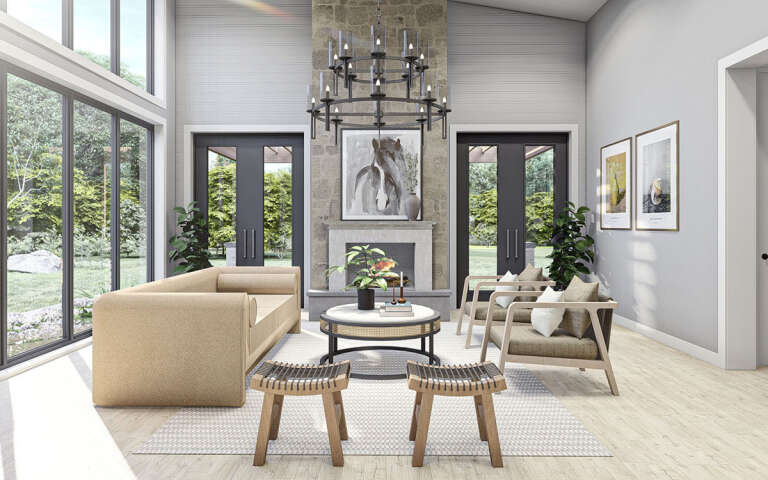

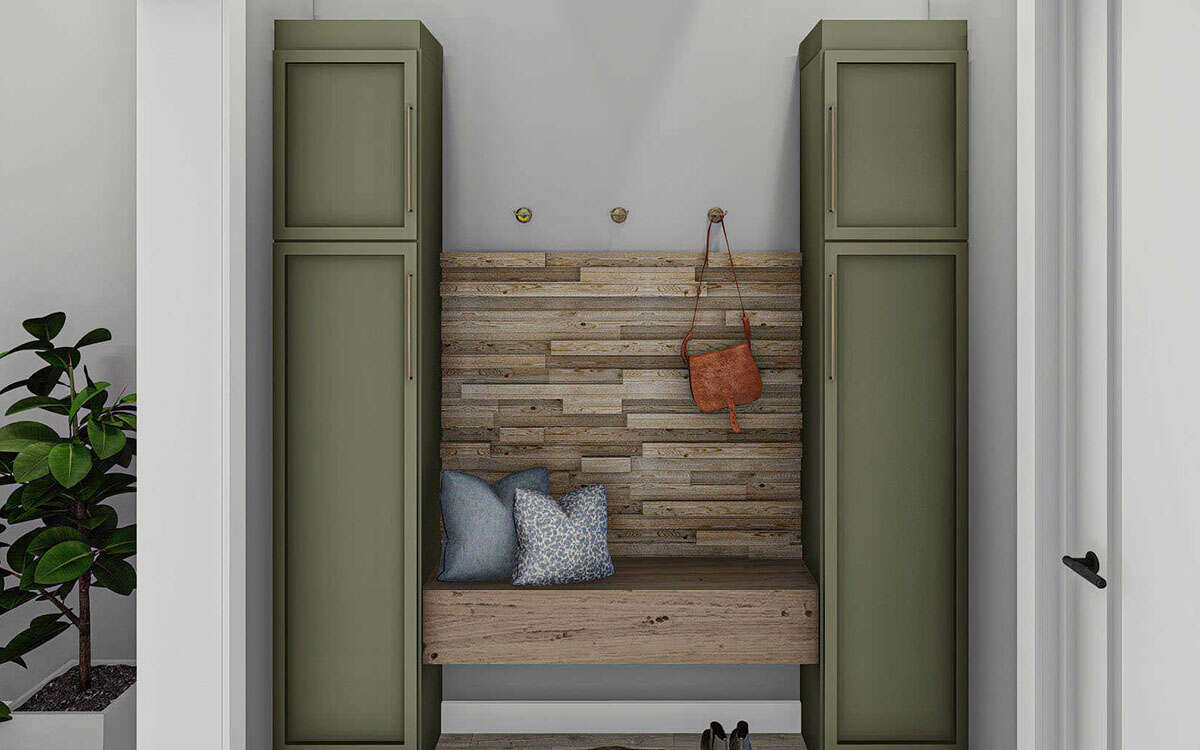

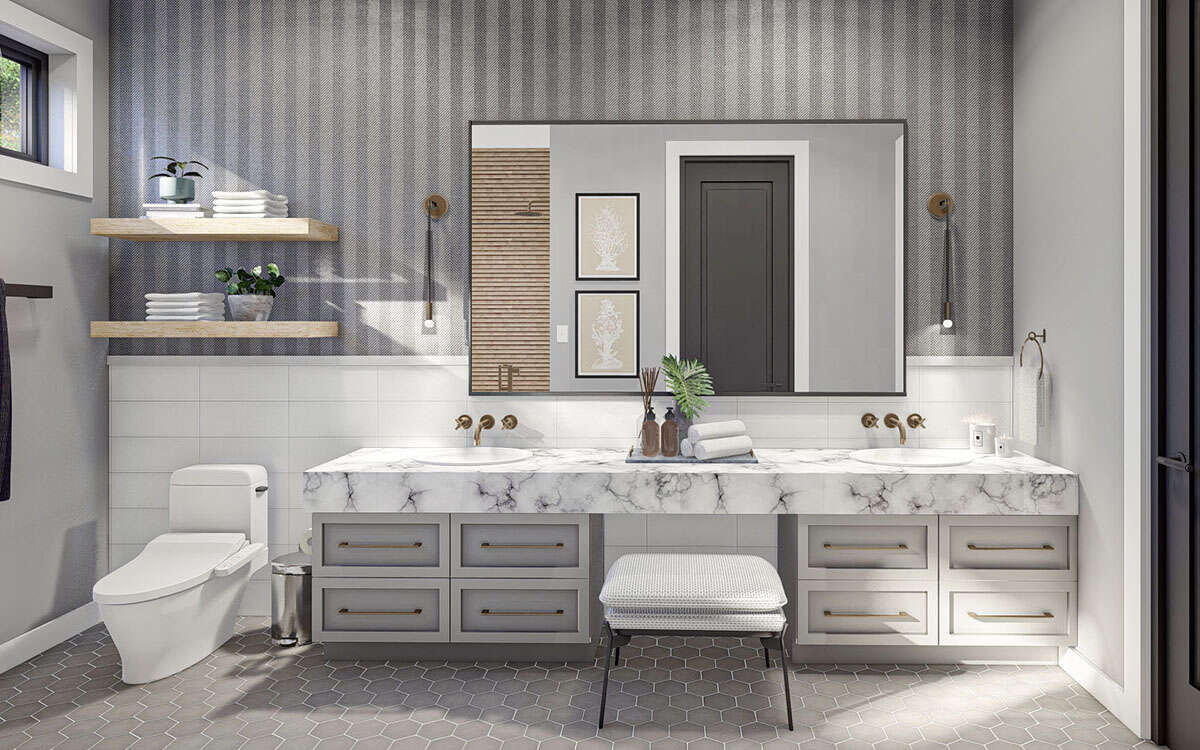

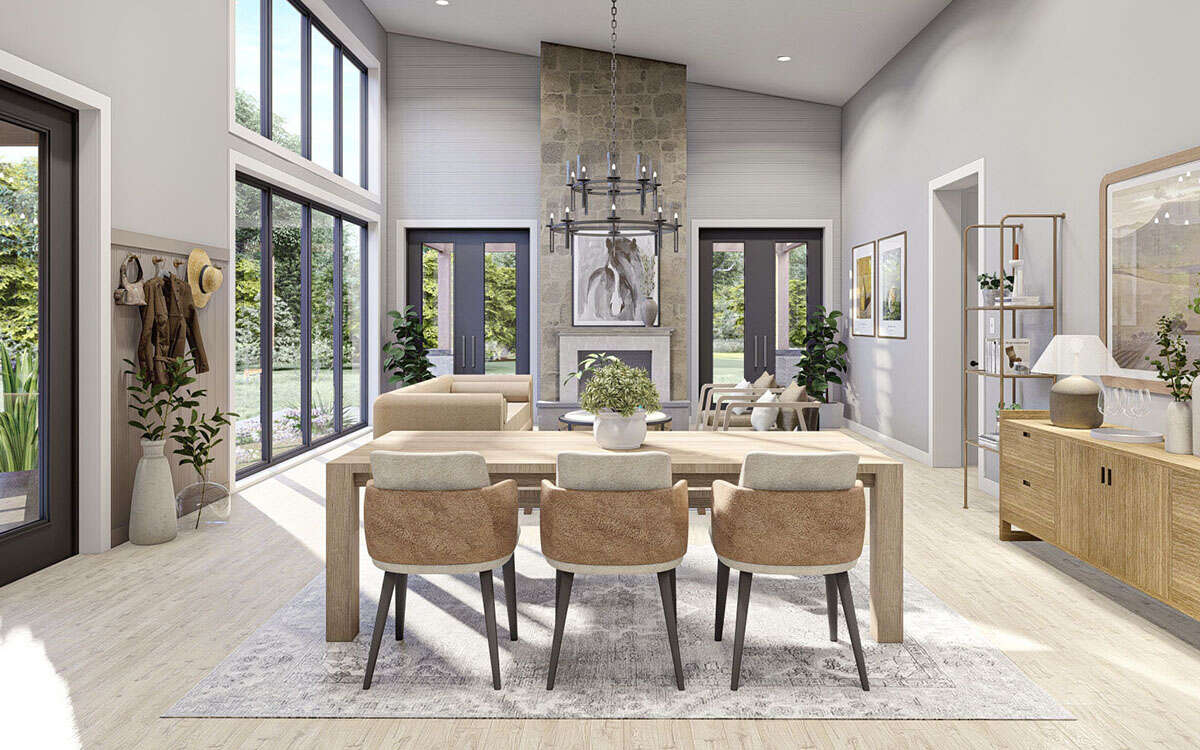

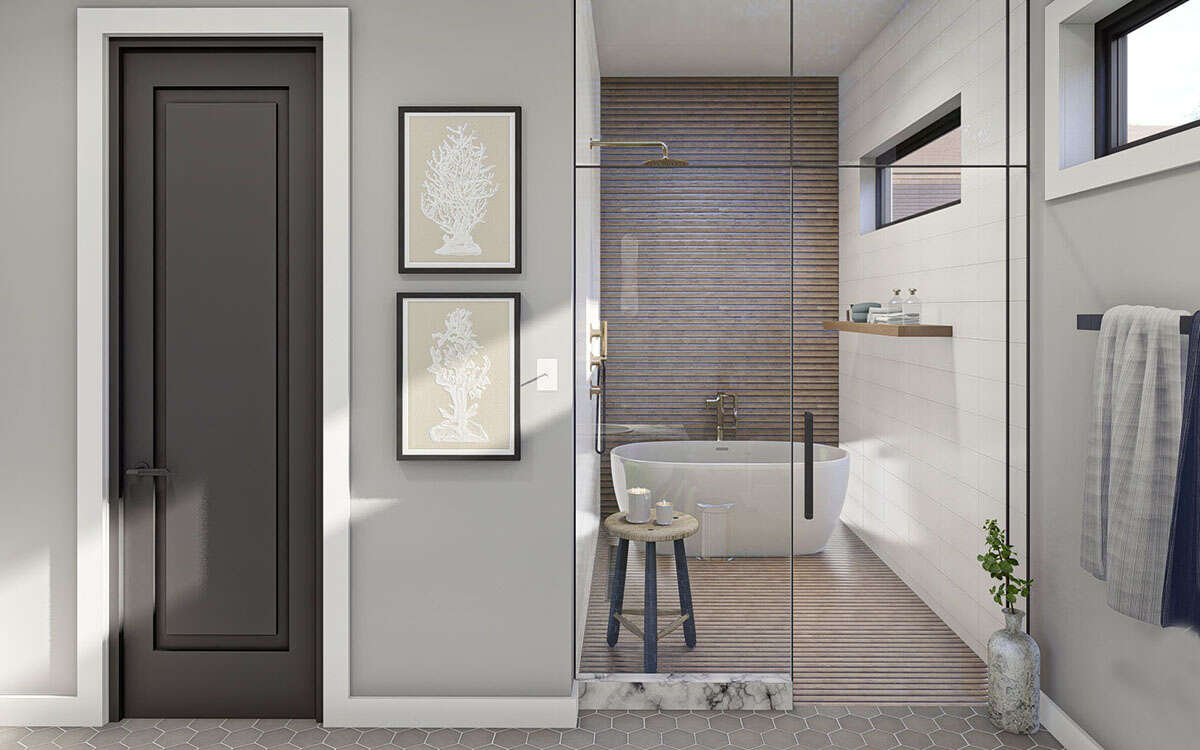

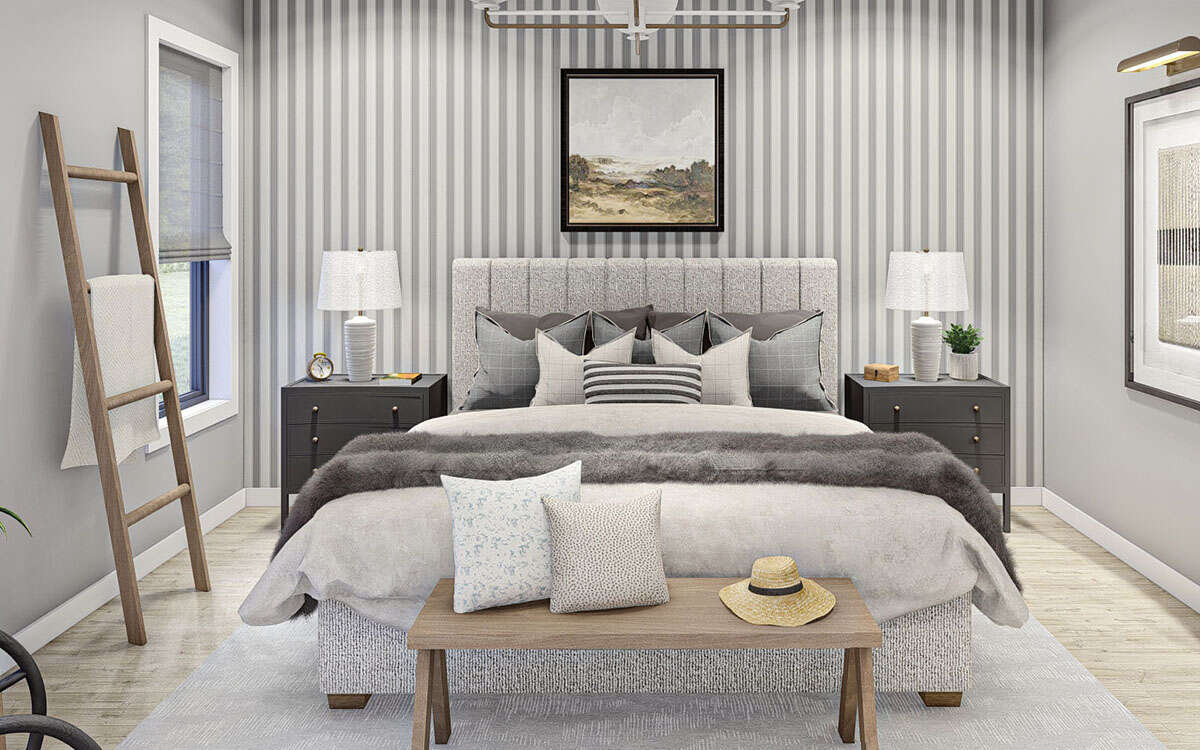

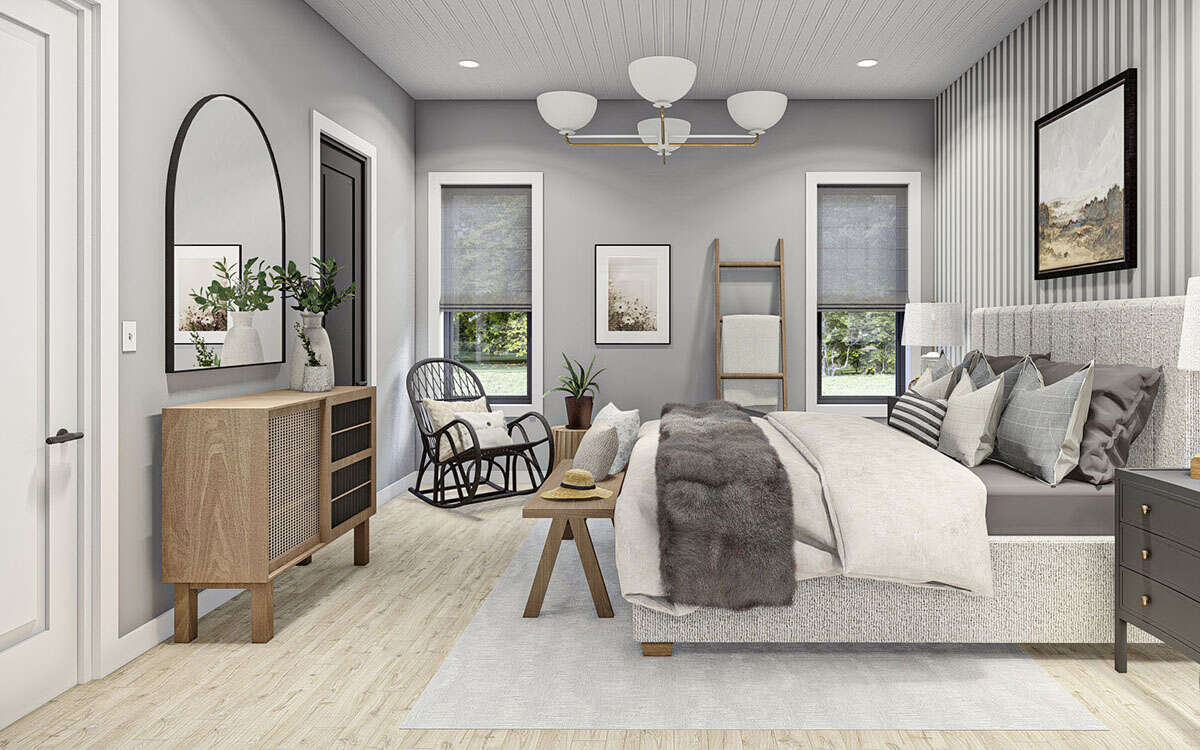

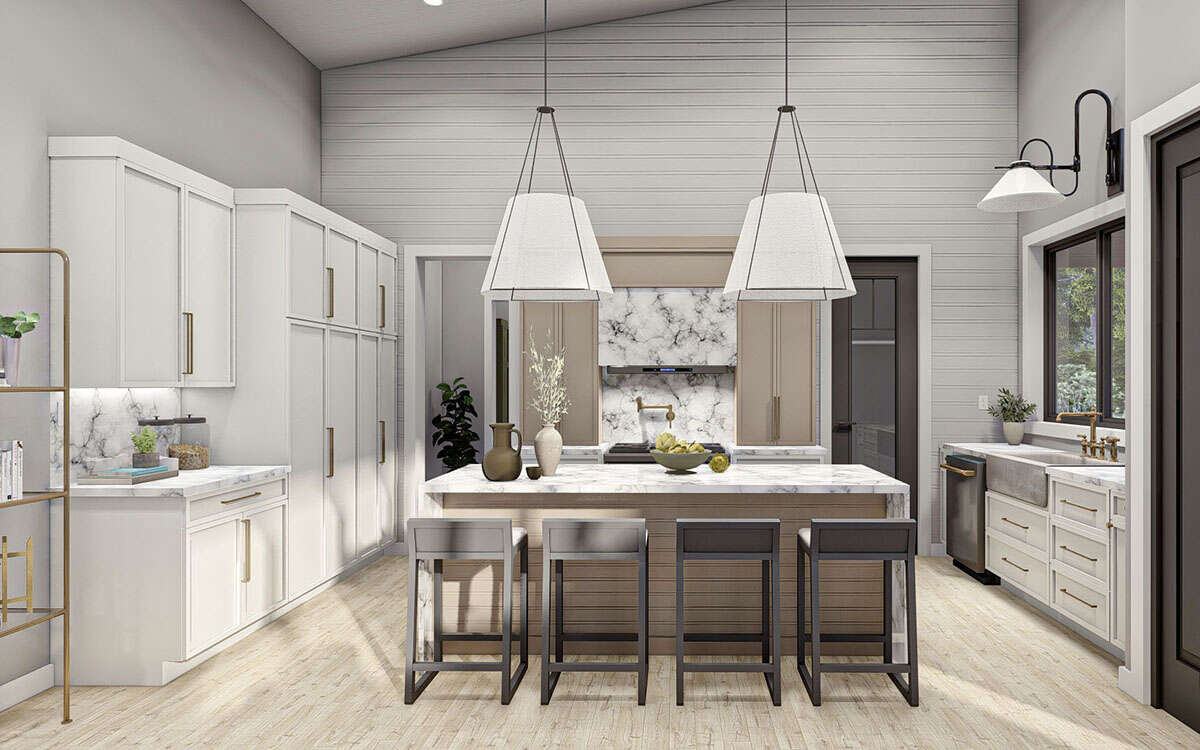

The interior plan features approximately 1,982 square feet of living space with four bedrooms and two baths. Front entrance into the open floor plan highlights the dining room, kitchen and great room. The dining room is situated between the kitchen and great room; all three enjoy sloped ceiling heights and plenty of space. The kitchen boasts of a large center island, a nearby pantry and loads of modern conveniences. The great room is a large space with a warming fireplace and double French doors leading onto the covered patio. This is a great plan for the melding of interior and exterior entertaining space to generously host family and friends. The mudroom and utility room are located close to the garage for a tidy home environment. The fourth bedroom is located at the front of the home and the two other secondary bedrooms are nearby. There is a jack and jill bath between bedrooms two and three with hall bath access available for the fourth bedroom. The primary bedroom suite includes a large bedroom, a walk-in closet and an attached bathroom which features dual vanities, a toilet area and a luxurious wet room housing the shower and bathtub. This plan is a wonderful family plan with innovative design features both on the interior and exterior.
