Barn Plan 963-00665

Sq Ft 3,293
Beds 4
Bath 2
1/2 Baths 1
Car 3
Stories 2
Width 110'
Depth 64' 8"

Floorplan Drawings

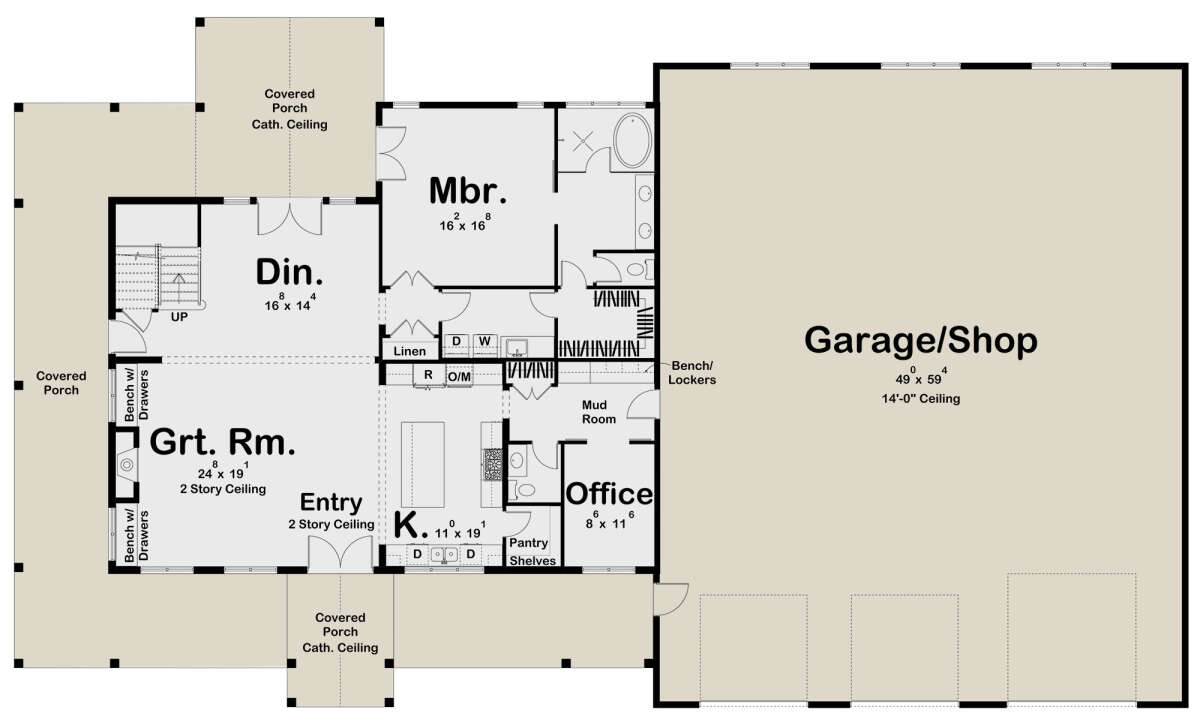

Main Floor
Main Floor  for House Plan #963-00665
Second Floor
Second Floor for House Plan #963-00665
Images copyrighted by the designer.

What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

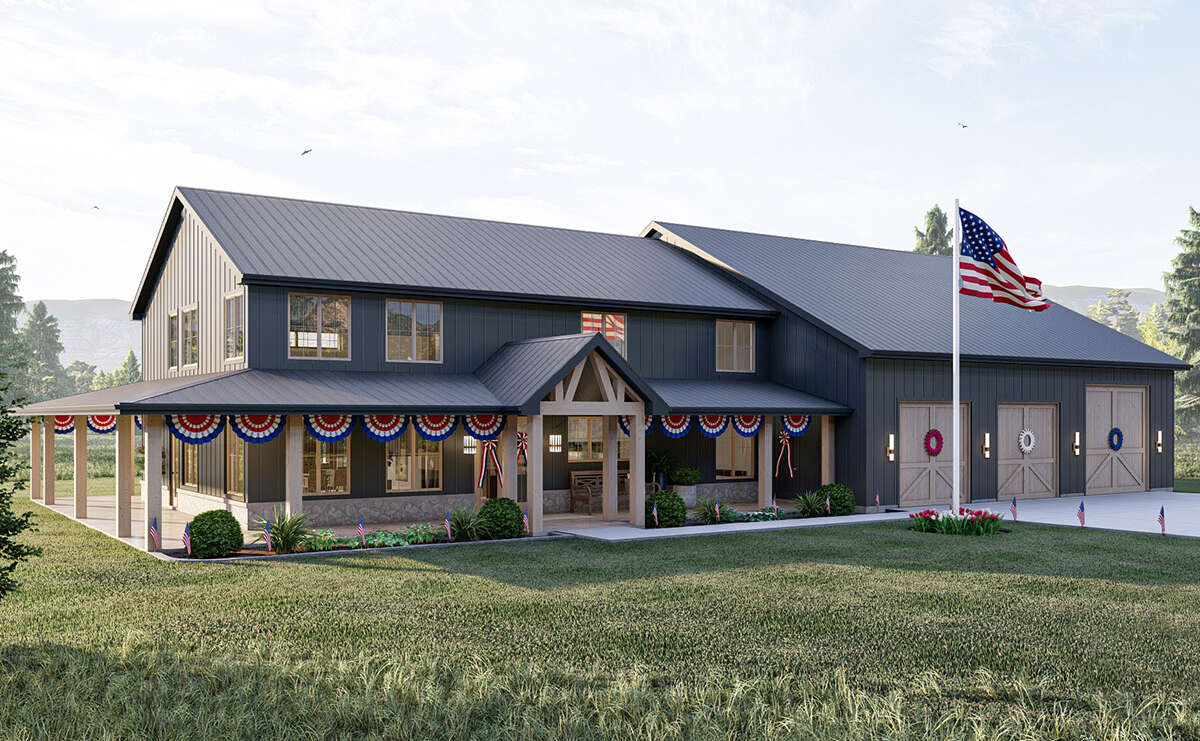

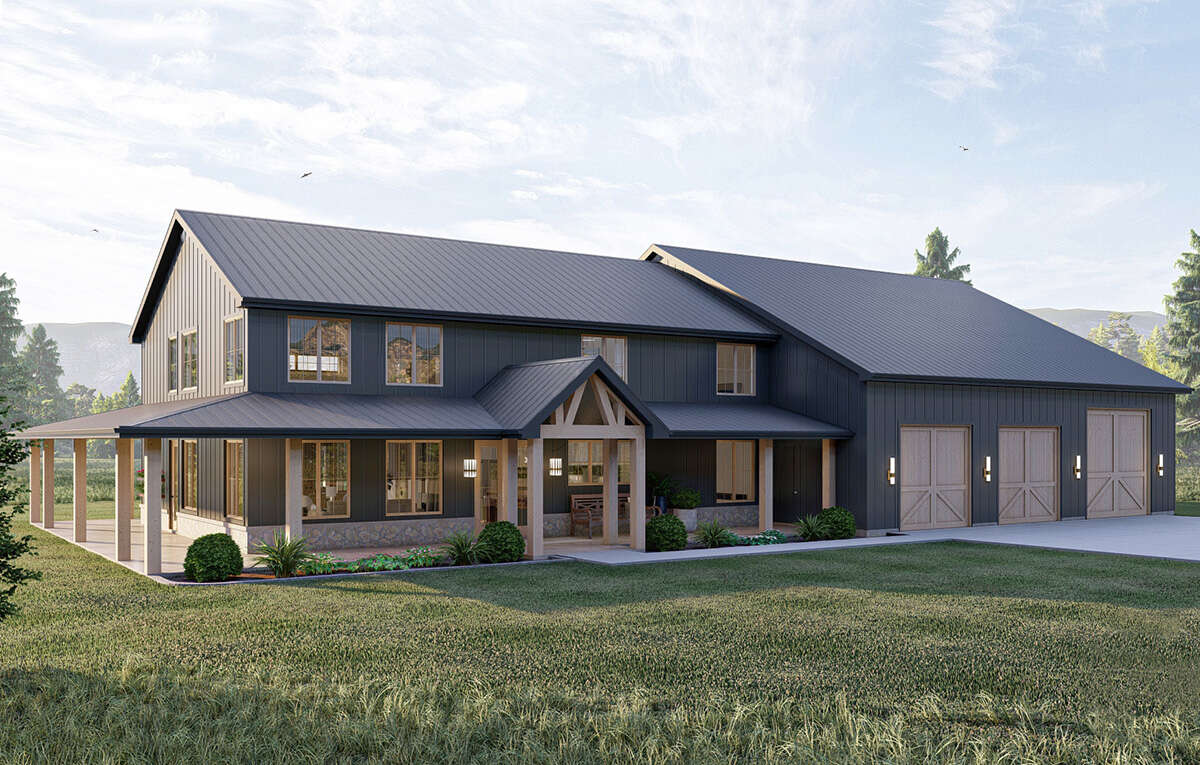

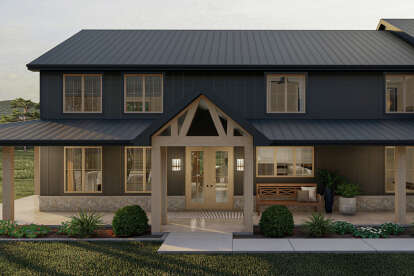

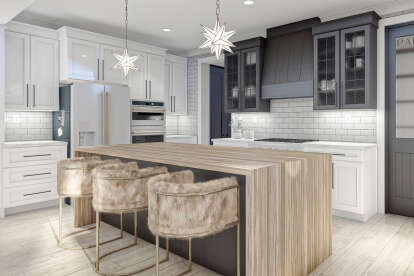

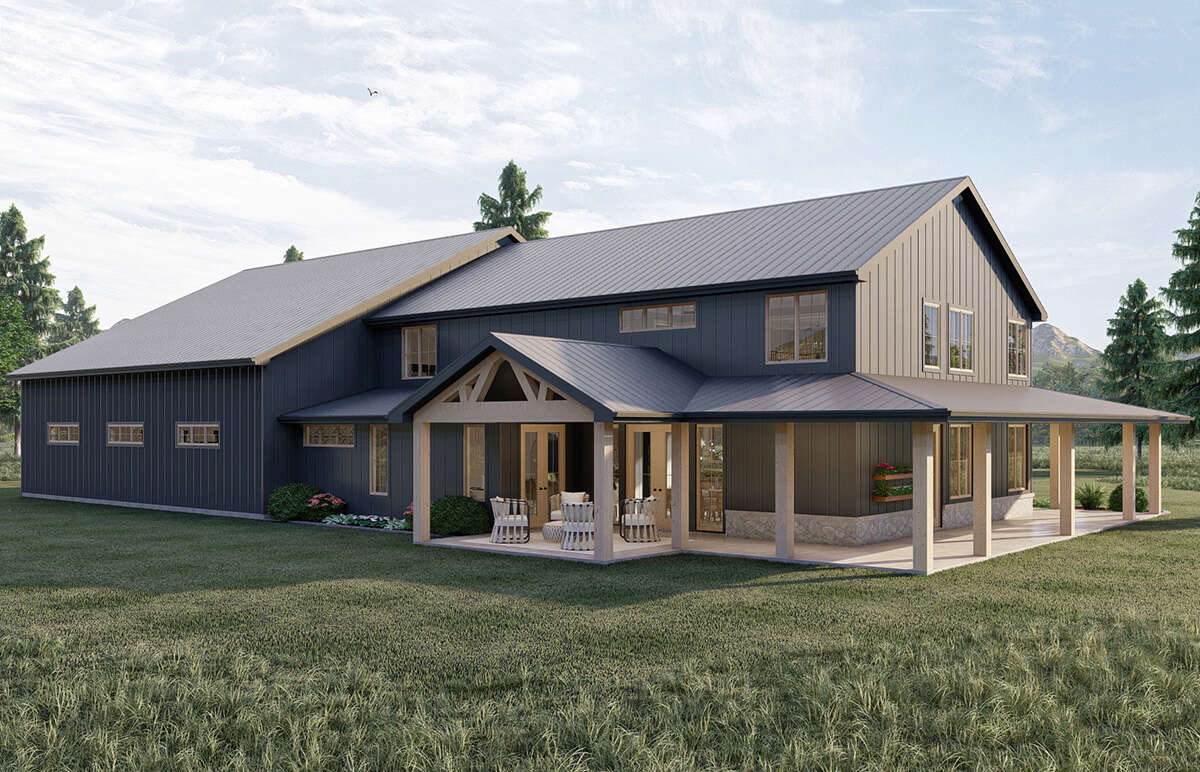

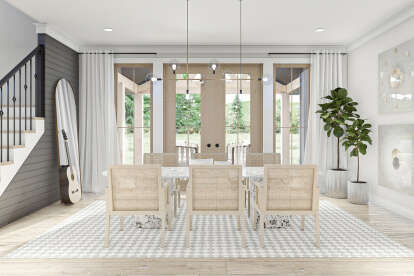

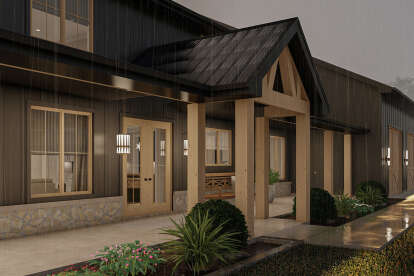

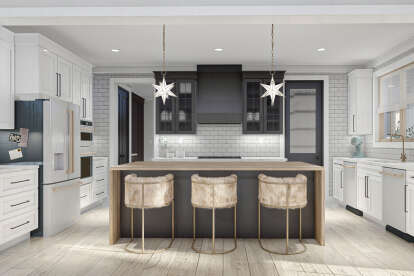

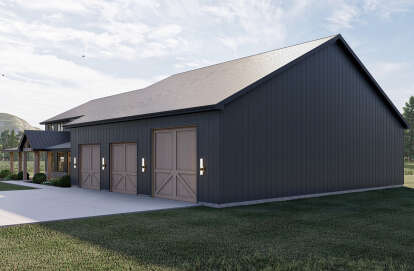

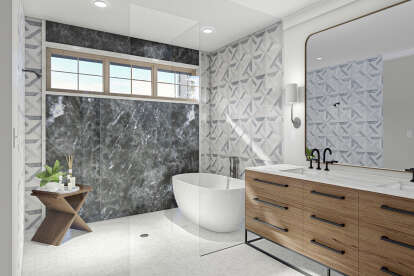

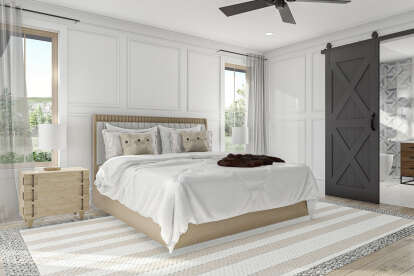

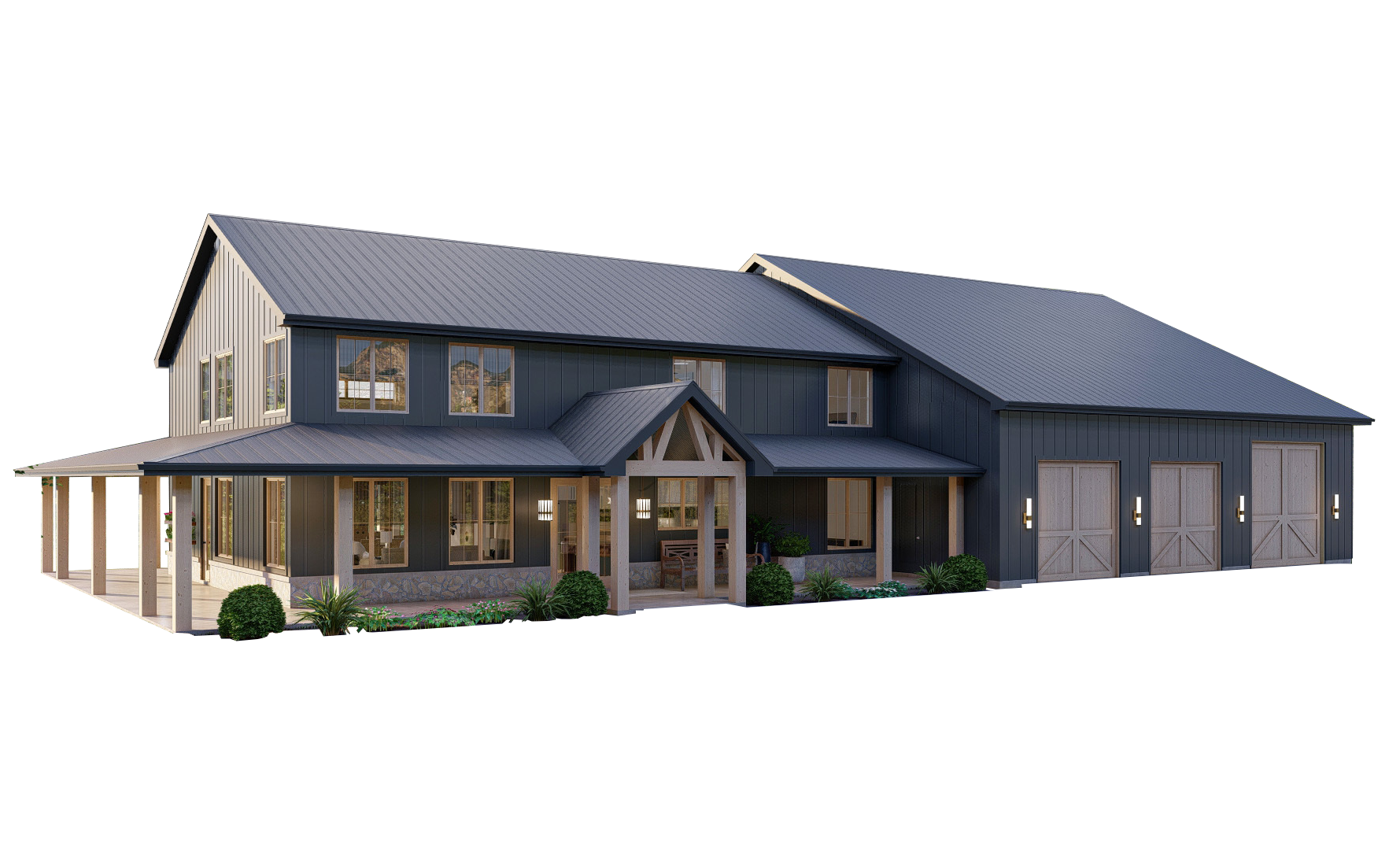

This stunning Barndominium house plan features a substantial exterior with loads of board and batten, a multitude of beams, an overhead open gable, great window views and a strong roofline. The front covered porch extends to the left side and rear of the home offering lots of opportunities for outdoor dining, entertaining and just lazing around. The front 2 story entrance into the home is matched with a 2 story ceiling in the great room along with built-in cabinetry and a warming fireplace. There is an attached open kitchen with a luxuriously large island and the equally spacious dining room is at the rear of the space with a set of French doors leading to the rear section of the covered porch. The oversized garage/shop is enormous, measuring in excess of 49’ x 59’ with 14’ ceiling heights; perfect for an RV, warehouse work-at-home space, vehicle space and anything you could imagine might be housed in this space. The mudroom is located straight off the garage along with an office, pantry and around the corner utility room. The main floor primary suite features private exit onto the rear covered porch as well and there is a large walk-in closet and ensuite bath with a water/wet room.

Upstairs is a loft, the mechanical room and three additional bedrooms and a bath. The auxiliary bedrooms are identical in size, each with a window view as well as a walk-in closet. The shared bath features double vanities and an enclosed toilet/tub room with private access from the second bedroom along with hallway access. This is a great family home, full of function and form and designed for private family living as well as entertaining space.
